Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

9 part groups · 3 illustrations

Illustrations

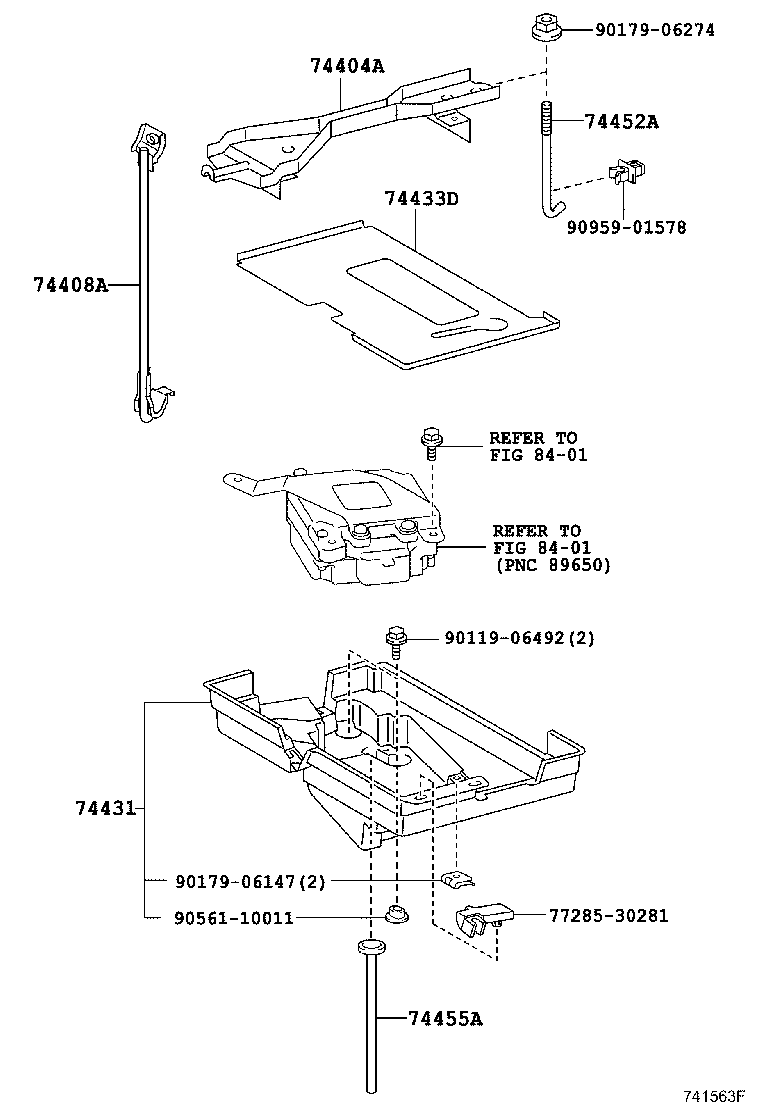

Figure 741561E 741561E 2005-01 → — Figure 741563F 741563F 2005-01 → — Figure 742536A 742536A 2006-07 → 2010-07

Part groups

PNCDescription
74404A Clamp Sub-assy, Battery
74404B Clamp Sub-assy, Battery
74408A Bolt Sub-assy, Battery Clamp, NO.2
74431 Tray, Battery
74432 Tray, Battery, NO.2
74433D Support, Battery Tray,NO.1
74452A Bolt, Battery Clamp, NO.2
74452B Bolt, Battery Clamp, NO.2
74455A Hose, Battery Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
