Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

94 part groups · 19 illustrations

Illustrations

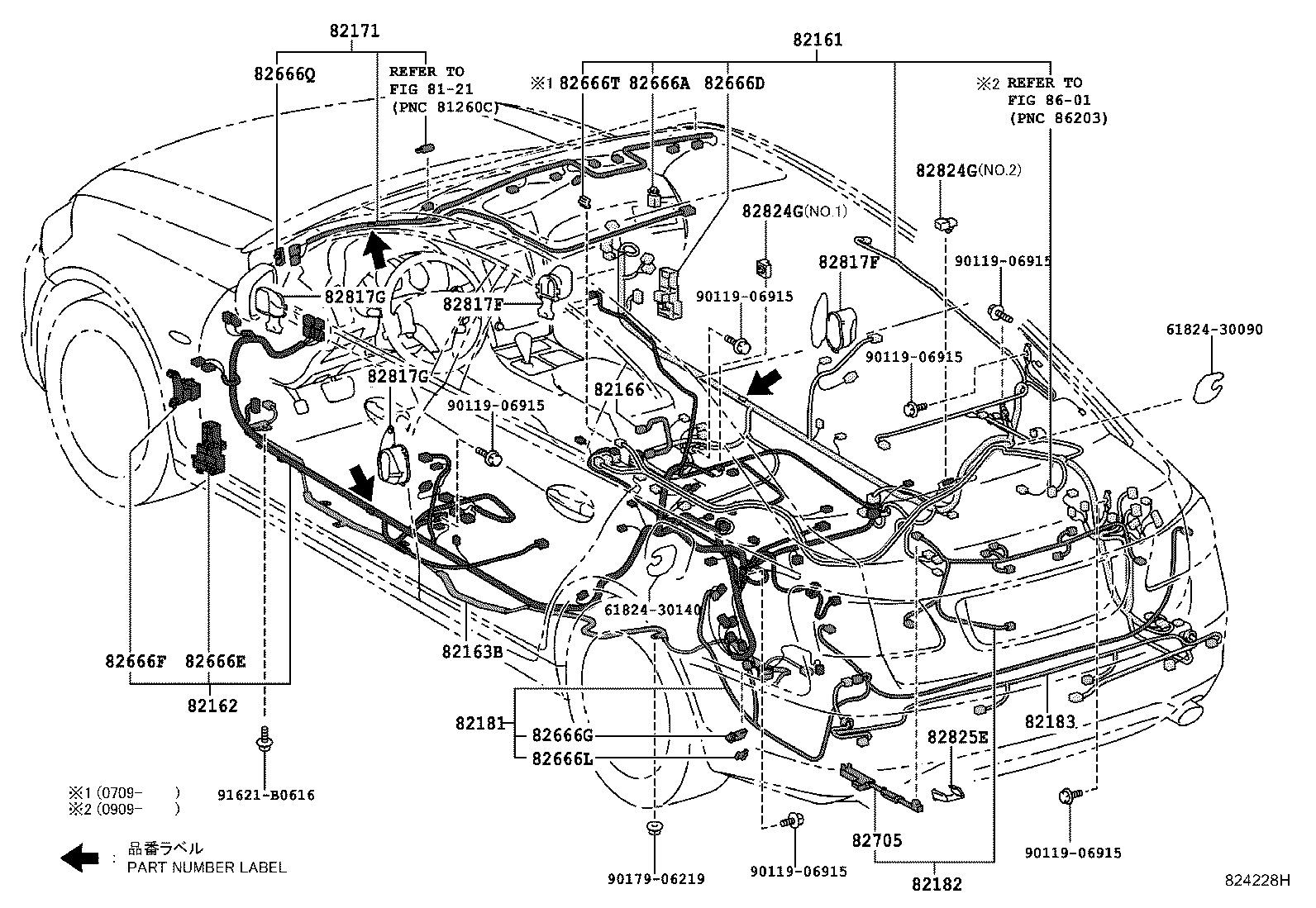

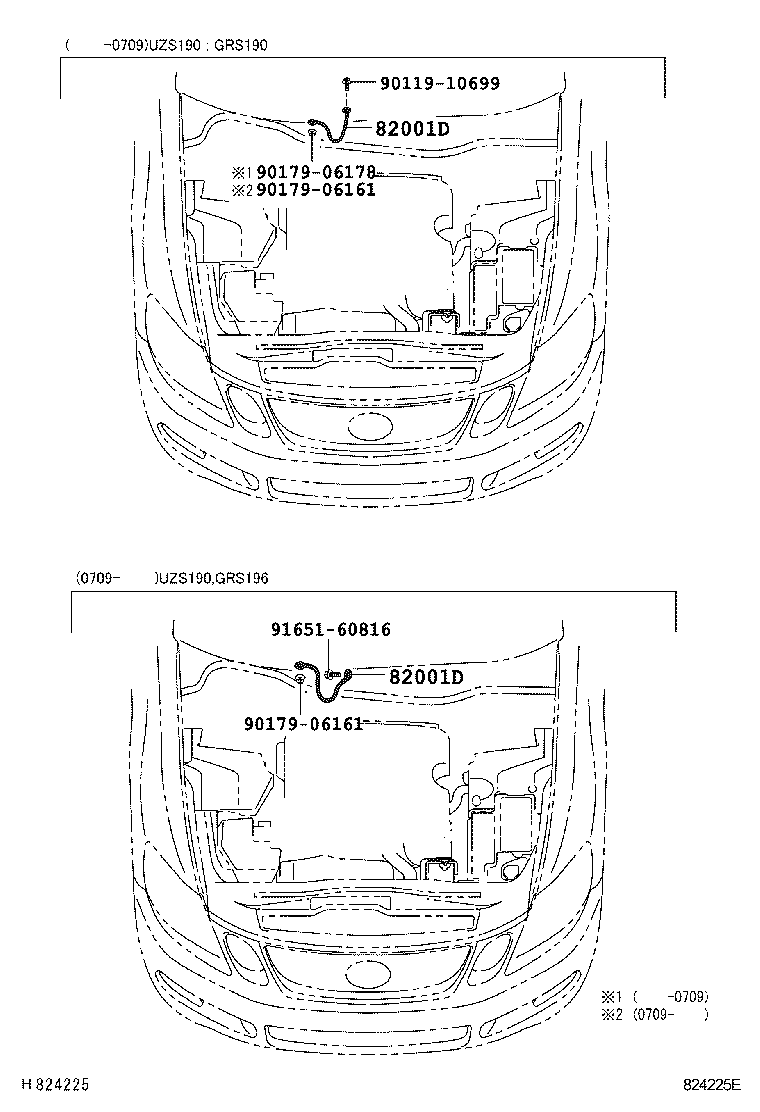

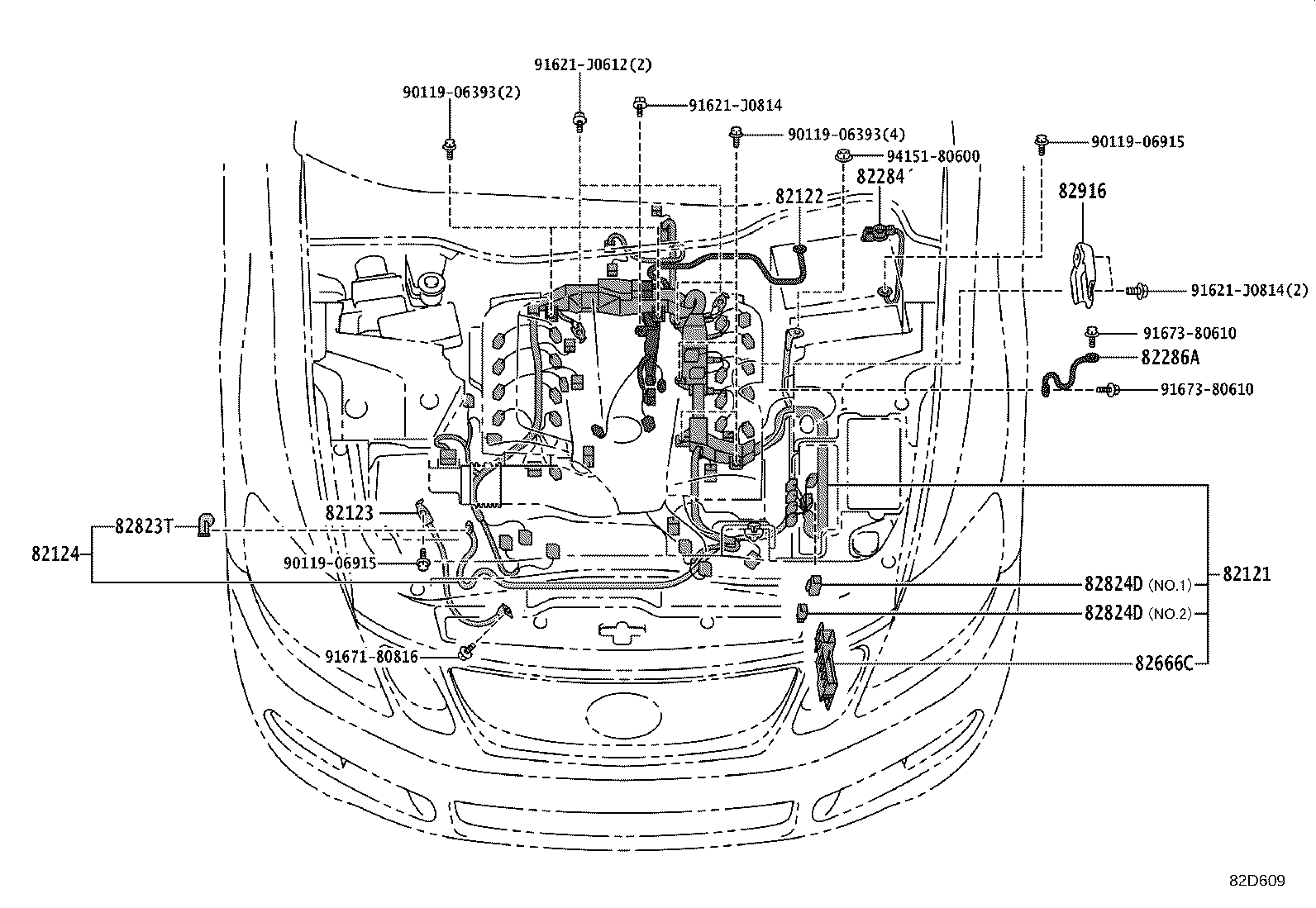

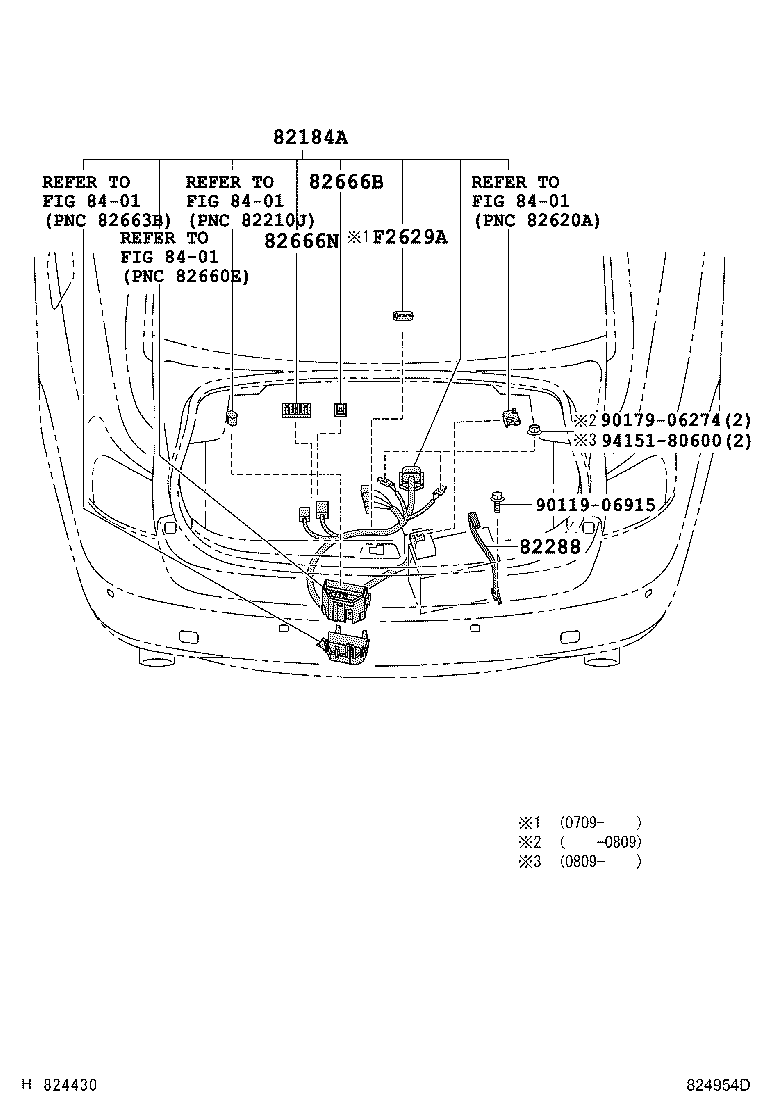

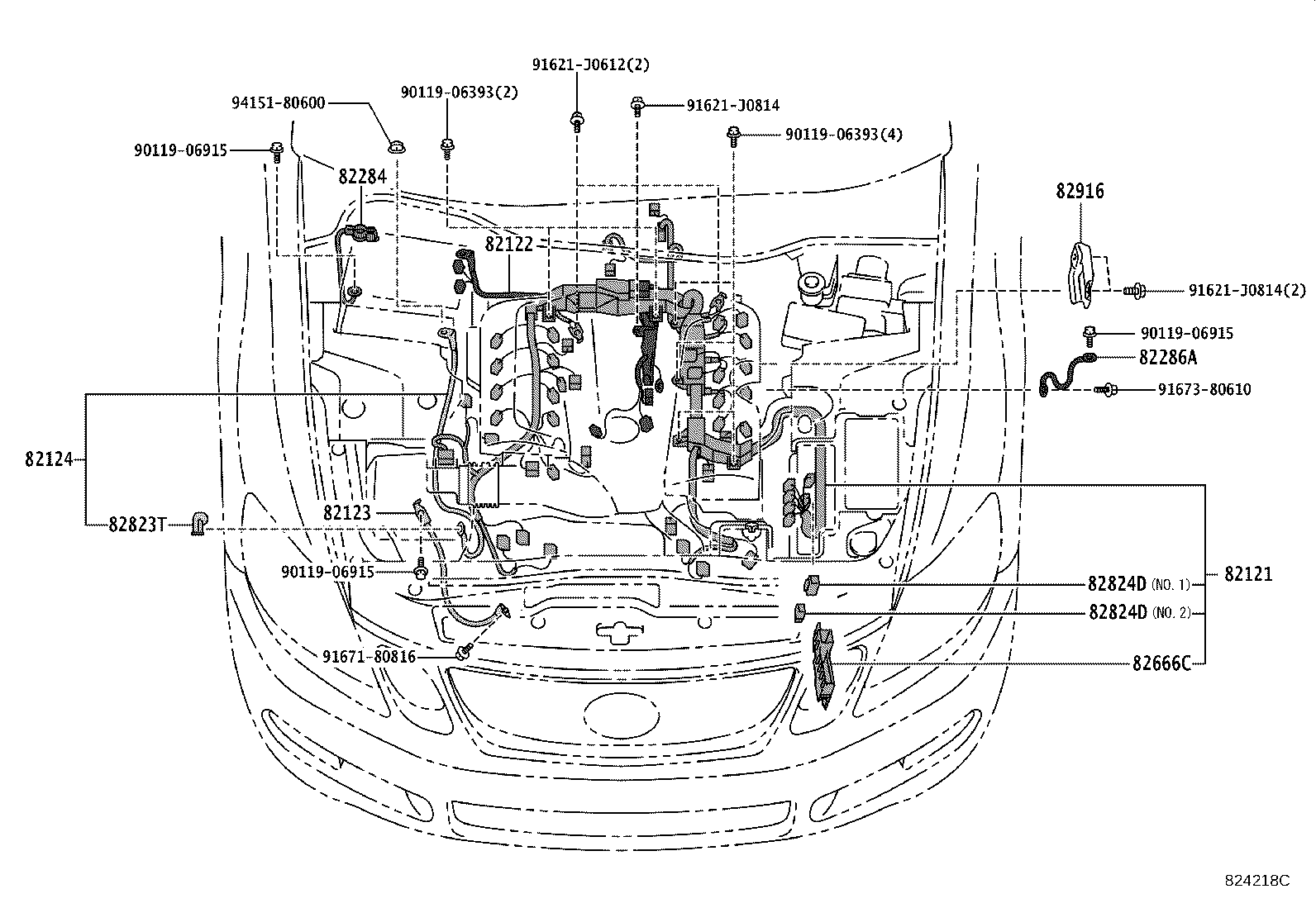

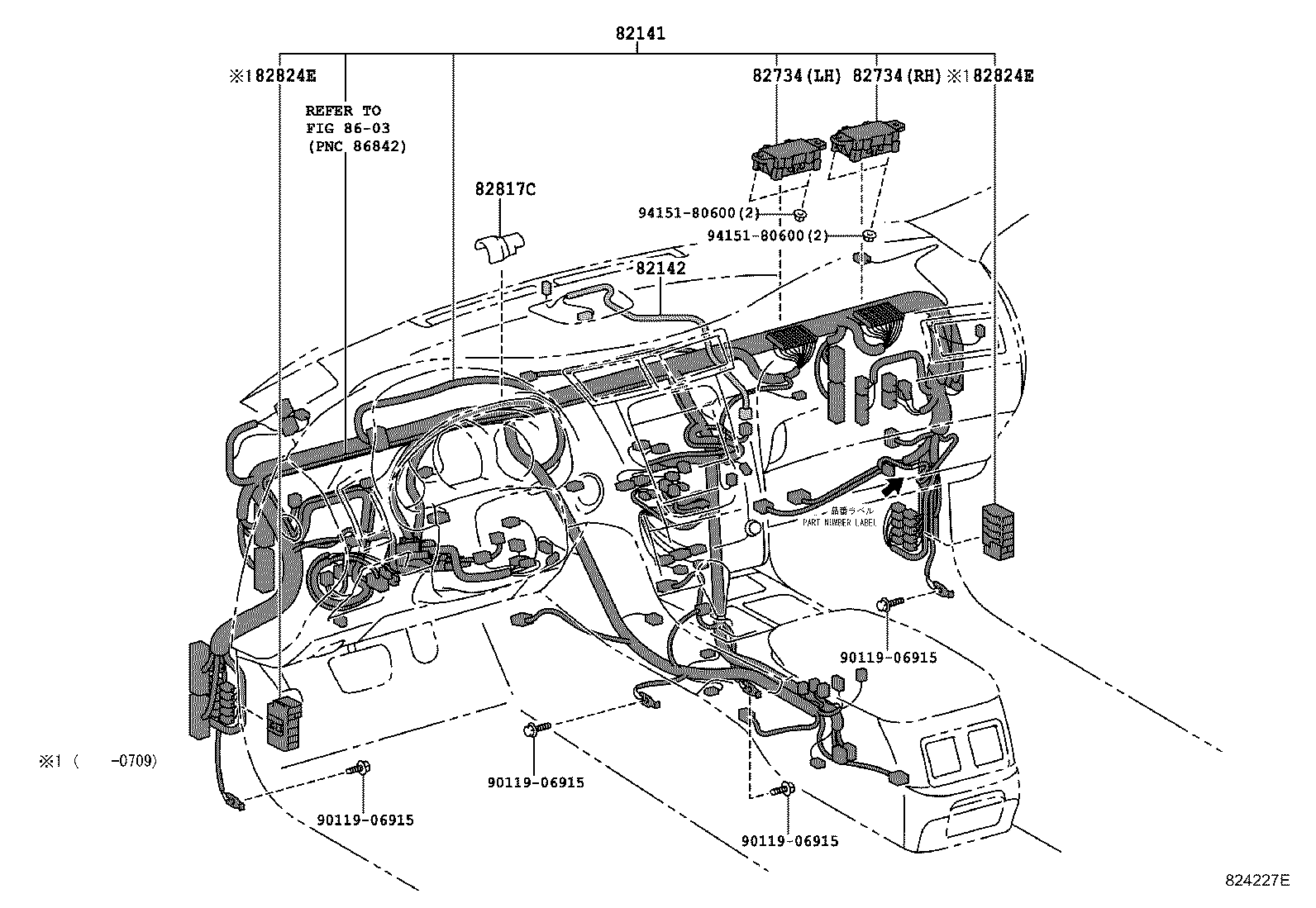

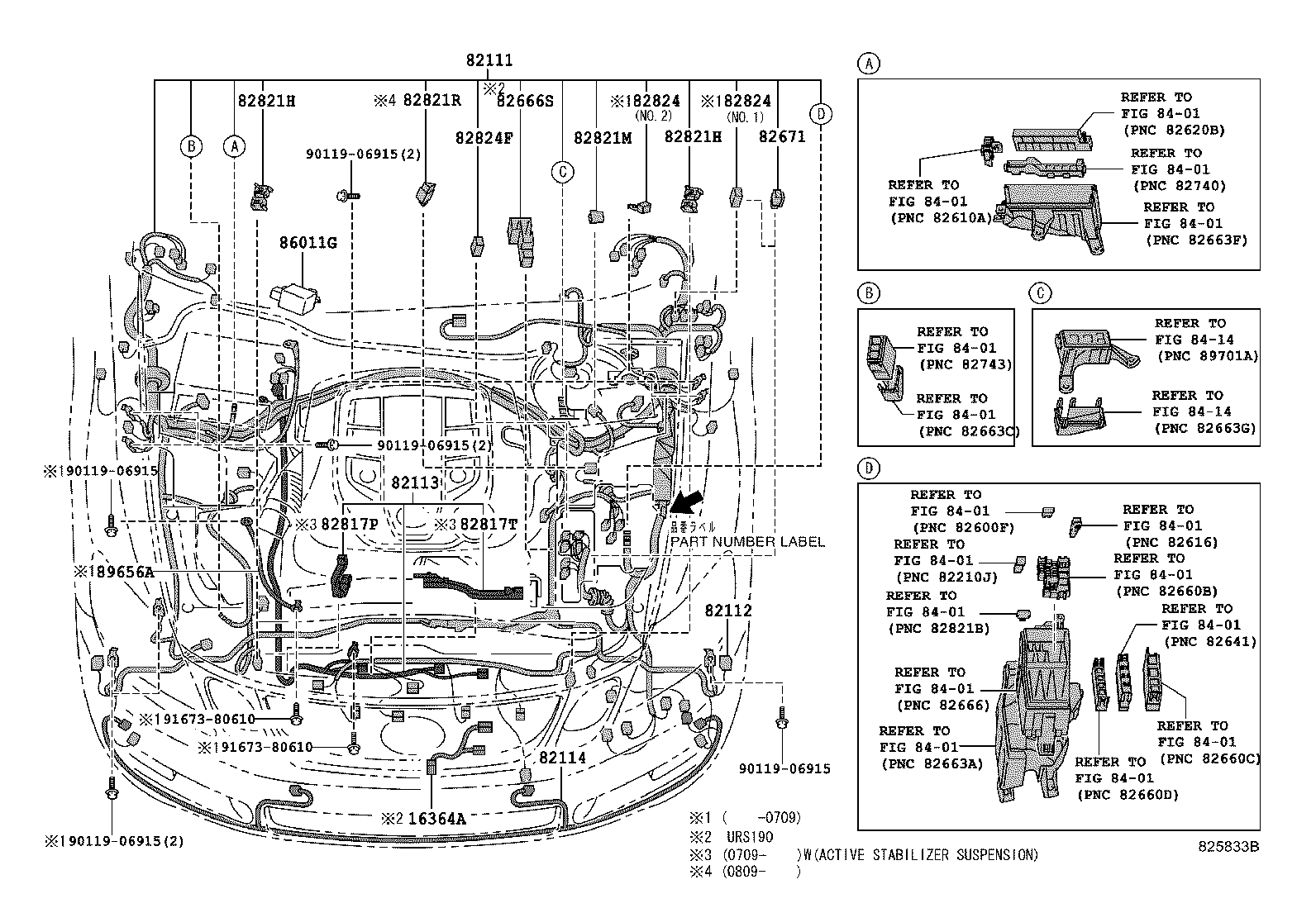

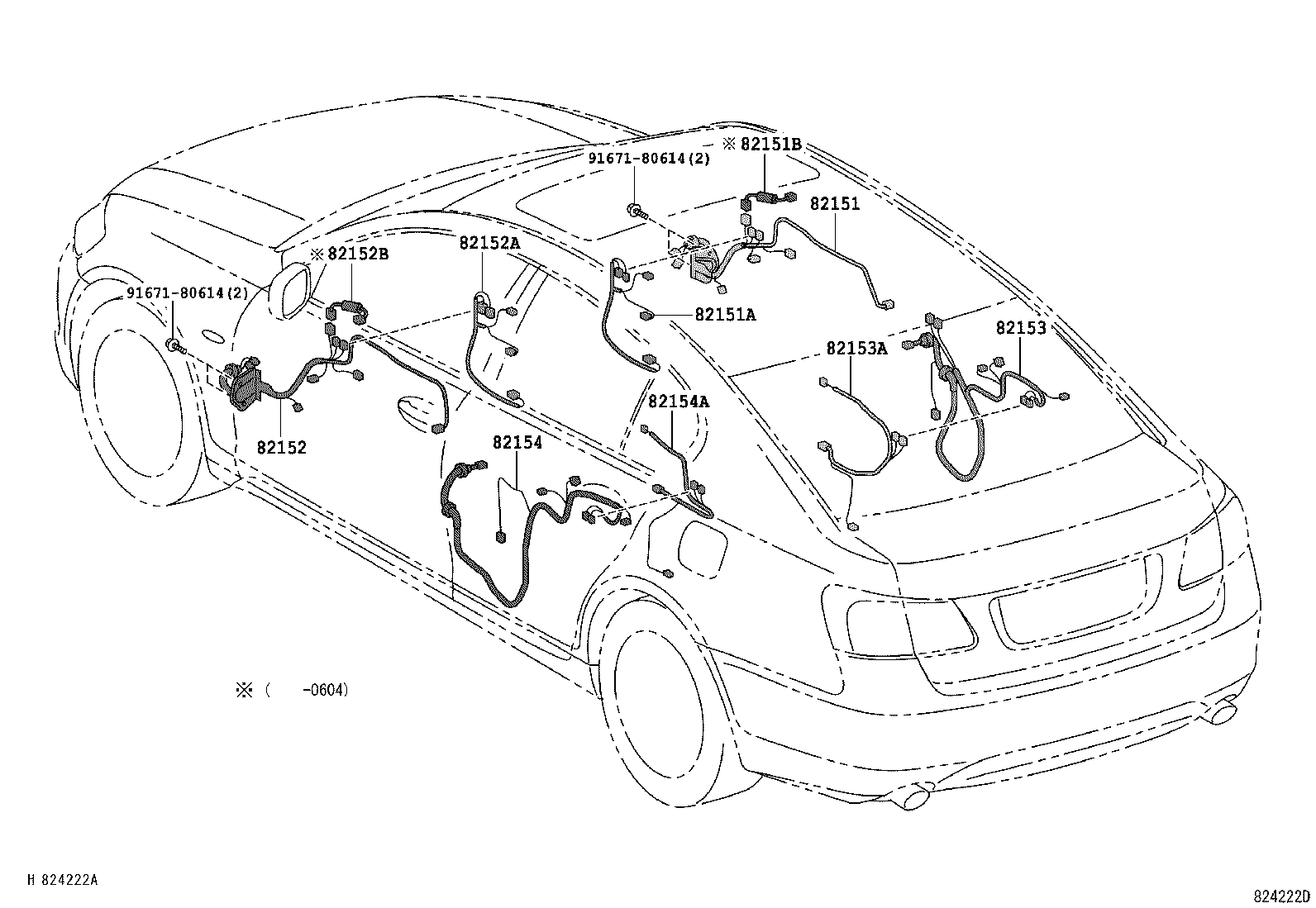

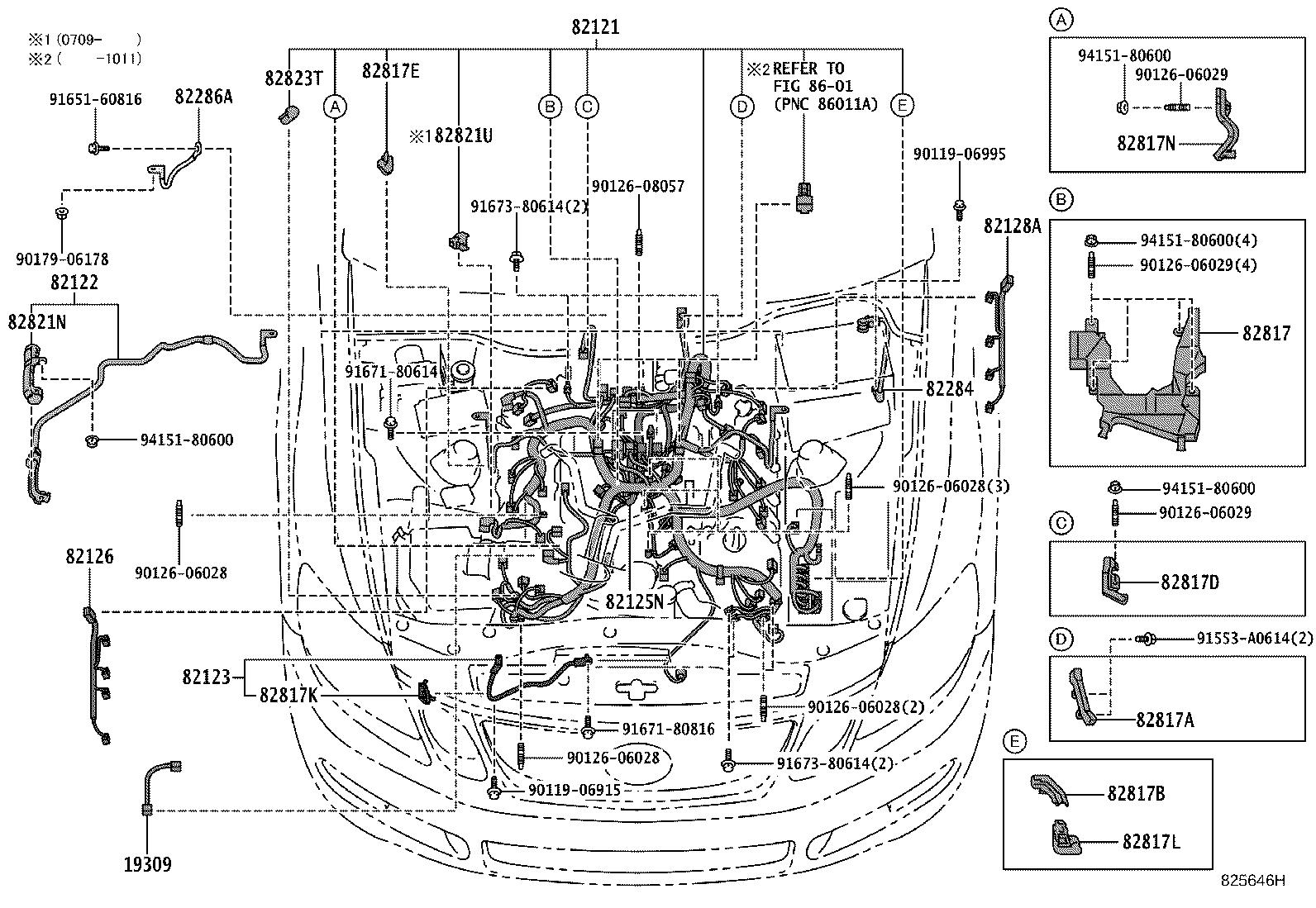

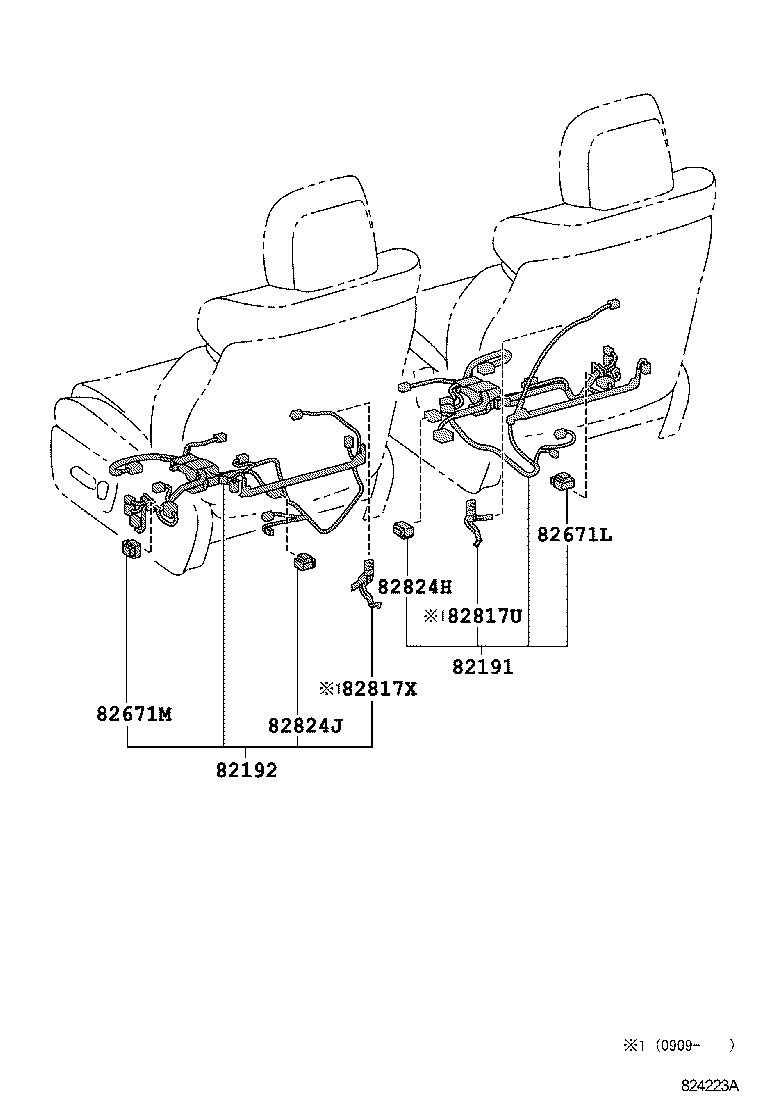

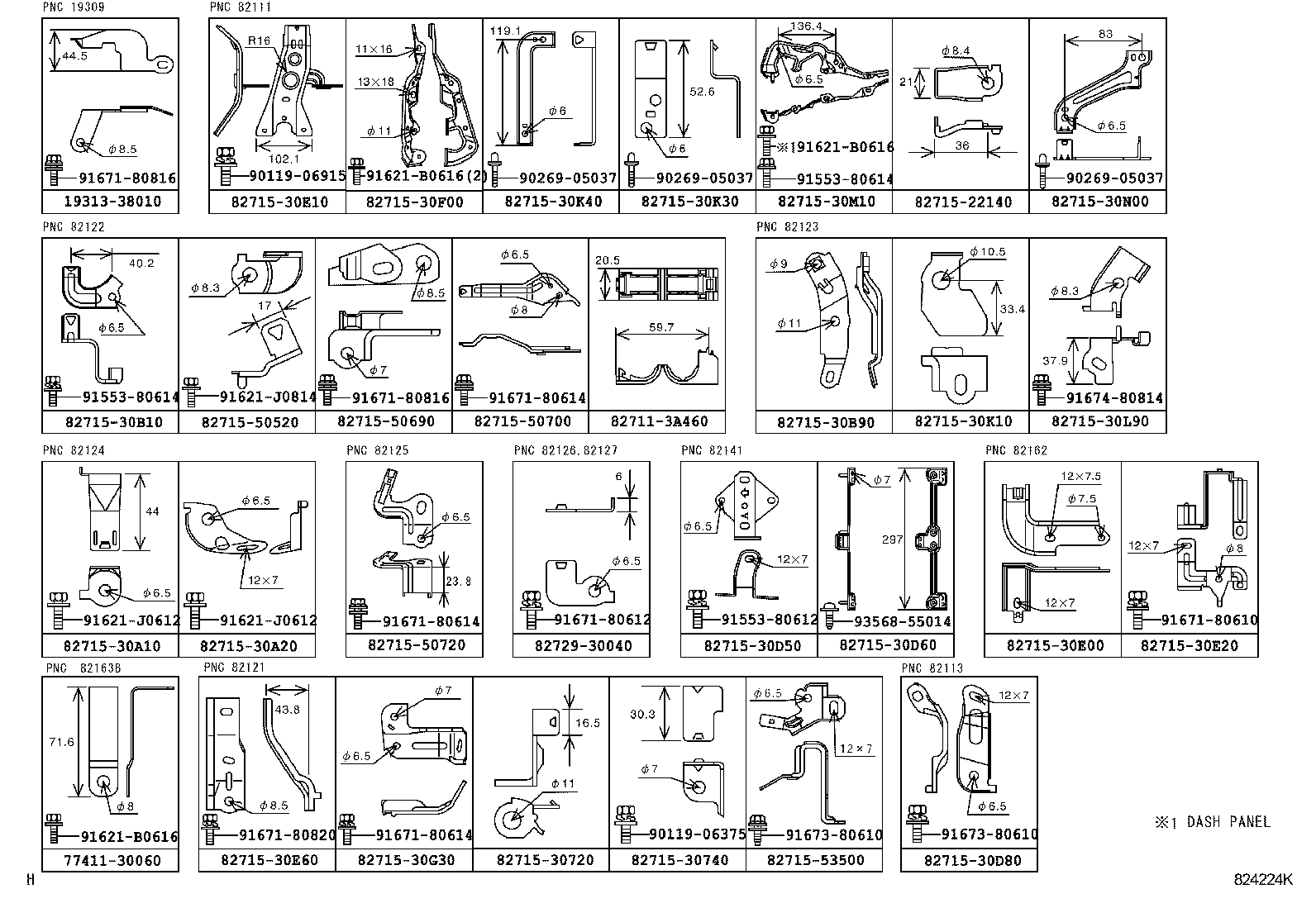

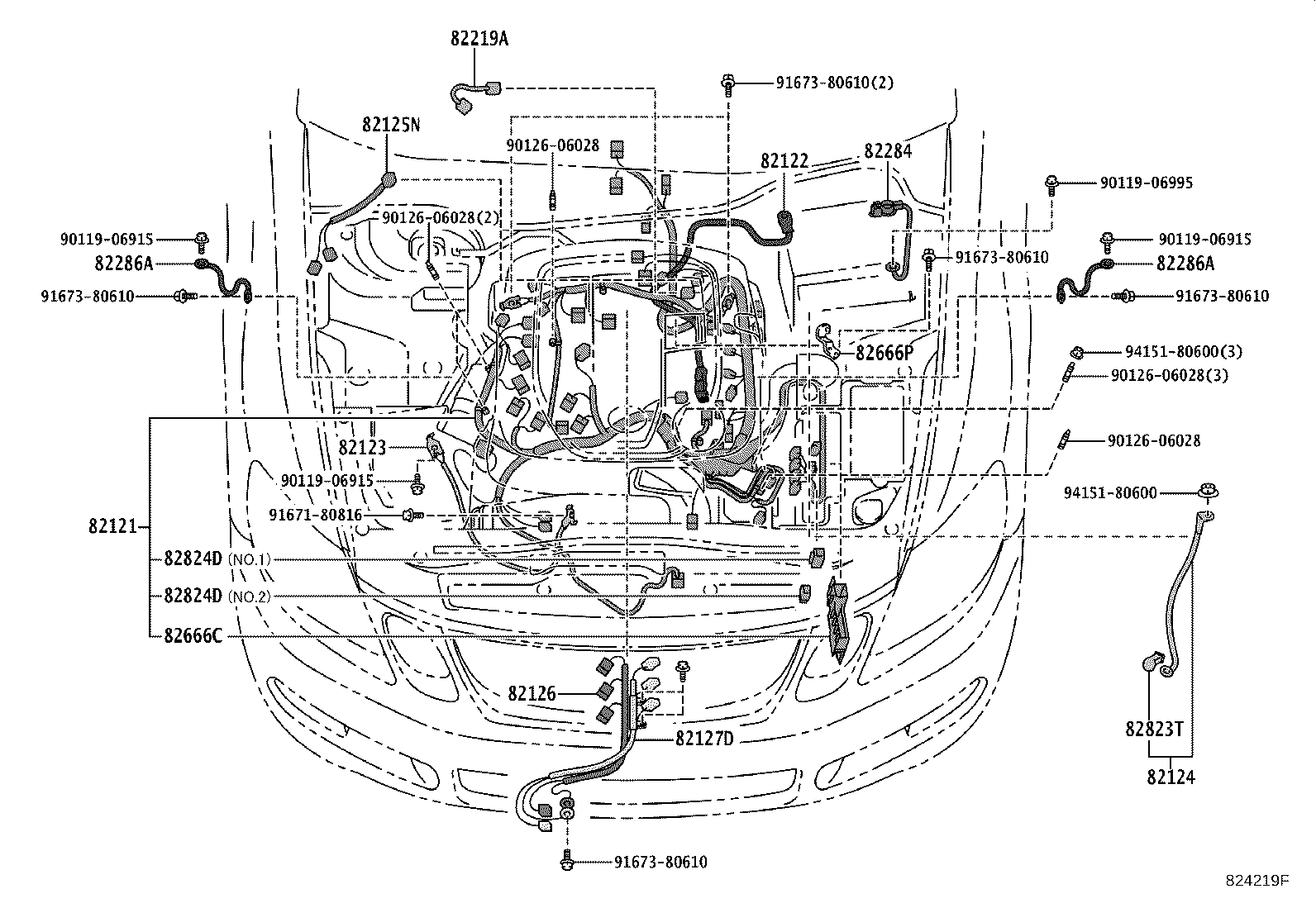

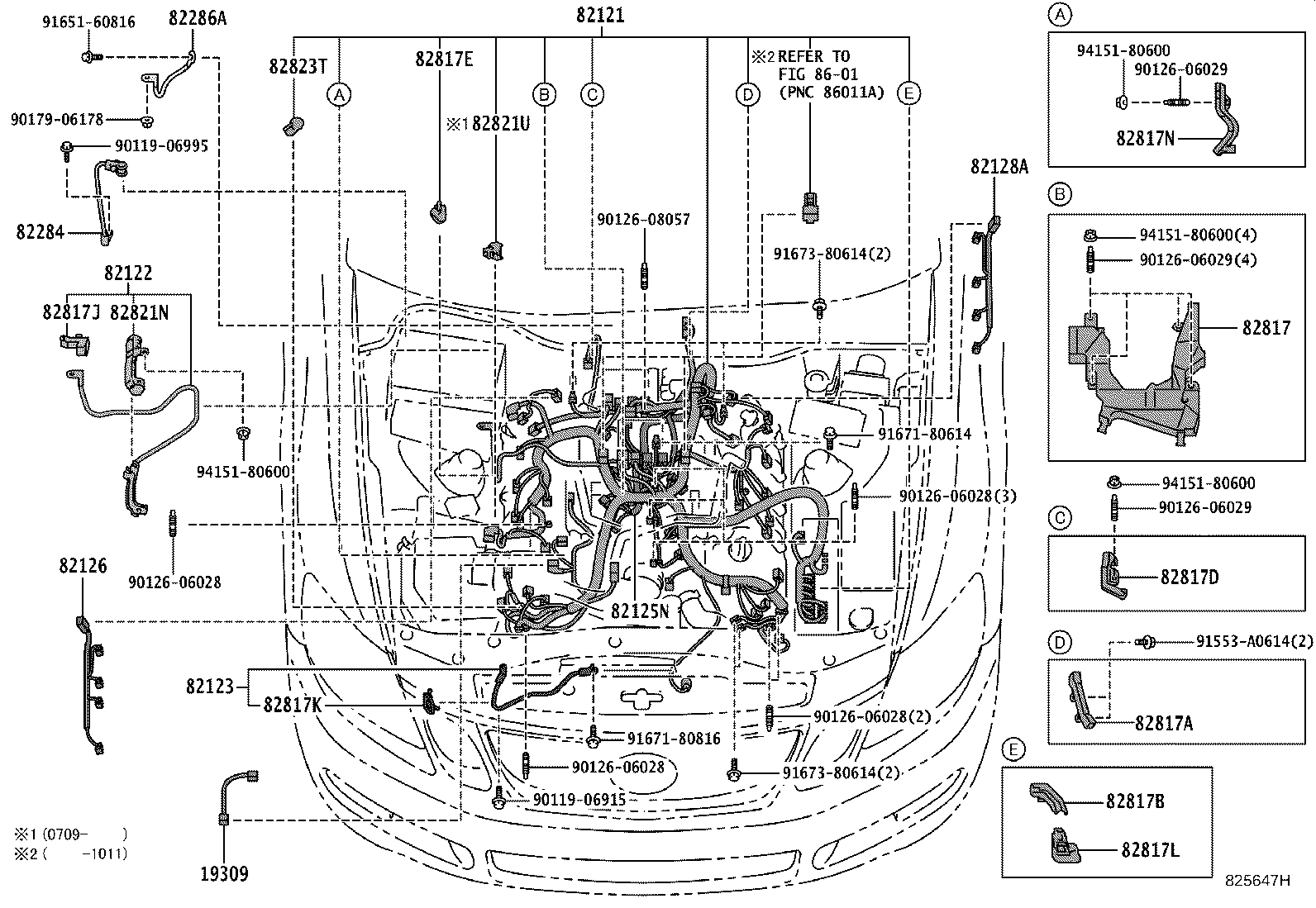

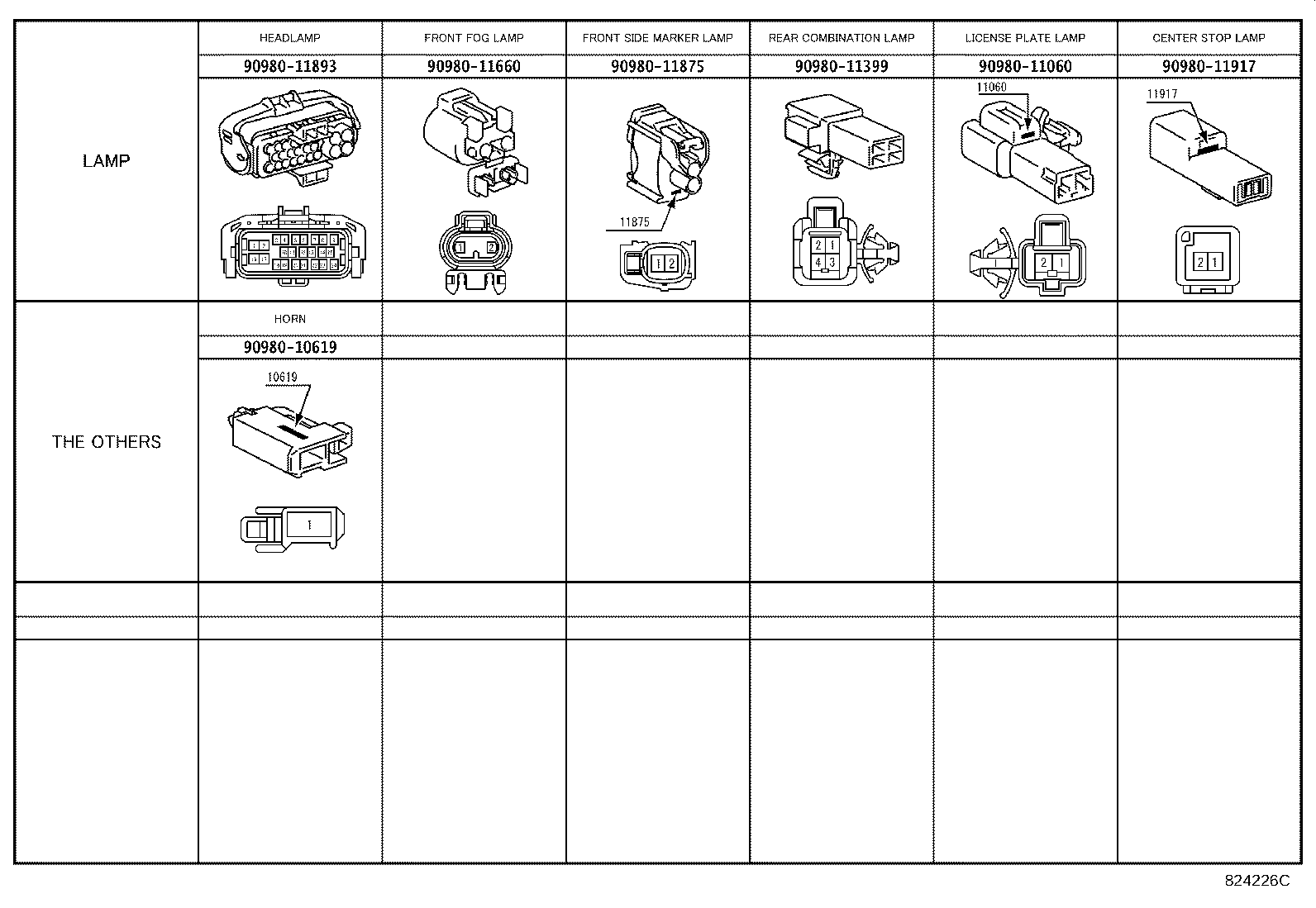

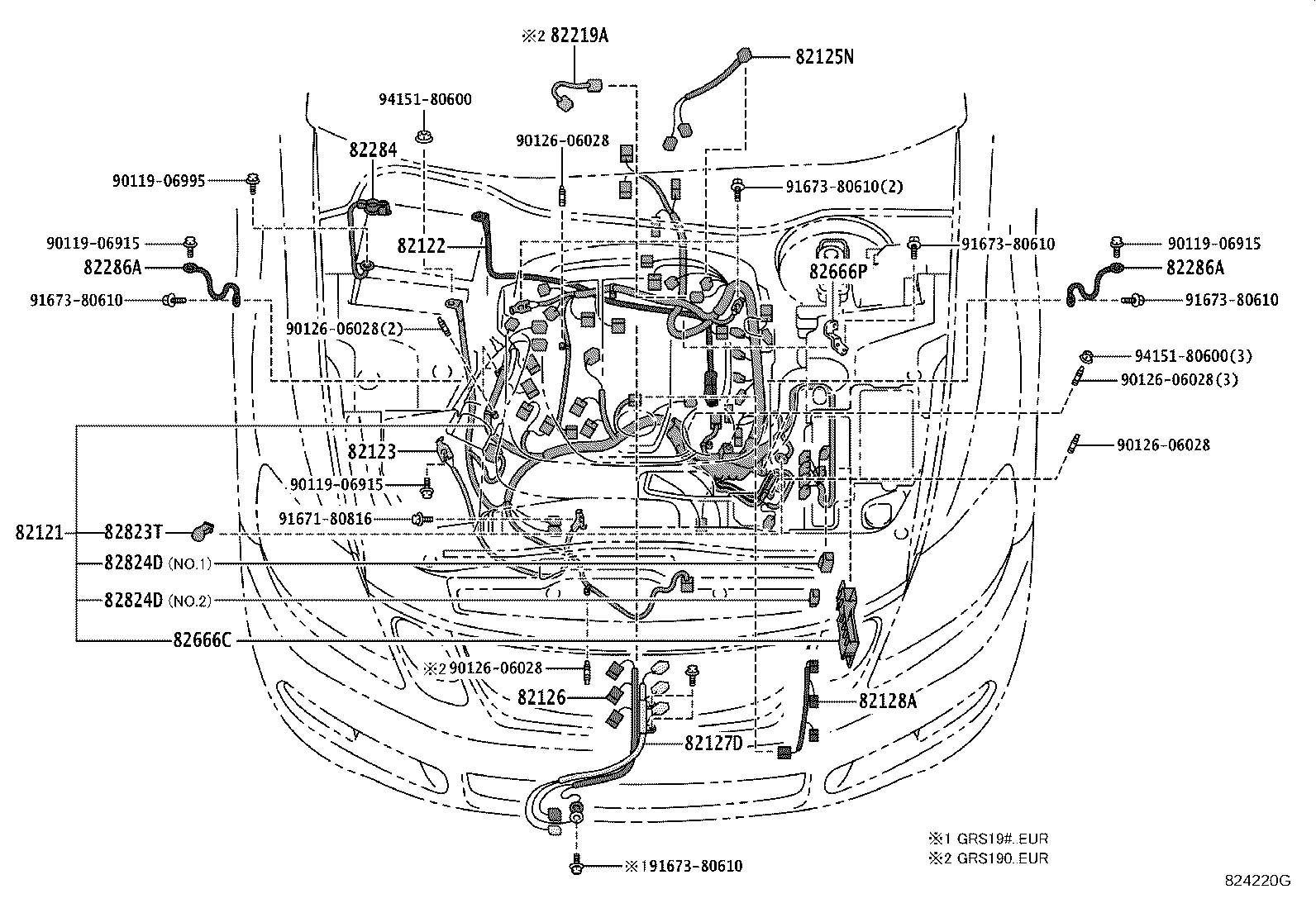

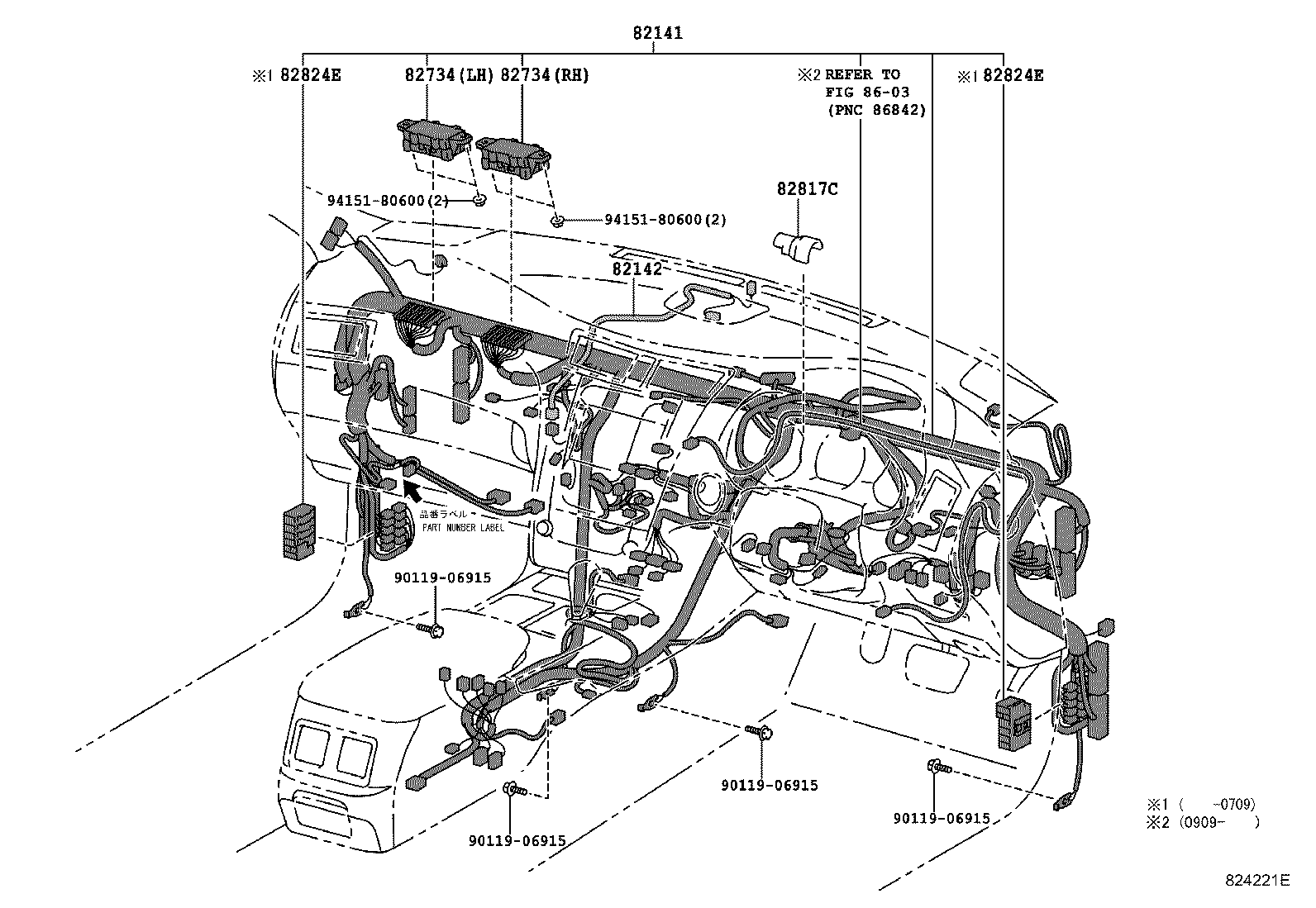

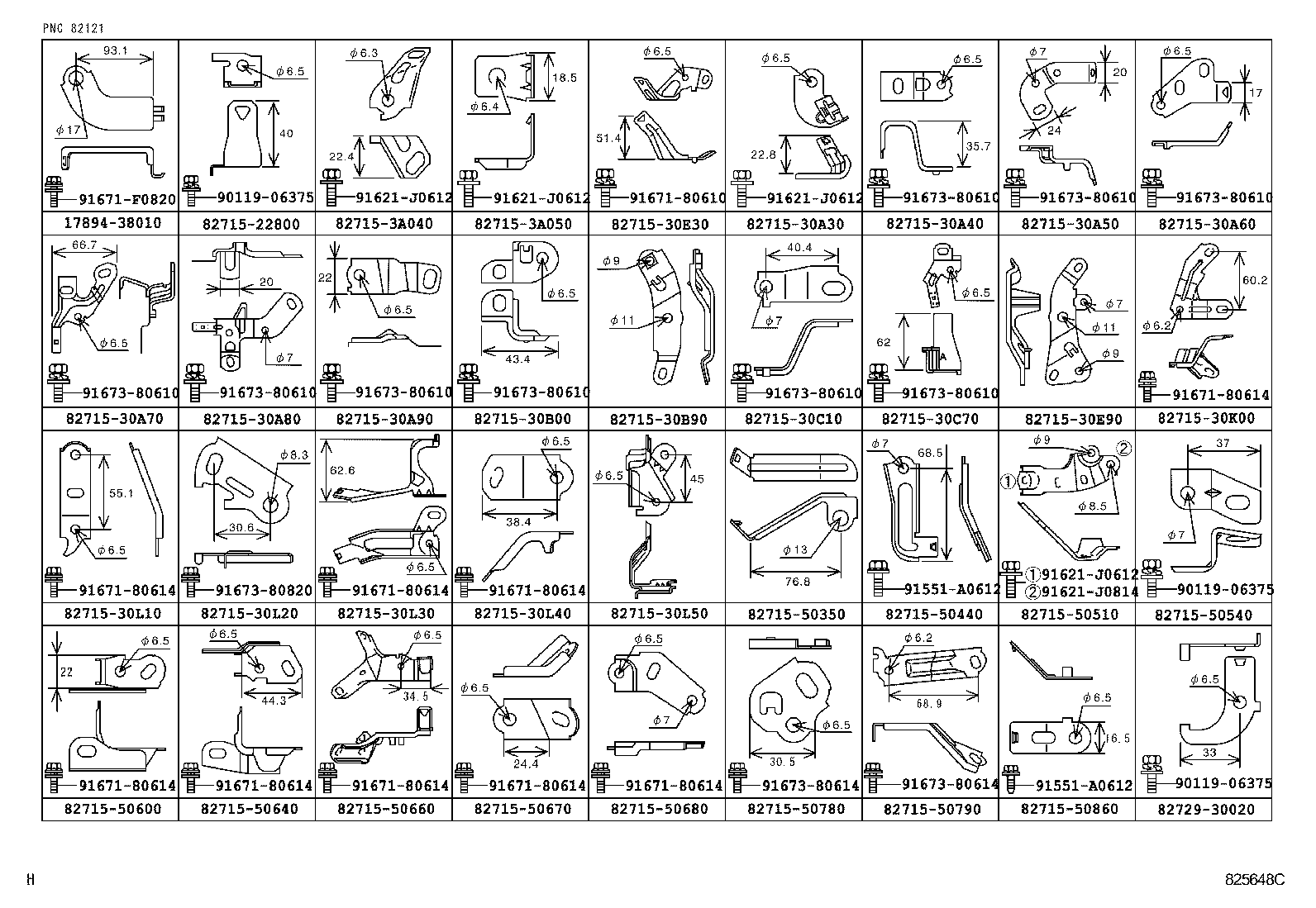

Figure 824215F 824215F 2005-01 → — Figure 825833B 825833B 2005-01 → — Figure 82D609 82D609 2005-01 → 2007-09 Figure 824218C 824218C 2005-01 → 2008-09 Figure 824219F 824219F 2005-01 → — Figure 824220G 824220G 2005-01 → — Figure 825646H 825646H 2007-09 → — Figure 825647H 825647H 2007-09 → — Figure 824221E 824221E 2005-01 → — Figure 824227E 824227E 2005-01 → — Figure 824222D 824222D 2005-01 → — Figure 824228H 824228H 2005-01 → — Figure 824954D 824954D 2006-07 → 2007-09 Figure 824954D 824954D 2007-09 → — Figure 824223A 824223A 2005-01 → — Figure 824224K 824224K 2005-01 → — Figure 825648C 825648C 2005-01 → — Figure 824225E 824225E 2005-01 → — Figure 824226C 824226C 2005-01 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
19309 Harness Sub-assy, Cam Position Sensor
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82151B Wire, Front Door, NO.3, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82152B Wire, Front Door, NO.3, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184A Wire, Luggage Room, NO.4
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82288 Wire, Earth NO.4
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82671 Block, Junction
82671L Block, Junction, NO.4
82671M Block, Junction, NO.5
82705 Spool Sub-assy, Wiring Harness
82734 Block, Center Junction
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82825E Connector, Wiring Harness
82916 Insulator, Wiring Harness Heat, NO.2
86011G Condenser
89656A Wire, Power Steering Earth
F2629A Filter, Stabilizer Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
