Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 3 illustrations

Illustrations

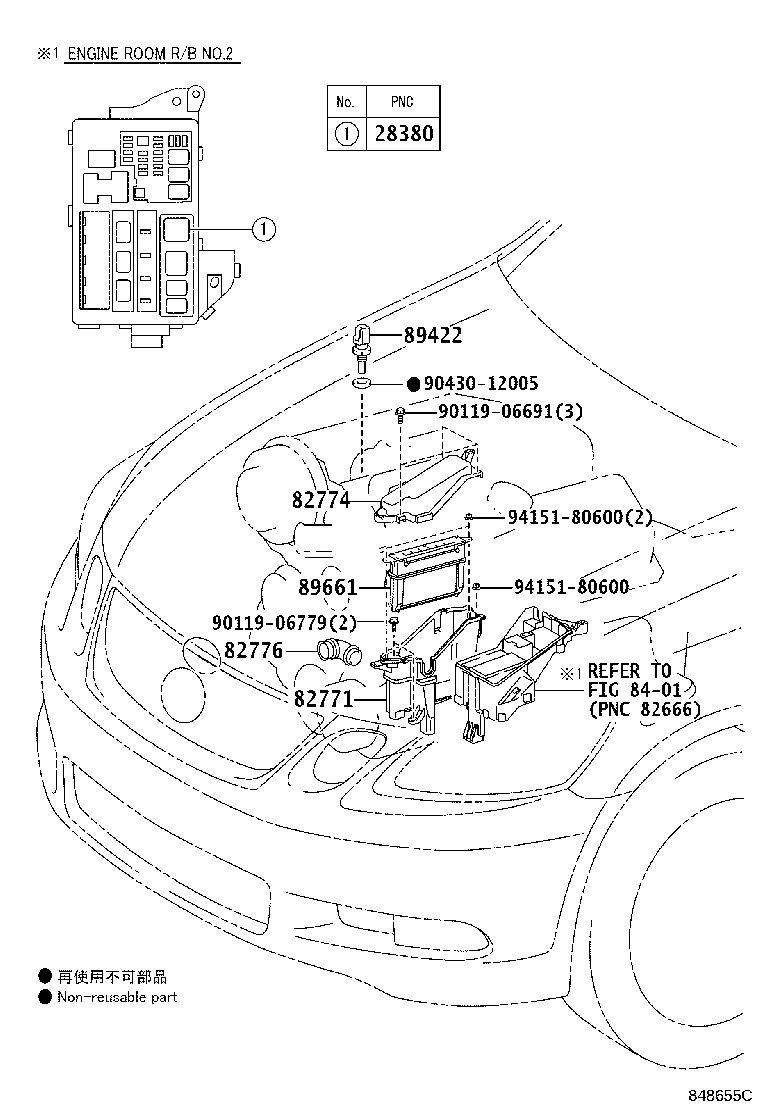

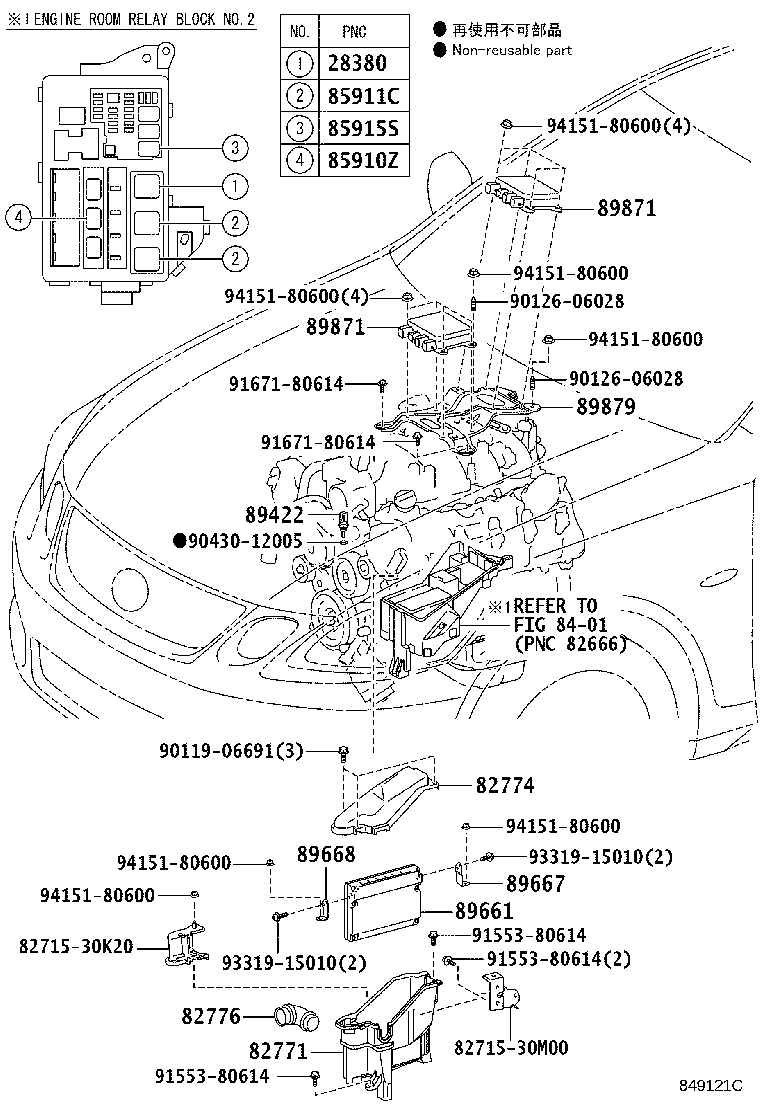

Figure 846782F 846782F 2005-01 → — Figure 848655C 848655C 2005-01 → — Figure 849121C 849121C 2007-09 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
82666U Holder, Connector
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
82776 Duct, Engine Room Ecu Outlet
85910Z Relay, Injection (FOR EFI)
85911C Relay, Efi 2
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89422 Sensor, Water Temperature (FOR E.F.I.)
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89871 Driver, Injector
89879 Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
