Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

4 part groups · 2 illustrations

Illustrations

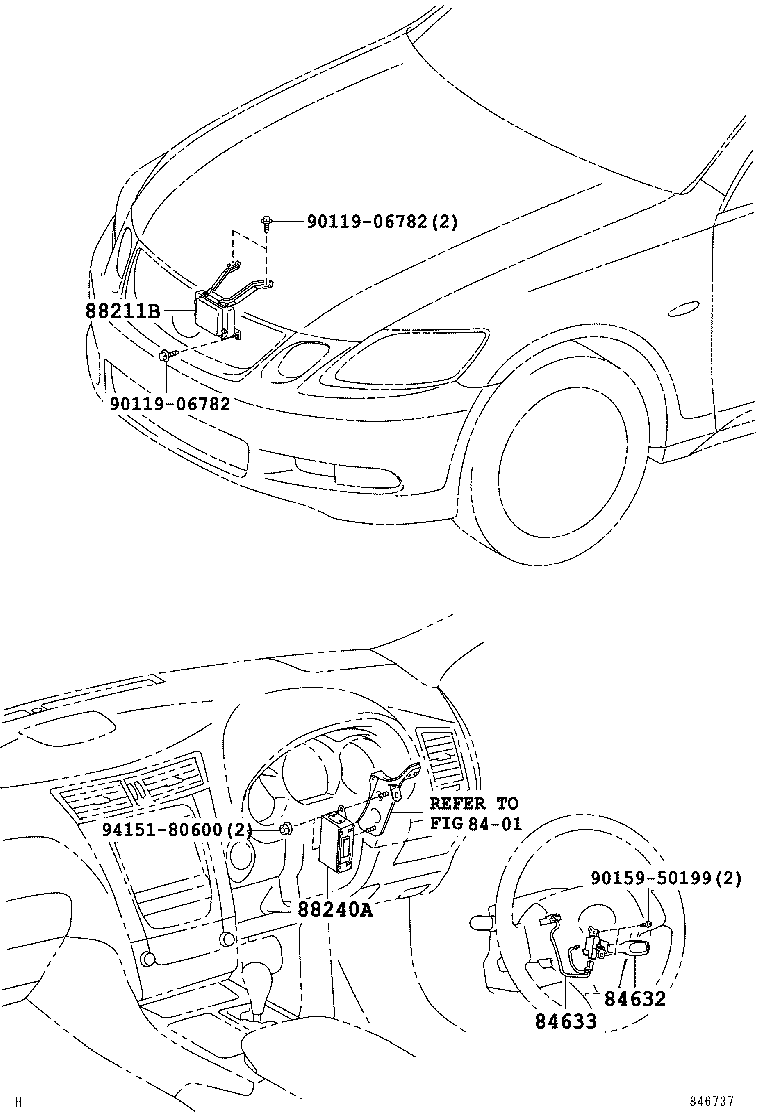

Figure 846736 846736 2005-01 → — Figure 846737 846737 2005-01 → —

Part groups

PNCDescription
84632 Switch, Cruise Control Main
84633 Wire, Cruise Control Switch
88211B Sensor Assy, Millimeter Wave Radar
88240A Computer Assy, Distance Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
