Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

4 part groups · 4 illustrations

Illustrations

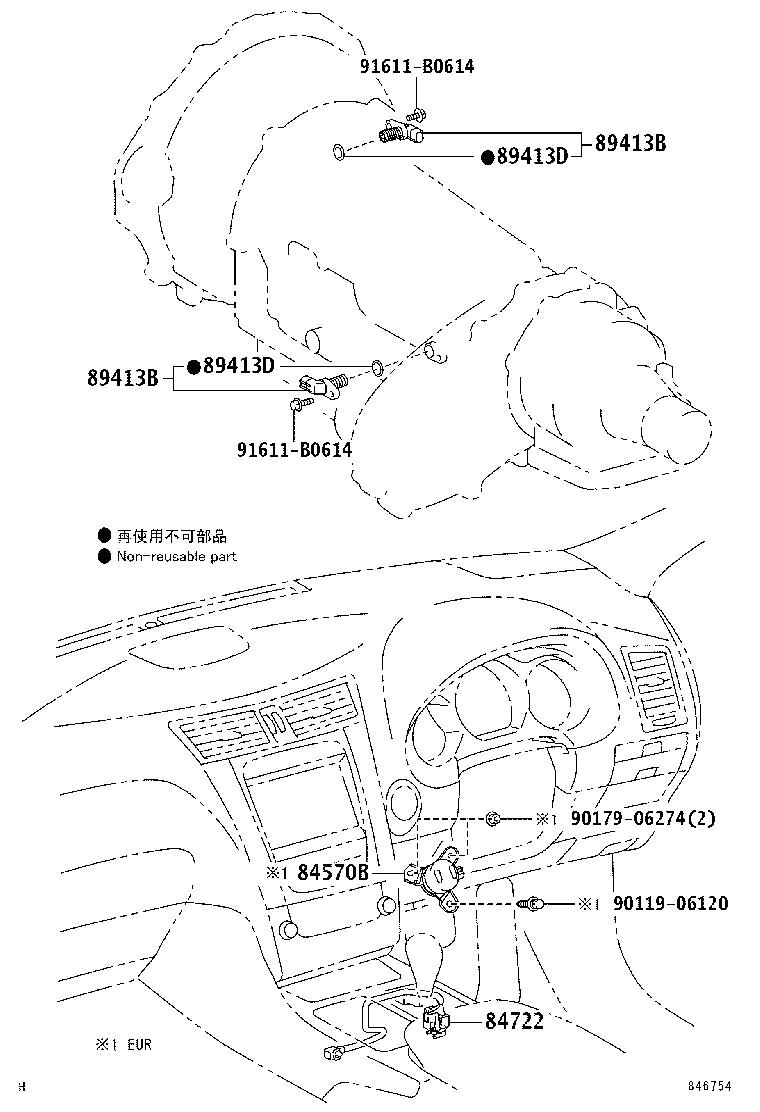

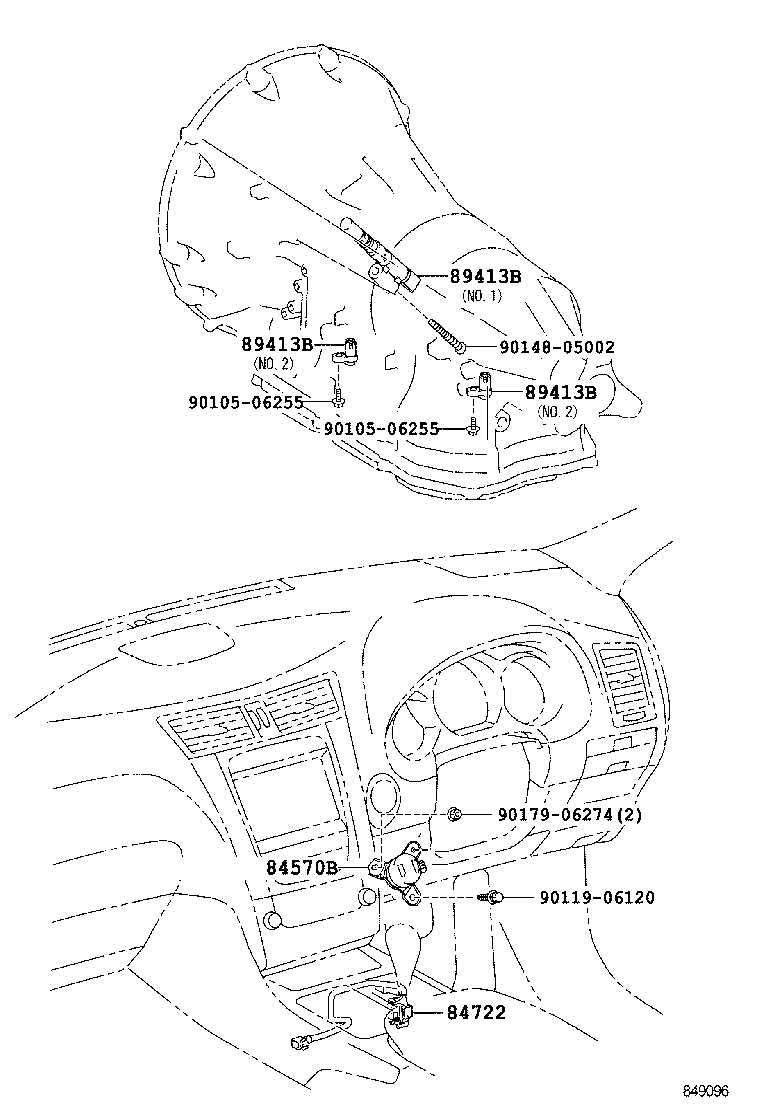

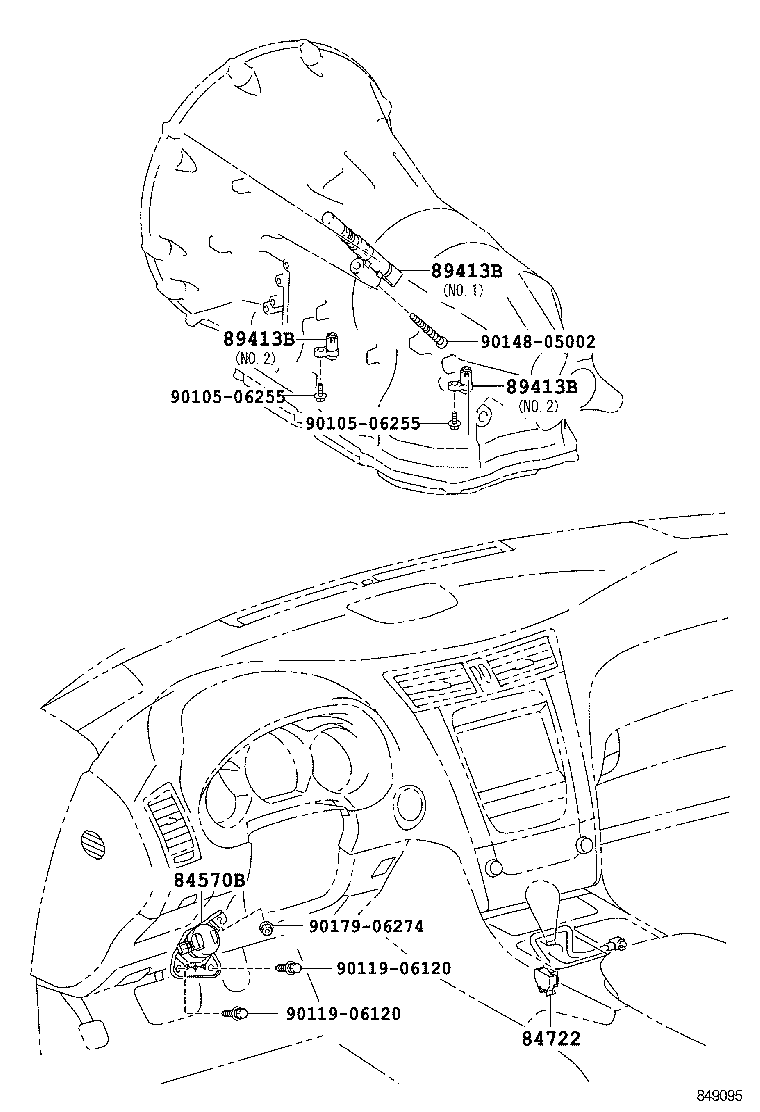

Figure 846753A 846753A 2005-01 → — Figure 849095 849095 2007-09 → — Figure 846754A 846754A 2005-01 → — Figure 849096 849096 2007-09 → —

Part groups

PNCDescription
84570B Switch Assy, Kick Down
84722 Switch, Transmission Control
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
