Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

6 part groups · 2 illustrations

Illustrations

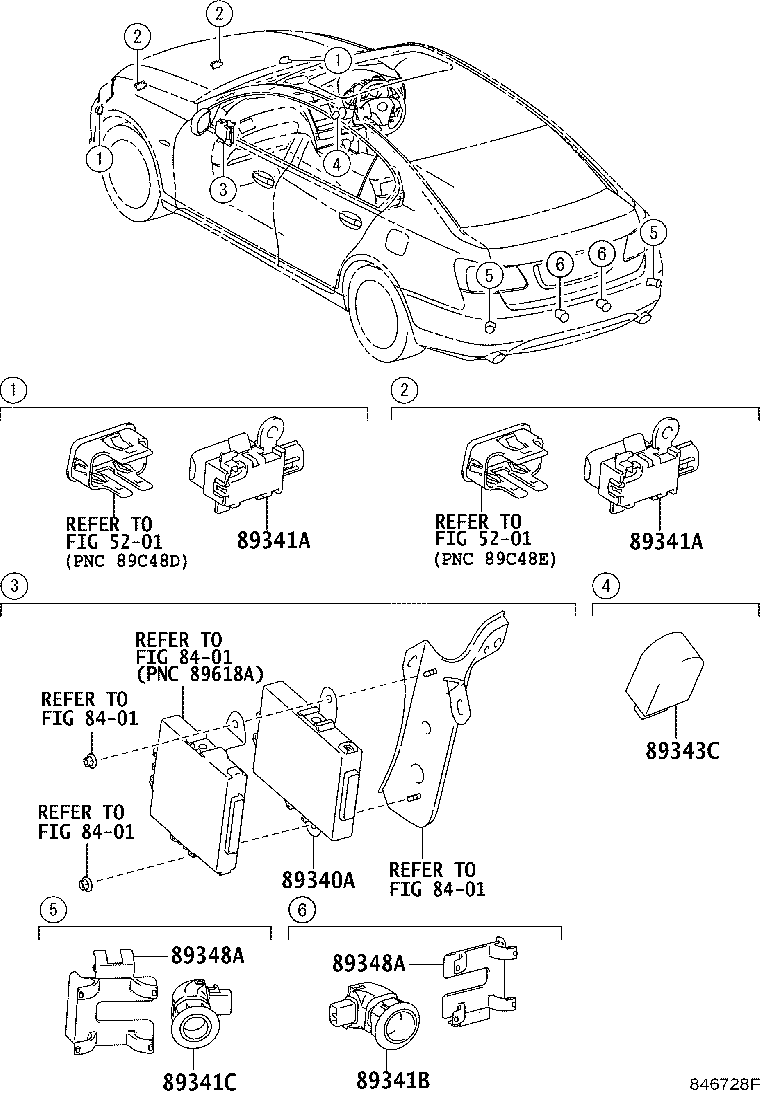

Figure 846727C 846727C 2005-01 → — Figure 846728F 846728F 2005-01 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89343C Buzzer, Clearance Warning, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
