Toyota Lexus GS30/35/43/460
2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe
Supported model
Data version 2012-01

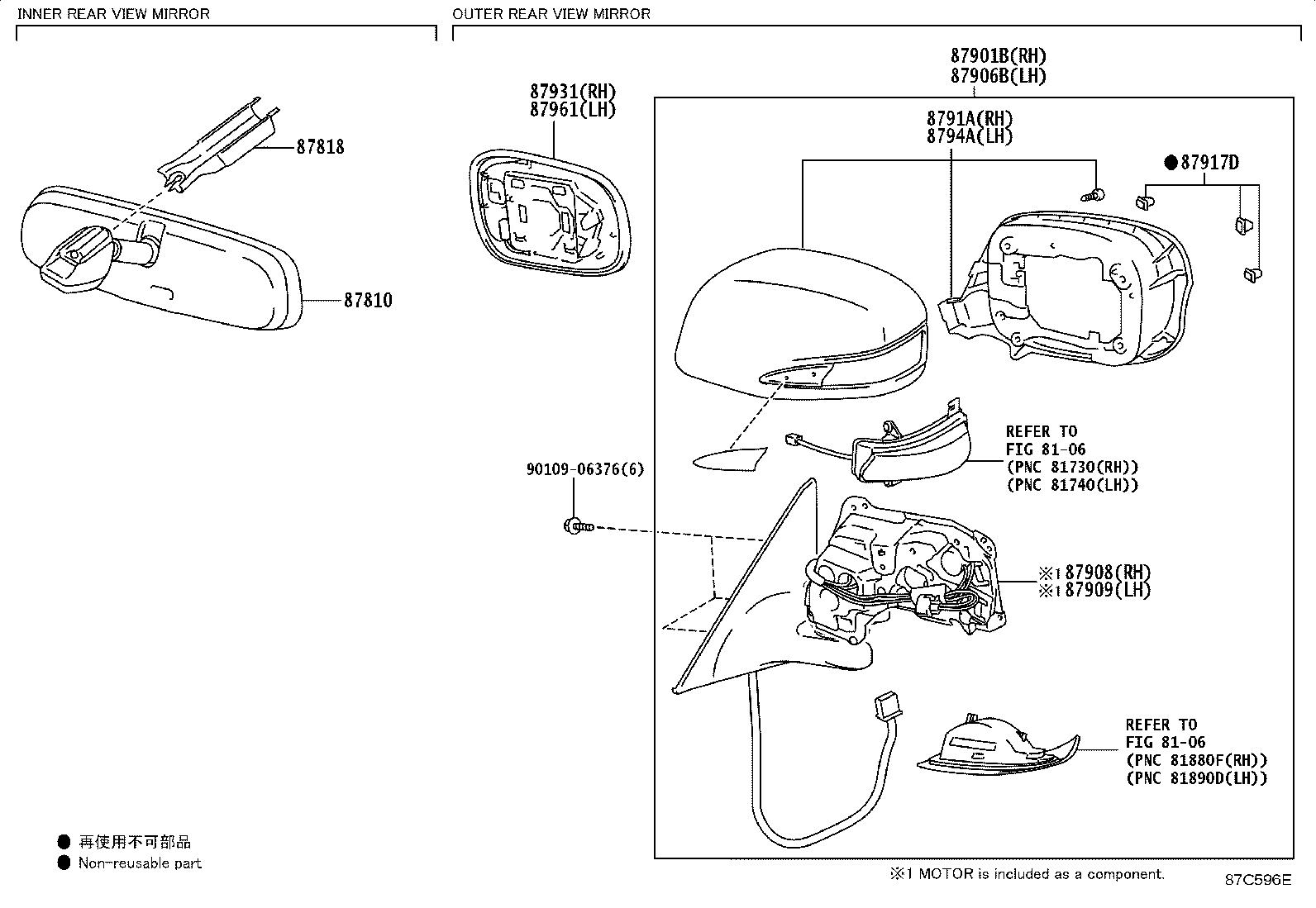

Mirror
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87818 | Cover, Inner RR View Mirror |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87915 | Cover, Outer Mirror, RH |
| 87917D | Clip, Outer Mirror |
| 8791A | Cover, Outer Mirror, RH NO.2 |
| 87931 | Outer Mirror, RH |
| 87945 | Cover, Outer Mirror, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 87961 | Mirror Outer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
