Toyota Lexus GS30/35/43/460

2005-01 → 2011-12 · chassis GRS19#,URS190,UZS190 · catalogue 3322A0 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

2 part groups · 3 illustrations

Illustrations

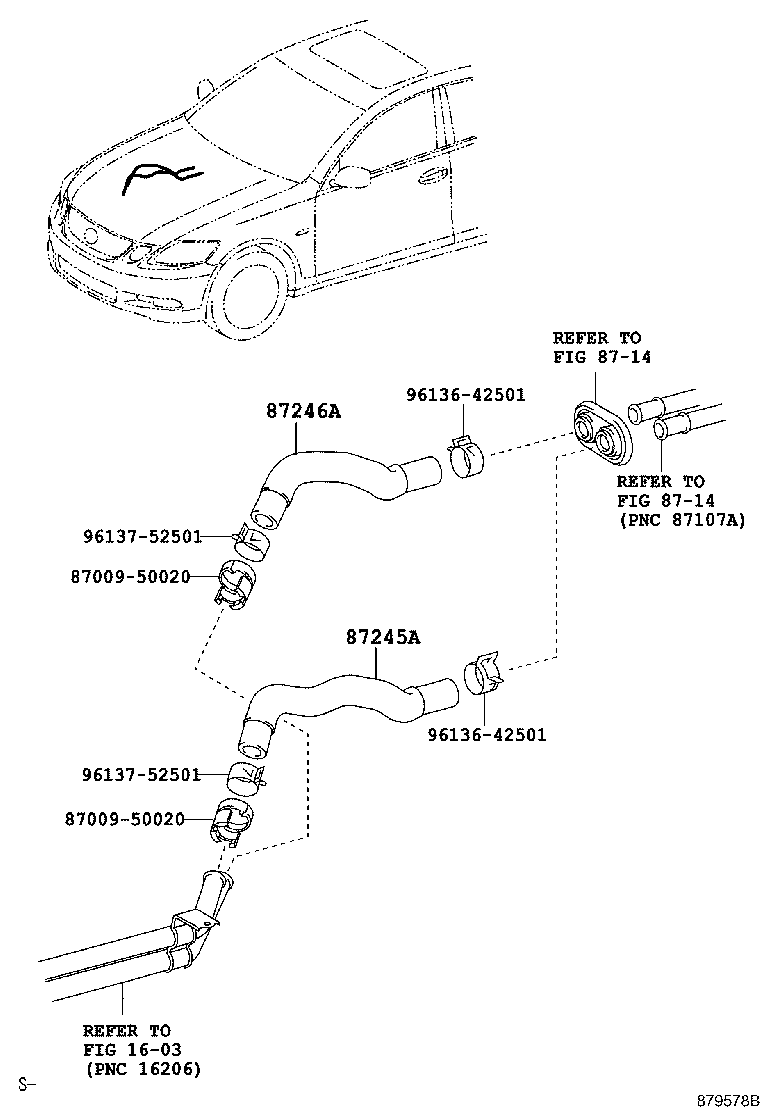

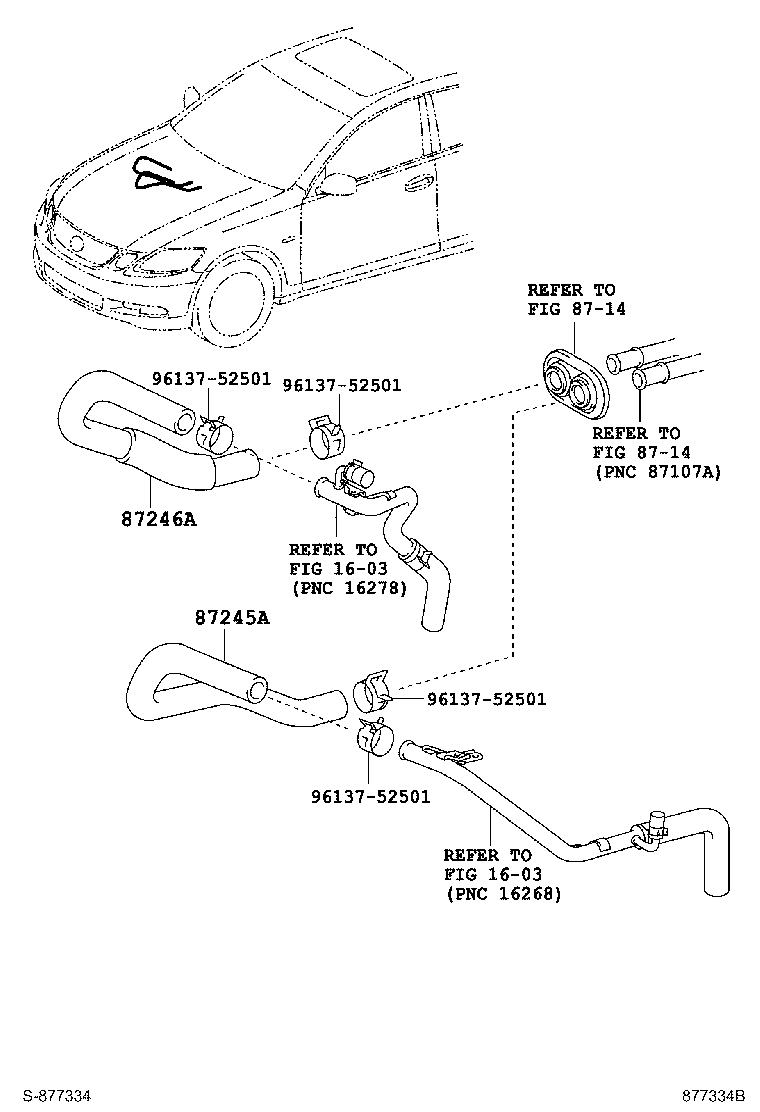

Figure 877335C 877335C 2005-01 → — Figure 877334B 877334B 2005-01 → — Figure 879578B 879578B 2007-09 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
