Toyota Lexus GS Series
2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe
Supported model
Data version 2018-09

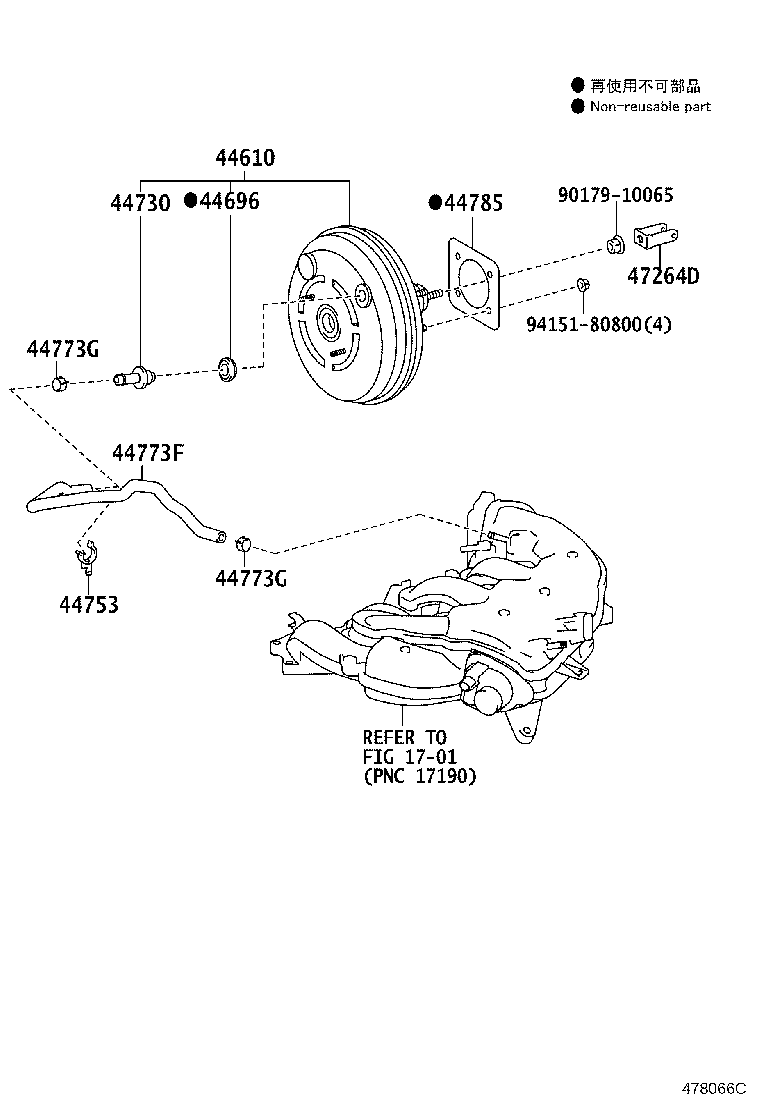

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-30B60 |
Booster Assy, Brake
2012-03 → 2015-10
ended
|
GRL11 RHD | — | |
| 44610-30B70 |
Booster Assy, Brake
2012-01 → 2015-10
ended
|
GRL1# LHD | — | |
| 44610-53470 |
Booster Assy, Brake
2015-10 → 2018-09
ended
|
ARL10,GRL16 | — | |
| 44696 — Grommet, Check Valve | ||||
| 90480-24439 |
Grommet, Check Valve
2012-01 → 2015-10
ended
|
GRL1# | — | |
| 90480-24439 |
Grommet, Check Valve
2015-10 → 2018-09
ended
|
ARL10,GRL16 | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-20170 |
Valve Assy, Vacuum Check(FOR BRAKE)
2012-01 → 2015-10
ended
|
GRL1# LHD | — | |
| 44730-60070 |
Valve Assy, Vacuum Check(FOR BRAKE)
2012-03 → 2015-10
ended
|
GRL11 RHD | — | |
| 44730-12070 |
Valve Assy, Vacuum Check(FOR BRAKE)
2015-10 → 2018-09
ended
|
ARL10,GRL16 | — | |
| 44753 — Clamp, Vacuum Reservoir, NO.2 | ||||
| 44753-30320 |
Clamp, Vacuum Reservoir, NO.2
2012-03 → 2015-10
ended
|
GRL11 RHD | — | |
| 44773F — Hose, Union TO Check Valve | ||||
| 44773-30650 |
Hose, Union TO Check Valve
2012-03 → 2015-10
ended
|
GRL11 RHD | — | |
| 44773G — Clip(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
Clip(FOR UNION TO CHECK VALVE HOSE)
2012-03 → 2015-10
ended
|
GRL11 RHD | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-47010 |
Gasket, Brake Booster
2012-01 → 2015-10
ended
|
GRL1# | — | |
| 44785-47010 |
Gasket, Brake Booster
2015-10 → 2018-09
ended
|
ARL10,GRL16 | — | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-22040 |
Clevis, Brake Master Cylinder Push Rod
2012-01 → 2015-10
ended
|
GRL1# | — | |
| 47264-22040 |
Clevis, Brake Master Cylinder Push Rod
2015-10 → 2018-09
ended
|
ARL10,GRL16 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
