Toyota Lexus GS Series
2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe
Supported model
Data version 2018-09

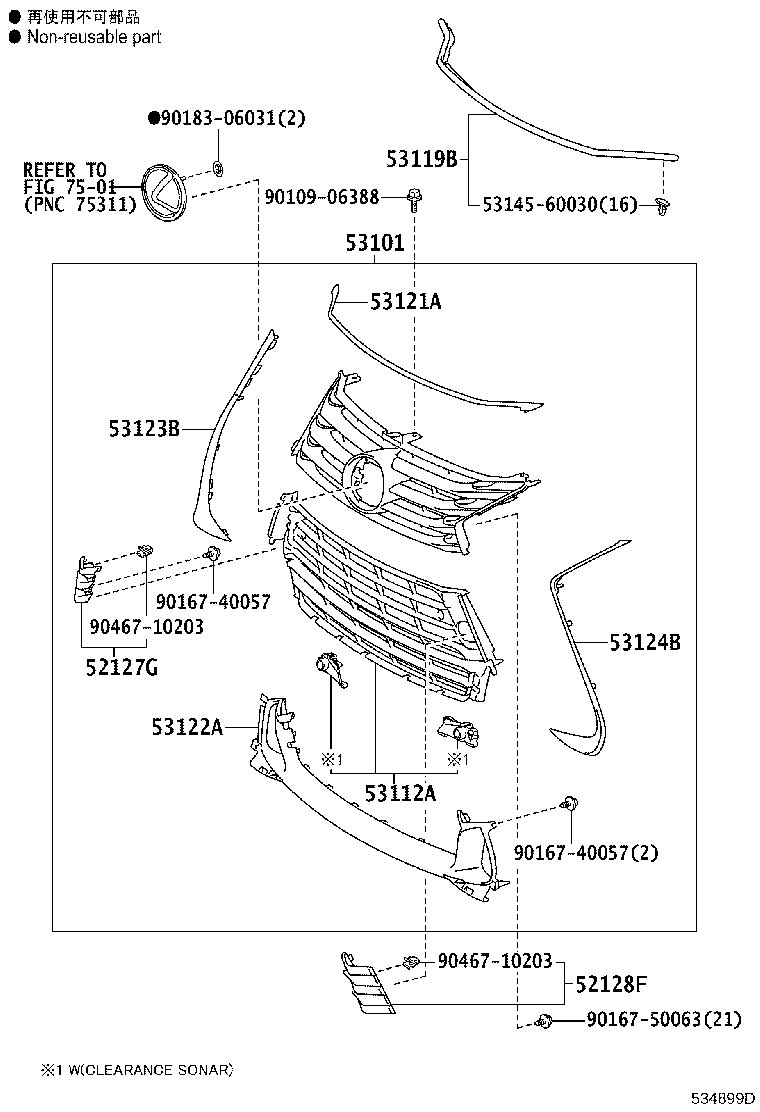

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52127G — Cover, Front Bumper Hole, RH | ||||
| 52127-30170 |
Cover, Front Bumper Hole, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 52128F — Cover, Front Bumper Hole, LH | ||||
| 52128-30070 |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2017-09 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2017-09 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2017-09 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2017-09 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 52128-30080 note |
Cover, Front Bumper Hole, LH
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101 — Grille Sub-assy, Radiator | ||||
| 53101-30860 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2017-09 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2017-09 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30870 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53101-30A00 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30A00 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30A10 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30A10 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30A20 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30A20 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30A30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30A30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2017-09 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2017-09 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B30 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2017-09 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2017-09 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53101-30B40 note |
Grille Sub-assy, Radiator
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53112A — Grille, Radiator, Lower | ||||
| 53113-30380 |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2017-09 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2017-09 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30901 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2016-09 → 2018-09
ended
|
ARL10 | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2017-09 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2017-09 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2017-09 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2017-09 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 RHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53113-30903 note |
Grille, Radiator, Lower
2015-10 → 2018-09
ended
|
AWL10,GWL10 LHD STD | — | |
| 53119B — Protector, Radiator Grille | ||||
| 53119-30260 |
Protector, Radiator Grille
2012-01 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 53119-30320 |
Protector, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 53121A — Moulding, Radiator Grille | ||||
| 52711-30270 |
Moulding, Radiator Grille
2012-01 → 2015-10
ended
|
AWL10,GRL1#,GWL10 | — | |
| 52711-30290 note |
Moulding, Radiator Grille
2012-01 → 2015-10
ended
|
AWL10,GRL1#,GWL10 LHD STD | — | |
| 52711-30290 note |
Moulding, Radiator Grille
2014-09 → 2015-10
ended
|
GRL1#,GWL10 LHD STD | — | |
| 52711-30290 note |
Moulding, Radiator Grille
2012-01 → 2015-10
ended
|
AWL10,GRL1#,GWL10 LHD STD | — | |
| 52711-30310 |
Moulding, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 52711-30320 note |
Moulding, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52711-30320 note |
Moulding, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52711-30320 note |
Moulding, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52711-30320 note |
Moulding, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52711-30320 note |
Moulding, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52711-30320 note |
Moulding, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52711-30320 note |
Moulding, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52711-30320 note |
Moulding, Radiator Grille
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53122A — Moulding, Radiator Grille, Lower | ||||
| 53122-30220 |
Moulding, Radiator Grille, Lower
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 53123B — Moulding, Radiator Grille Side, RH | ||||
| 52712-30120 |
Moulding, Radiator Grille Side, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 52712-30130 note |
Moulding, Radiator Grille Side, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52712-30130 note |
Moulding, Radiator Grille Side, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52712-30130 note |
Moulding, Radiator Grille Side, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52712-30130 note |
Moulding, Radiator Grille Side, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52712-30130 note |
Moulding, Radiator Grille Side, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52712-30130 note |
Moulding, Radiator Grille Side, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52712-30130 note |
Moulding, Radiator Grille Side, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52712-30130 note |
Moulding, Radiator Grille Side, RH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 53124B — Moulding, Radiator Grille Side, LH | ||||
| 52713-30120 |
Moulding, Radiator Grille Side, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 | — | |
| 52713-30130 note |
Moulding, Radiator Grille Side, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52713-30130 note |
Moulding, Radiator Grille Side, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52713-30130 note |
Moulding, Radiator Grille Side, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52713-30130 note |
Moulding, Radiator Grille Side, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52713-30130 note |
Moulding, Radiator Grille Side, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52713-30130 note |
Moulding, Radiator Grille Side, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52713-30130 note |
Moulding, Radiator Grille Side, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
| 52713-30130 note |
Moulding, Radiator Grille Side, LH
2015-10 → 2018-09
ended
|
ARL10,AWL10,GRL16,GWL10 LHD STD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
