Toyota Lexus GS Series

2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

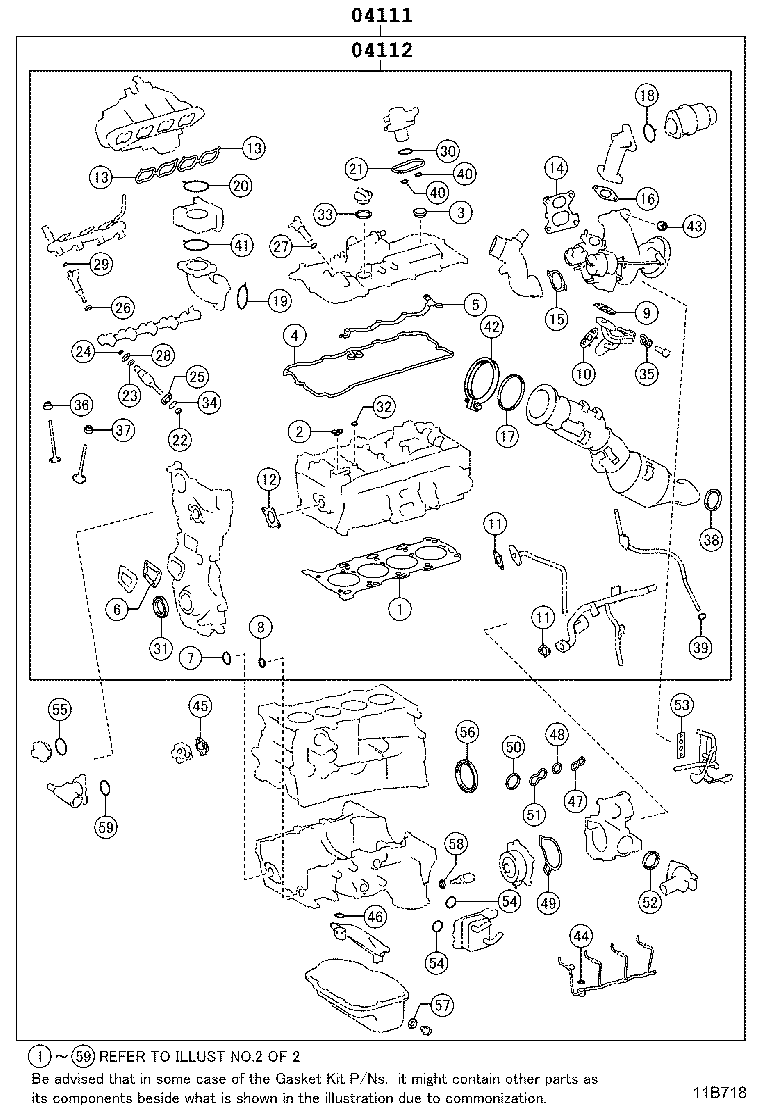

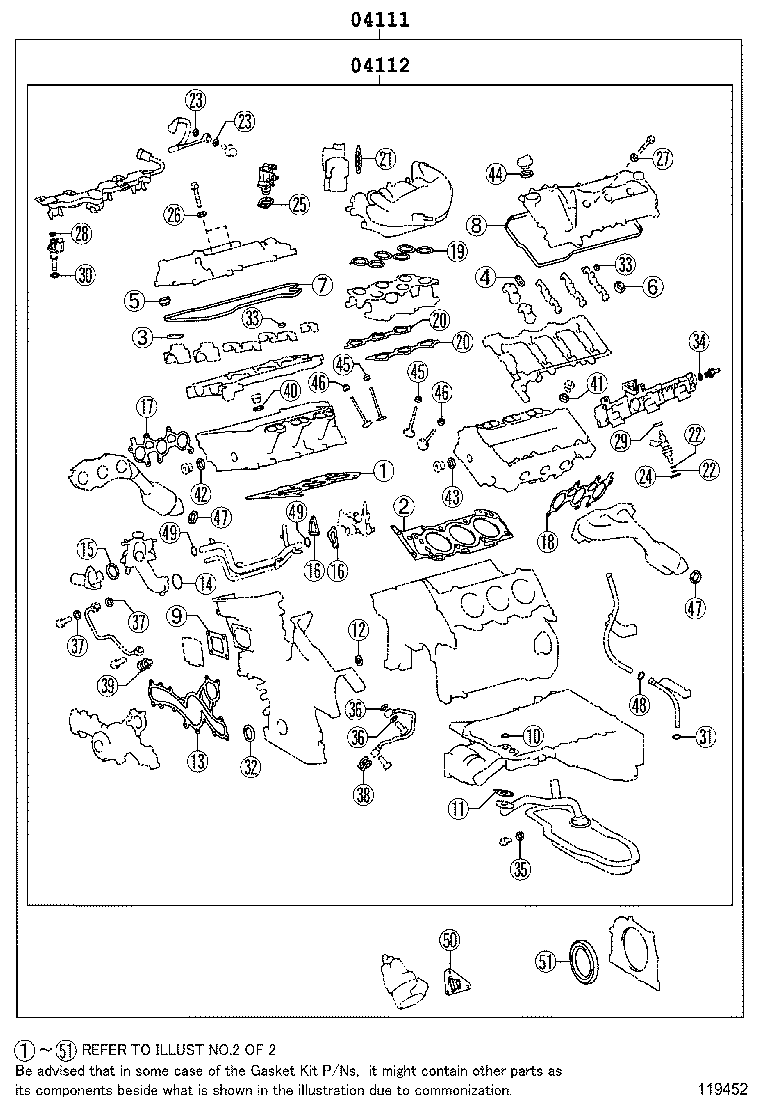

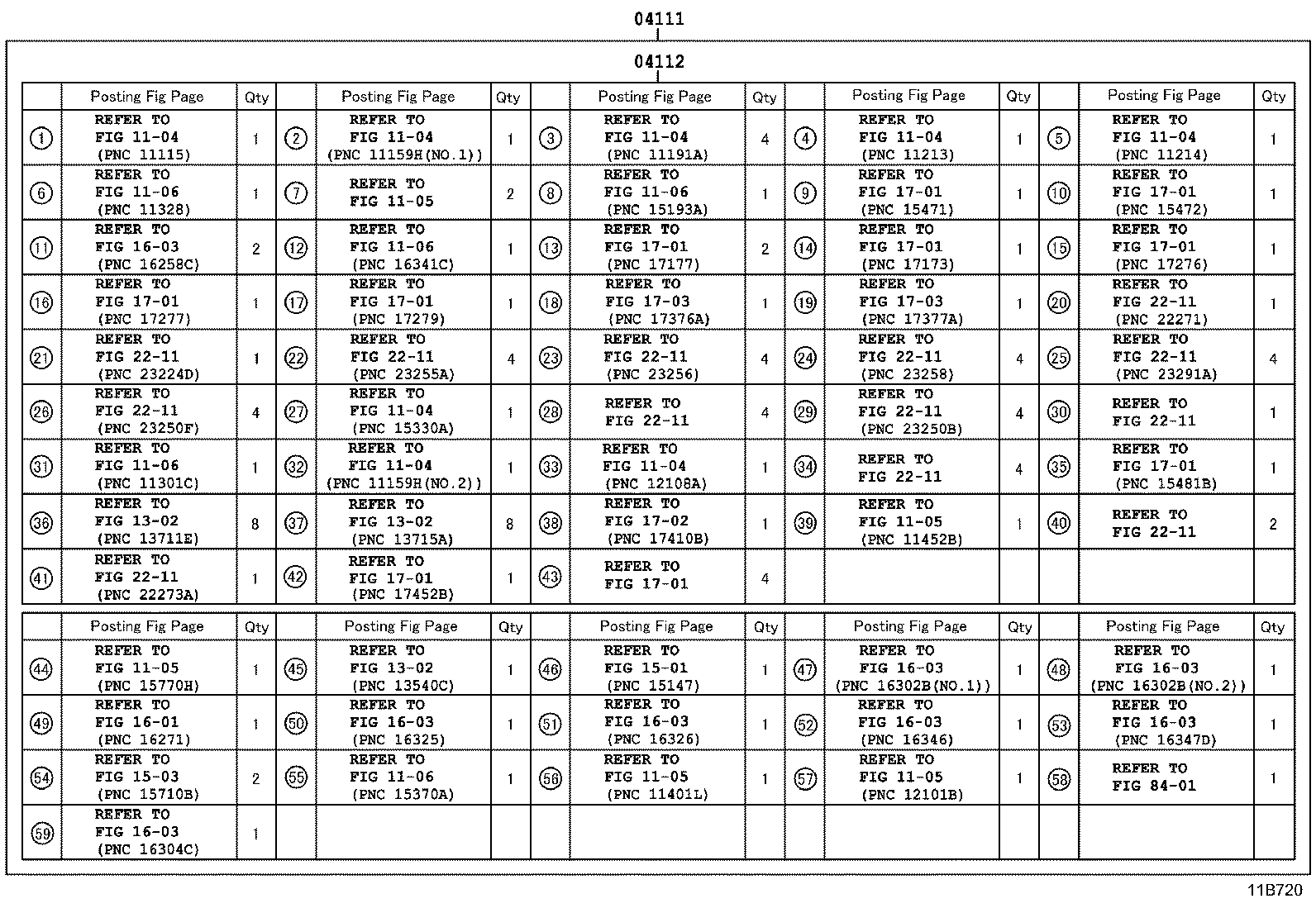

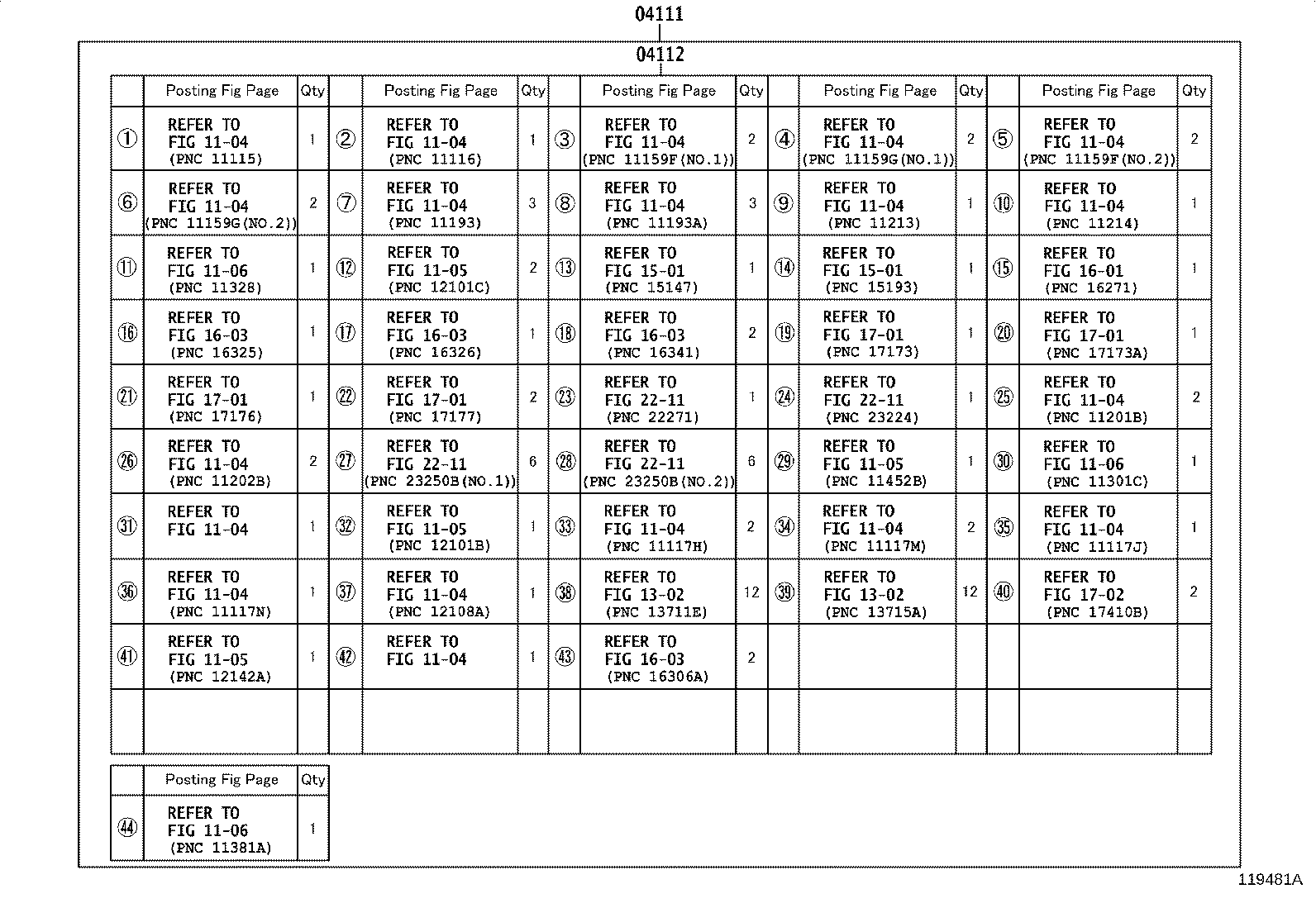

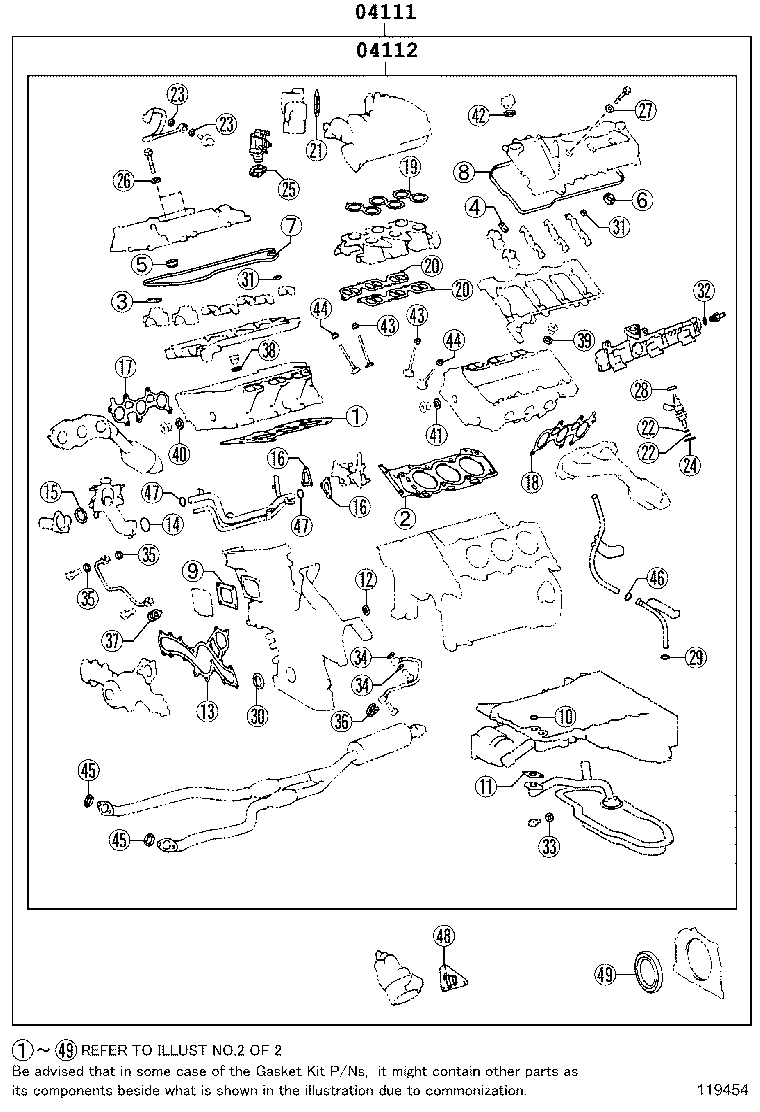

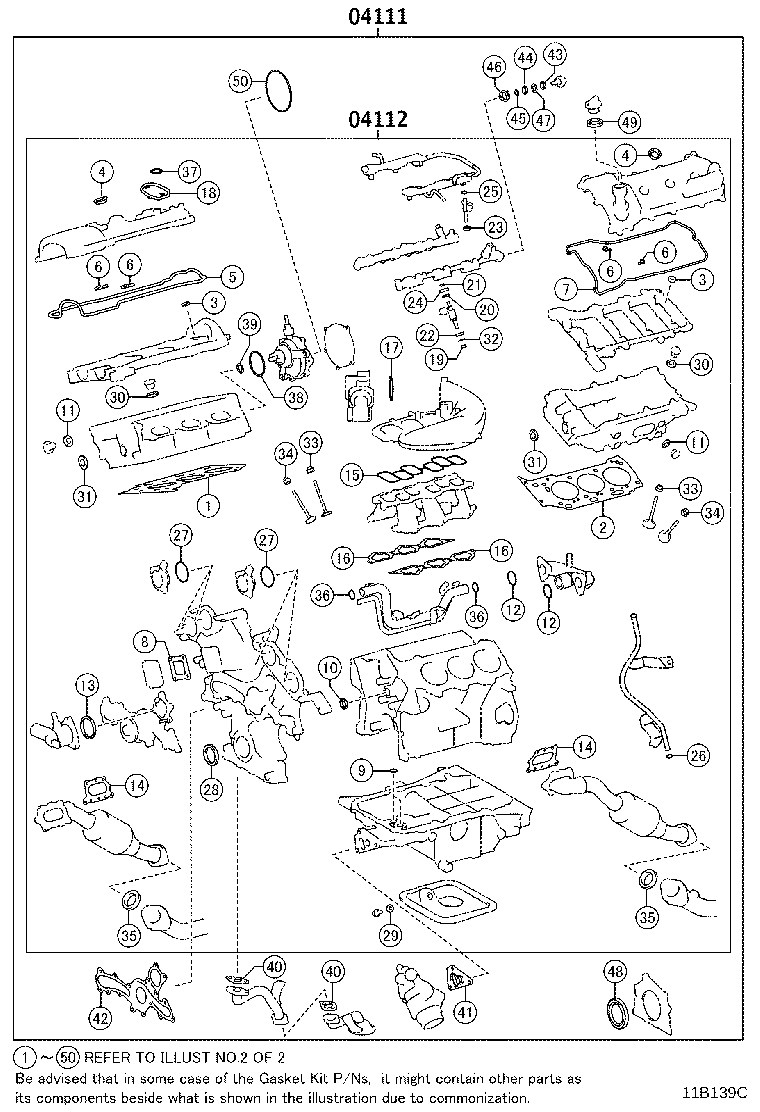

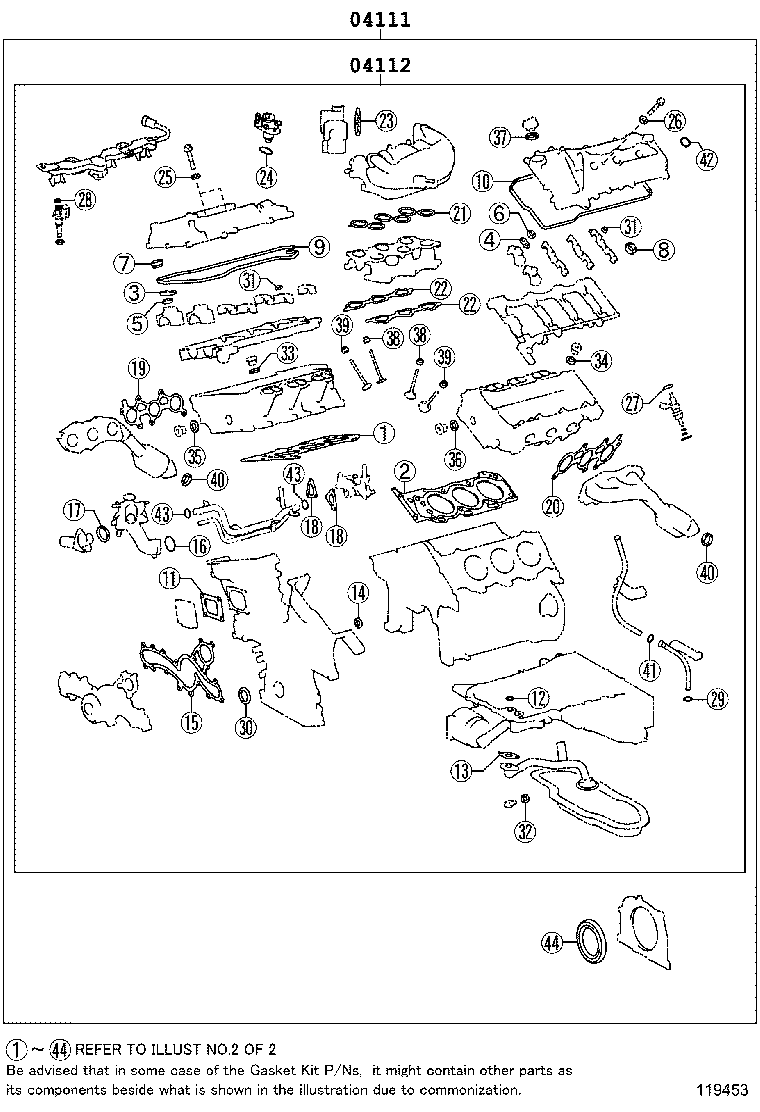

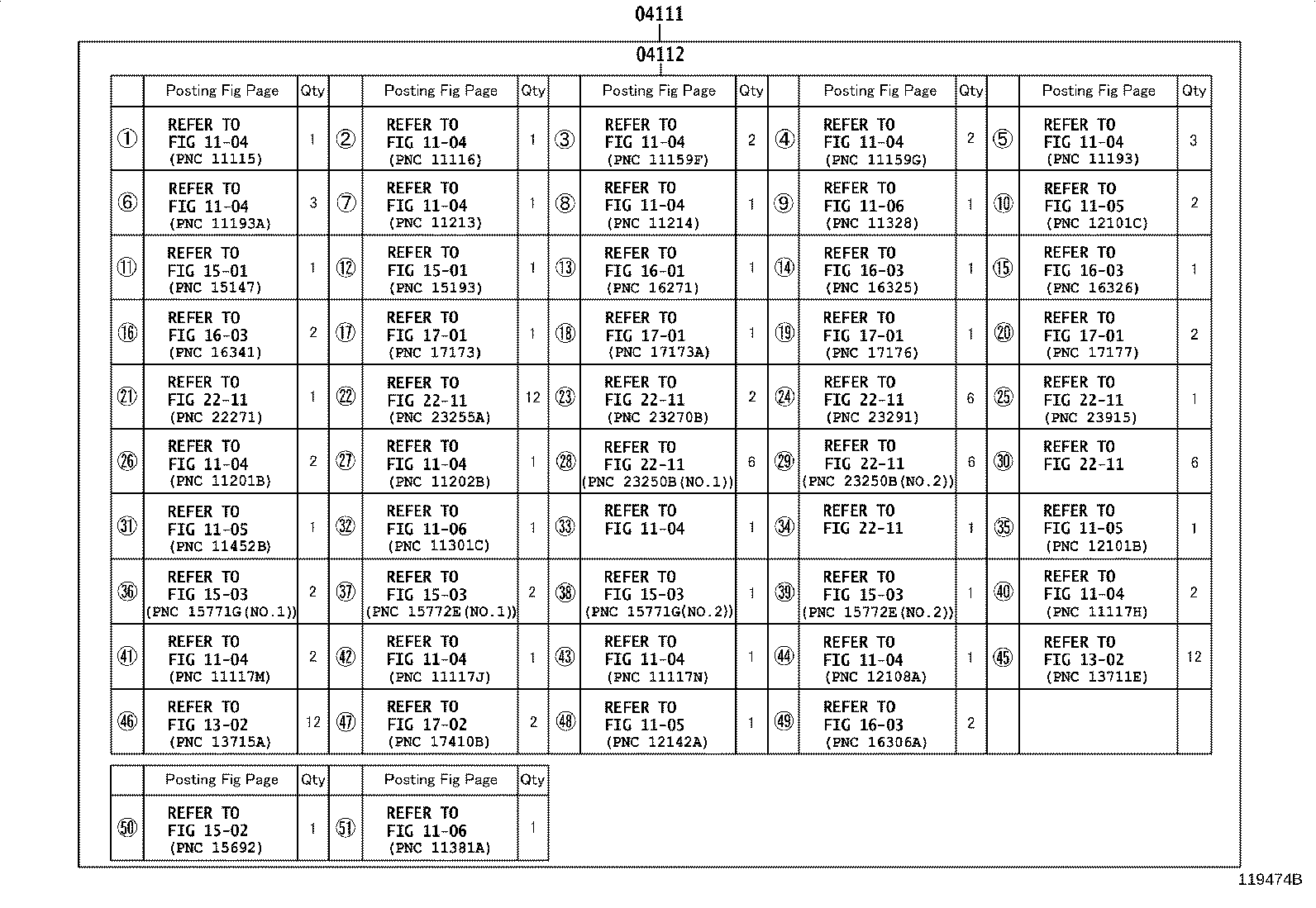

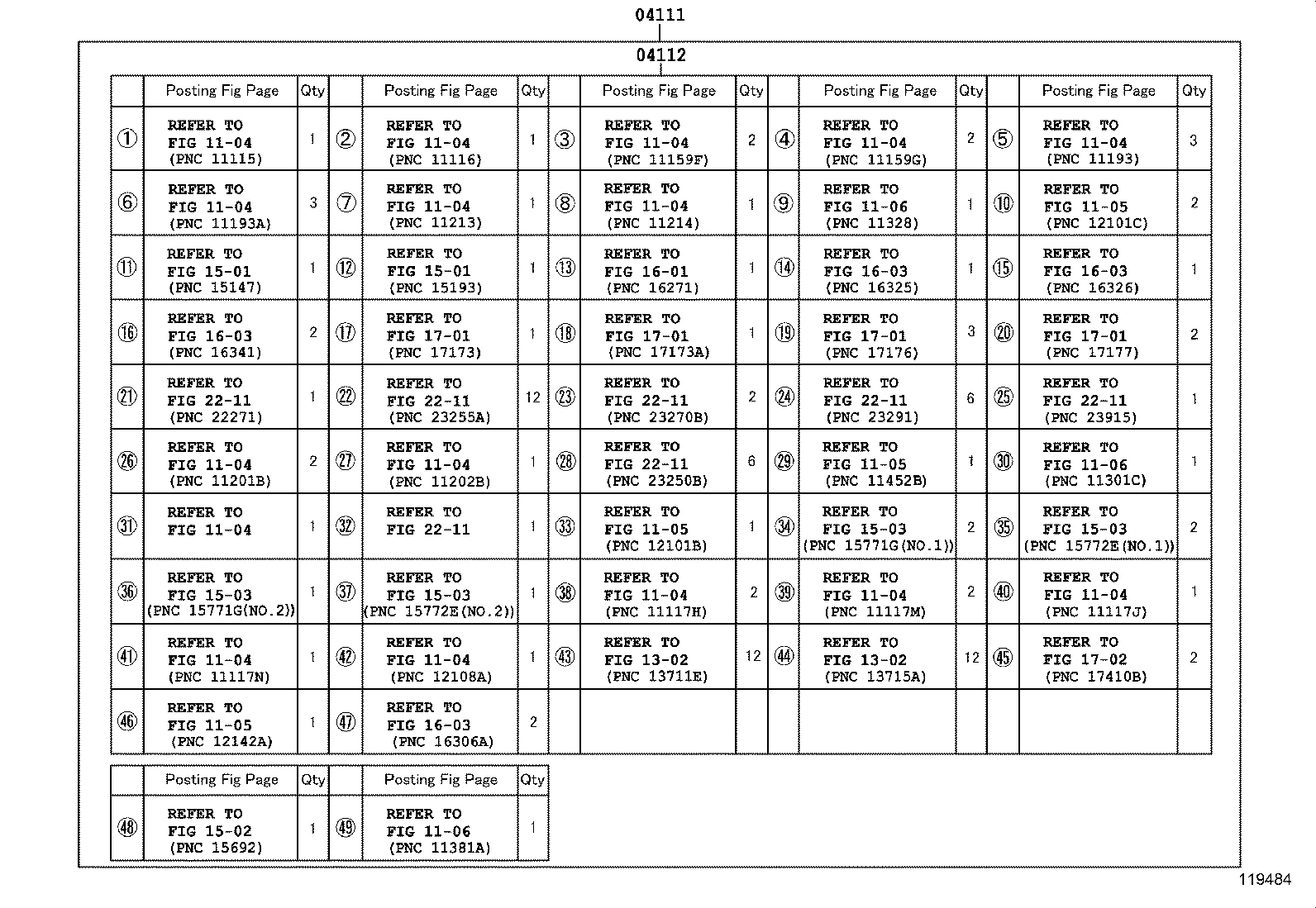

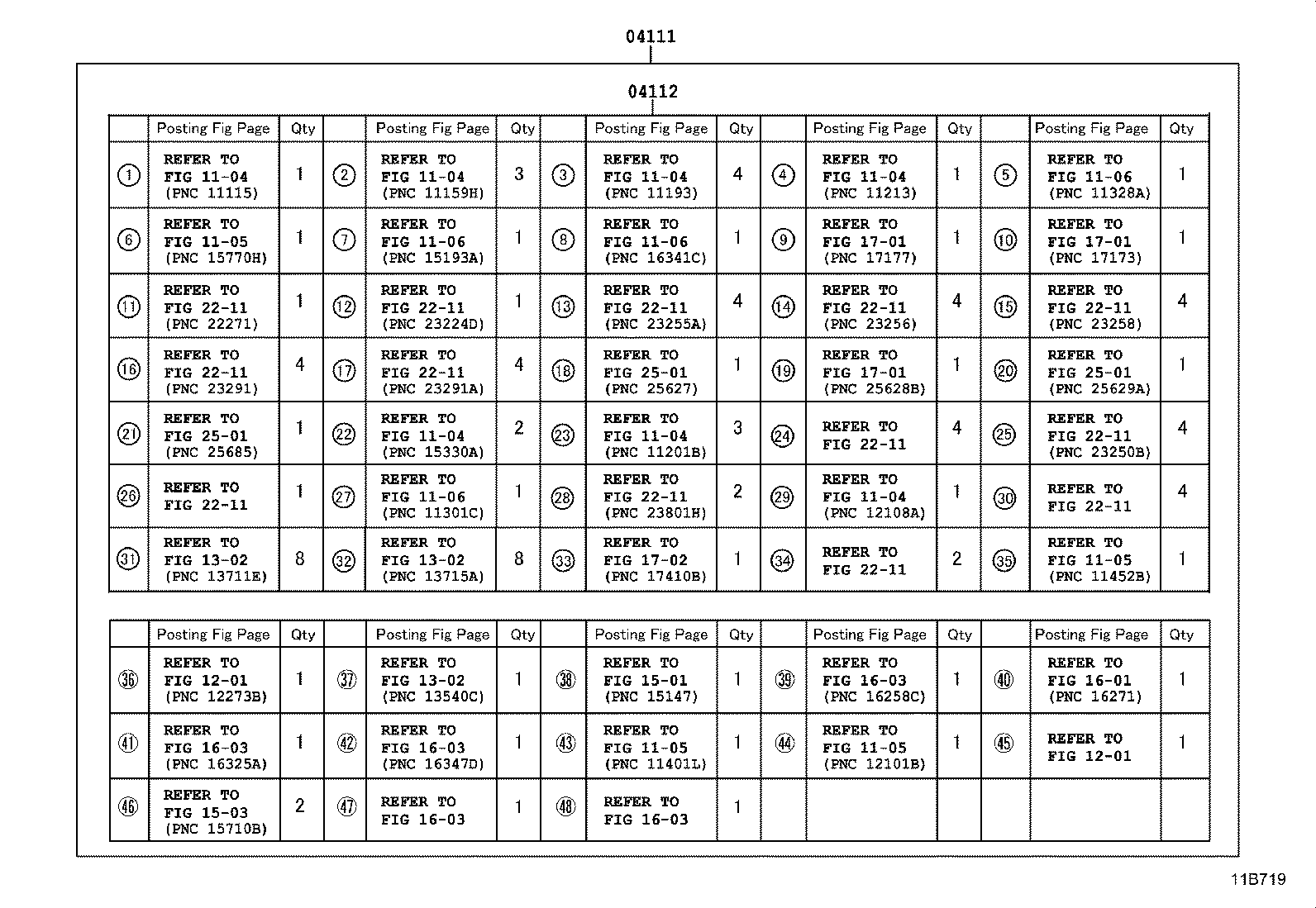

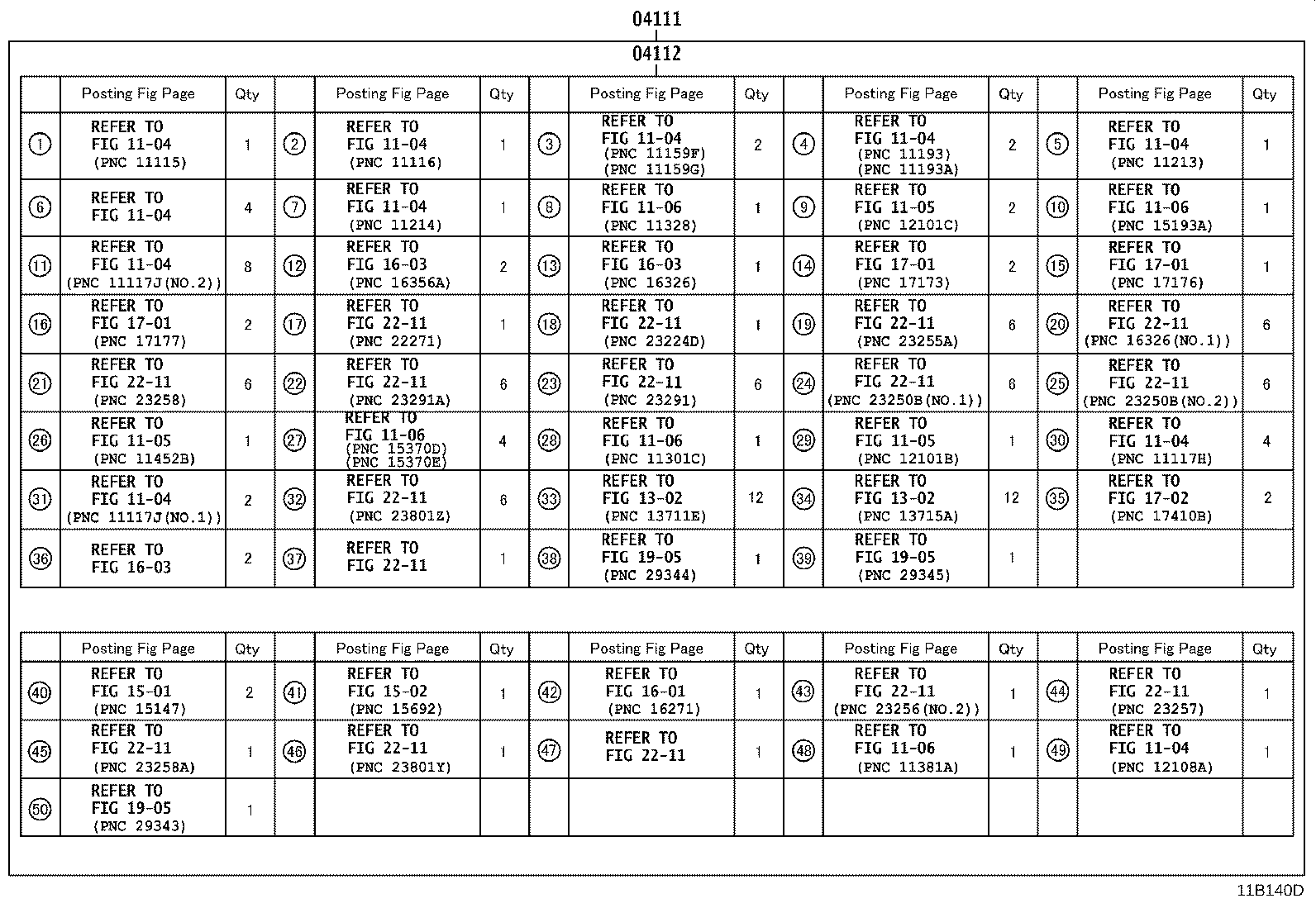

Figure 11B717 11B717 2013-09 → — Figure 11B718 11B718 2015-10 → — Figure 11B719 11B719 2013-09 → — Figure 11B720 11B720 2015-10 → — Figure 119452 119452 2012-01 → 2015-10 Figure 119474B 119474B 2012-01 → 2015-10 Figure 119454 119454 2012-03 → 2015-10 Figure 119484 119484 2012-03 → 2015-10 Figure 119453 119453 2012-03 → — Figure 119481A 119481A 2012-03 → — Figure 11B139C 11B139C 2015-10 → — Figure 11B140D 11B140D 2015-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
