Toyota Lexus GS Series

2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

142 part groups · 16 illustrations

Illustrations

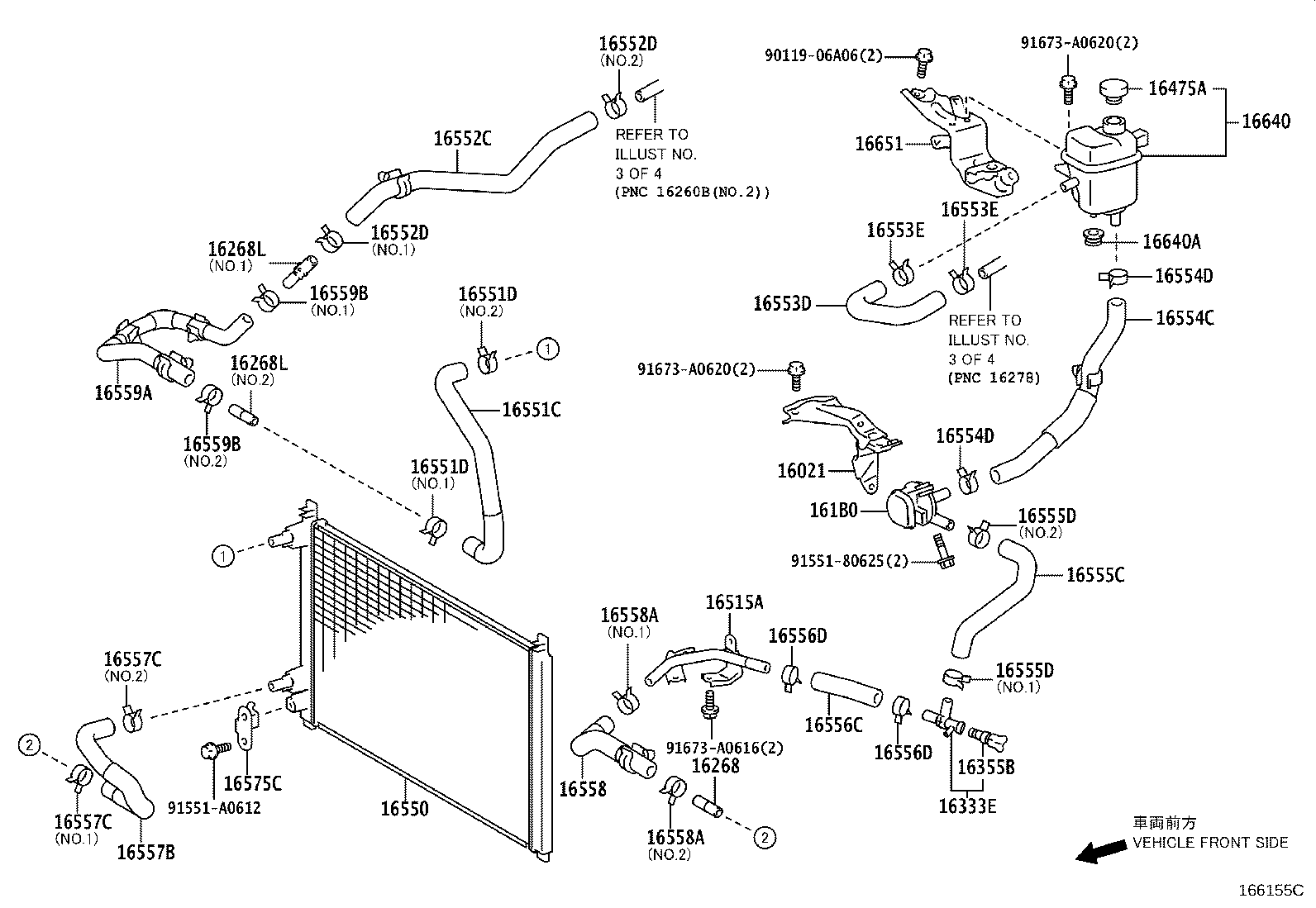

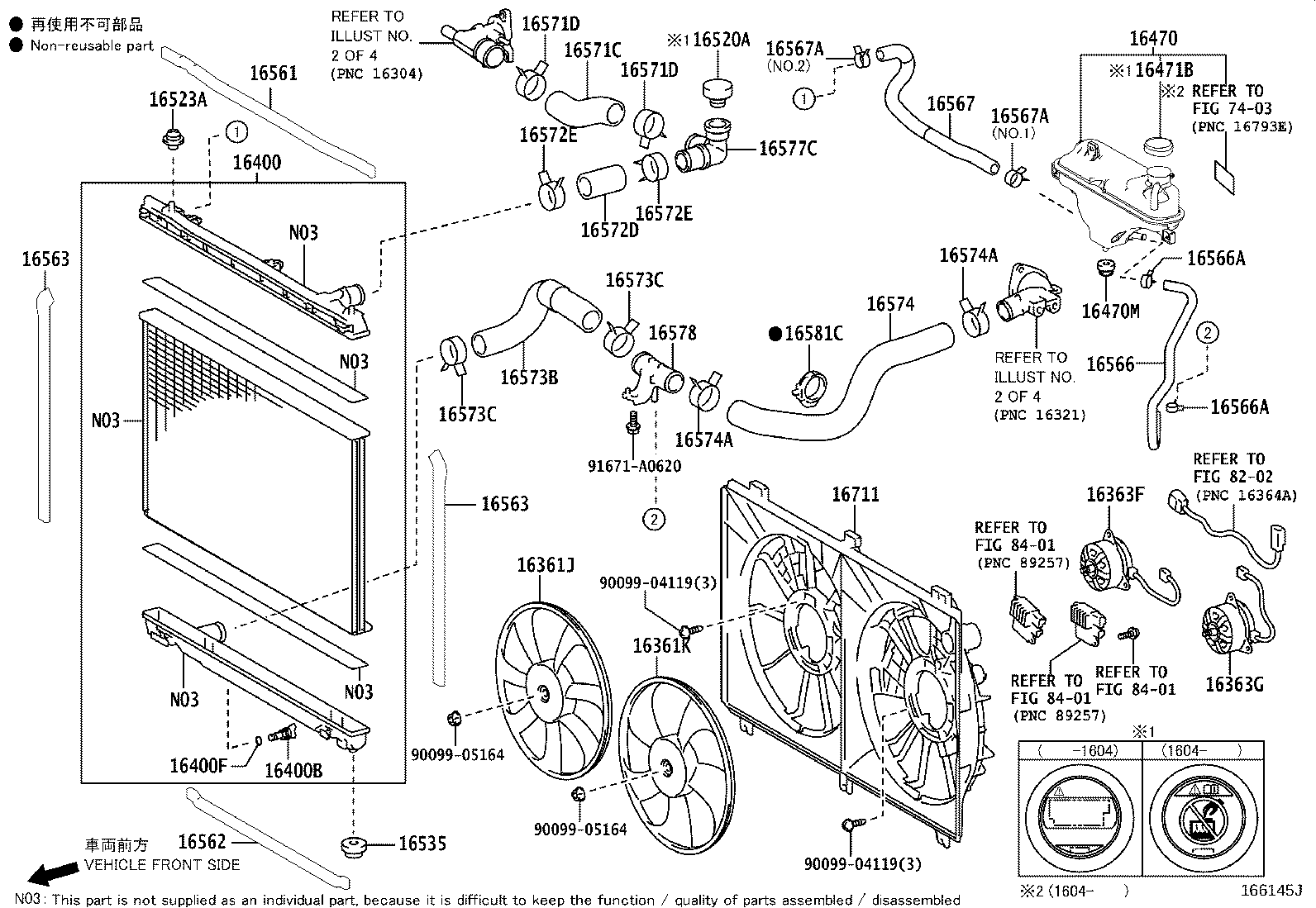

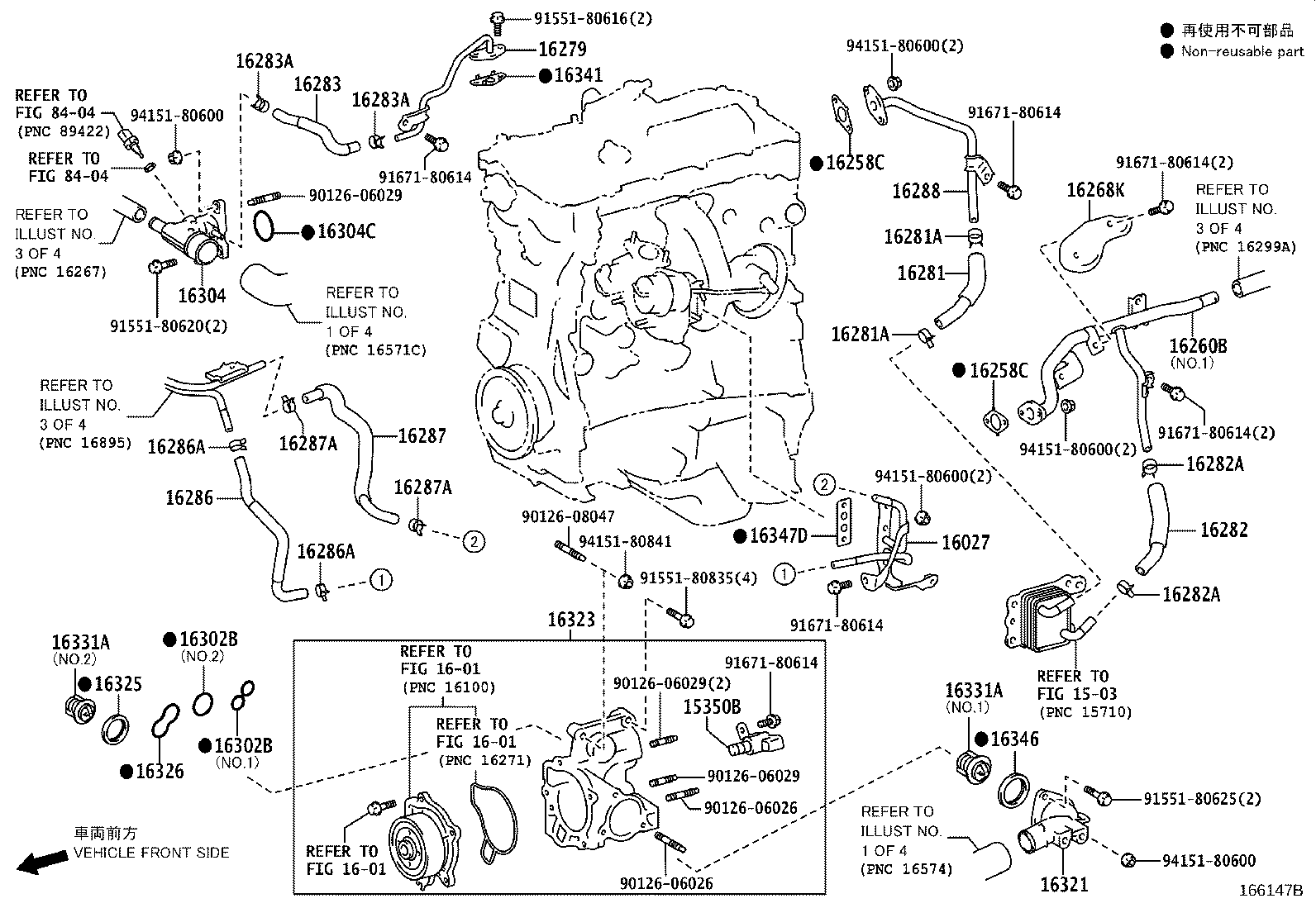

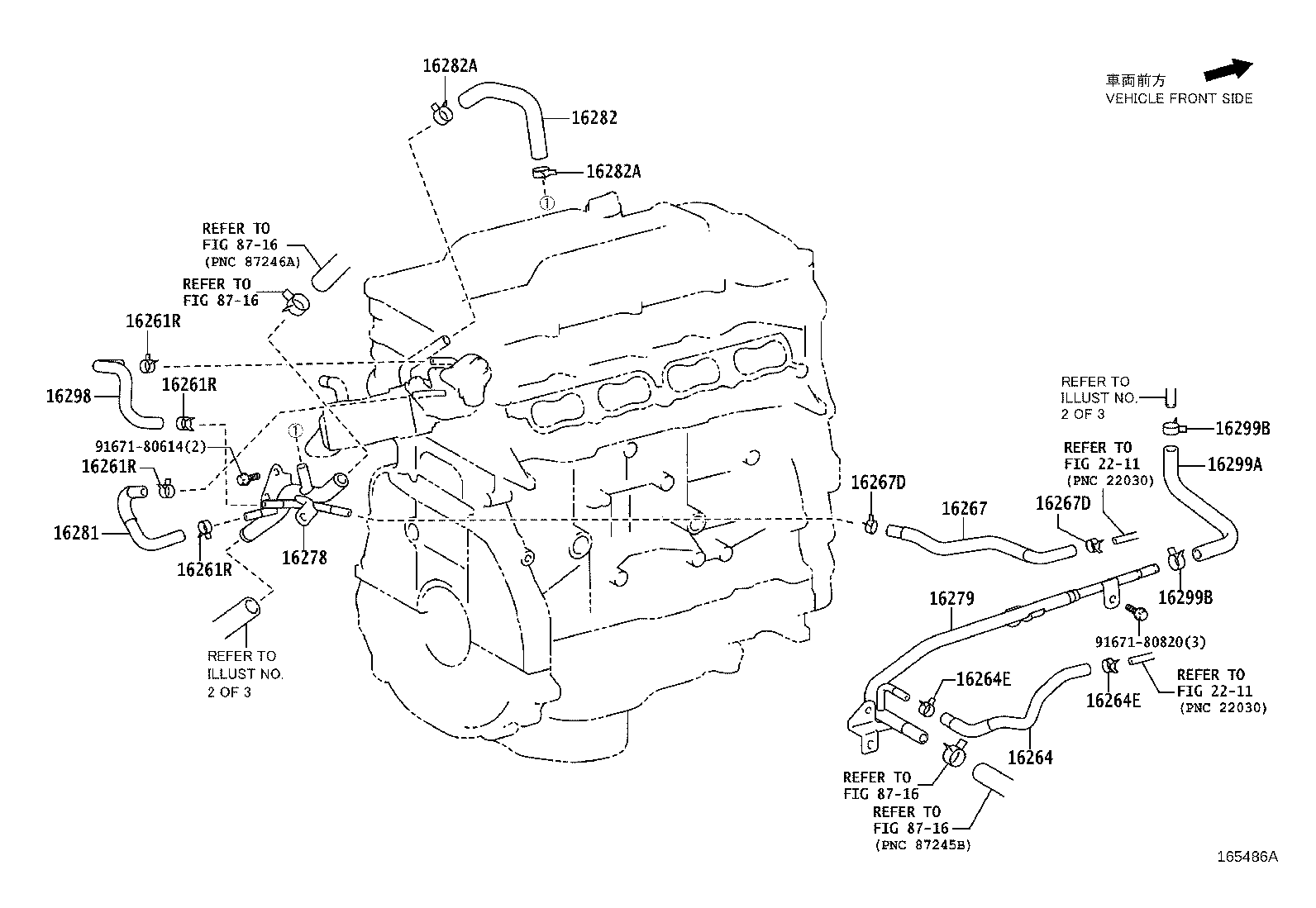

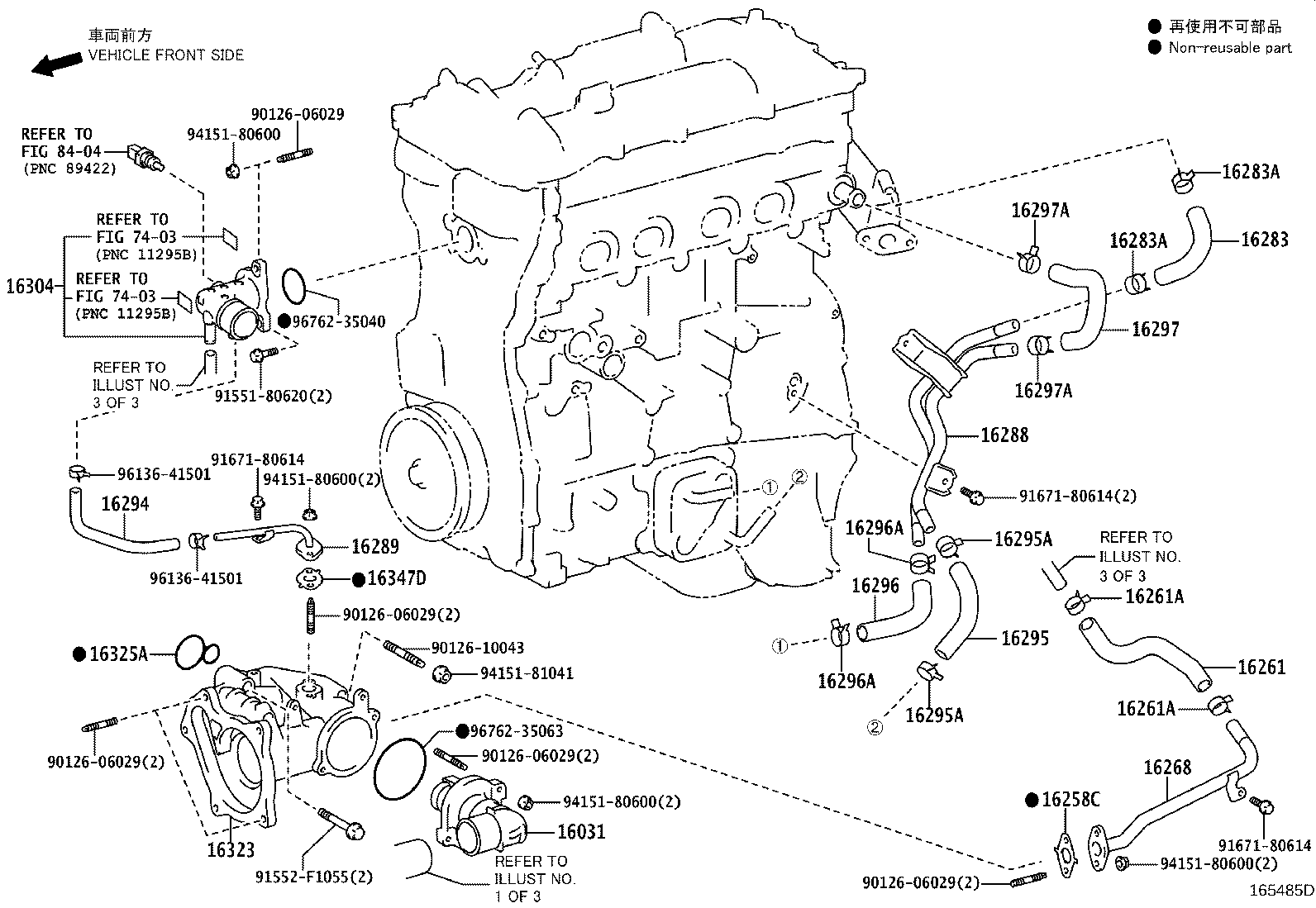

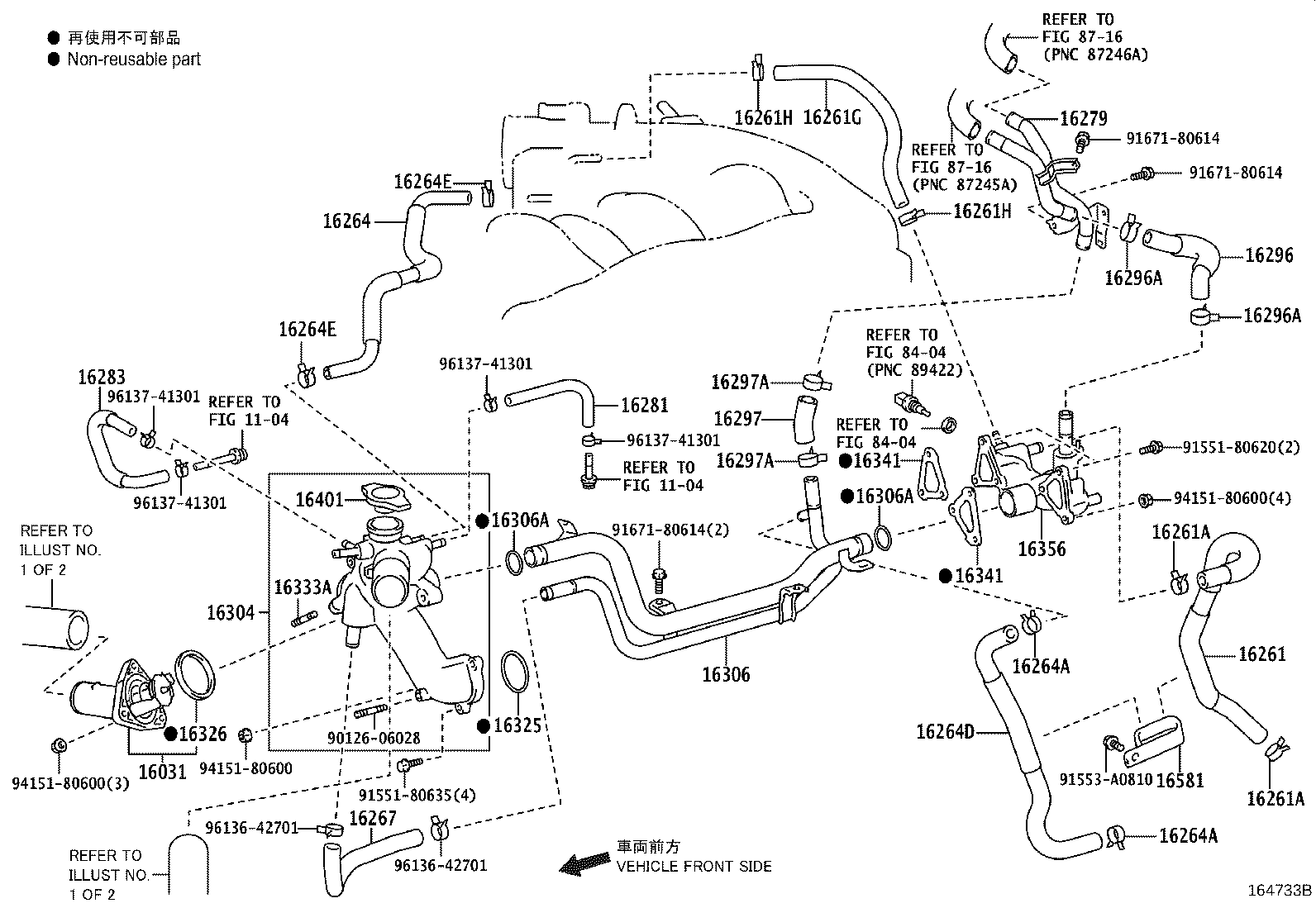

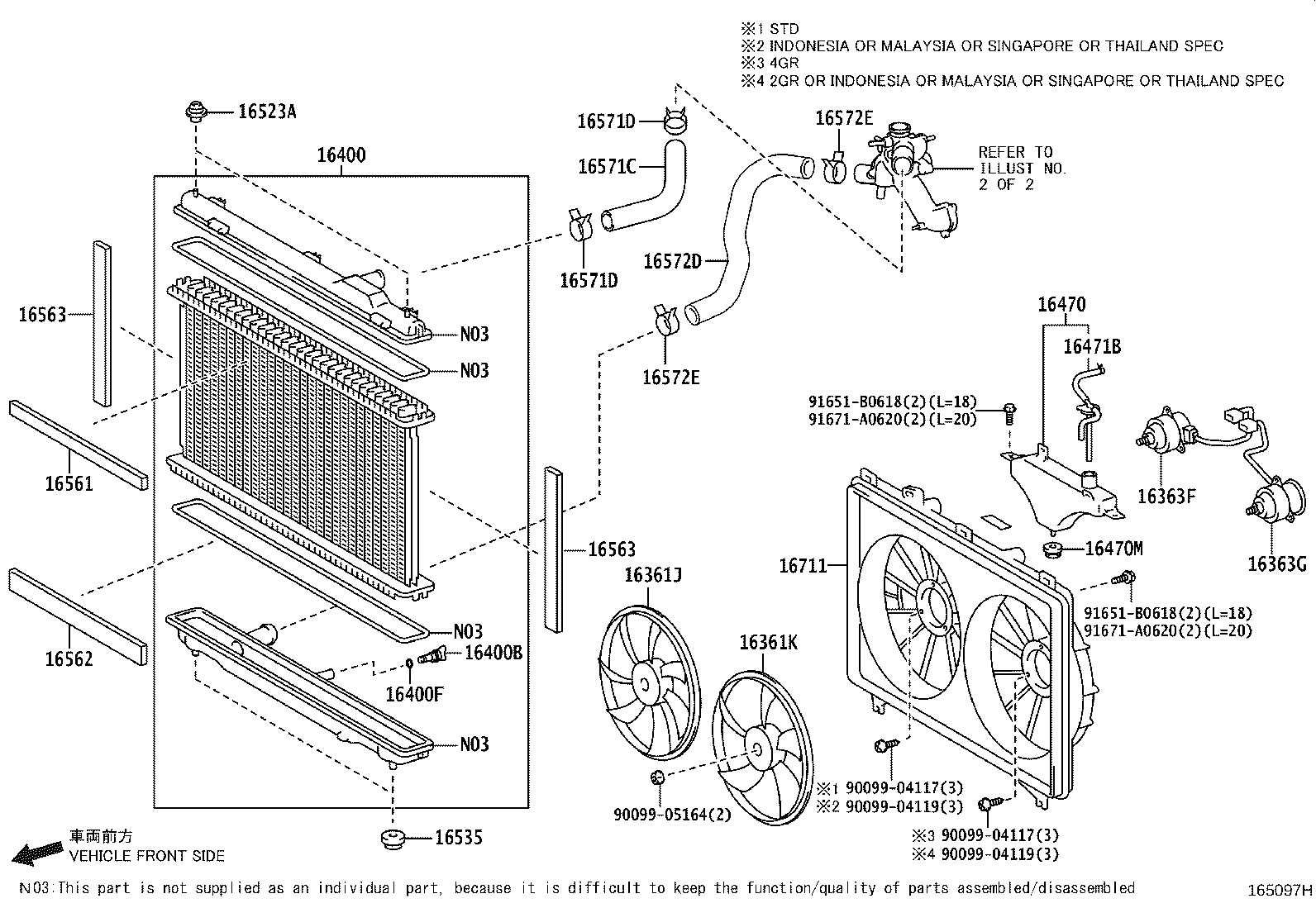

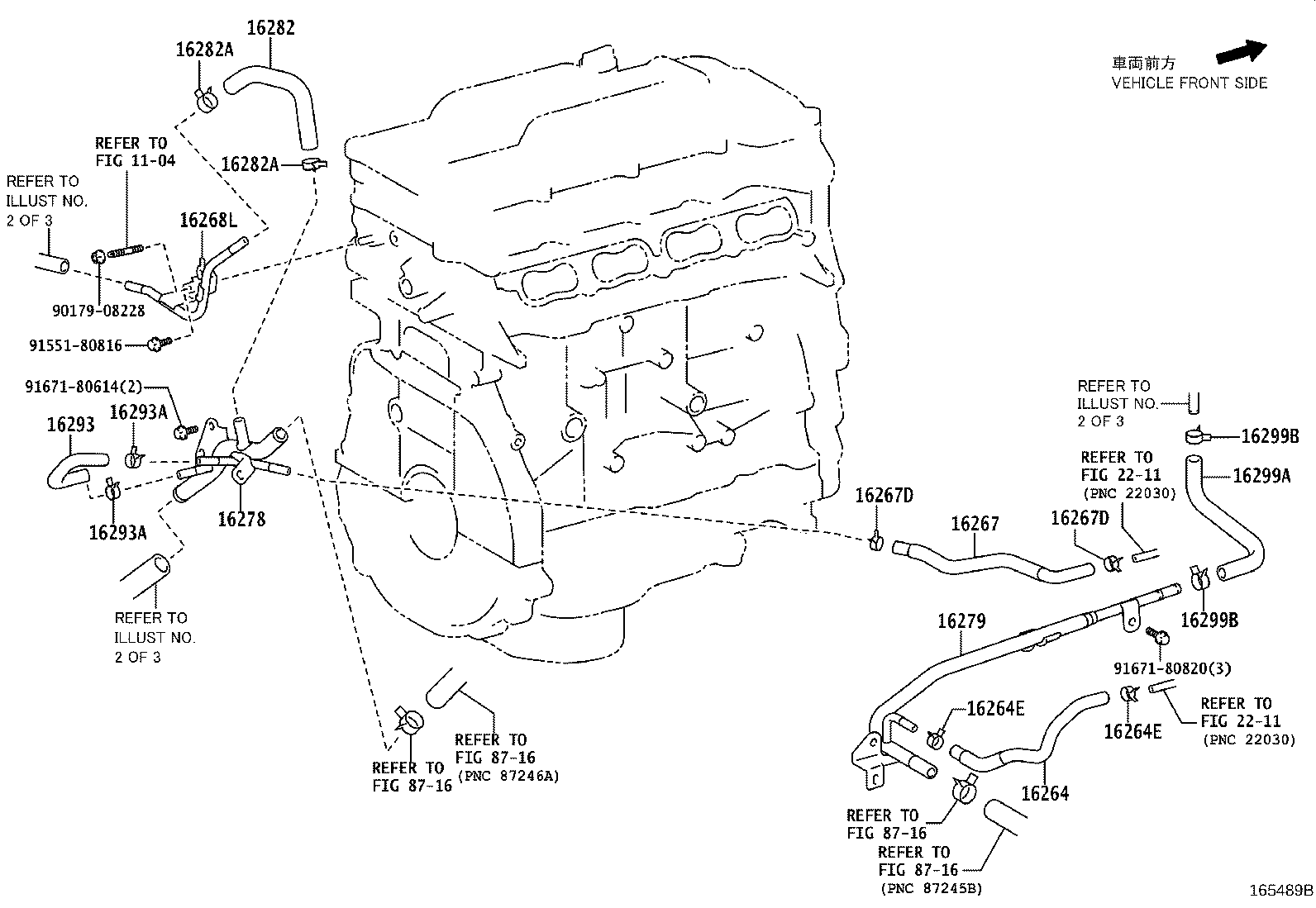

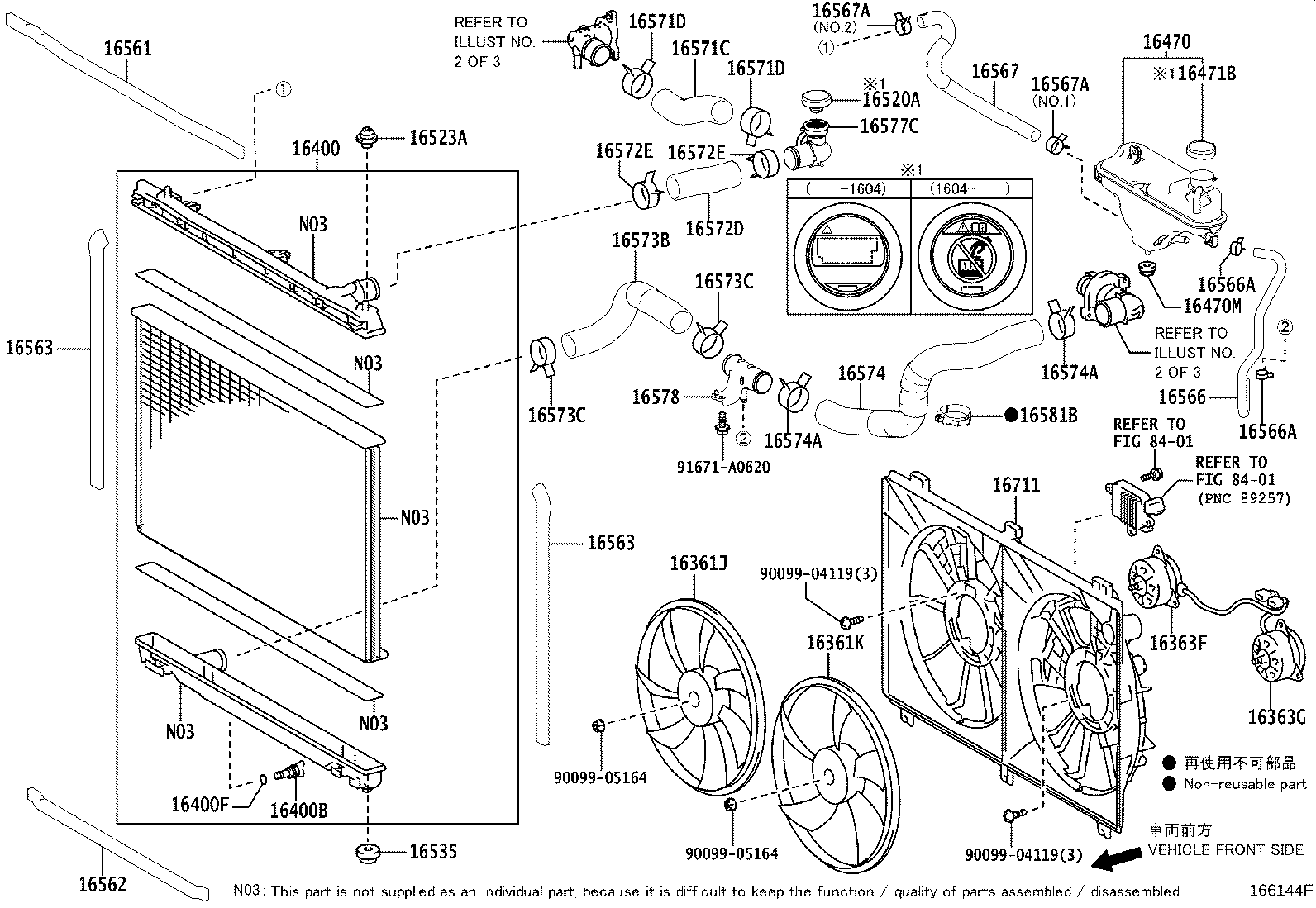

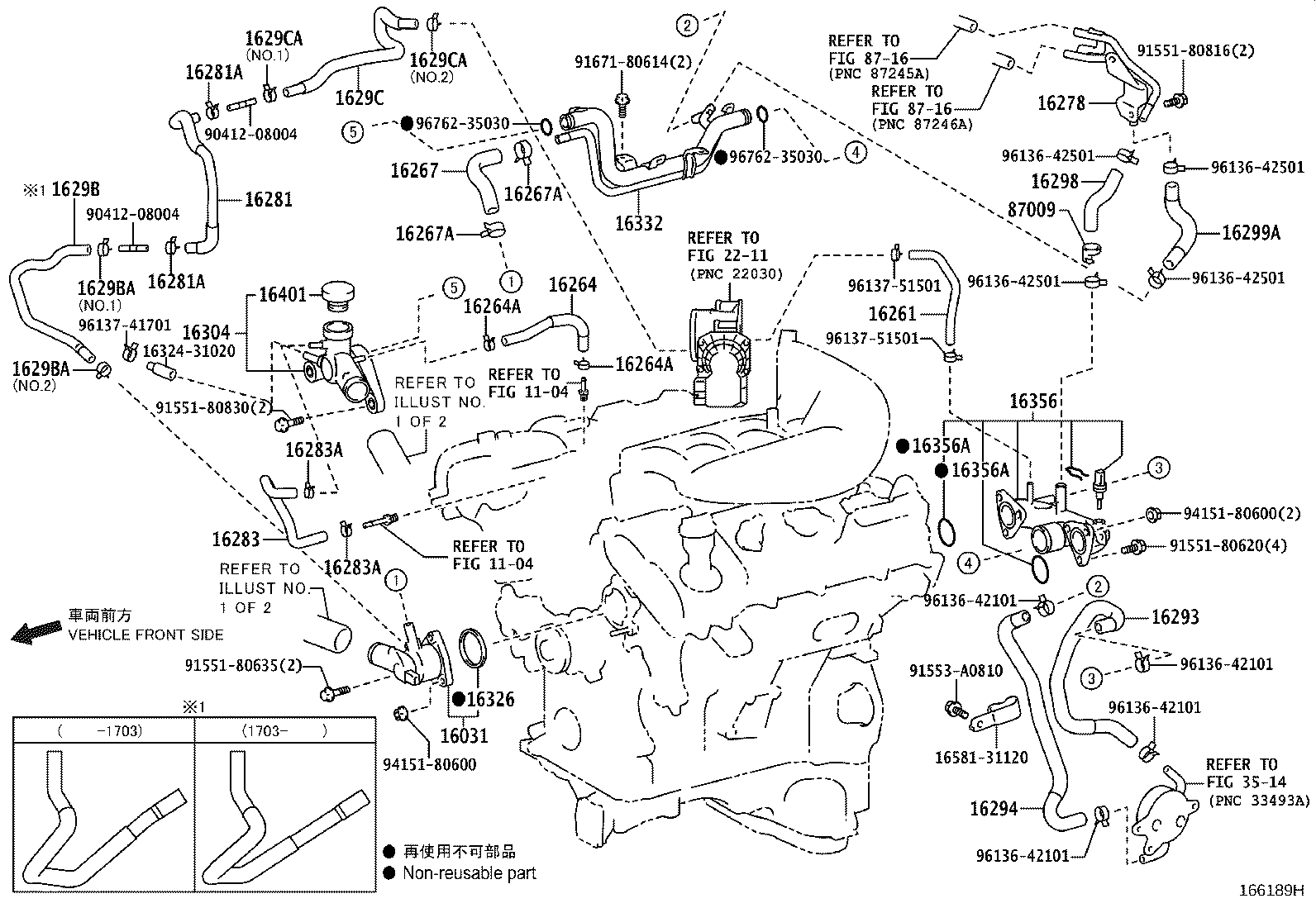

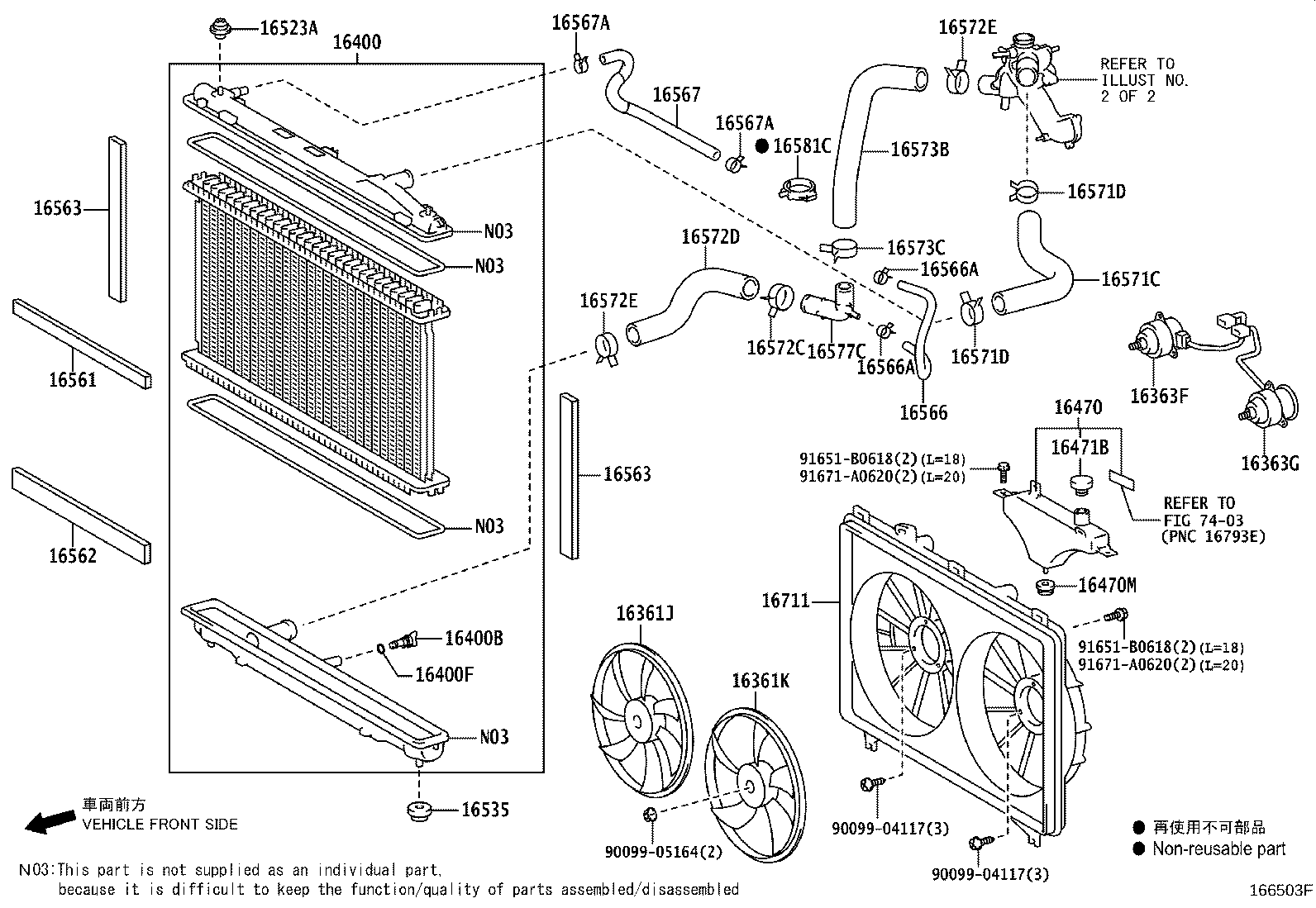

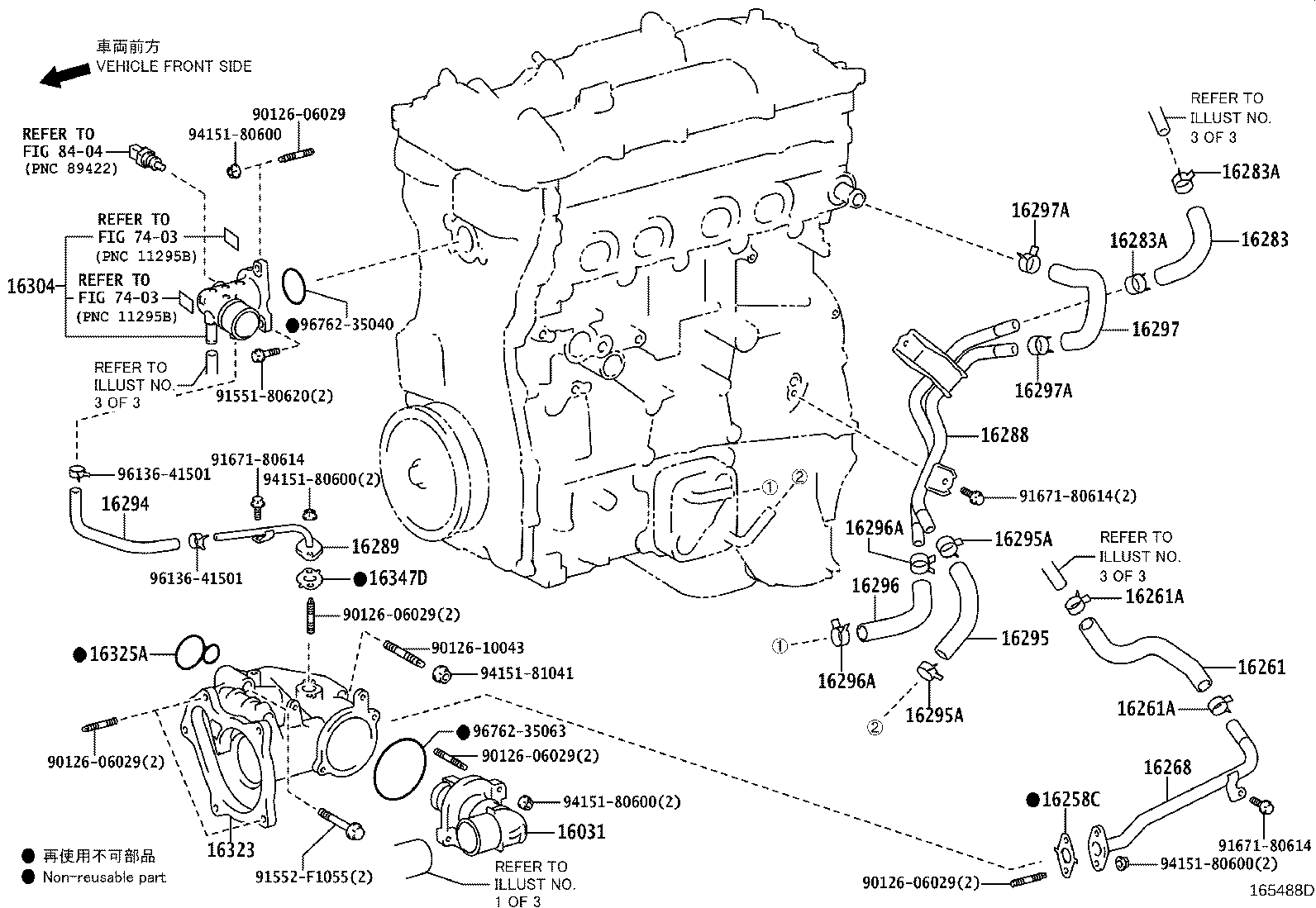

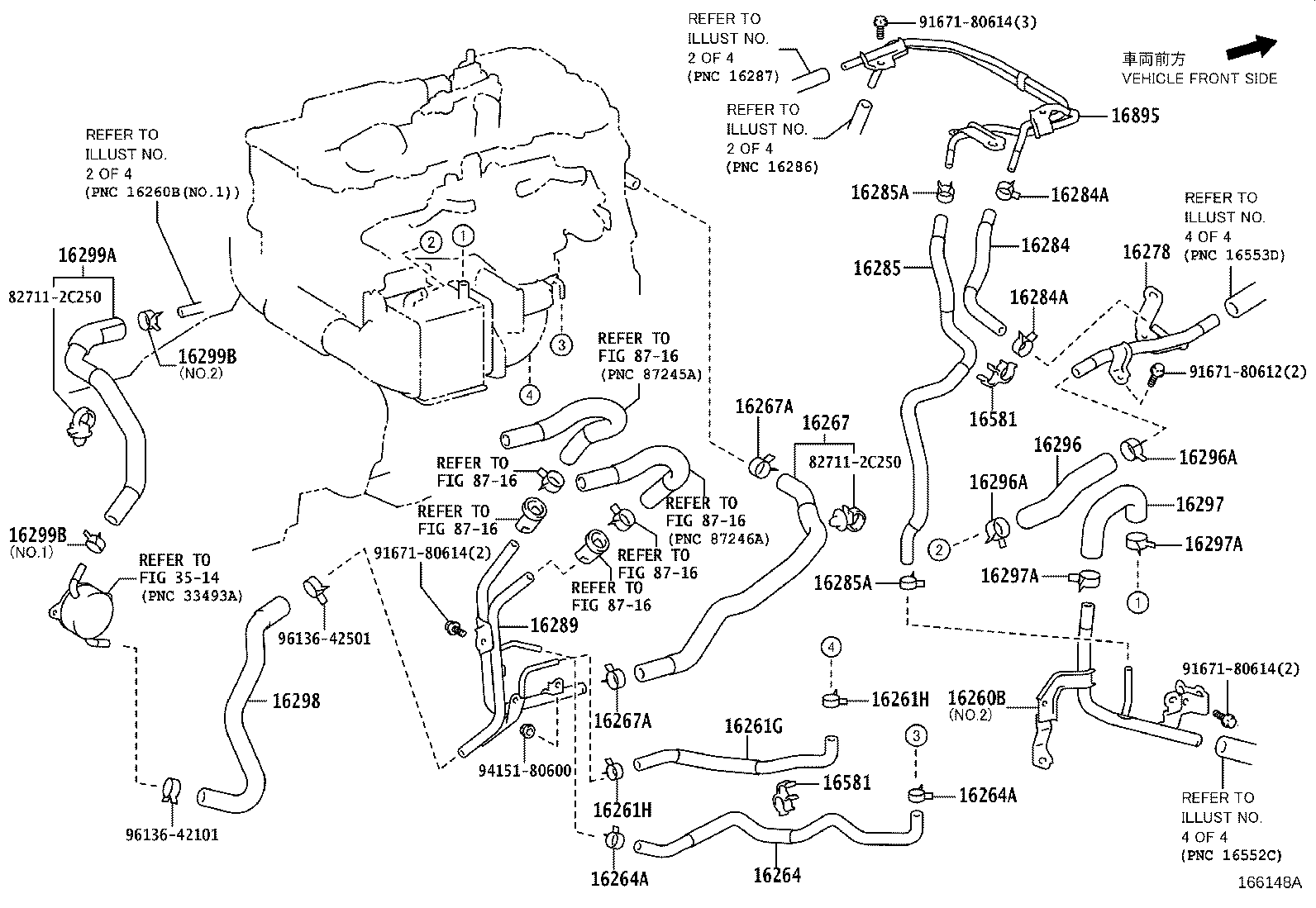

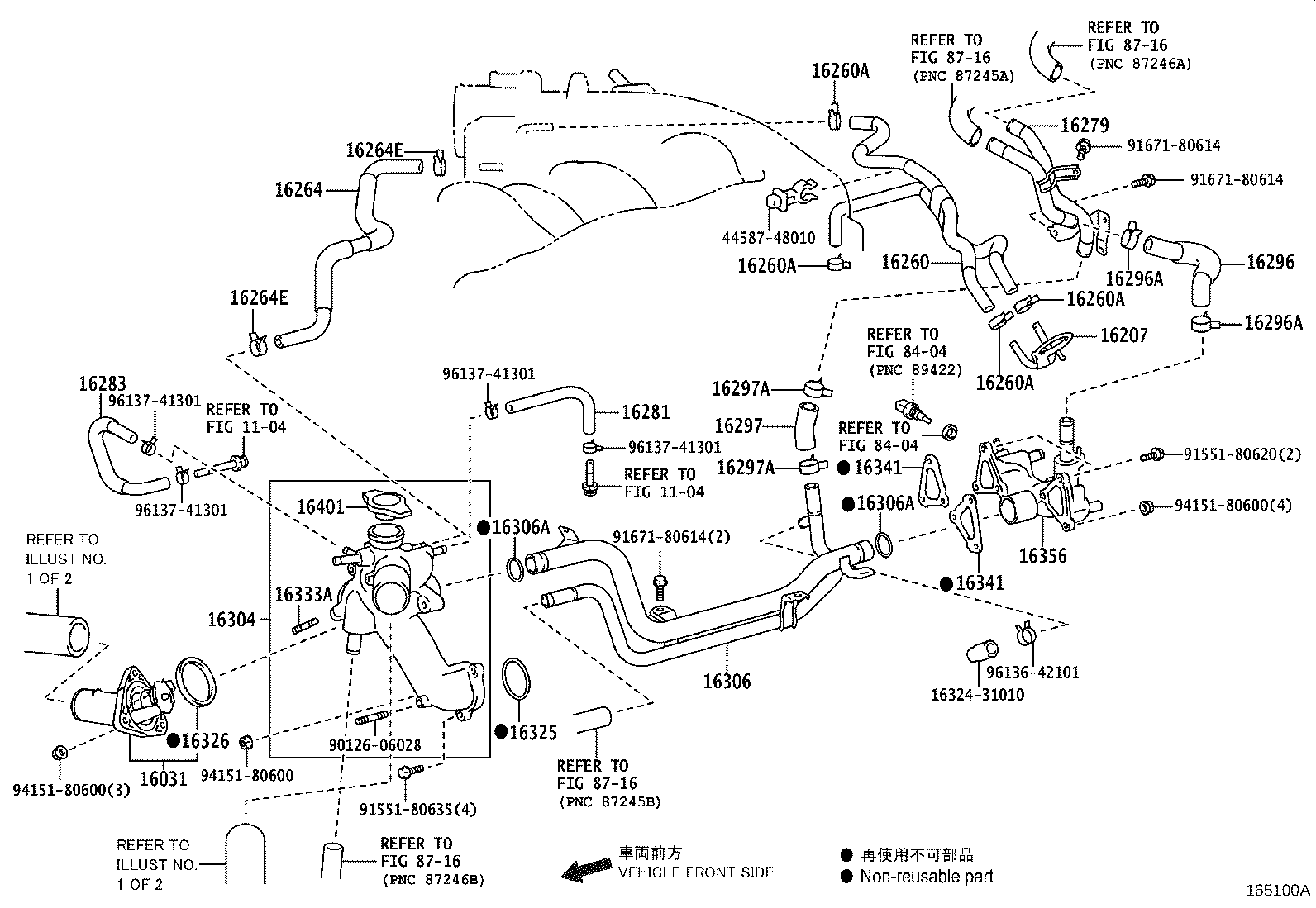

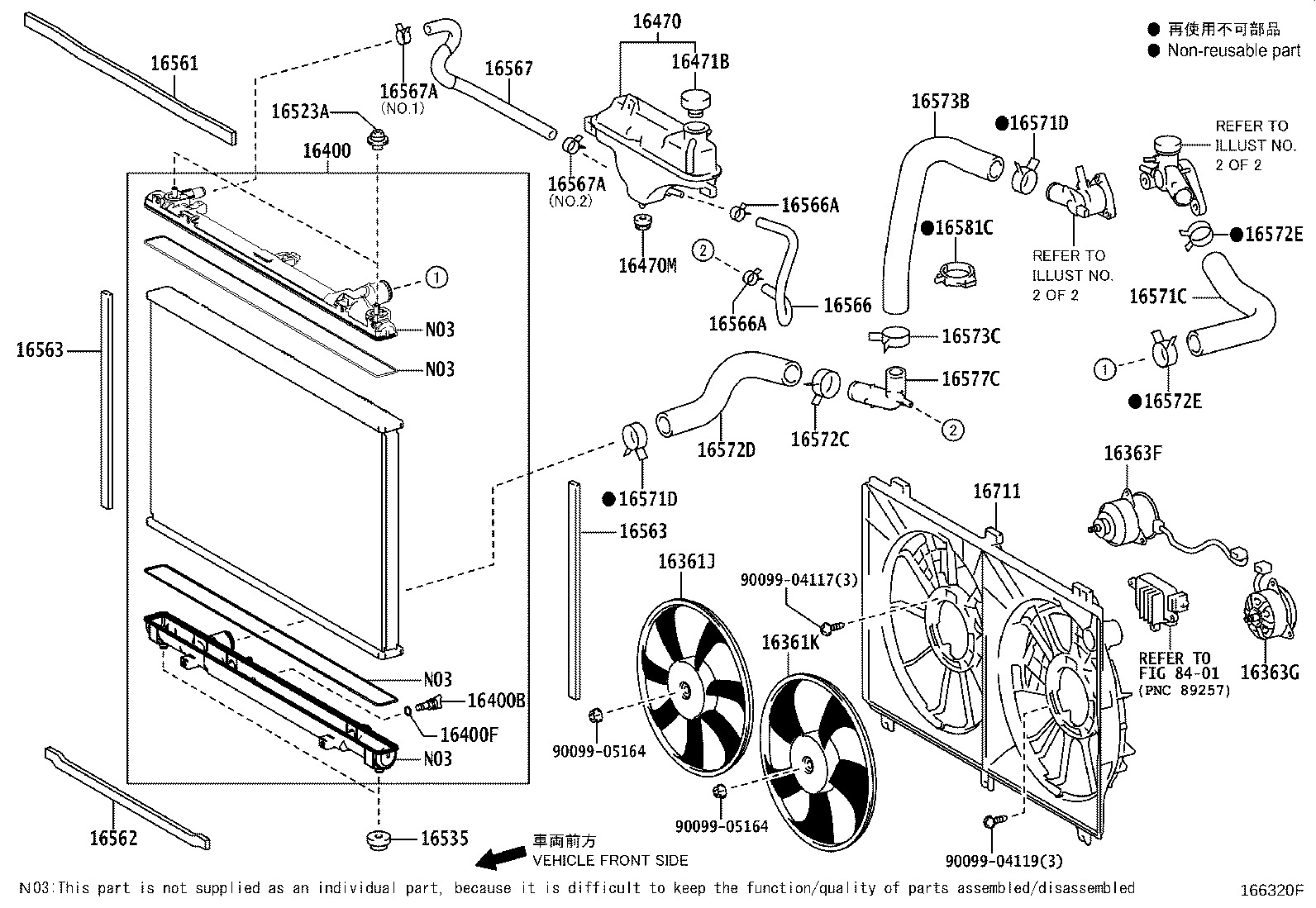

Figure 165487G 165487G 2013-09 → 2015-10 Figure 166144F 166144F 2015-10 → — Figure 165488D 165488D 2013-09 → — Figure 165485D 165485D 2013-09 → — Figure 165489B 165489B 2013-09 → — Figure 165486A 165486A 2013-09 → — Figure 166145J 166145J 2015-10 → — Figure 166147B 166147B 2015-10 → — Figure 166148A 166148A 2015-10 → — Figure 166155C 166155C 2015-10 → — Figure 165097H 165097H 2012-01 → — Figure 166320F 166320F 2015-10 → — Figure 166503F 166503F 2012-03 → — Figure 164733B 164733B 2012-01 → — Figure 166189H 166189H 2015-10 → — Figure 165100B 165100B 2012-03 → —

Part groups

PNCDescription
15350B Valve Assy, Oil Pressure Switching
16021 Bracket Sub-assy, Water Pump
16027 Pipe Sub-assy, Turbo Water, NO.1
16031 Water Inlet Sub-assy, W/Thermostat
161B0 Pump Assy, Electric Water
16207 Pipe Sub-assy, Water By-pass, NO.2
16258C Gasket(FOR WATER BY-PASS PIPE)
16260 Hose Assy, Water By-pass
16260A Clip(FOR WATER BY-PASS HOSE ASSY)
16260B Pipe Assy, Water By-pass
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16268 Pipe, Water By-pass, NO.1
16268K Insulator, Exhaust Manifold Heat, NO.3
16268L Pipe, Water By-pass
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
16299A Hose, Water By-pass, NO.13
16299B Clip(FOR WATER BY-PASS HOSE NO.13)
1629B Hose, Water By-pass, NO.15
1629BA Clip(FOR WATER BY-PASS HOSE NO.15)
1629C Hose, Water By-pass, NO.16
1629CA Clip(FOR WATER BY-PASS HOSE NO.16)
16302B Gasket(FOR WATER INLET HOUSING)
16304 Outlet Sub-assy, Water
16304C Ring, O(FOR WATER OUTLET)
16306 Pipe Sub-assy, Water Outlet
16306A Ring, O(FOR WATER OUTLET PIPE)
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16325A Gasket, Water Inlet Housing
16326 Gasket, Water Inlet Housing, NO.2
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16333A Bolt, Stud(FOR WATER OUTLET HOUSING)
16333E Plug, Drain Cock
16341 Gasket, Water Outlet
16346 Gasket, Thermostat
16347D Gasket, Water By-pass
16355B Cock Sub-assy, Water Drain(FOR WATER BY-PASS JOINT)
16356 Joint, Water By-pass, Rear
16356A Gasket(WATER BY-PASS JOINT, REAR)
16361J Fan, RH
16361K Fan, LH
16363F Motor, Cooling Fan, RH
16363G Motor, Cooling Fan, LH
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471B Cap, Reserve Tank
16475A Cap, Reserve Tank
16515A Pipe, Intercooler Cooling Water, NO.1
16520A Cap Sub-assy, Water Filler
16523A Cushion, Radiator Support
16535 Support, Radiator, Lower
16550 Radiator Assy, Intercooler Cooling
16551C Hose, Intercooler Cooling Water, NO.1
16551D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
16552C Hose, Intercooler Cooling Water, NO.2
16552D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
16553D Hose, Intercooler Cooling Water, NO.3
16553E Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
16554C Hose, Intercooler Cooling Water, NO.4
16554D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
16555C Hose, Intercooler Cooling Water, NO.5
16555D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
16556C Hose, Intercooler Cooling Water, NO.6
16556D Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
16557B Hose, Intercooler Cooling Water, NO.7
16557C Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
16558 Hose, Intercooler Cooling Water, NO.8
16558A Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
16559A Hose, Intercooler Cooling Water, NO.9
16559B Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.9)
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16563 Seal, Radiator TO Support, NO.3
16566 Hose, Reserve Tank Outlet
16566A Clip(FOR RESERVE TANK OUTLET)
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572C Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16575C Bracket, Water Hose Clamp, NO.1
16577C Pipe, Radiator
16578 Pipe, Radiator, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16581C Clamp, Hose(FOR RADIATOR HOSE NO.2)
16640 Tank Assy, Intercooler Reserve
16640A Grommet(FOR INTERCOOLER RESERVE TANK)
16651 Bracket, Intercooler Reserve Tank
16711 Shroud, Fan
16895 Pipe, Turbo Water, NO.1
87009 Hose Set, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
