Toyota Lexus GS Series

2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 5 illustrations

Illustrations

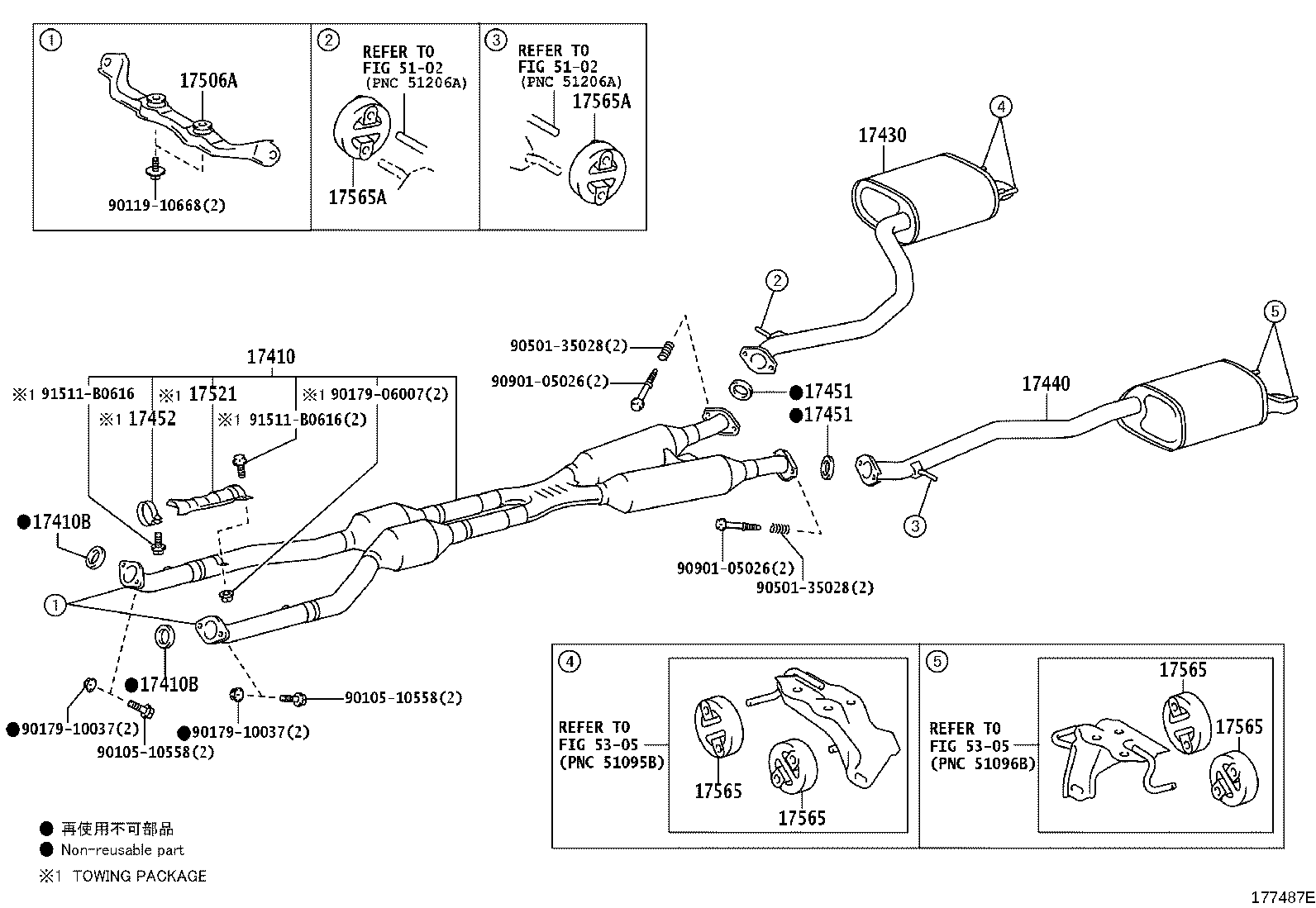

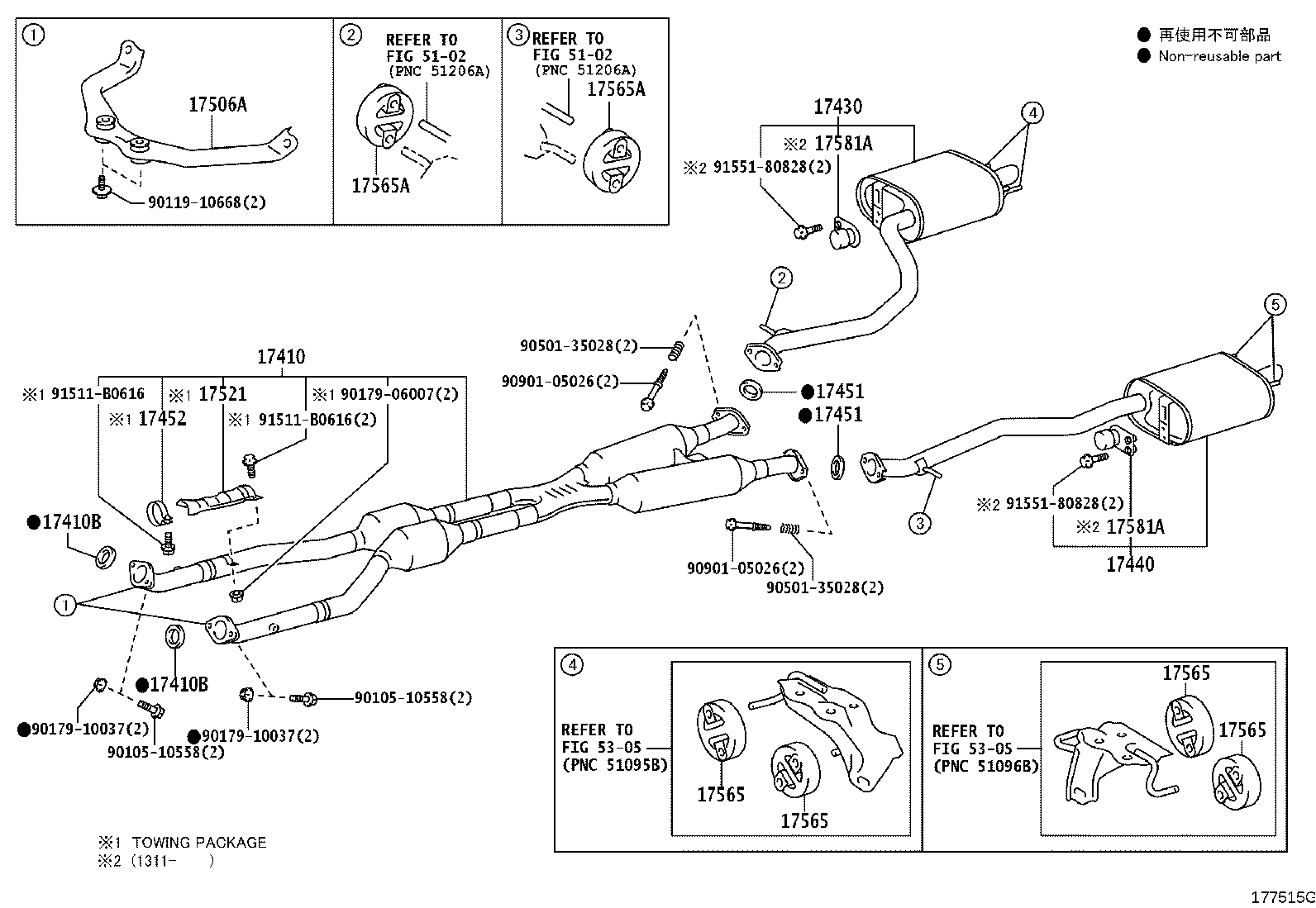

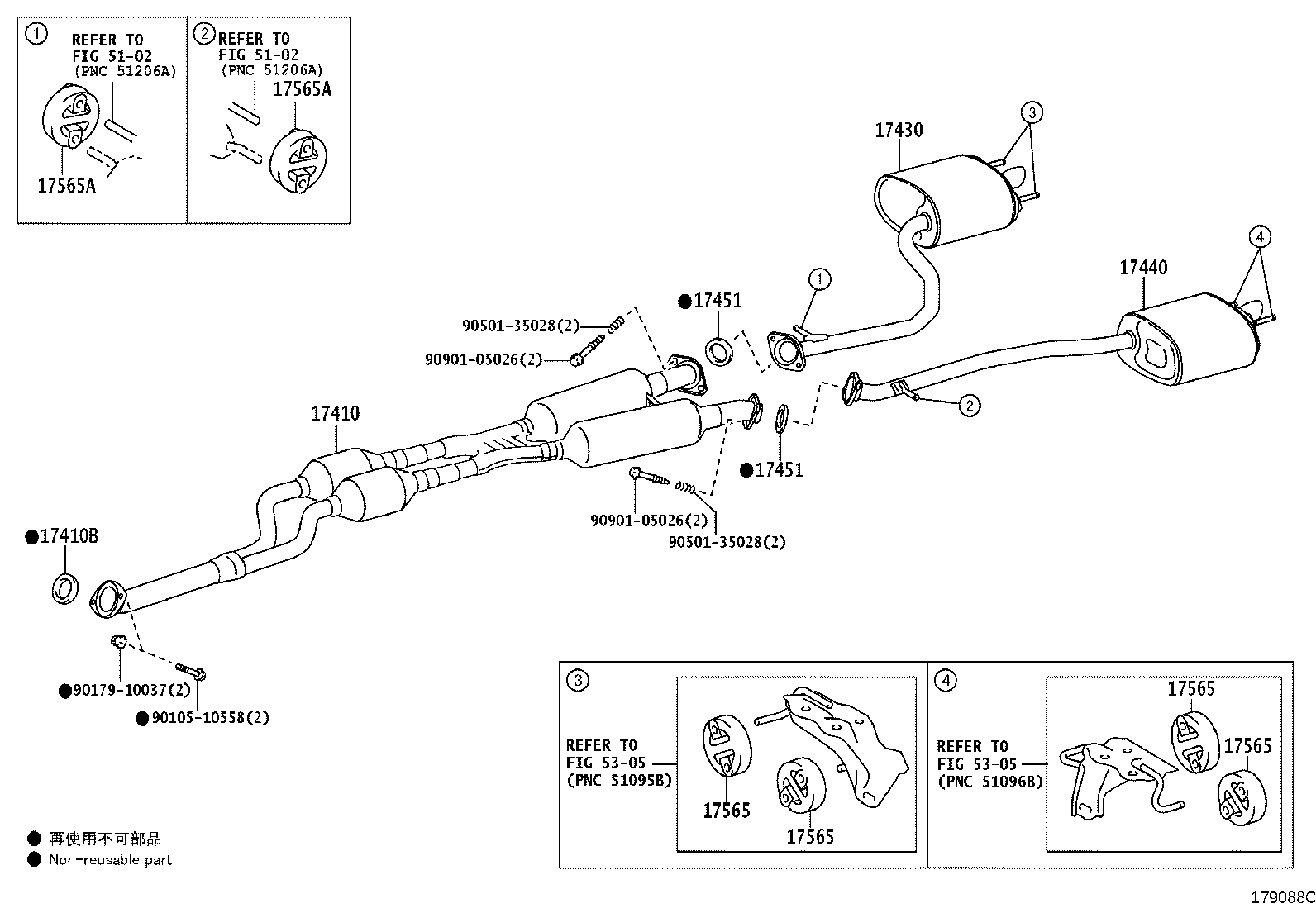

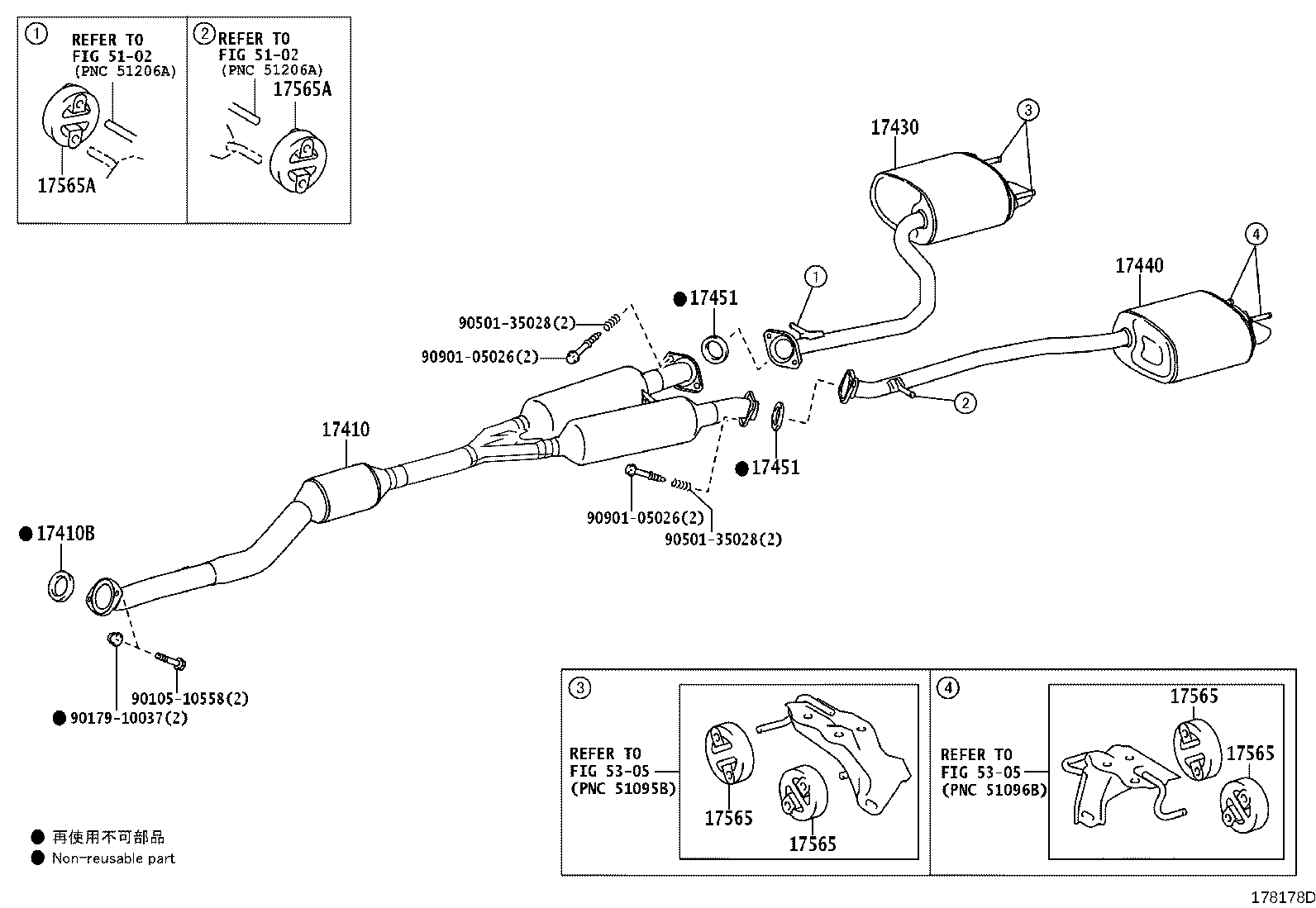

Figure 177488F 177488F 2012-01 → — Figure 177515G 177515G 2012-03 → 2015-10 Figure 177487E 177487E 2012-03 → — Figure 178178D 178178D 2013-09 → — Figure 179088C 179088C 2015-10 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17521 Protector, Exhaust Pipe, Front NO.1
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
