Toyota Lexus GS Series

2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

7 part groups · 4 illustrations

Illustrations

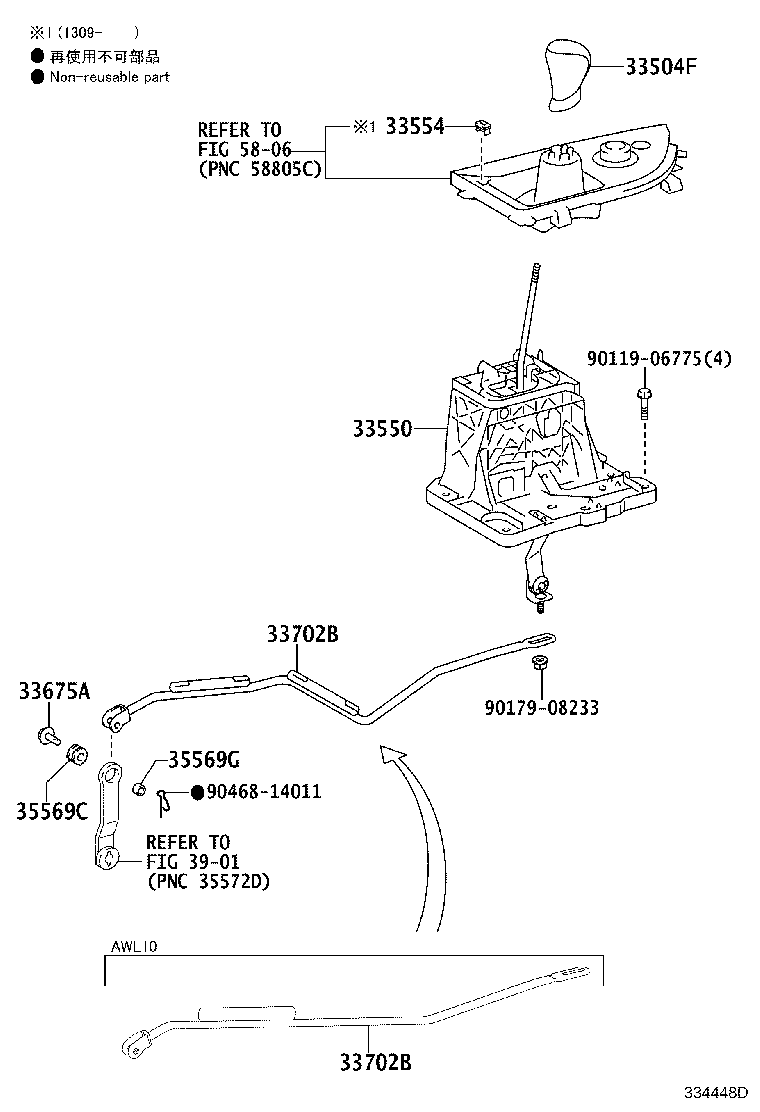

Figure 334447D 334447D 2012-01 → — Figure 334446B 334446B 2012-03 → — Figure 334449D 334449D 2012-03 → — Figure 334448D 334448D 2012-03 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33554 Cap, Shift Lever
33675A Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33702B Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
35569C Grommet (FOR TRANSMISSION CONTROL ROD)
35569G Bush (FOR TRANSMISSION CONTROL ROD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
