Toyota Lexus GS Series
2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe
Supported model
Data version 2018-09

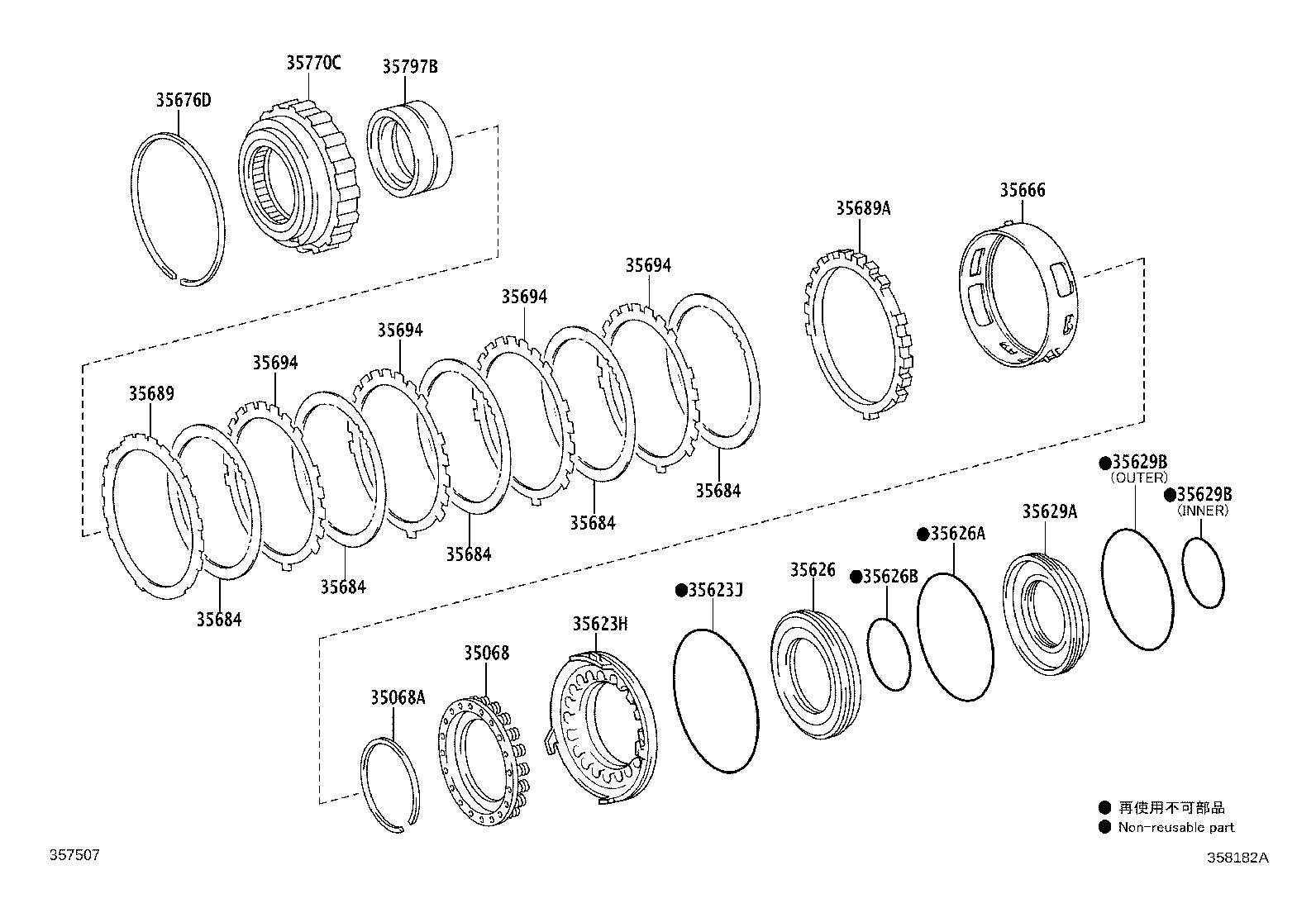

Brake NO.3, 1ST & Reverse Brake (ATM)
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35068 | Spring Sub-assy, 1ST & Reverse Brake Return |
| 35068A | Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING) |
| 35155B | Sleeve, Rear Cover |
| 35623H | Piston, 1ST & Reverse Brake |
| 35623J | Ring, O (FOR 1ST & REVERSE BRAKE) |
| 35626 | Sleeve, Brake Reaction |
| 35626A | Ring (FOR BRAKE REACTION SLEEVE OUTER) |
| 35626B | Ring (FOR BRAKE REACTION SLEEVE INNER) |
| 35629A | Piston, Brake, NO.4 |
| 35629B | Ring, O (FOR BRAKE PISTON NO.4) |
| 35666 | Tube, Brake Apply |
| 35676D | Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE) |
| 35684 | Disc, Brake, NO.4 |
| 35689 | Flange, Brake, NO.4 |
| 35689A | Flange, Brake, NO.4 |
| 35694 | Plate, Brake, NO.4 |
| 35770C | Clutch Assy, 1Way NO.3 |
| 35797B | Race, 1 Way Clutch, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
