Toyota Lexus GS Series
2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe
Supported model
Data version 2018-09

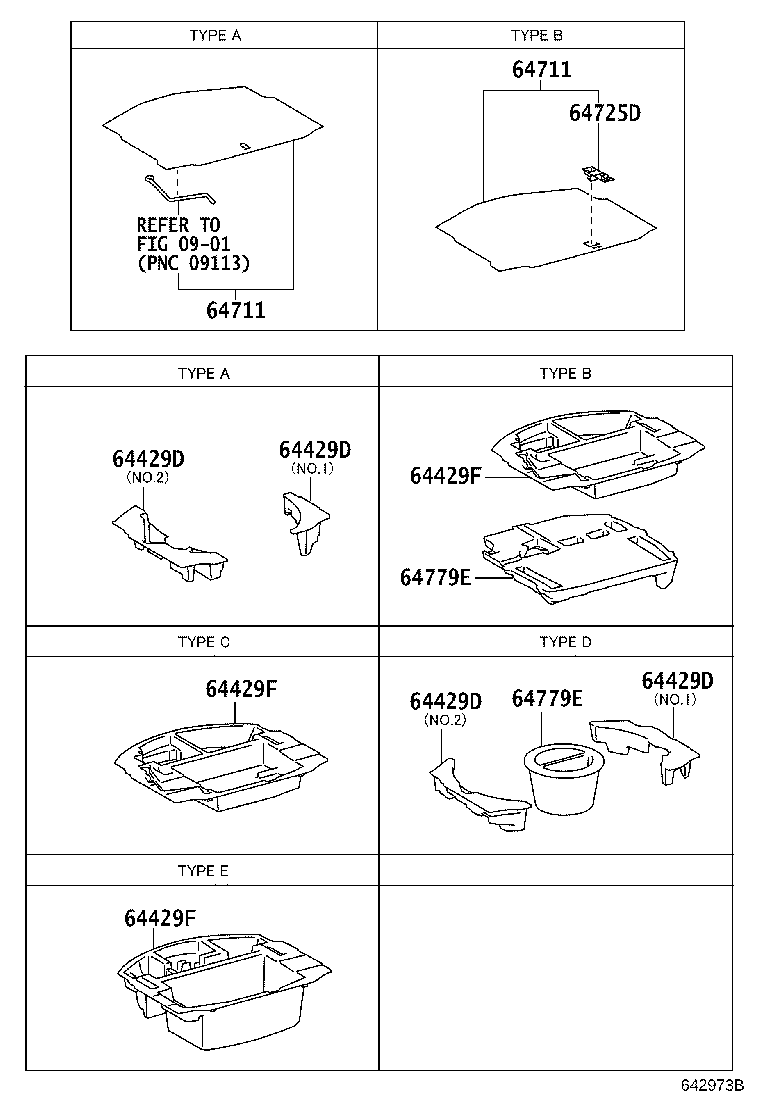

Package Tray Panel & Luggage Compartment Mat
43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58443B | Cushion, Deck Board, NO.1 |
| 62597H | Box, Side Trim |
| 62599D | Box, Side Trim, LH |
| 64135B | Bracket, Luggage Compartment Tray, Rear RH |
| 64137A | Bracket, Luggage Compartment Tray, Rear LH |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64273D | Pad, Room Partition, NO.1 |
| 64274A | Pad, Room Partition, NO.2 |
| 64278B | Pad, Room Partition, NO.3 |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64385B | Clip |
| 64429D | Tray, Luggage Compartment Side |
| 64429F | Box, Luggage Compartment Trim |
| 64439F | Cover, Luggage Room, Rear |
| 64711 | Mat, Luggage Compartment Floor |
| 64712C | Clip(FOR LUGGAGE COMPARTMENT TRIM COVER) |
| 64714D | Cover, Luggage Compartment Trim, Side, RH |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64718B | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64726A | Clip, Luggage Trim, Rear |
| 64745D | Cover, Rear Combination Lamp Service, RH |
| 64746D | Cover, Rear Combination Lamp Service, LH |
| 64779E | Tray, Spare Wheel Cover |
| 66310D | Hook Assy, Rope |
| 66310G | Hook Assy, Rope |
| 66311L | Hook,Rope |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
