Toyota Lexus GS Series

2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

113 part groups · 32 illustrations

Illustrations

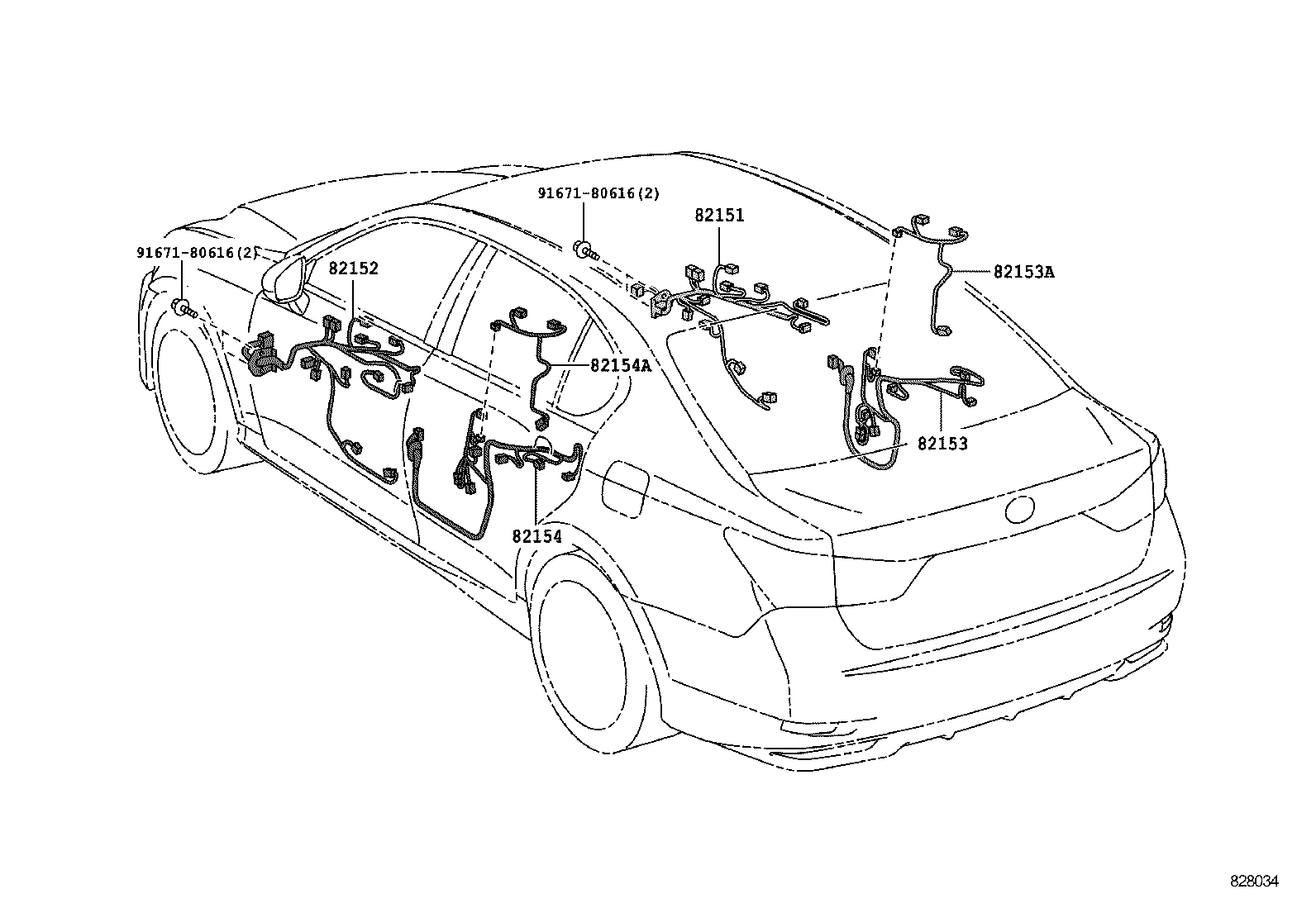

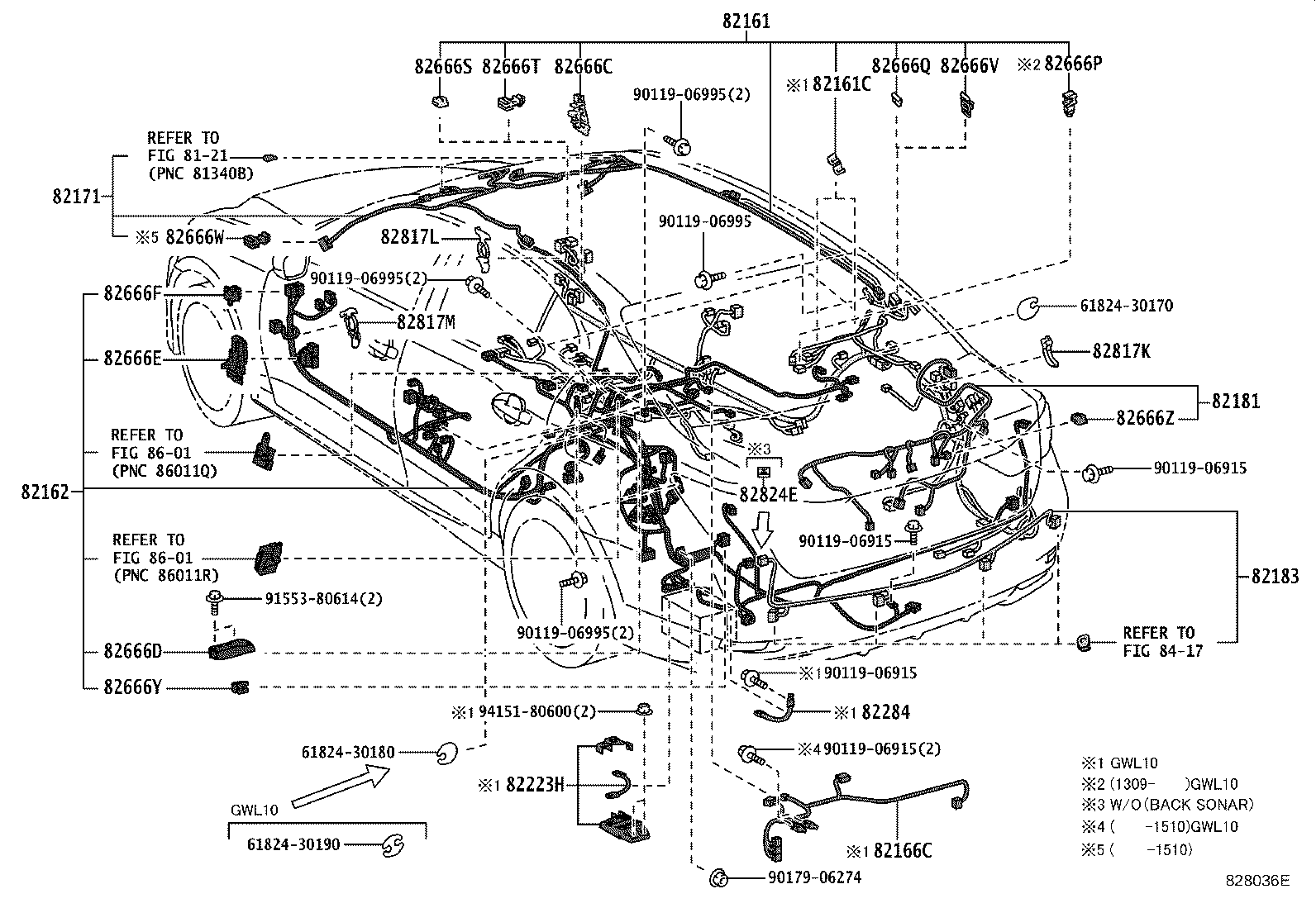

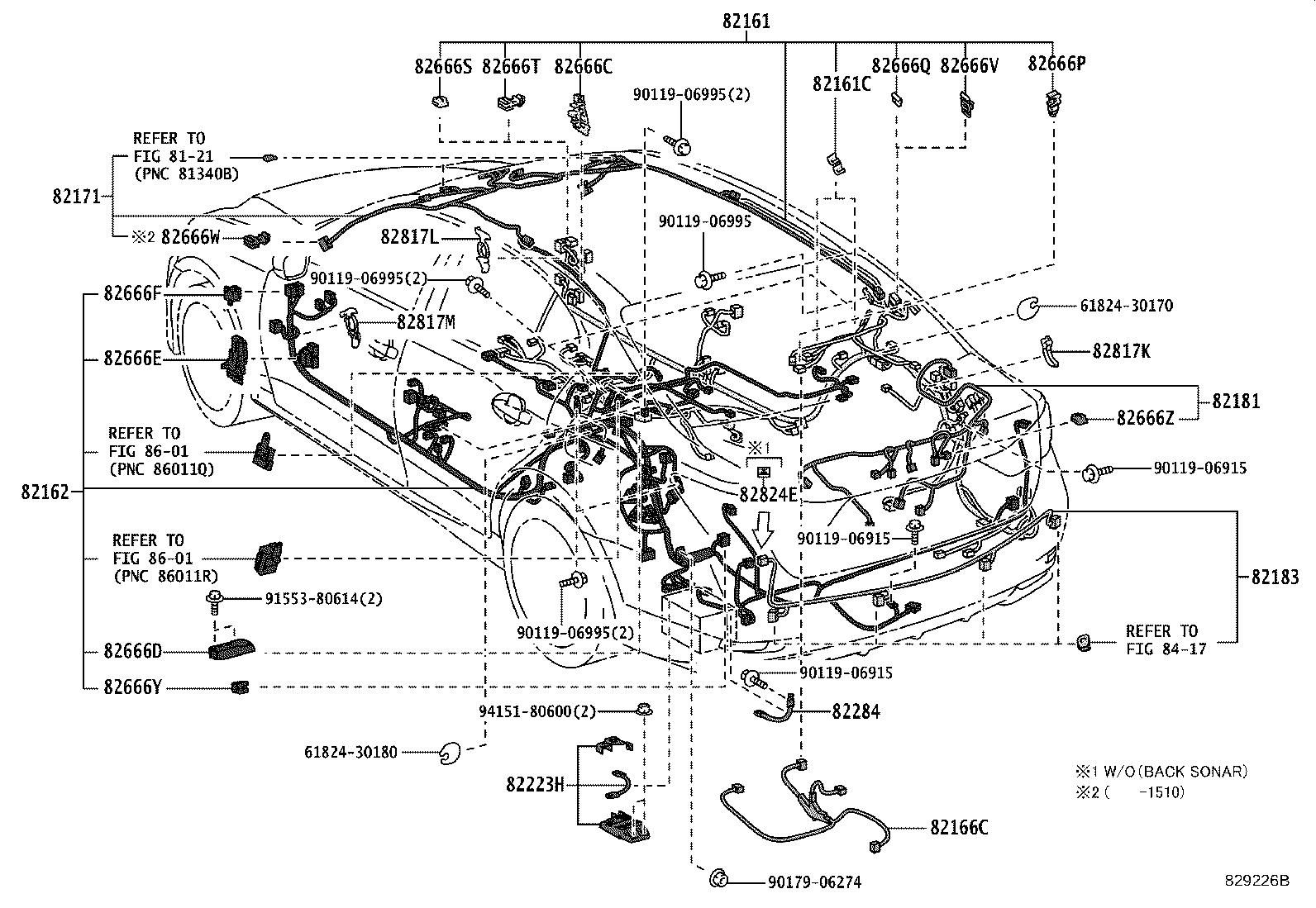

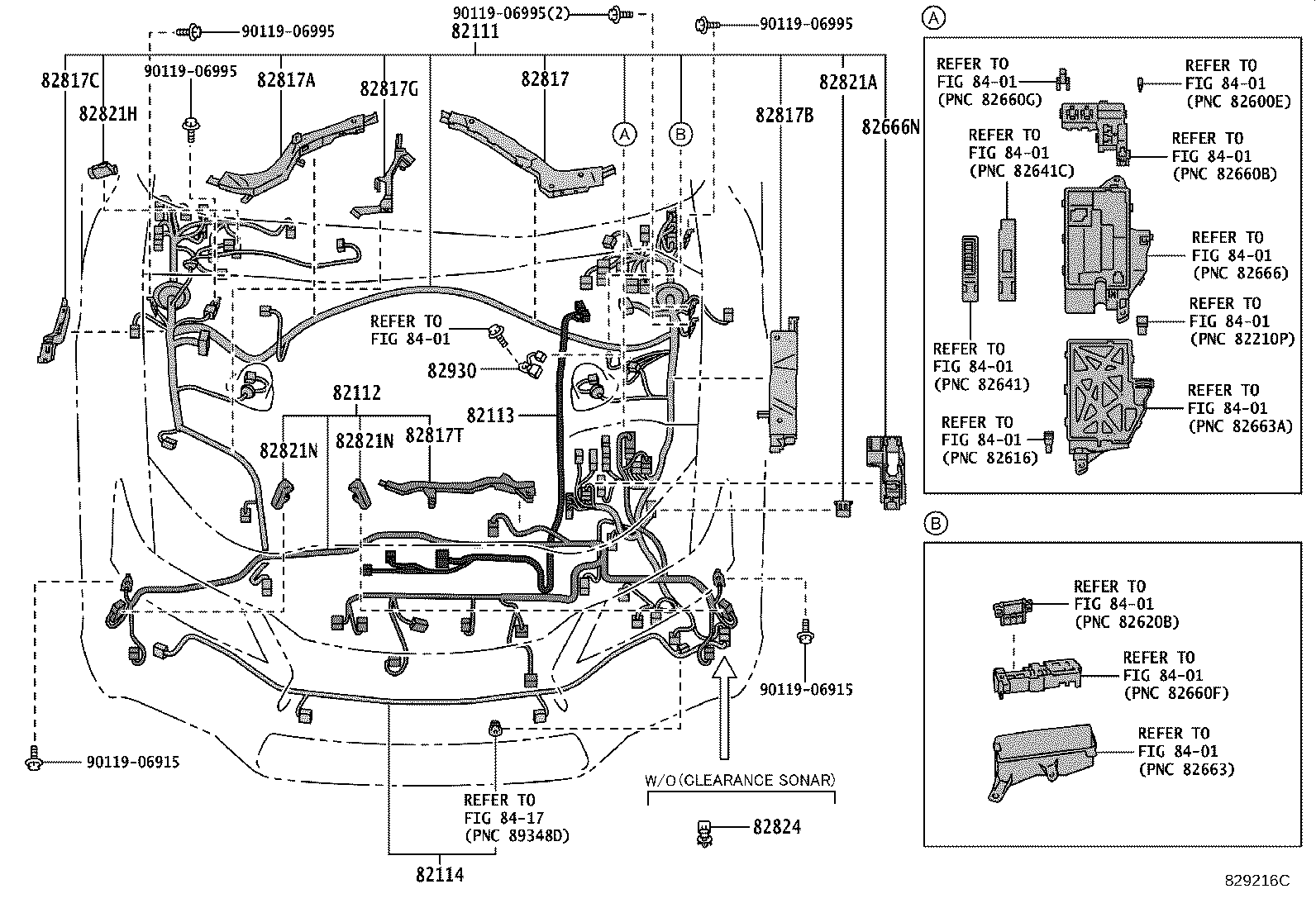

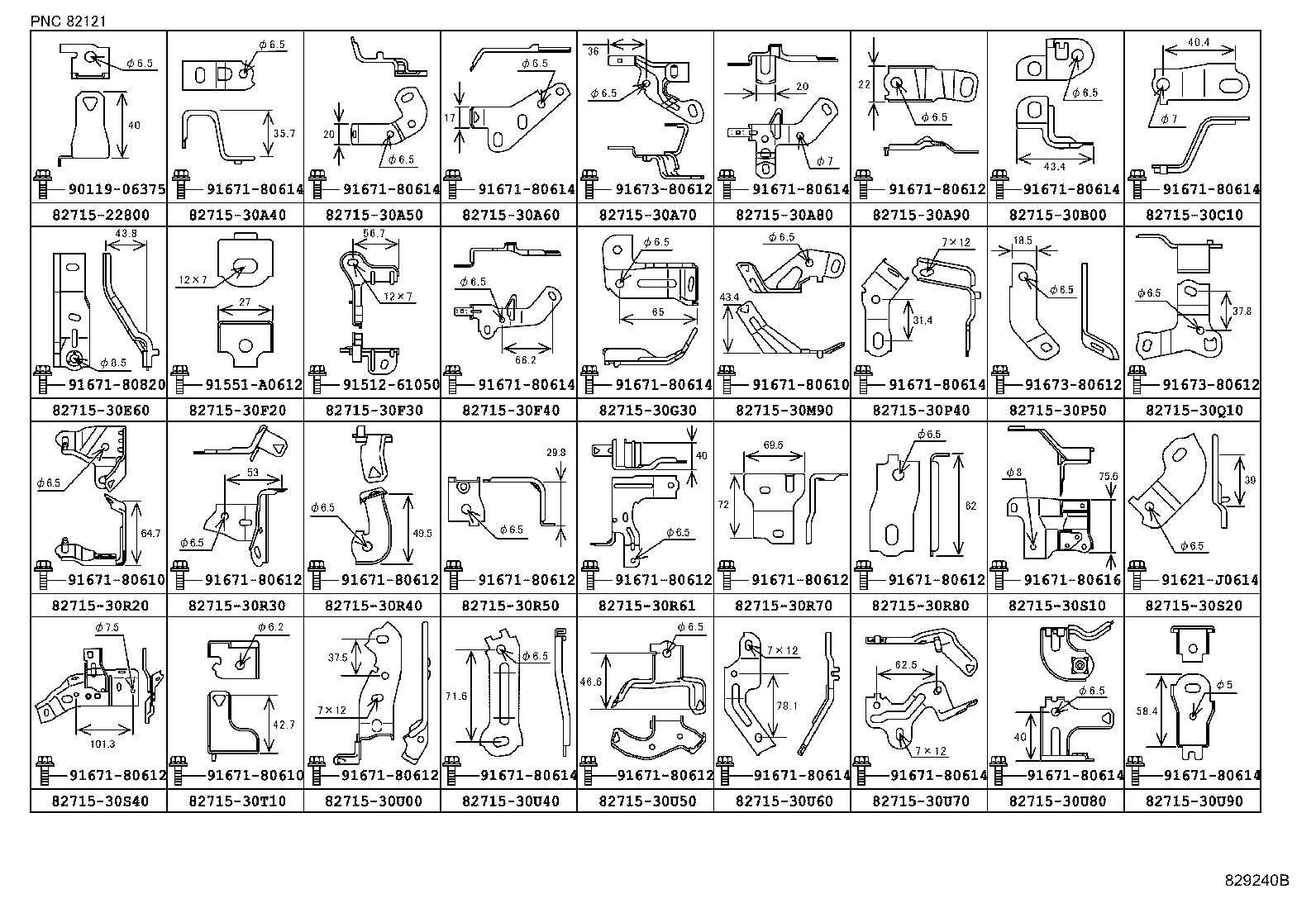

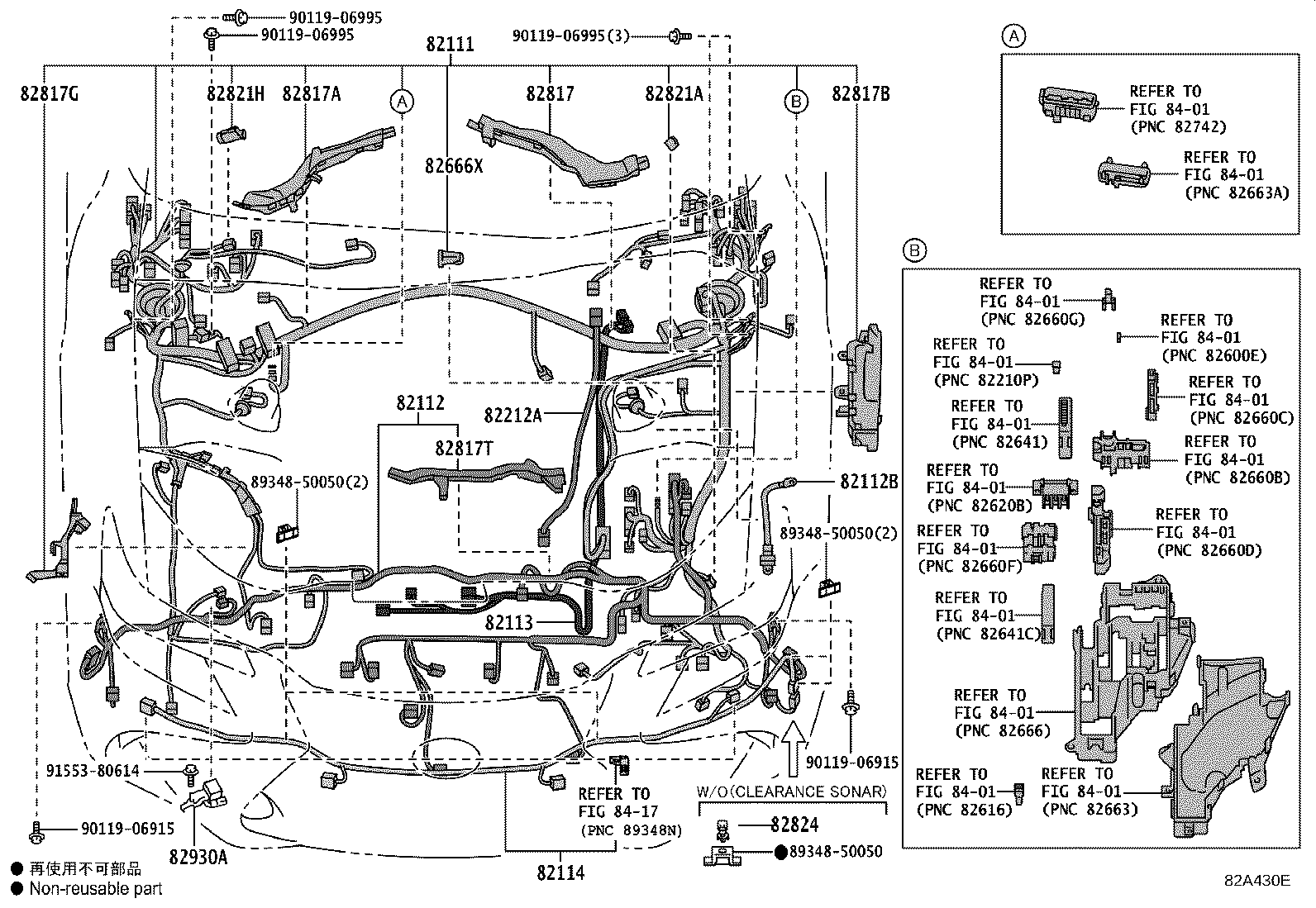

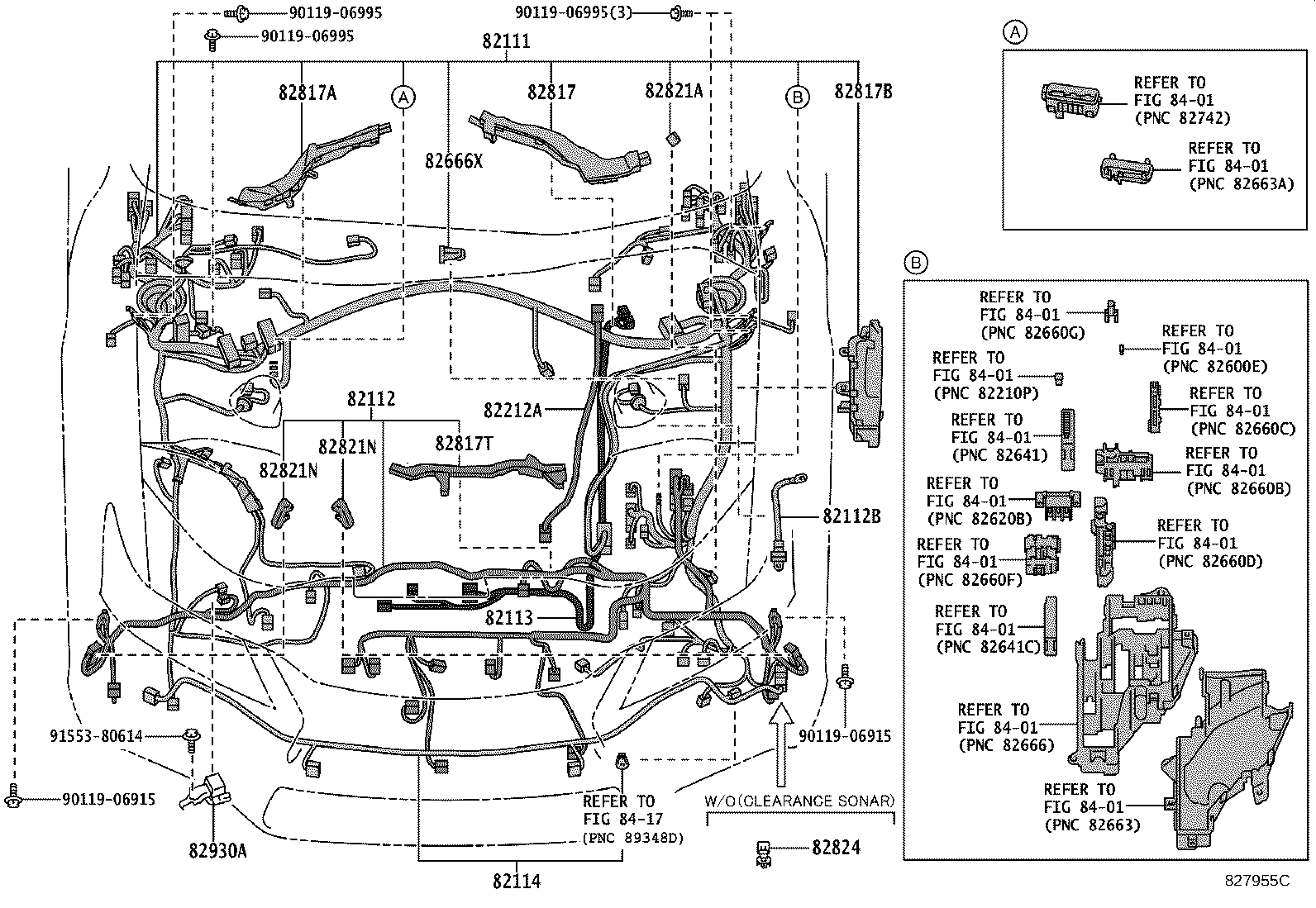

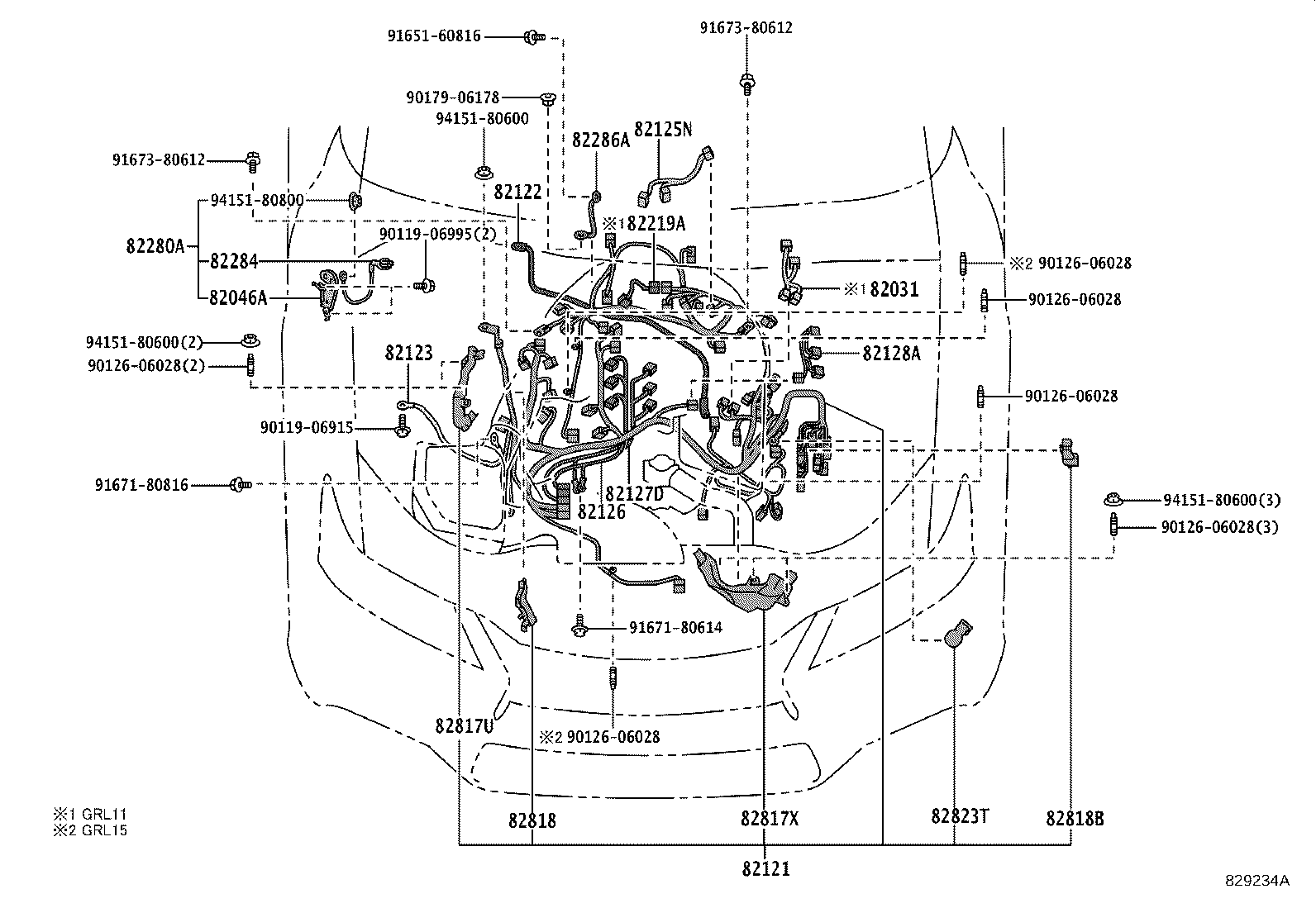

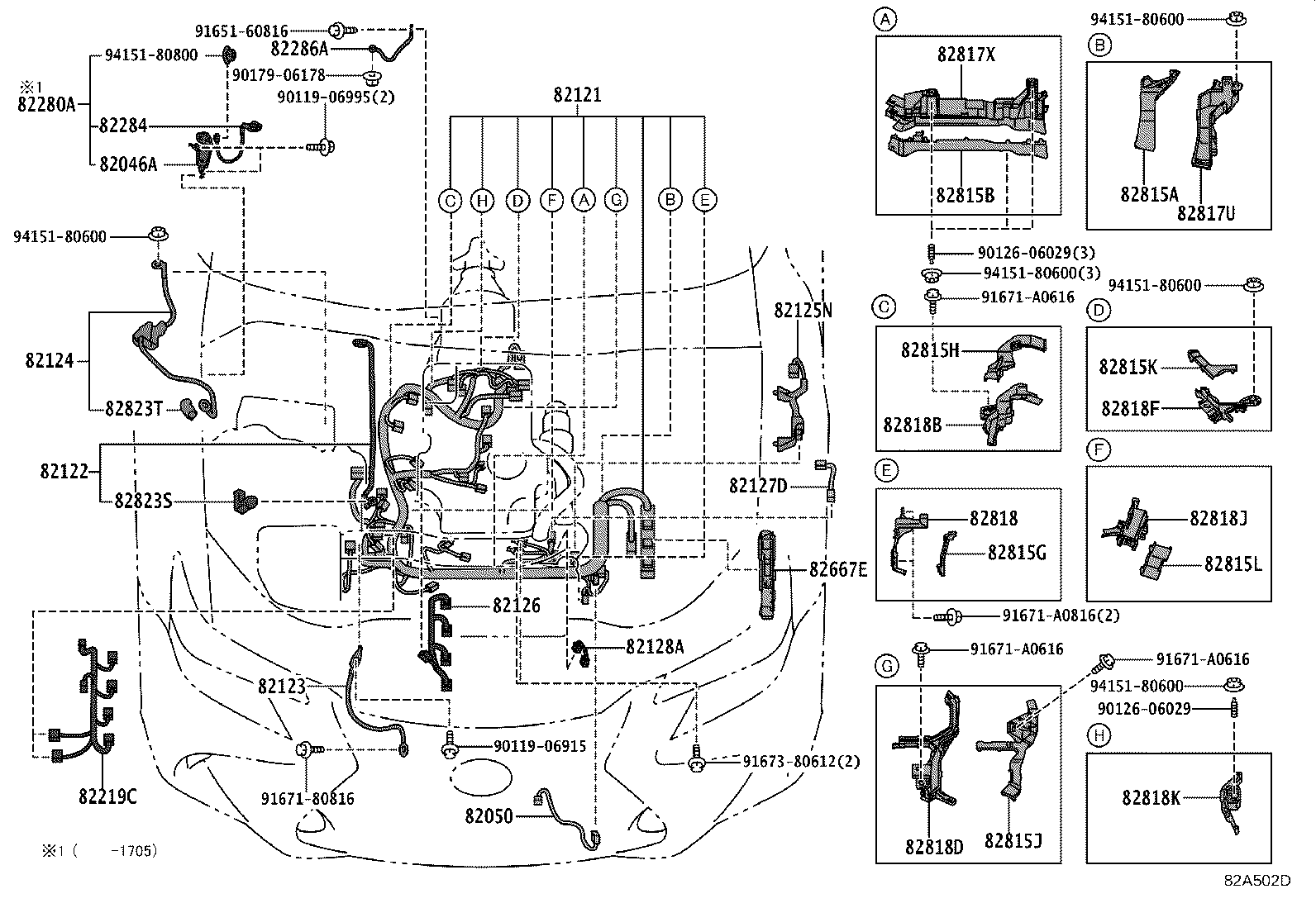

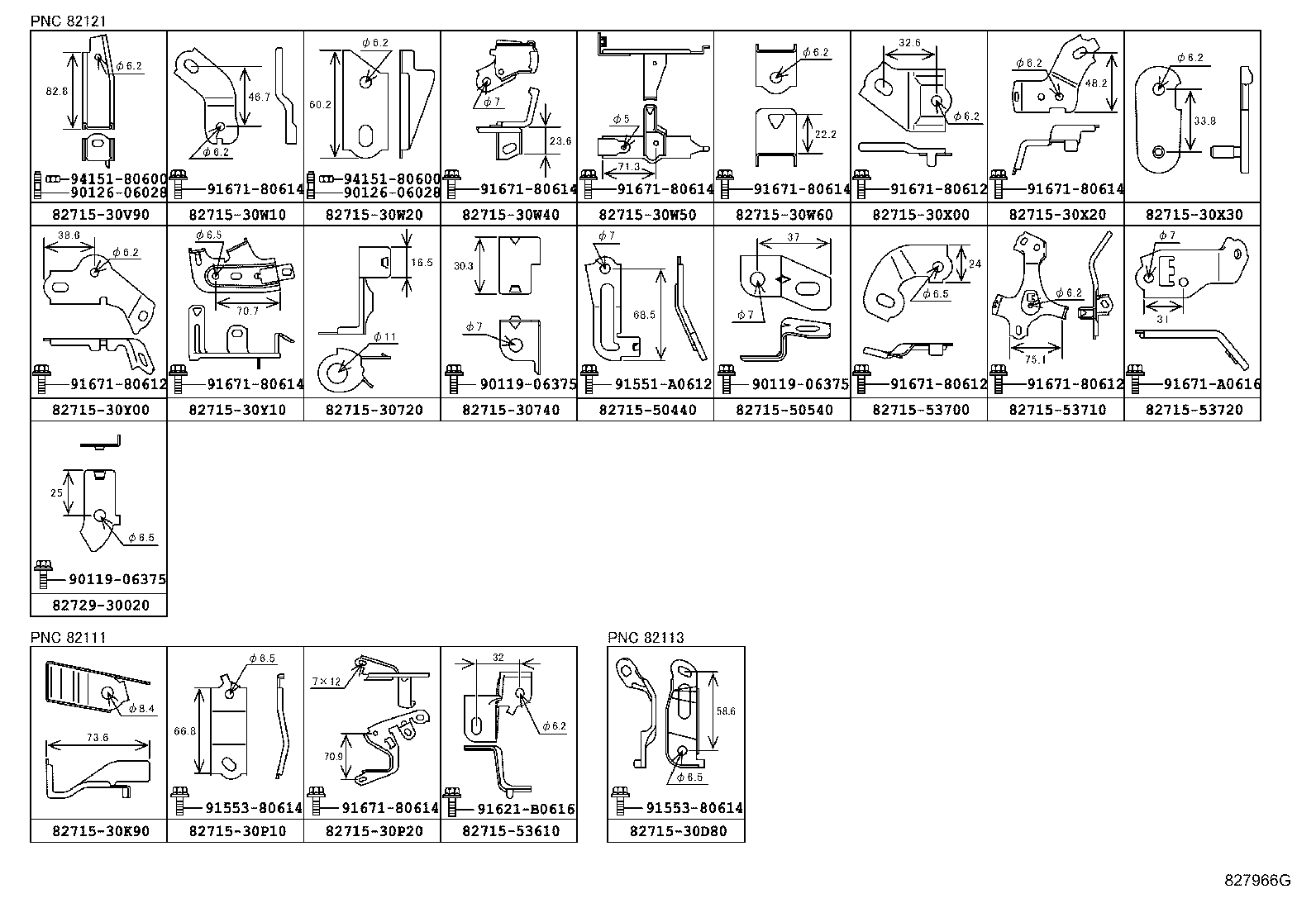

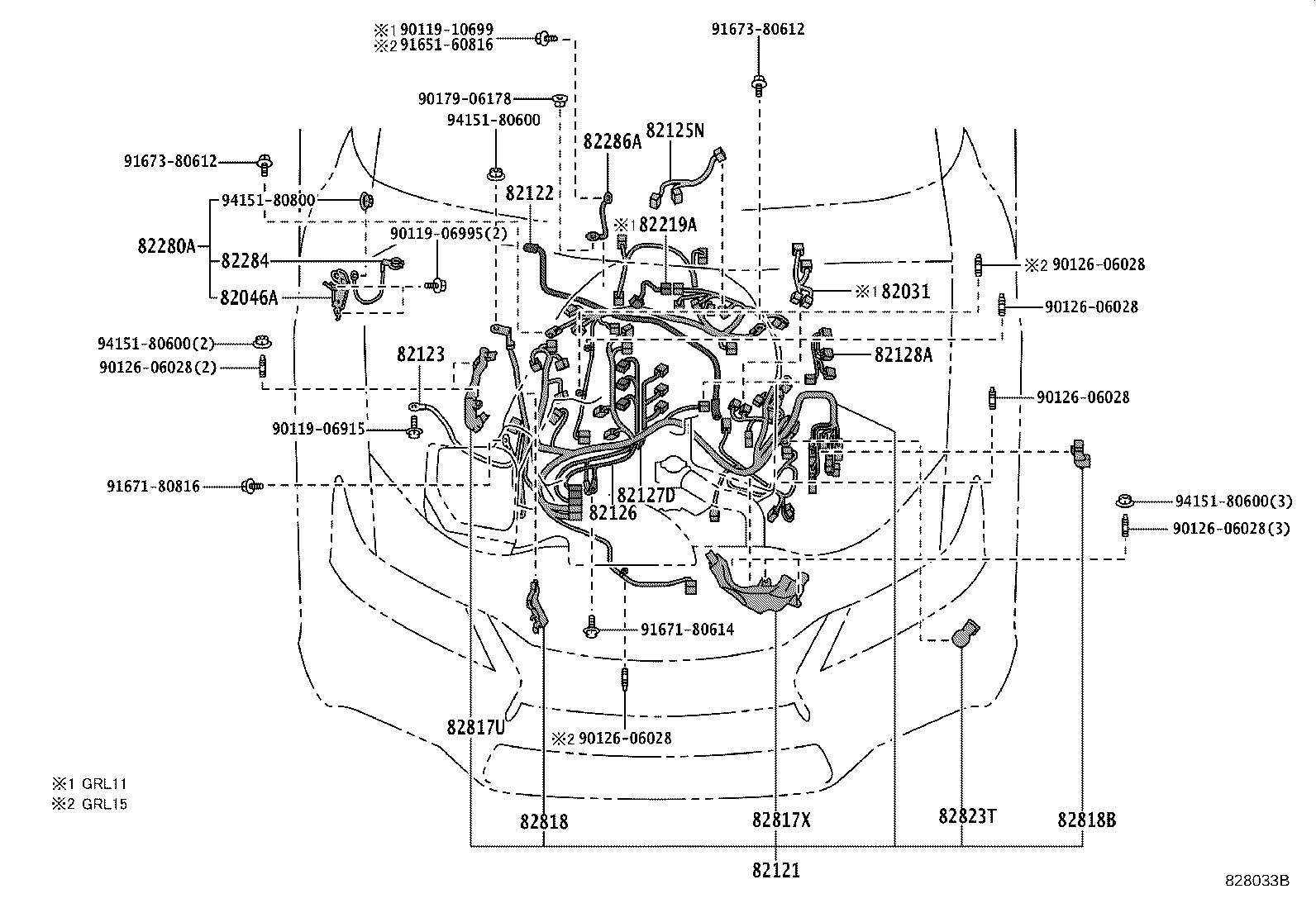

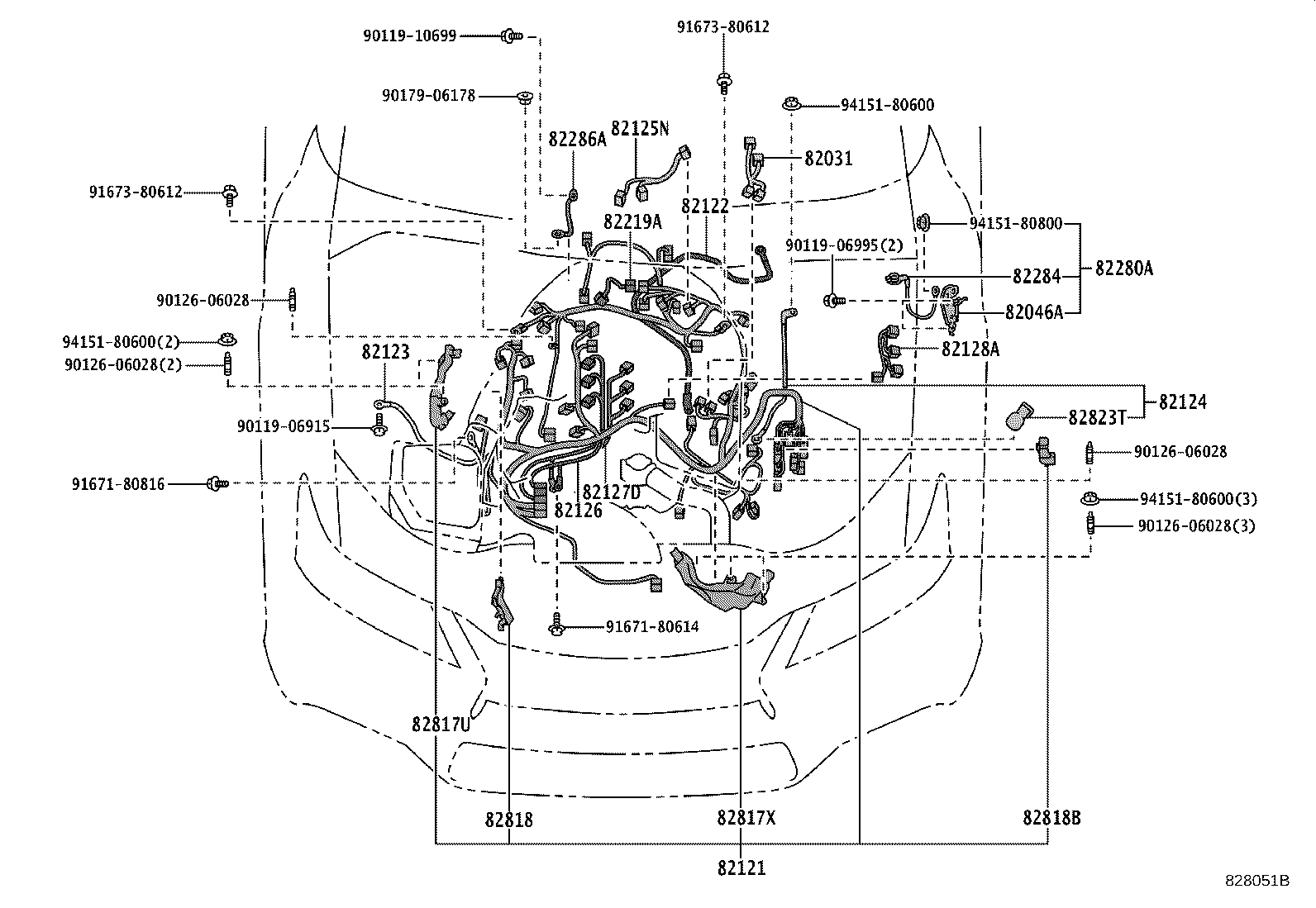

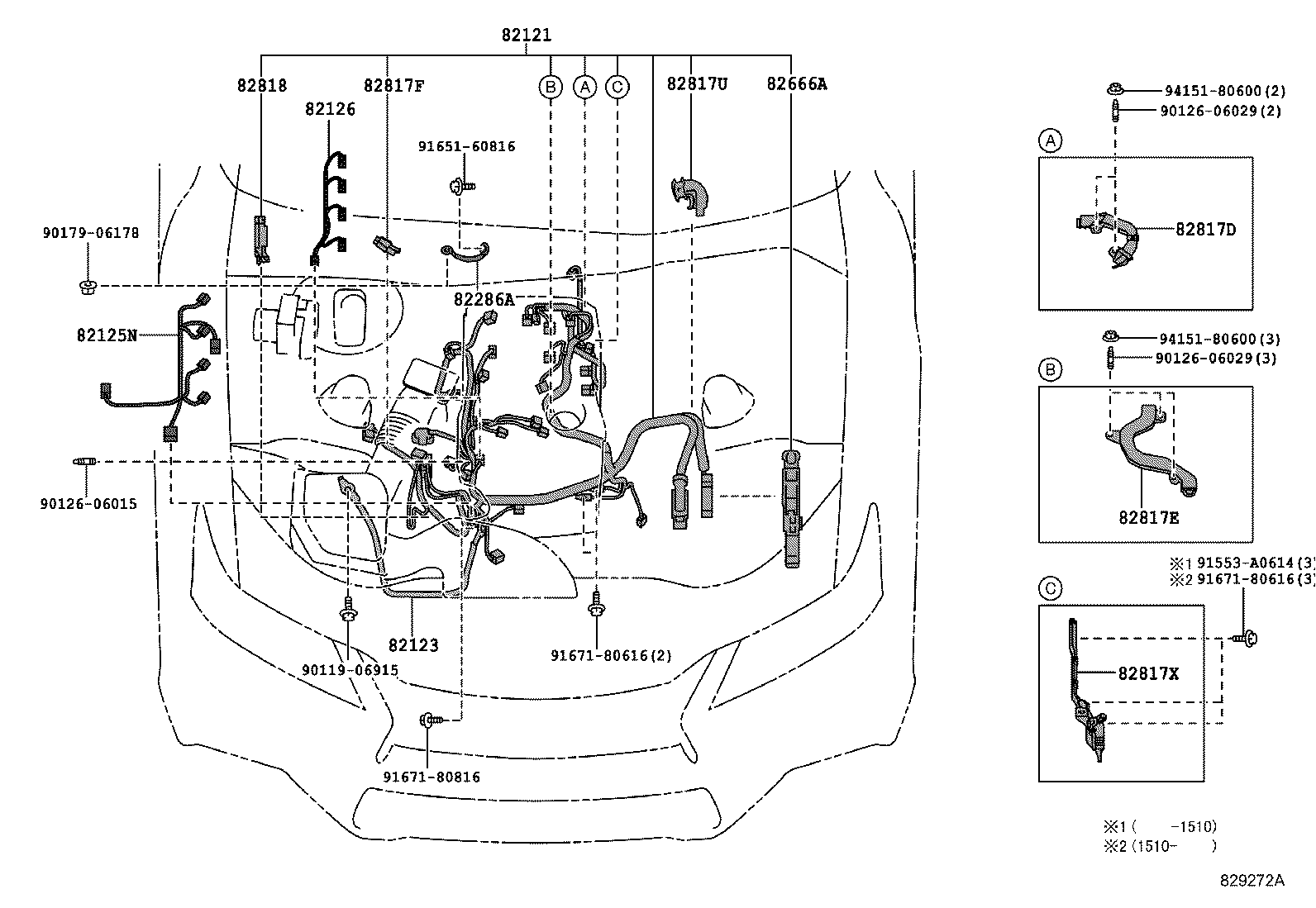

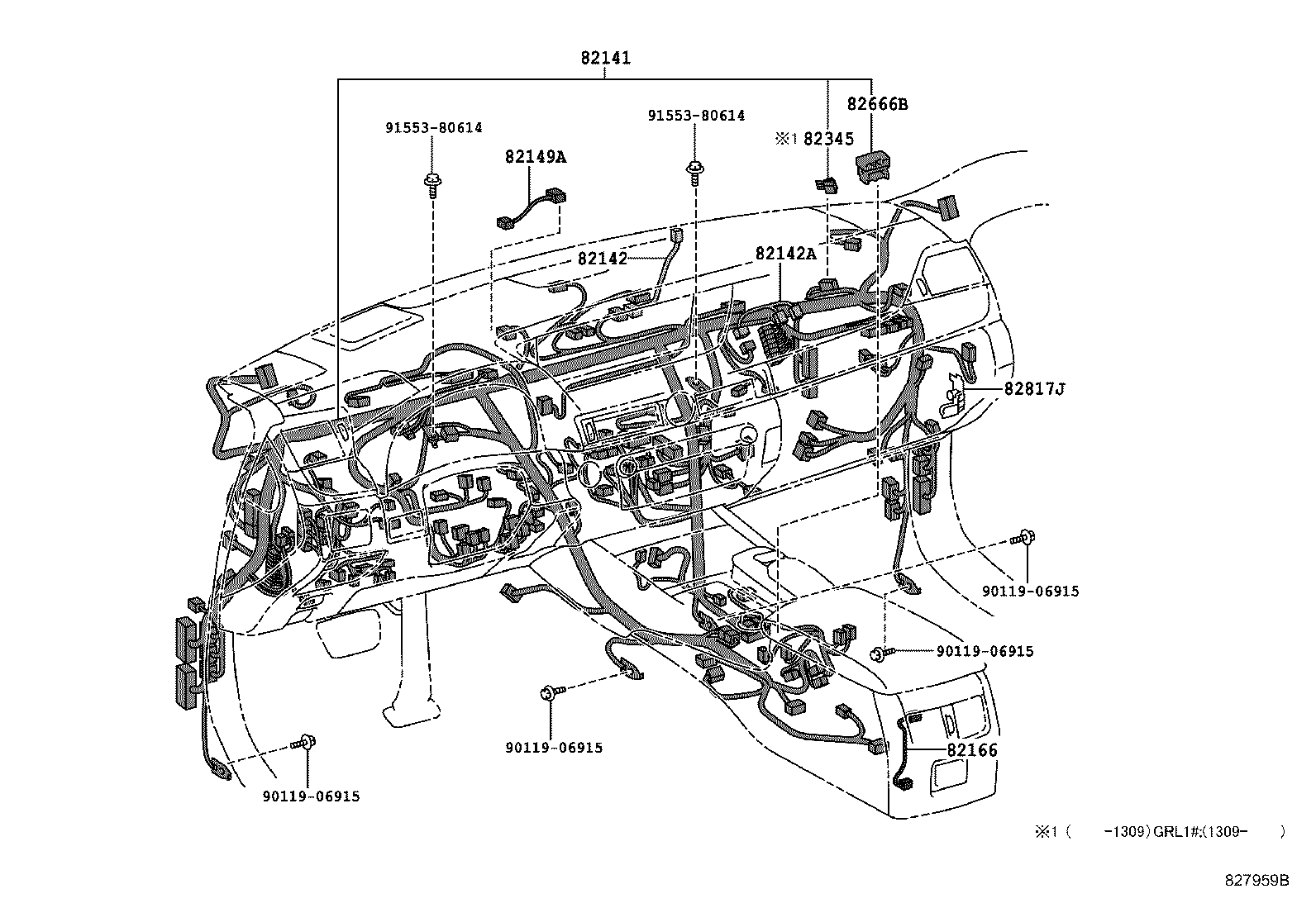

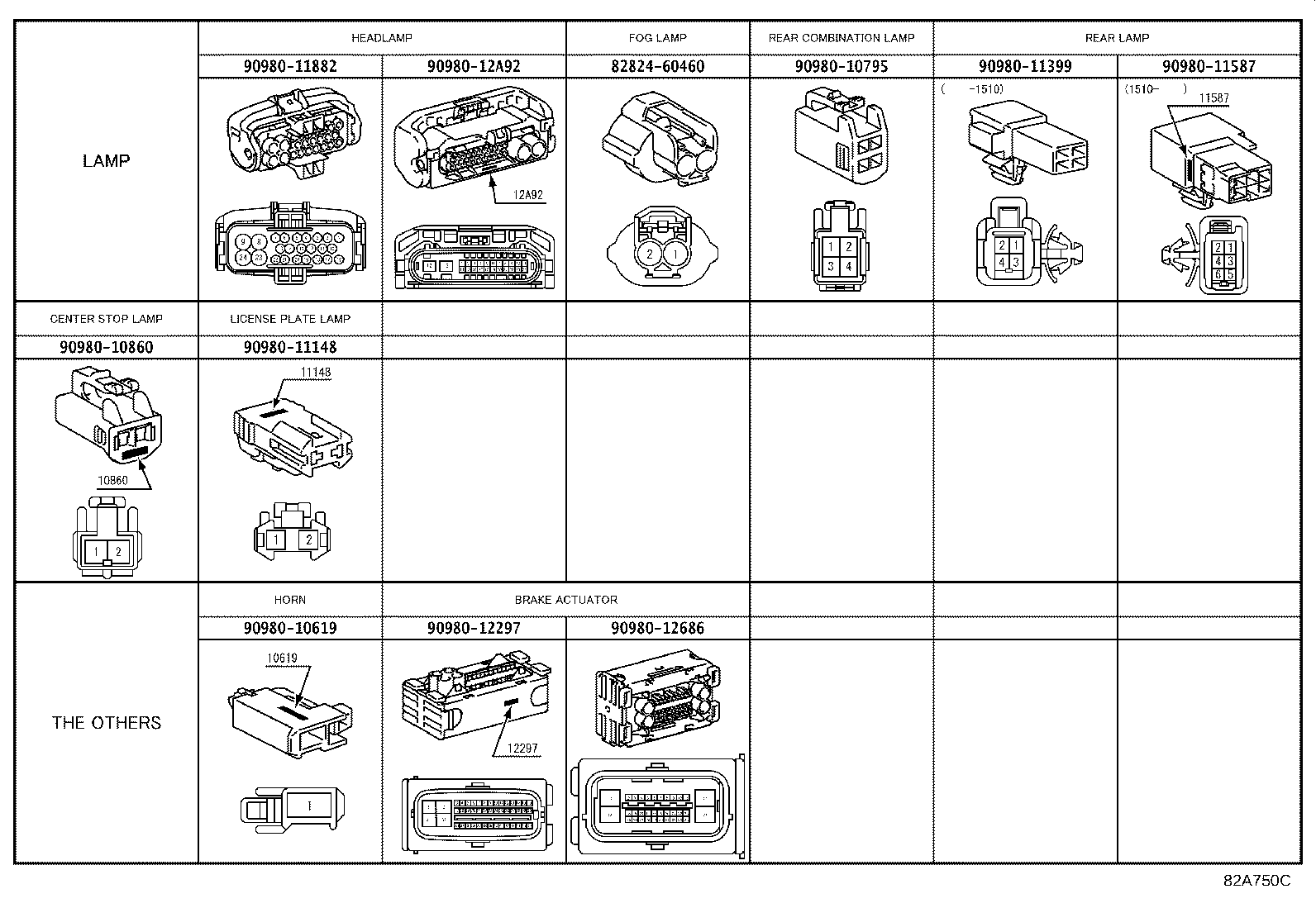

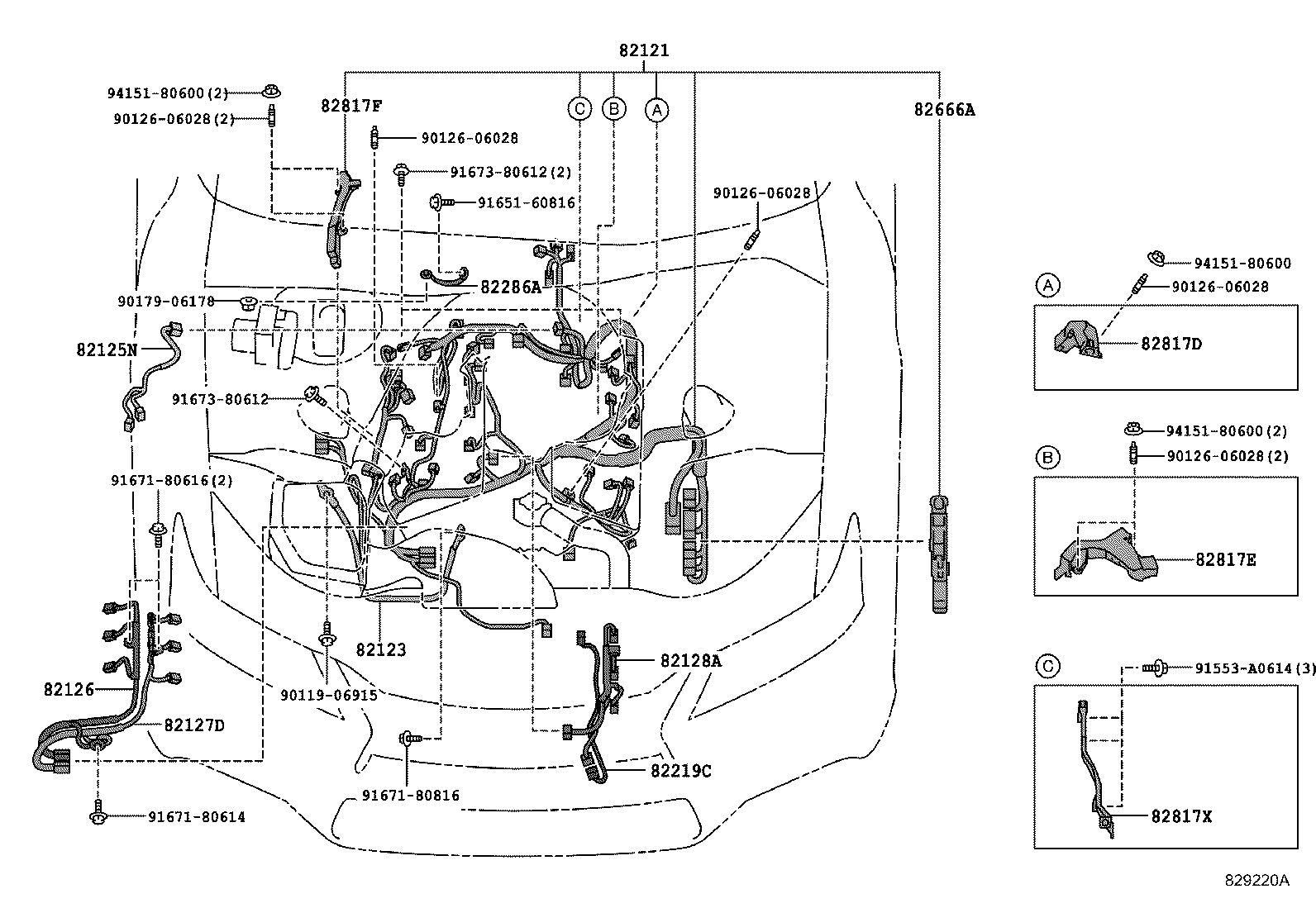

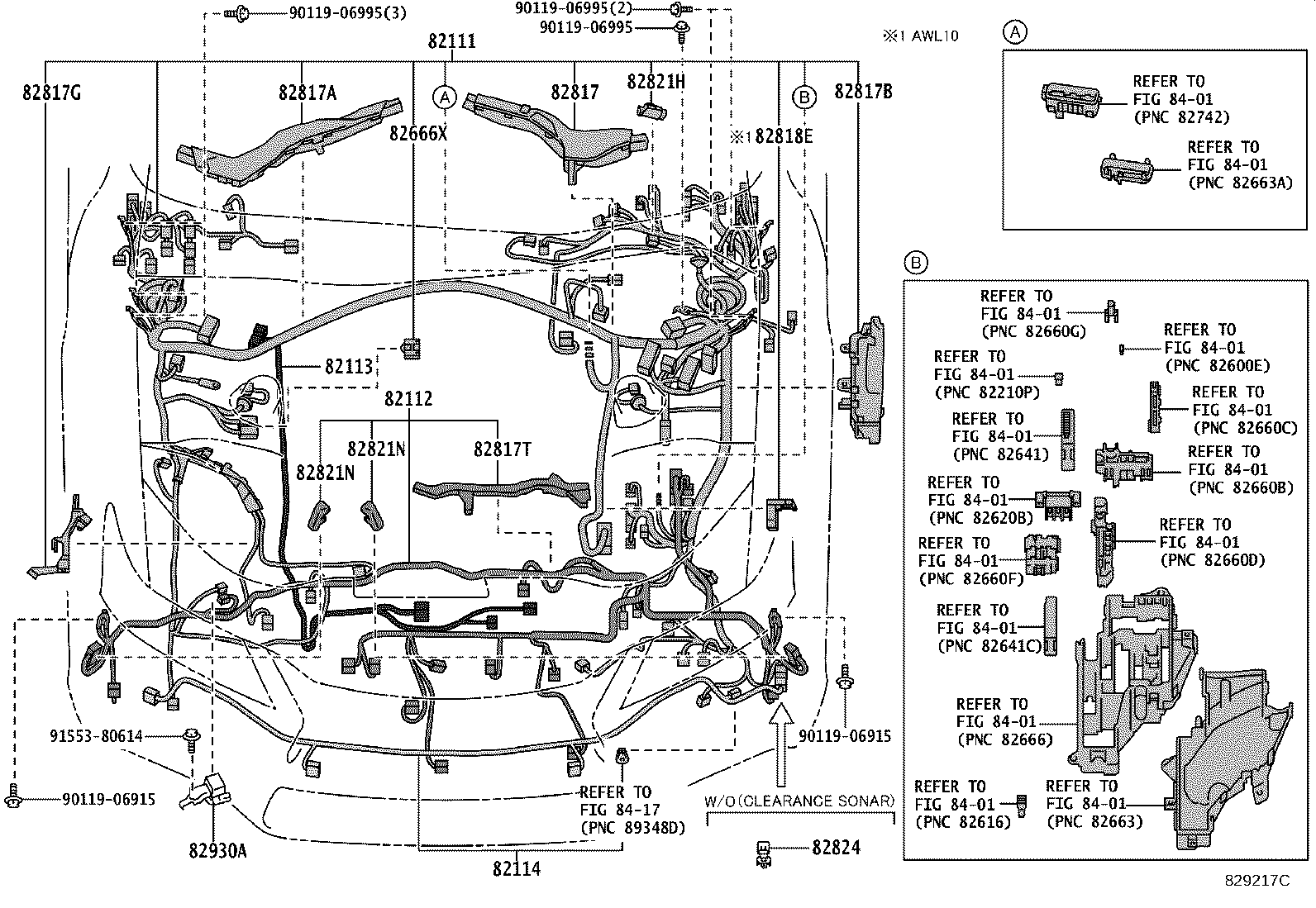

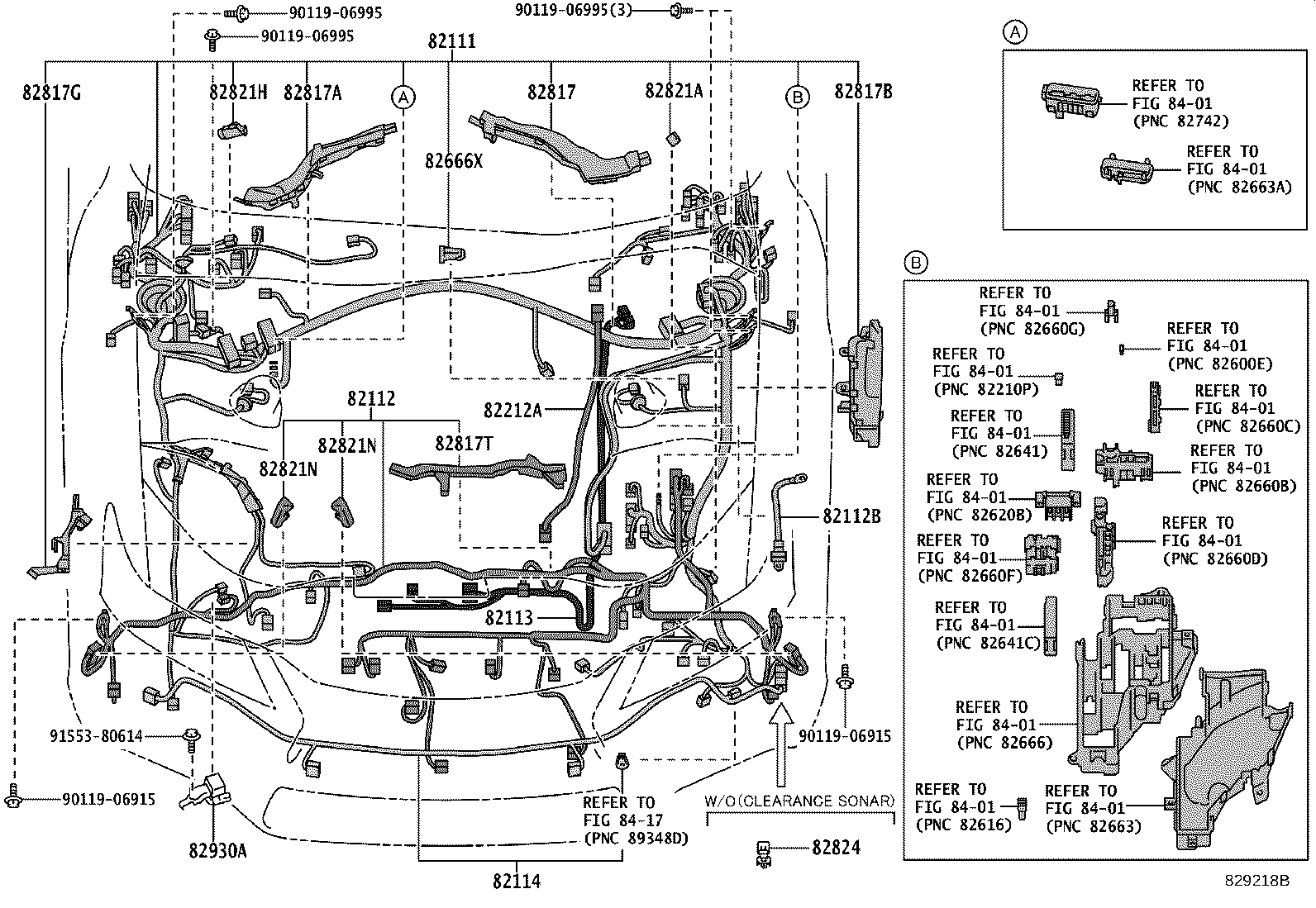

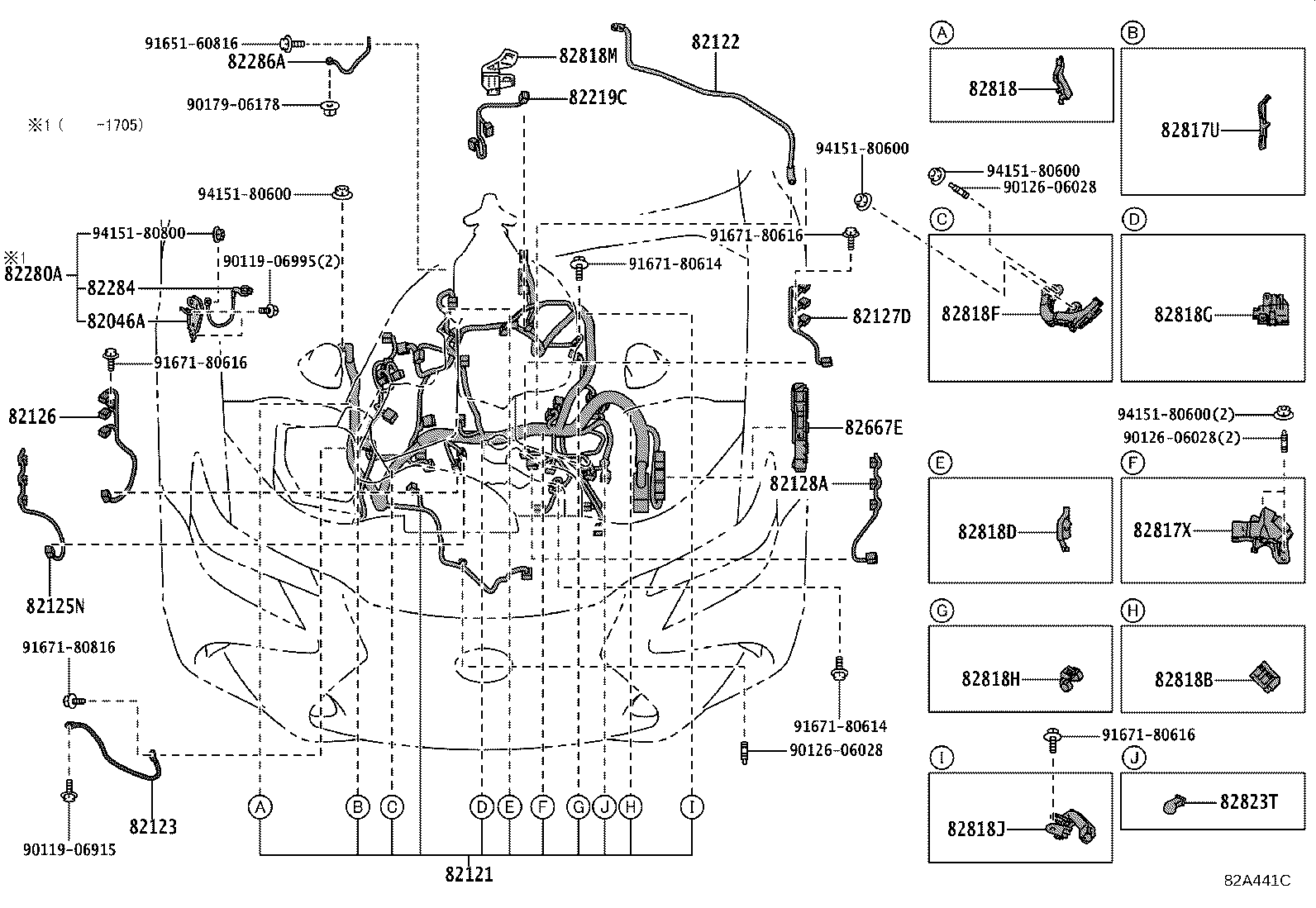

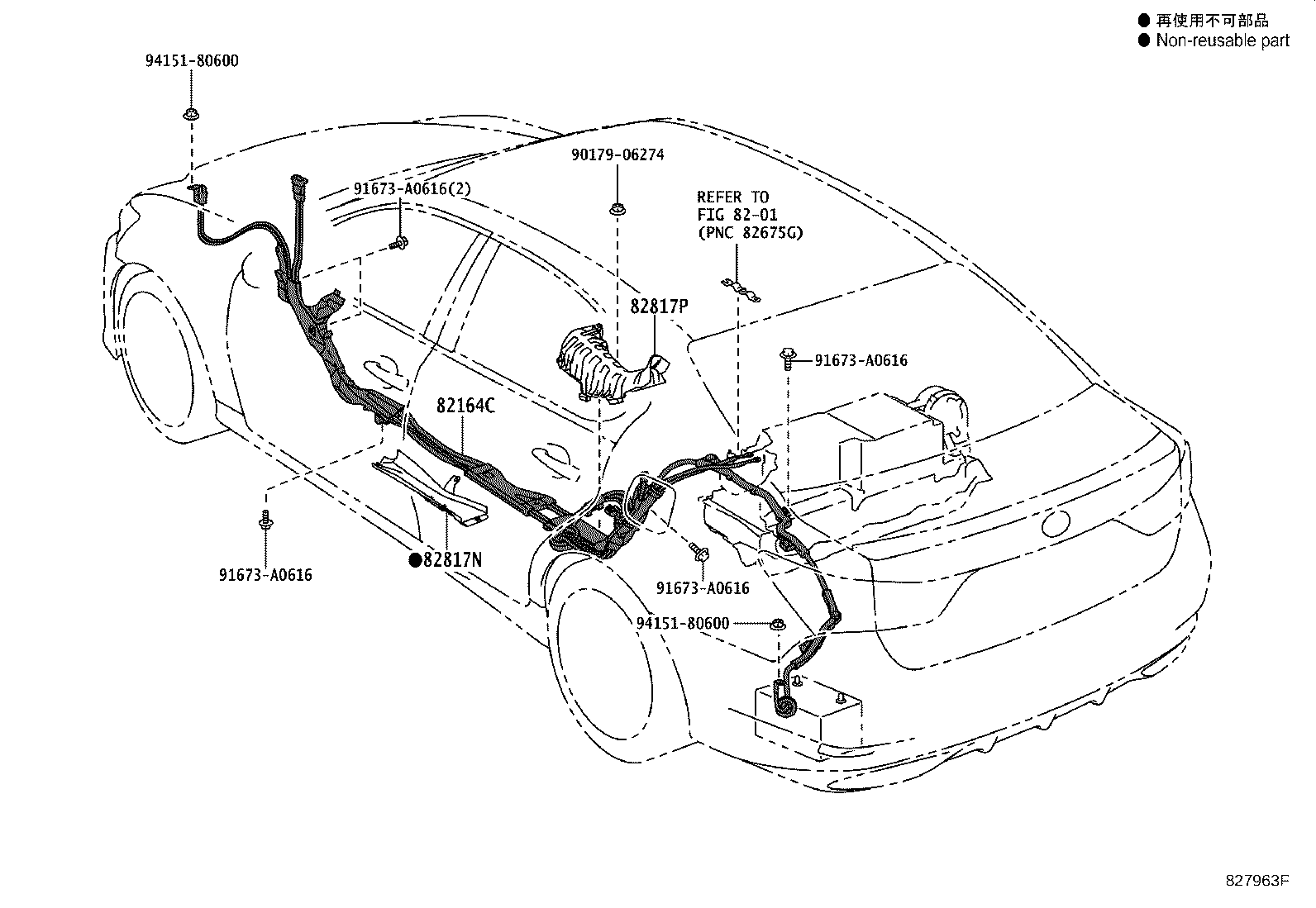

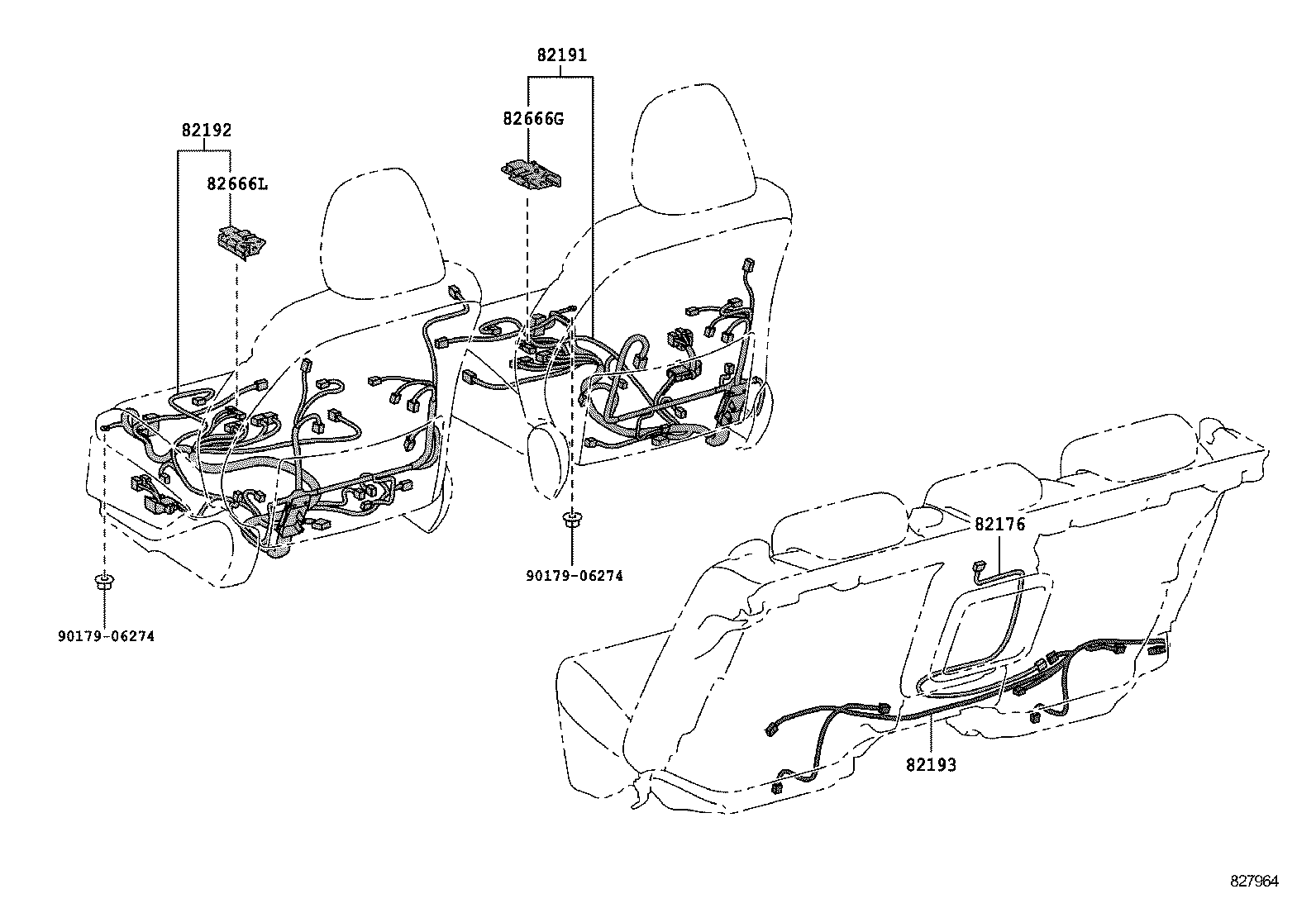

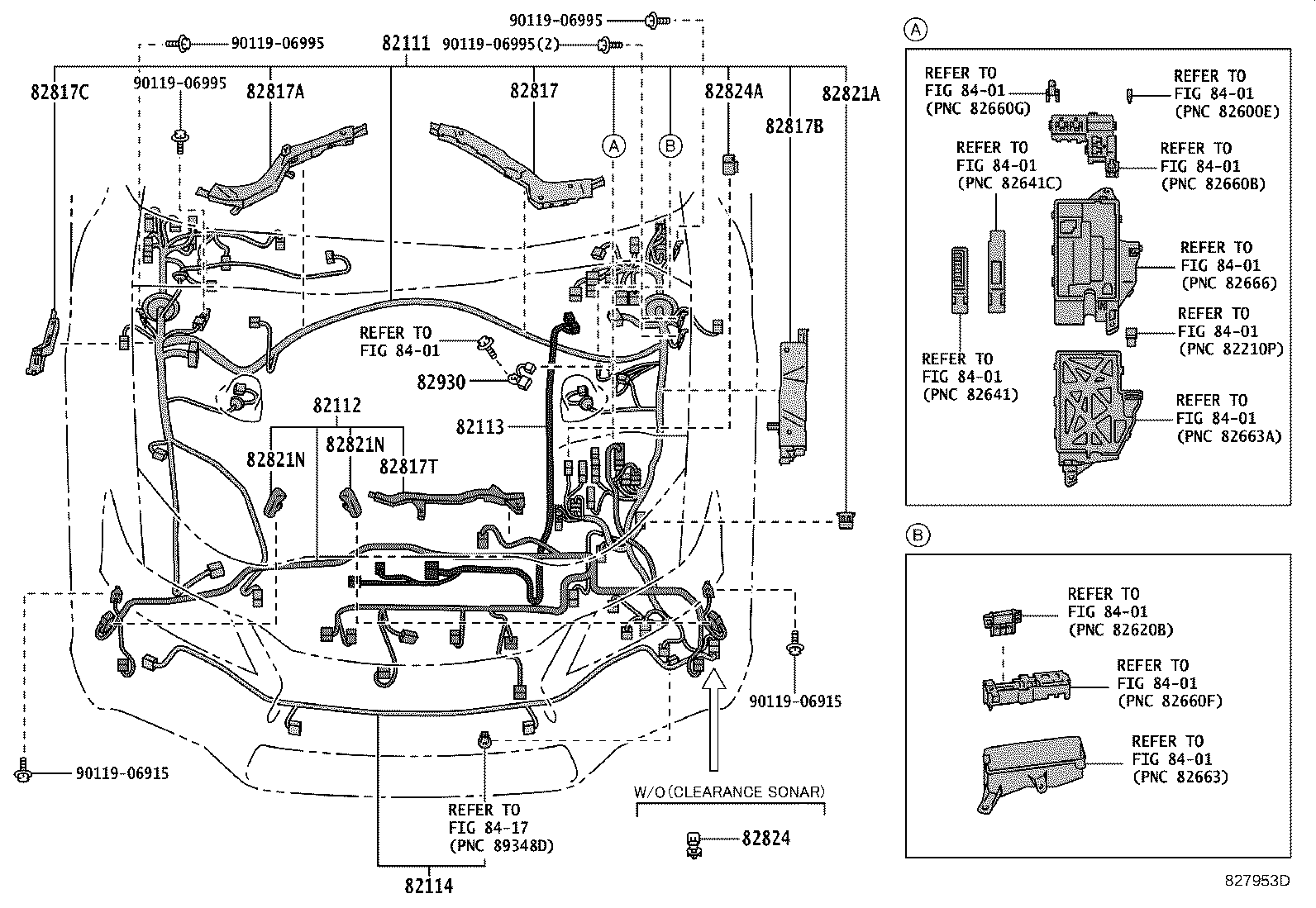

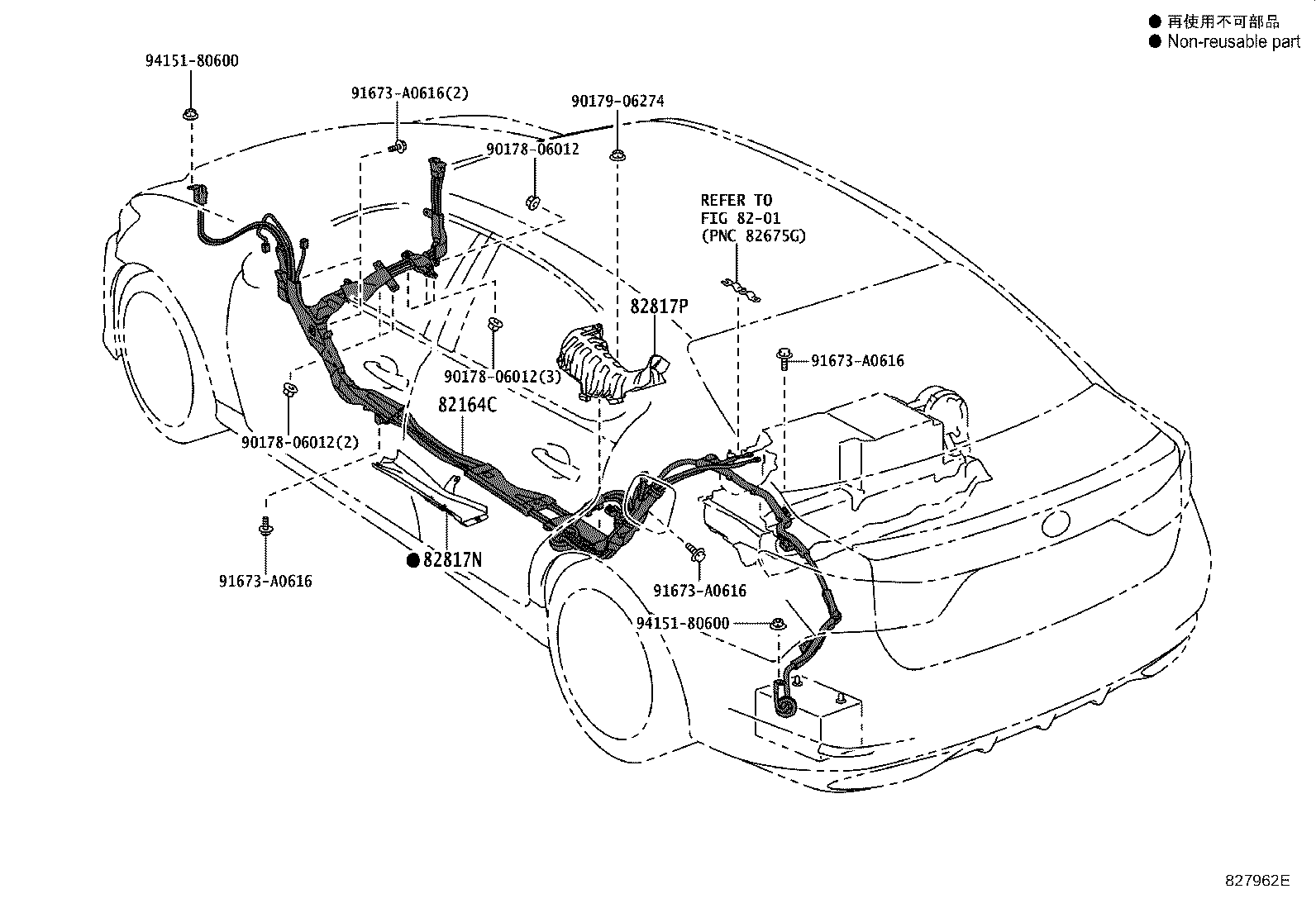

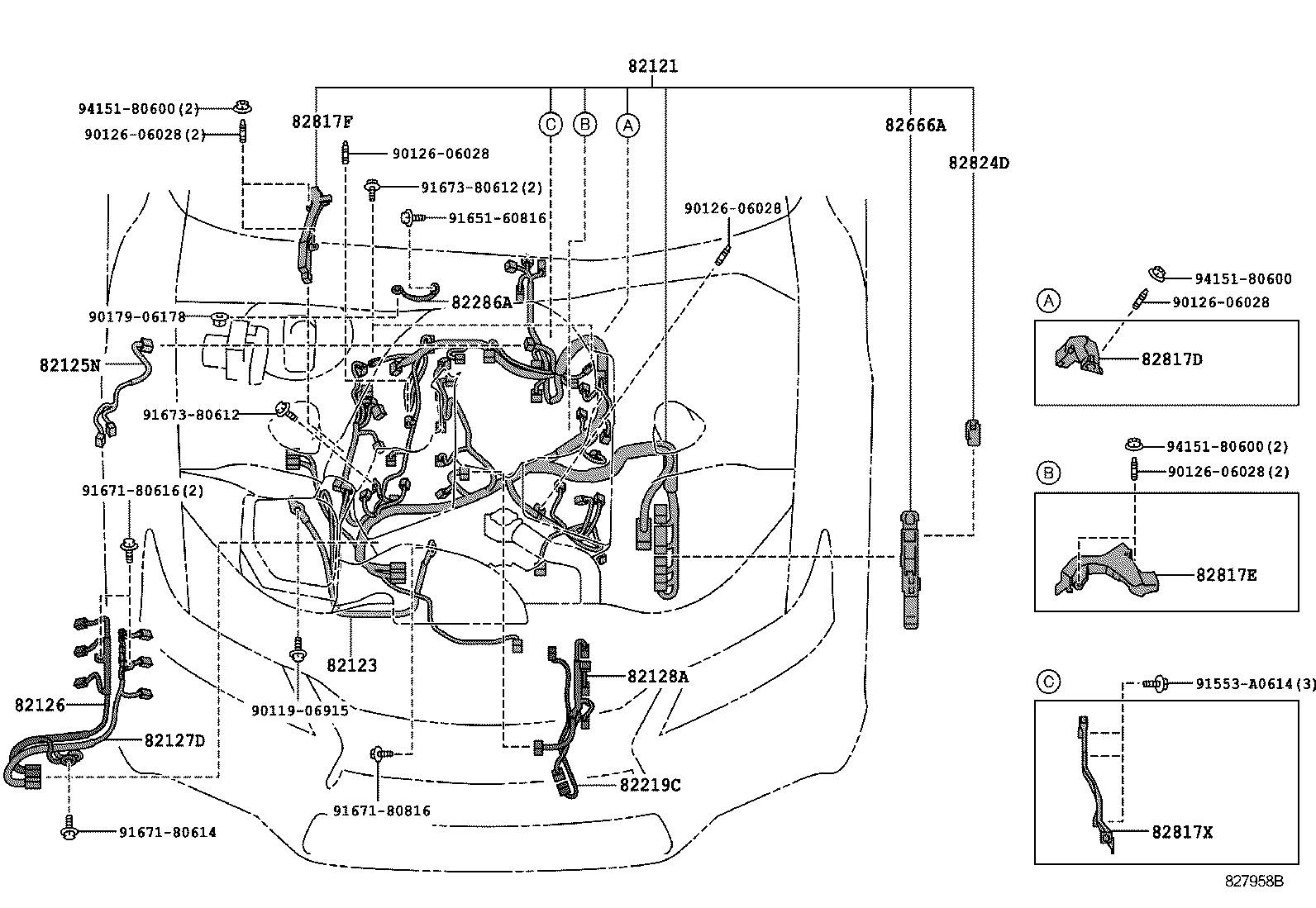

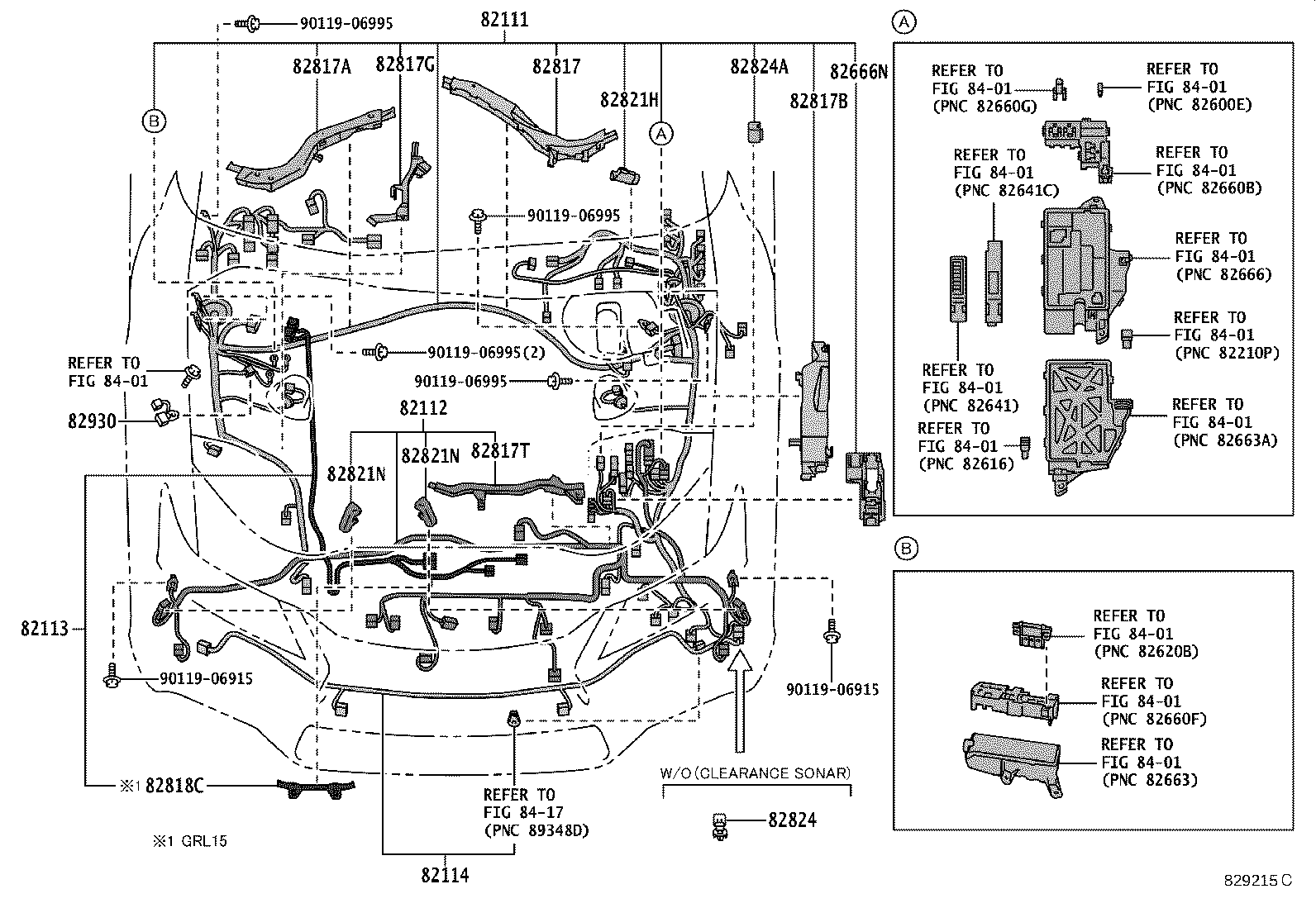

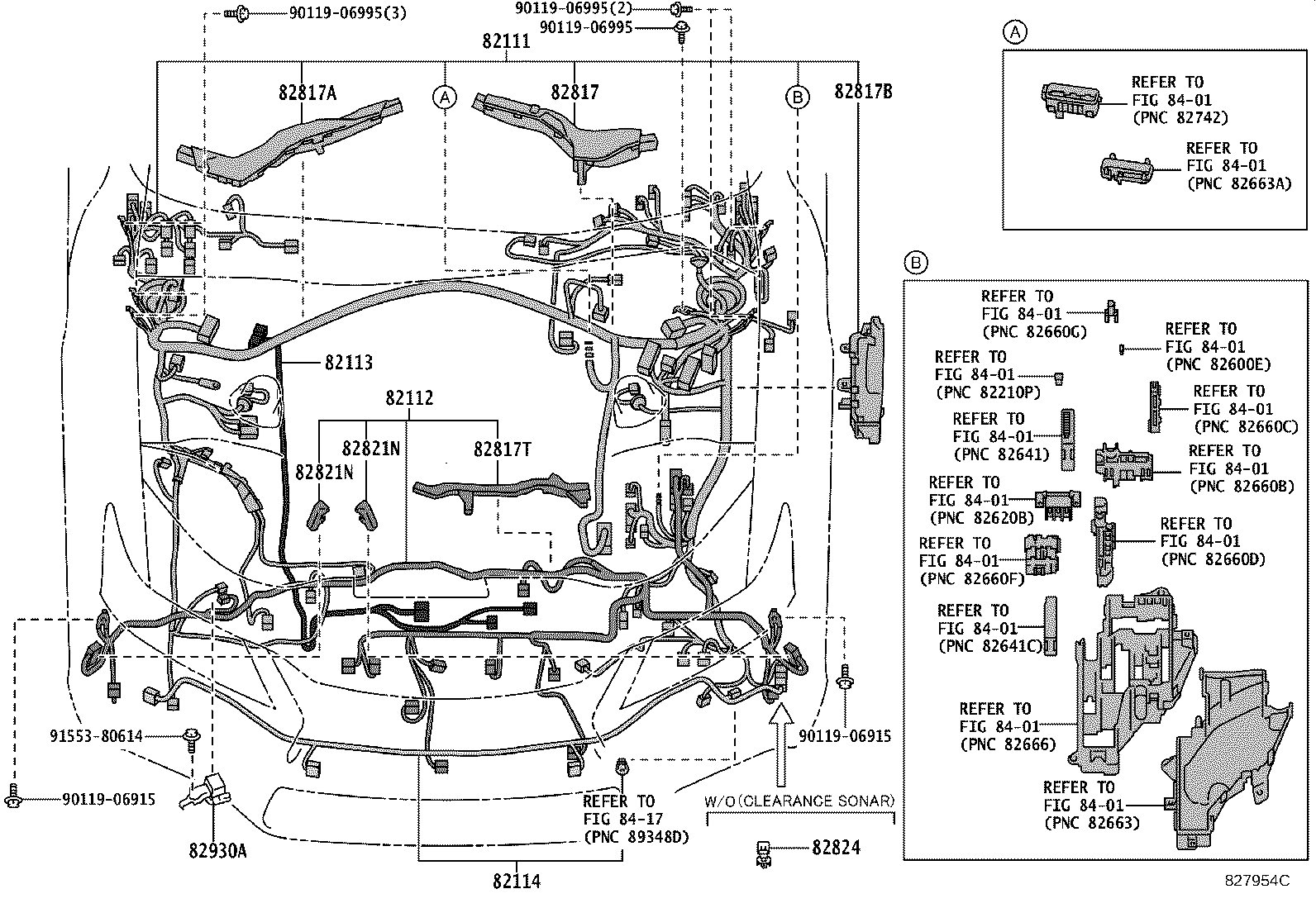

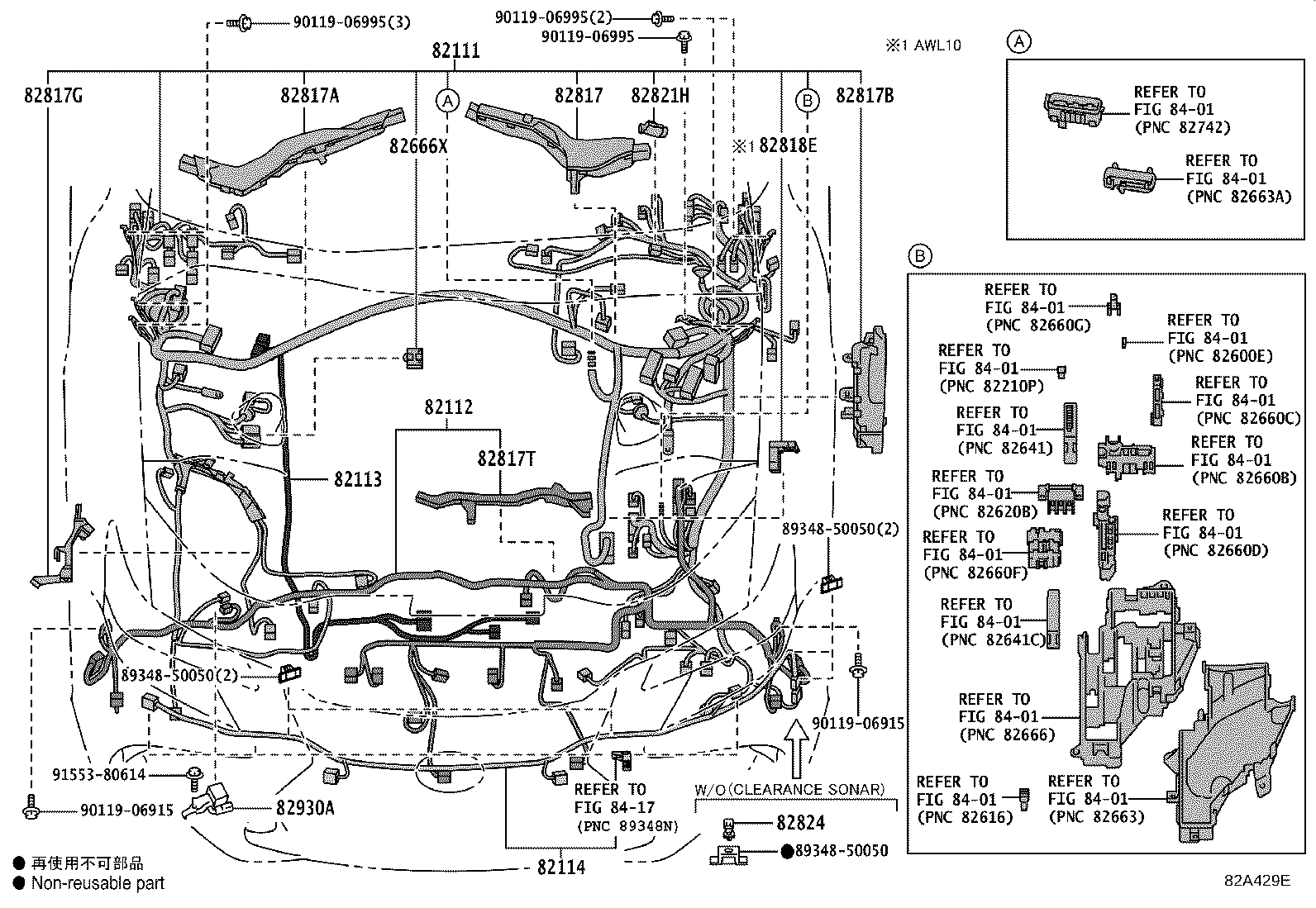

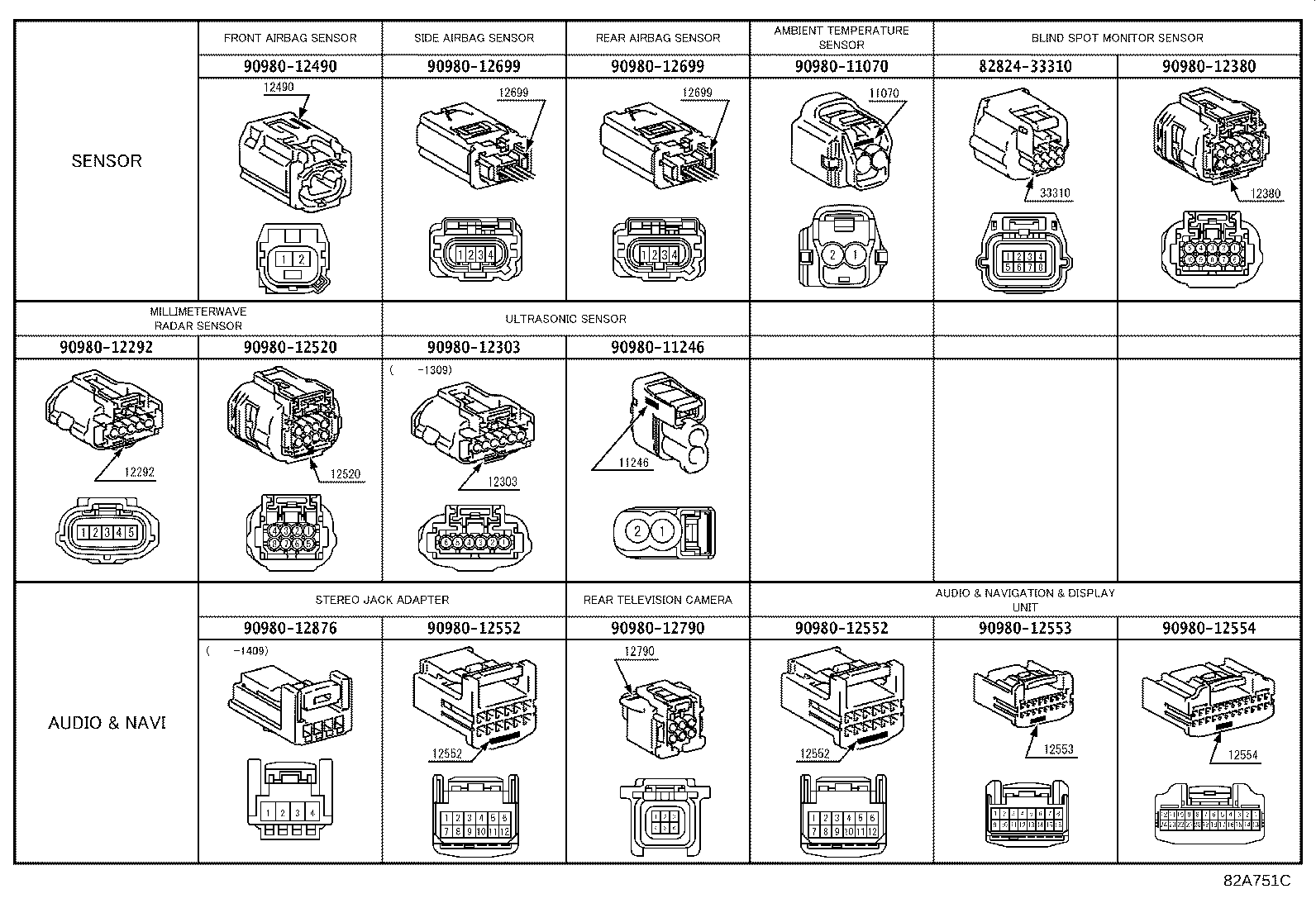

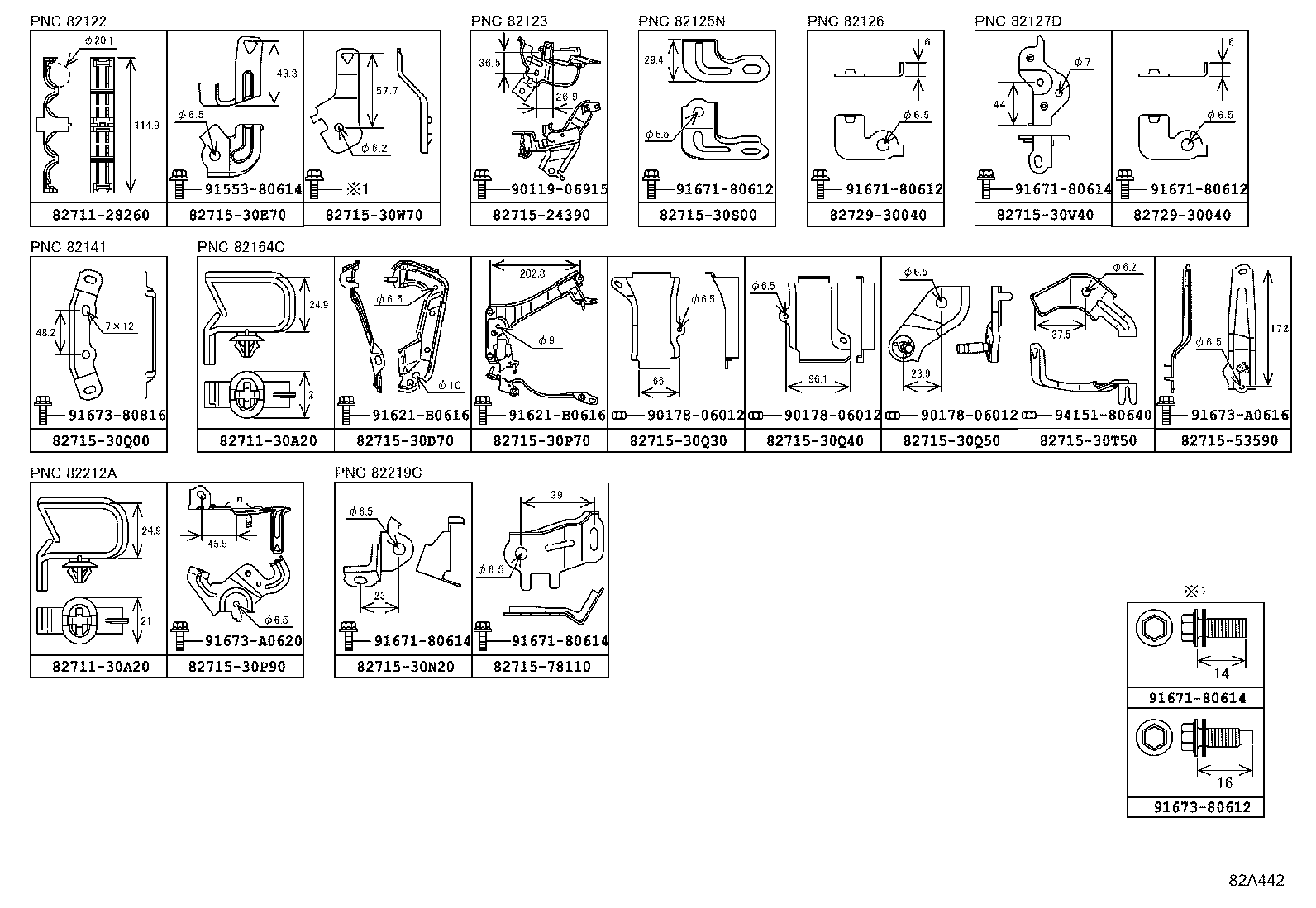

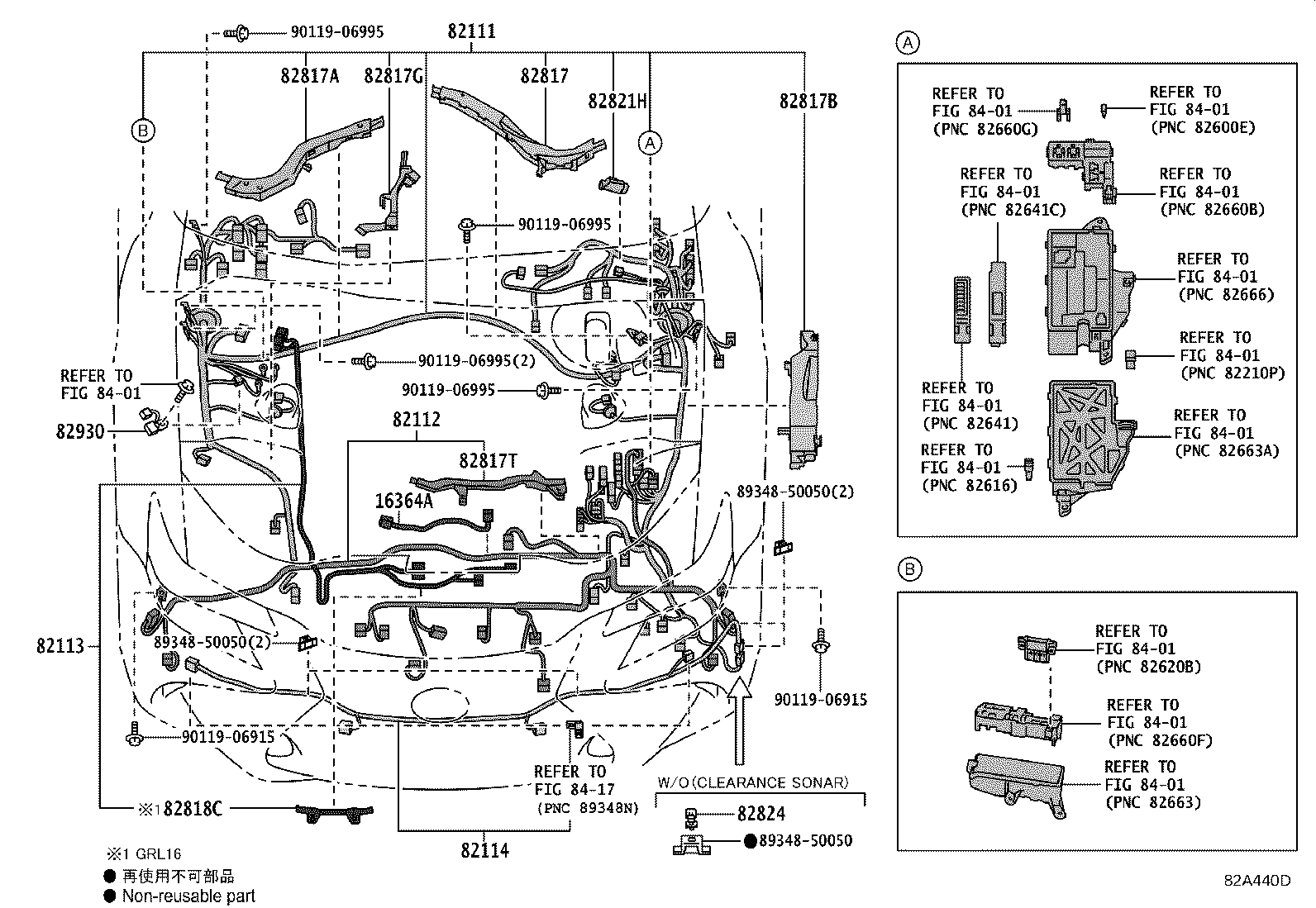

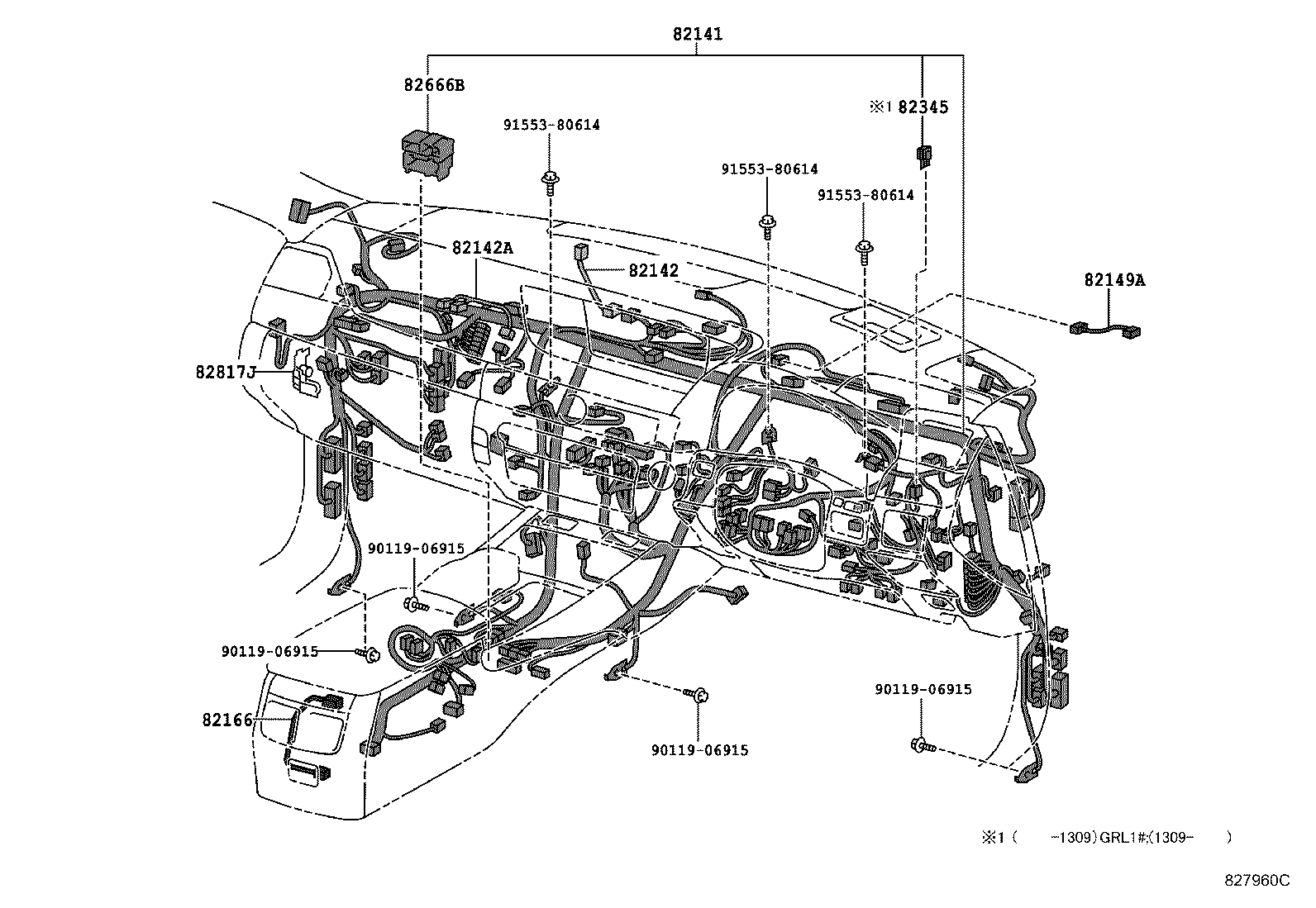

Figure 827952D 827952D 2012-01 → 2013-09 Figure 827953D 827953D 2012-01 → 2013-09 Figure 827954C 827954C 2012-03 → 2013-09 Figure 827955C 827955C 2012-03 → 2013-09 Figure 829215C 829215C 2013-09 → 2015-10 Figure 829216C 829216C 2013-09 → 2015-10 Figure 829217C 829217C 2013-09 → 2015-10 Figure 829218B 829218B 2013-09 → 2015-10 Figure 82A440D 82A440D 2015-10 → — Figure 82A429E 82A429E 2015-10 → — Figure 82A430E 82A430E 2015-10 → — Figure 828033B 828033B 2012-01 → 2013-09 Figure 828051B 828051B 2012-01 → 2015-10 Figure 827958B 827958B 2012-03 → 2013-09 Figure 829234A 829234A 2013-09 → 2015-10 Figure 829272A 829272A 2013-09 → — Figure 829220A 829220A 2013-09 → — Figure 82A502D 82A502D 2015-10 → — Figure 82A441C 82A441C 2015-10 → — Figure 827959B 827959B 2012-01 → — Figure 827960C 827960C 2012-01 → — Figure 828034 828034 2012-01 → — Figure 829226B 829226B 2013-09 → — Figure 828036E 828036E 2012-01 → — Figure 827962E 827962E 2012-03 → — Figure 827963F 827963F 2012-03 → — Figure 827964 827964 2012-01 → — Figure 829240B 829240B 2012-01 → — Figure 827966G 827966G 2012-01 → — Figure 82A442 82A442 2012-01 → — Figure 82A750C 82A750C 2012-01 → — Figure 82A751C 82A751C 2012-01 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82031 Wire Sub-assy, Ignition Coil
82046A Wire Sub-assy, Body Ground, NO.1
82050 Wire Assy, Engine
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82112B Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82149A Wire, Instrument Panel, NO.5
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH
82161 Wire, Floor
82161C Condenser
82162 Wire, Floor, NO.2
82164C Wire, Floor, NO.4
82166 Wire, Console Box
82166C Wire, Battery Pack, NO.2
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82212A Harness, Air Conditioner
82219A Wire, Sensor
82219C Wire, Sensor
82223H Wire, Fuse Block
82280A Wire Assy, Battery TO Cowl Top Side
82284 Wire, Earth
82286A Wire, Earth, NO.2
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818M Protector, Wiring Harness, NO.13
82821A Cover, Connector
82821H Cover, Connector
82821N Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
82930A Condenser Assy, Wiring Harness, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
