Toyota Lexus GS Series

2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

7 part groups · 6 illustrations

Illustrations

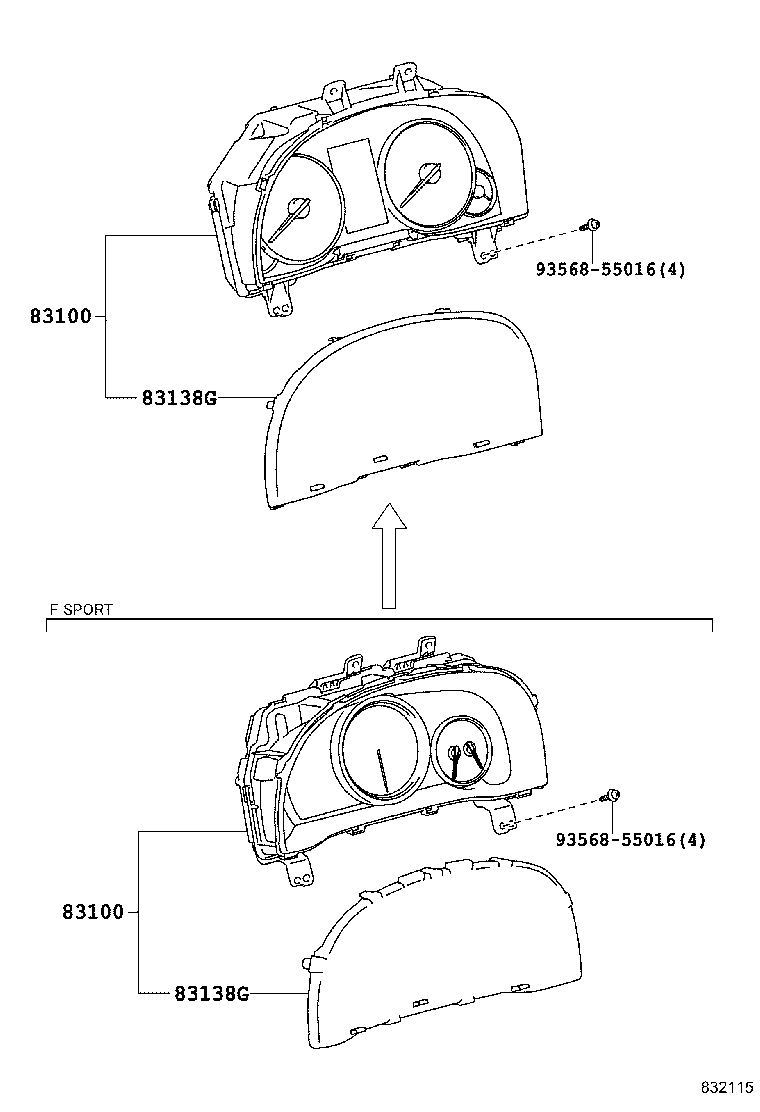

Figure 831622 831622 2012-01 → 2015-10 Figure 832115 832115 2015-10 → — Figure 831623 831623 2012-01 → 2013-09 Figure 831624 831624 2012-03 → 2013-09 Figure 831880 831880 2013-09 → — Figure 831881 831881 2013-09 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83138G Glass, Combination Meter
83141A Computer, Combination Meter Mirror
83163 Plate, Combination Meter Mirror, NO.1
83166 Bracket, Combination Meter Mirror, NO.1
83166A Bracket, Combination Meter Mirror, NO.1
83167 Glass, Combination Meter Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
