Toyota Lexus GS Series

2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

17 part groups · 9 illustrations

Illustrations

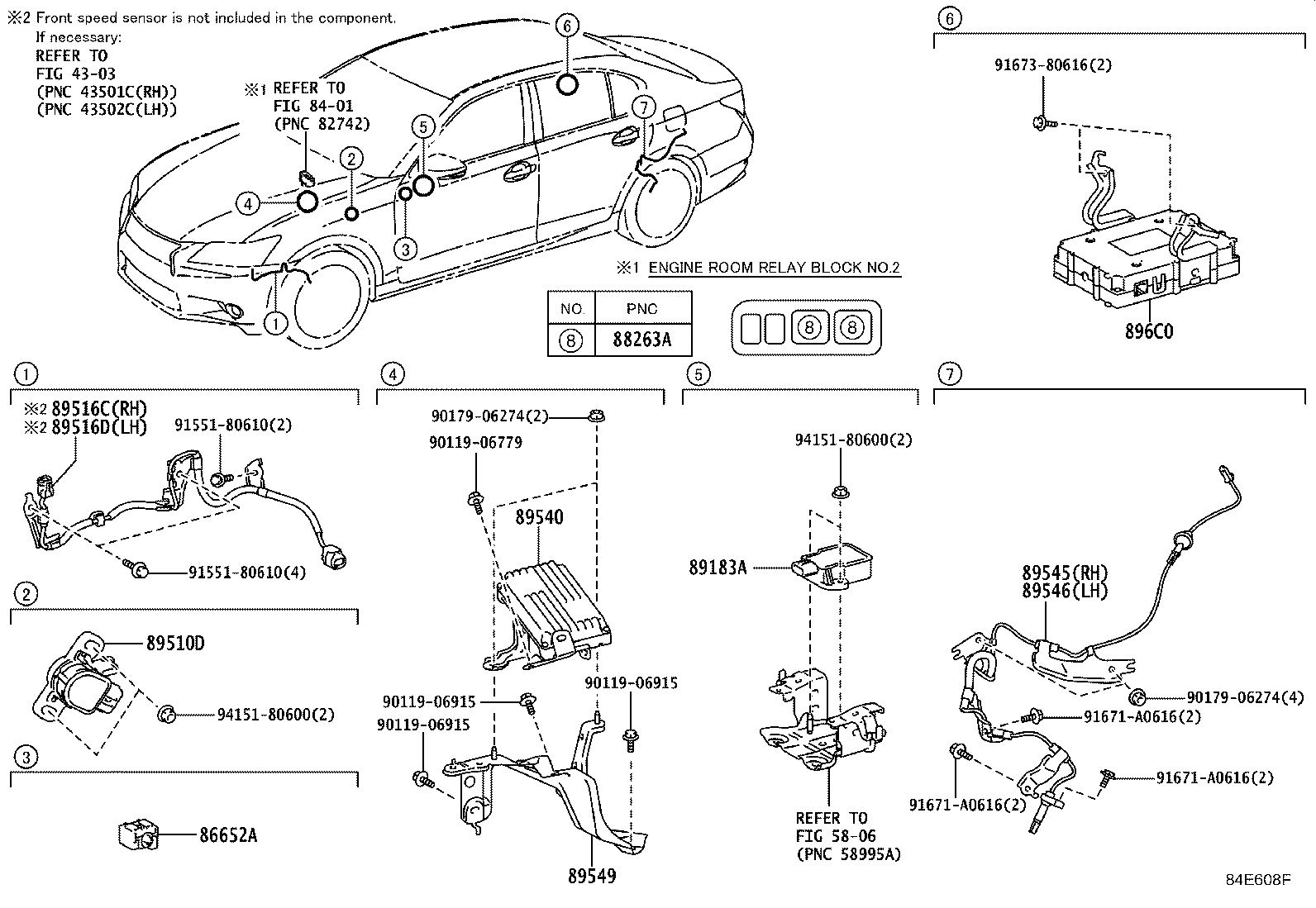

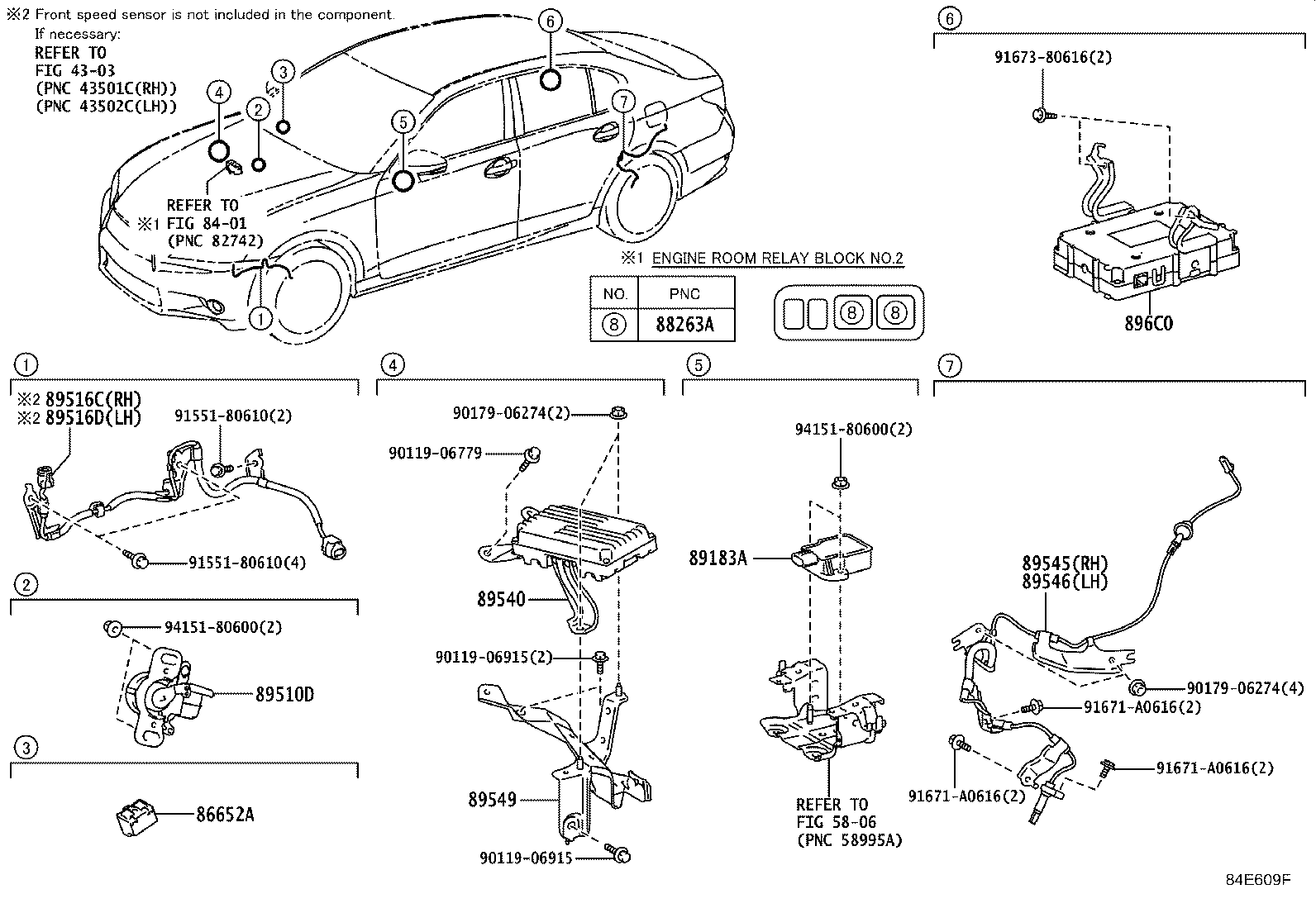

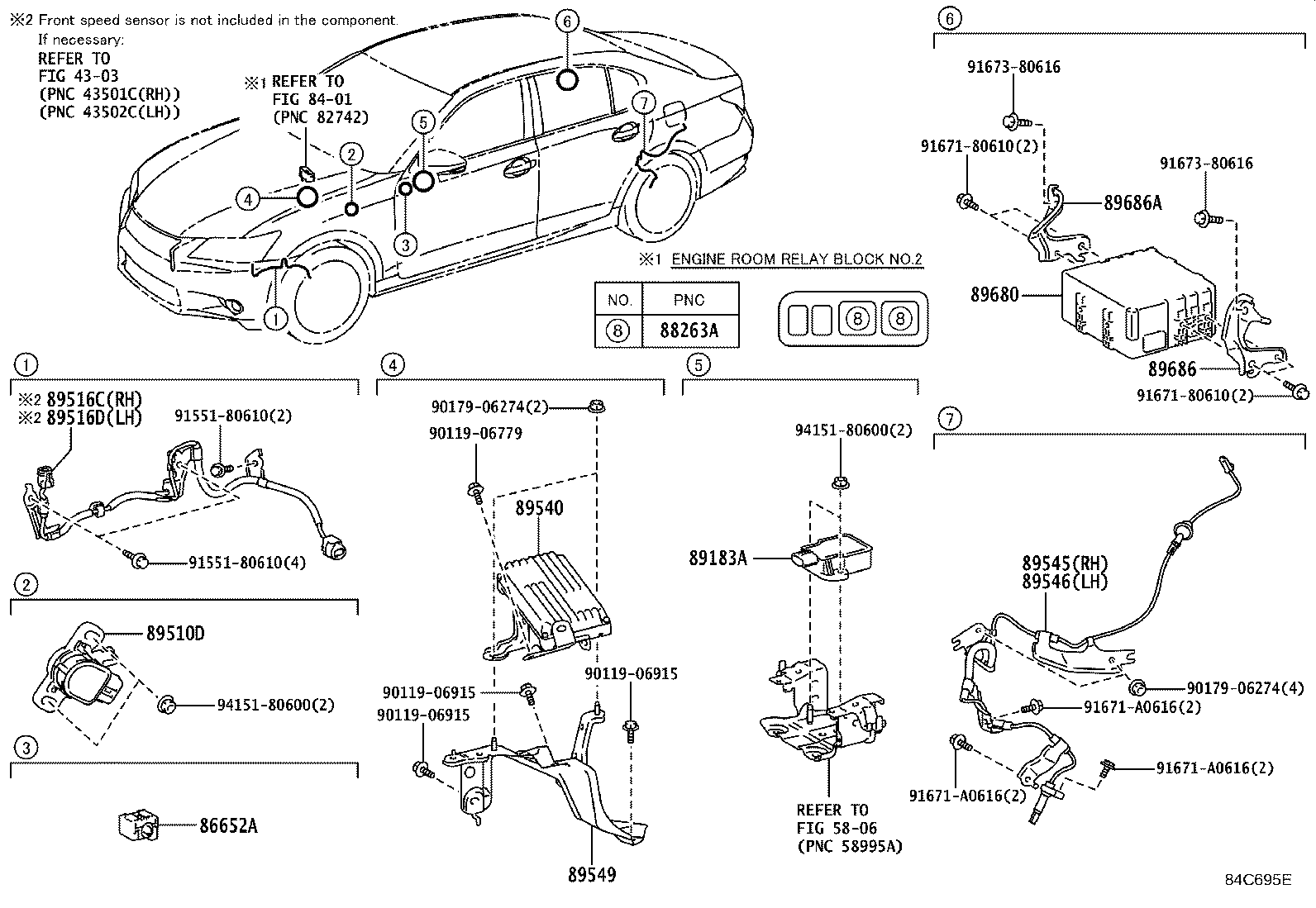

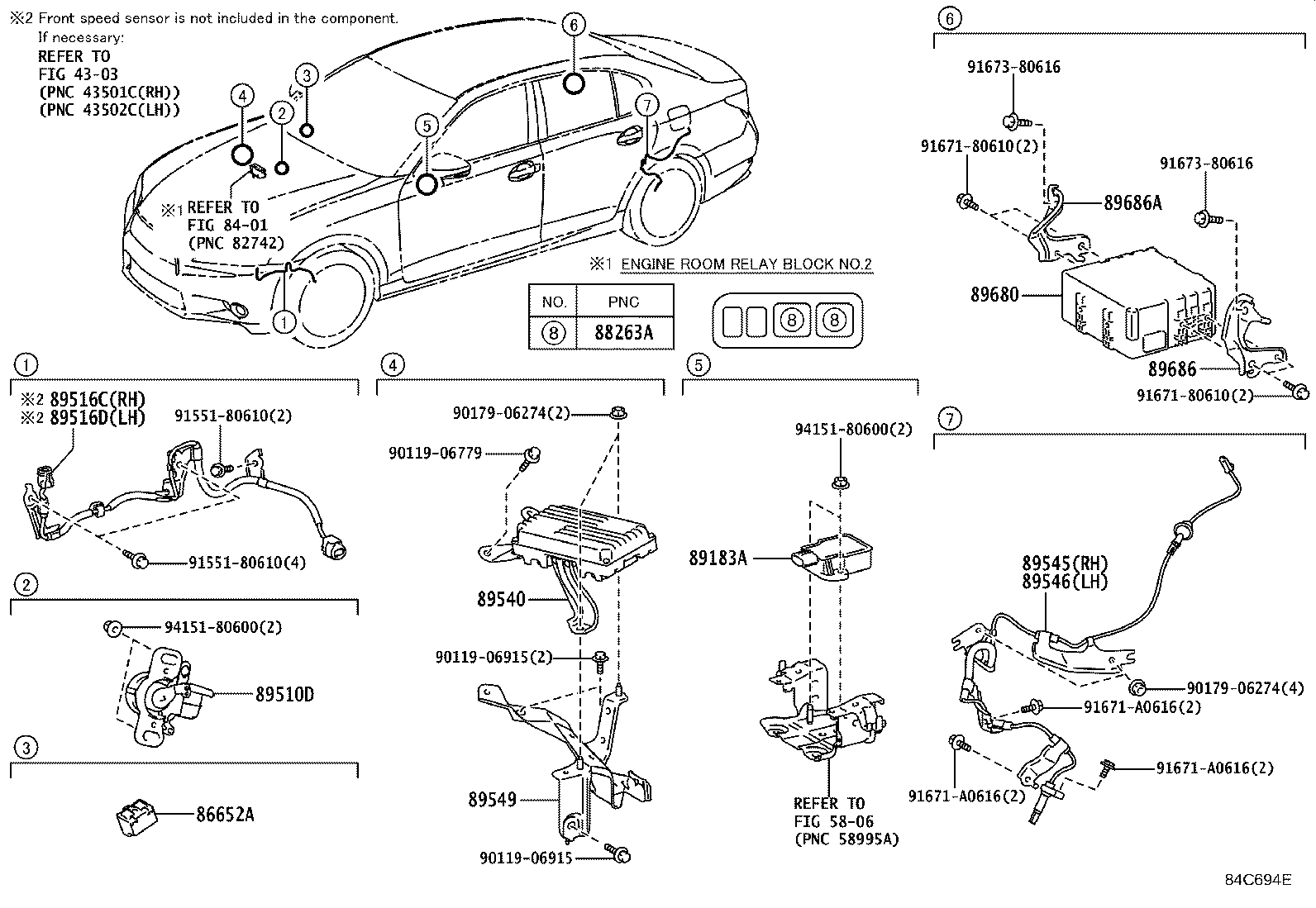

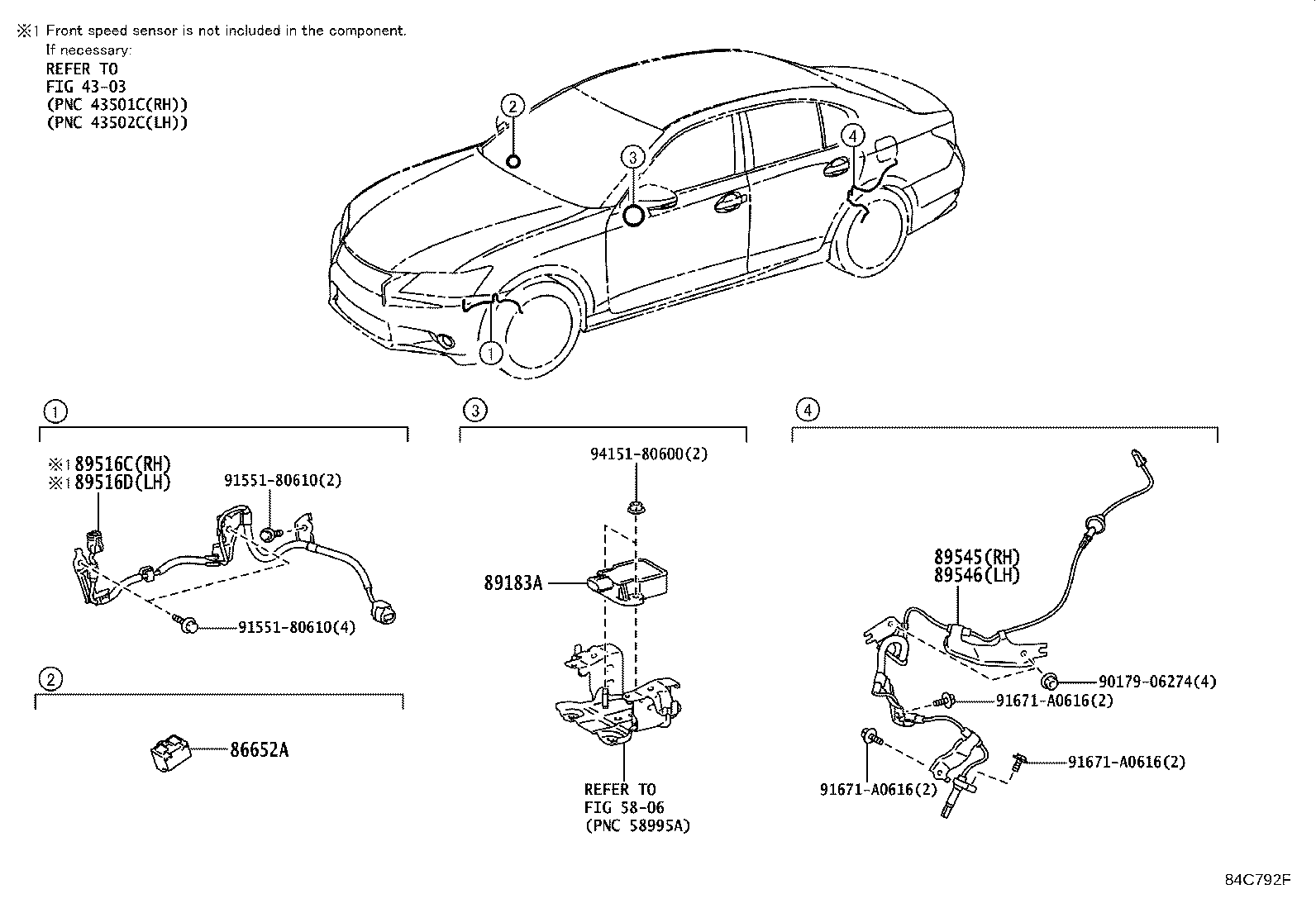

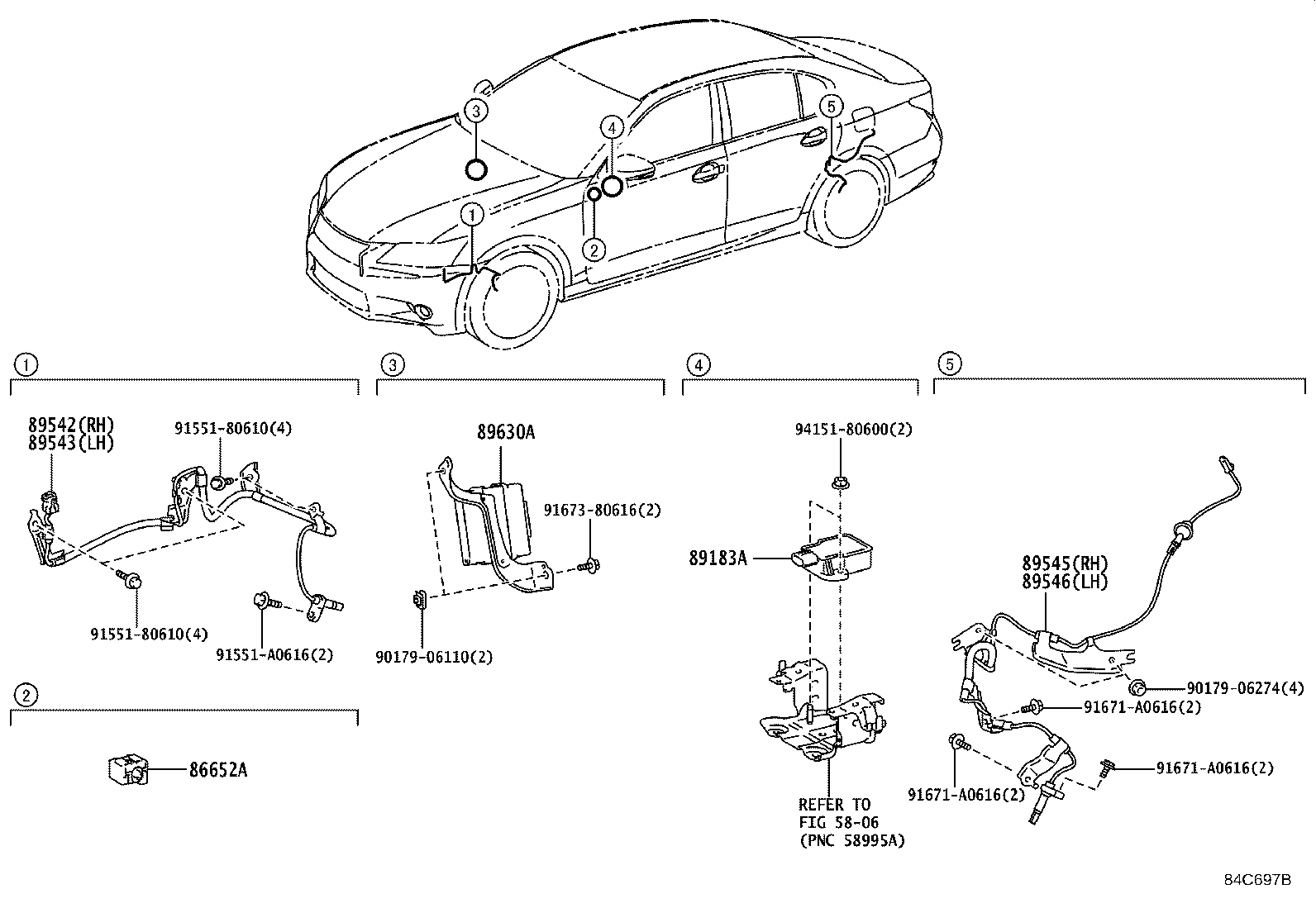

Figure 84C793G 84C793G 2012-03 → 2015-10 Figure 84C793G 84C793G 2015-10 → — Figure 84C792F 84C792F 2012-03 → 2015-10 Figure 84C697B 84C697B 2012-01 → 2015-10 Figure 84C697B 84C697B 2015-10 → — Figure 84C695E 84C695E 2012-03 → 2013-09 Figure 84E608F 84E608F 2013-09 → — Figure 84C694E 84C694E 2012-03 → 2013-09 Figure 84E609F 84E609F 2013-09 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
89183A Sensor, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549 Bracket, Skid Control Computer
89630A Computer Assy, 4WD
89680 Supply Assy, Brake Control Power
89686 Bracket, Brake Control Power Supply, NO.1
89686A Bracket, Brake Control Power Supply, NO.1
896C0 Supply Assy, Brake Control Power W/Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
