Navigation & Front Monitor Display

15 part groups · 4 illustrations

Illustrations

Figure 864811G

864811G 2012-01 → 2015-10

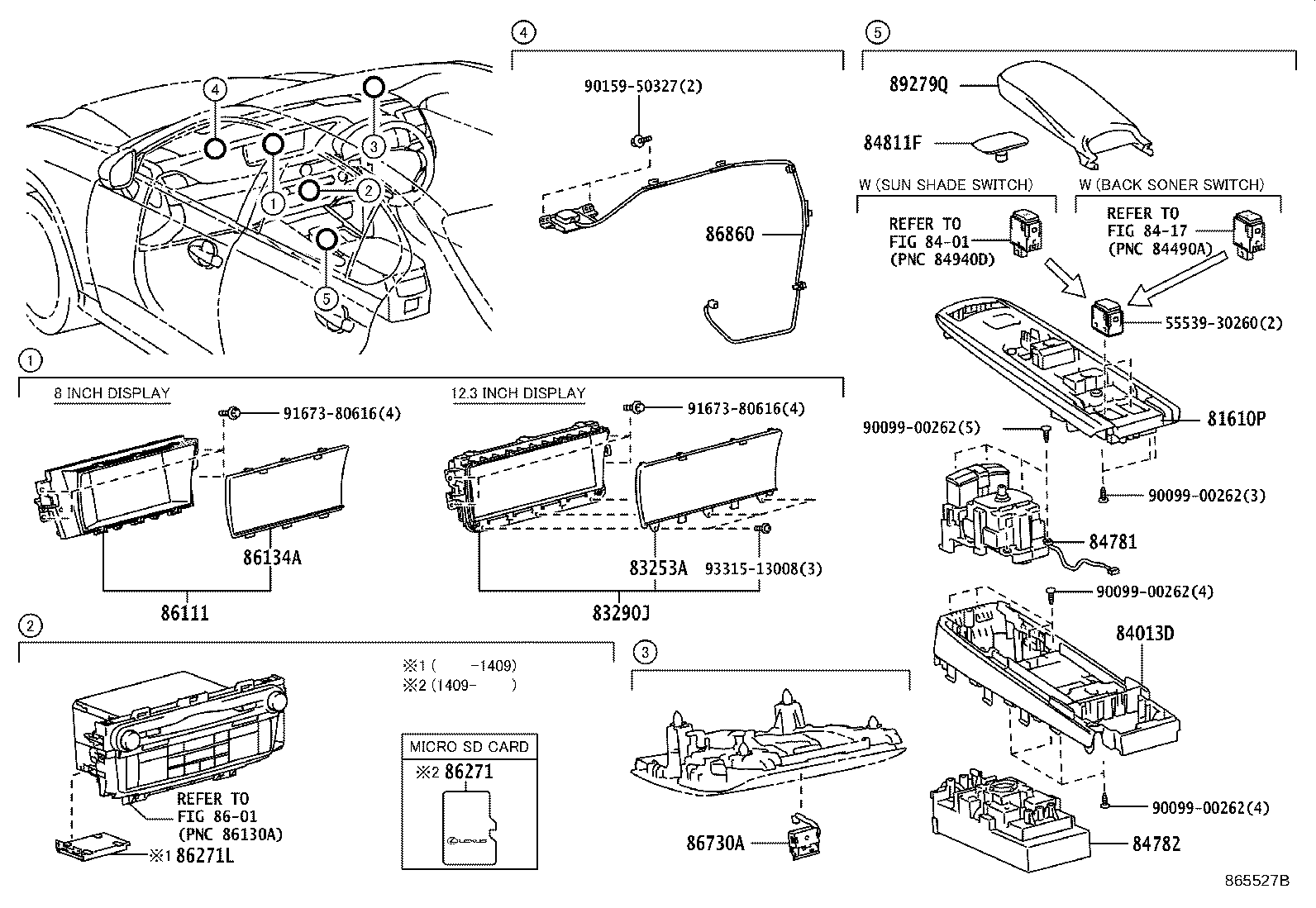

Figure 865527B

865527B 2012-01 → 2015-10

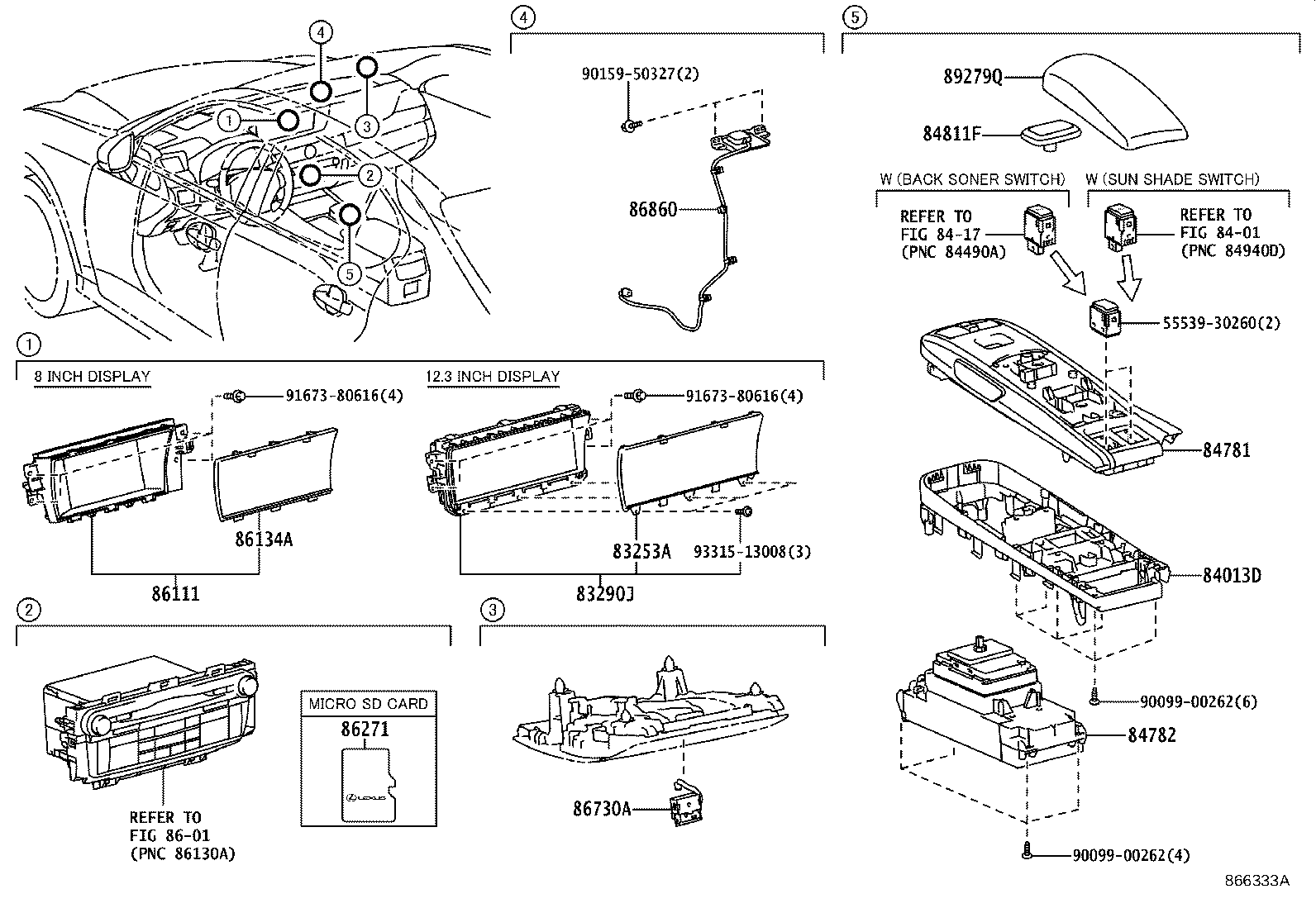

Figure 866333A

866333A 2015-10 → —

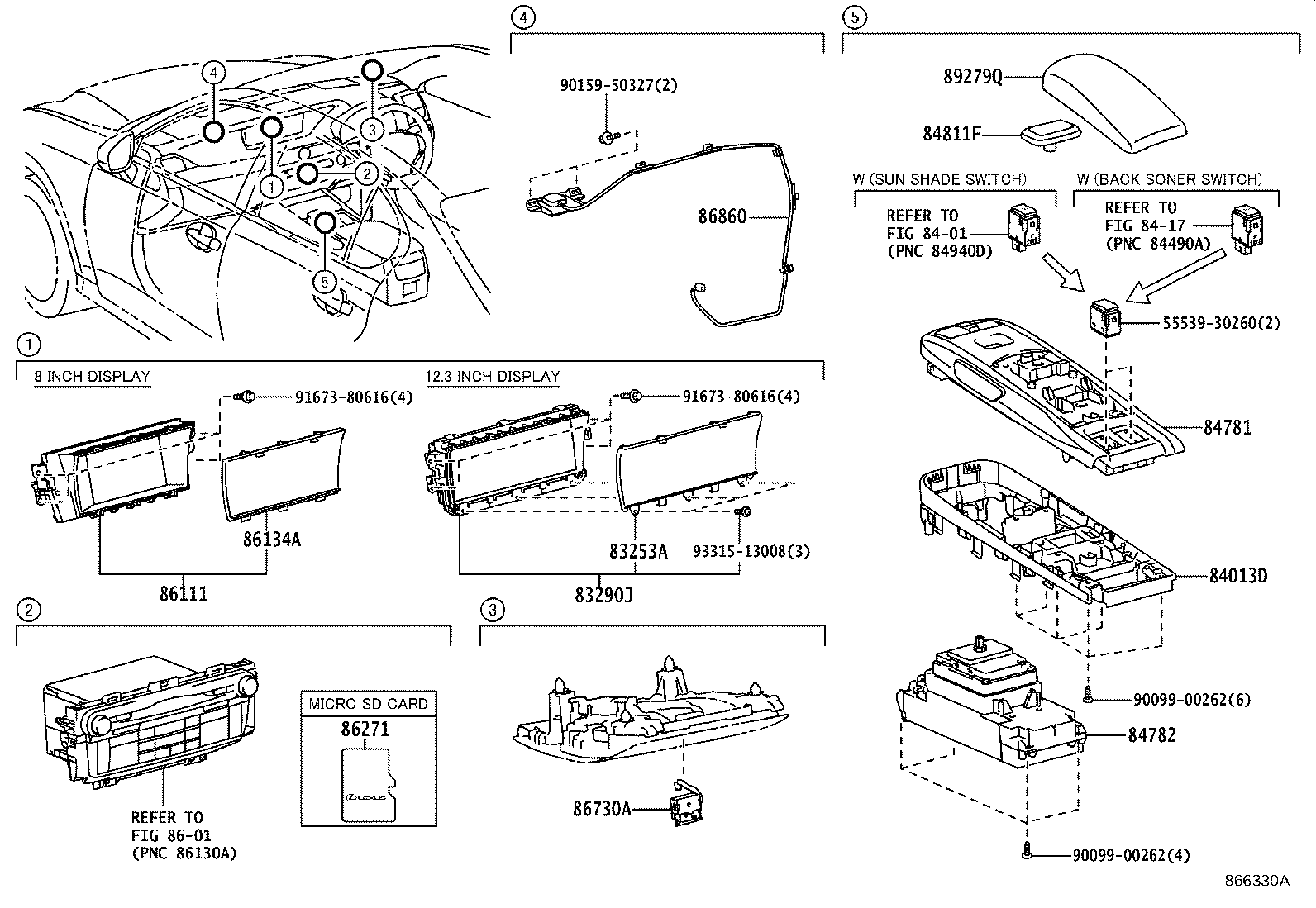

Figure 866330A

866330A 2015-10 → —

Part groups

PNC	Description
81610P	Cover Assy, RH
81620B	Cover Assy LH
83253A	Glass, Accessory Meter
83290J	Meter Assy, Accessory
84013D	Panel Sub-assy, Integration
84781	Switch, Remote Operation
84782	Board, Remote Operation
84811F	Knob, Switch
86111	Multi-display
86134A	Parts, Multi-display
86271	Disc, Disc Player
86271L	Hard Disc
86730A	Microphone Assy, Telephone
86860	Antenna Assy, Navigation
89279Q	Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
