Toyota Lexus GS Series
2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe
Supported model
Data version 2018-09
Antenna

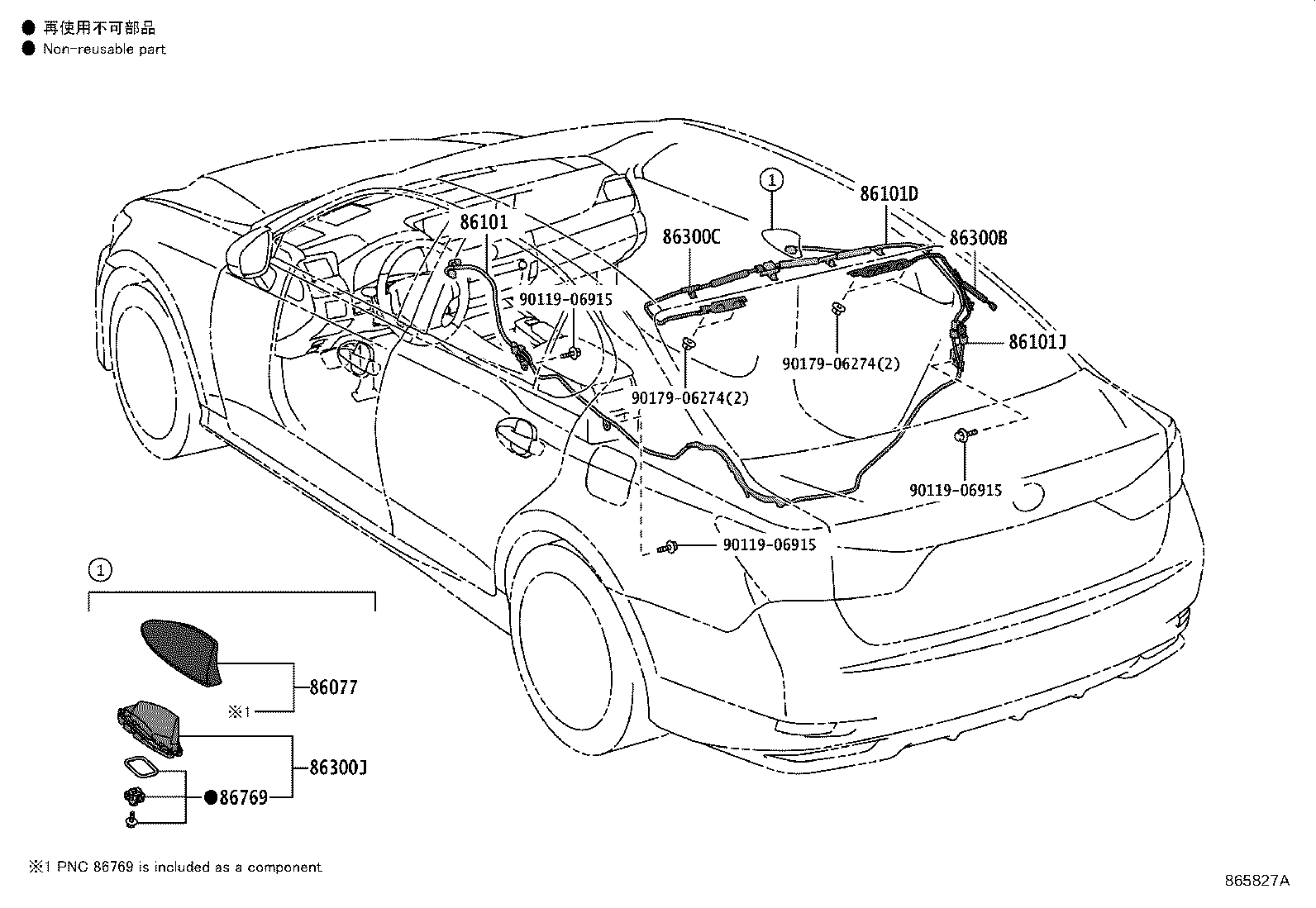

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86300C | Antenna Assy, Amplifier, NO.2 |
| 86300J | Antenna Assy, Roof |
| 86396 | Nut, Antenna |
| 86769 | Housing, Roof Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
