Toyota Lexus GS Series
2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe
Supported model
Data version 2018-09
Pre-collision System

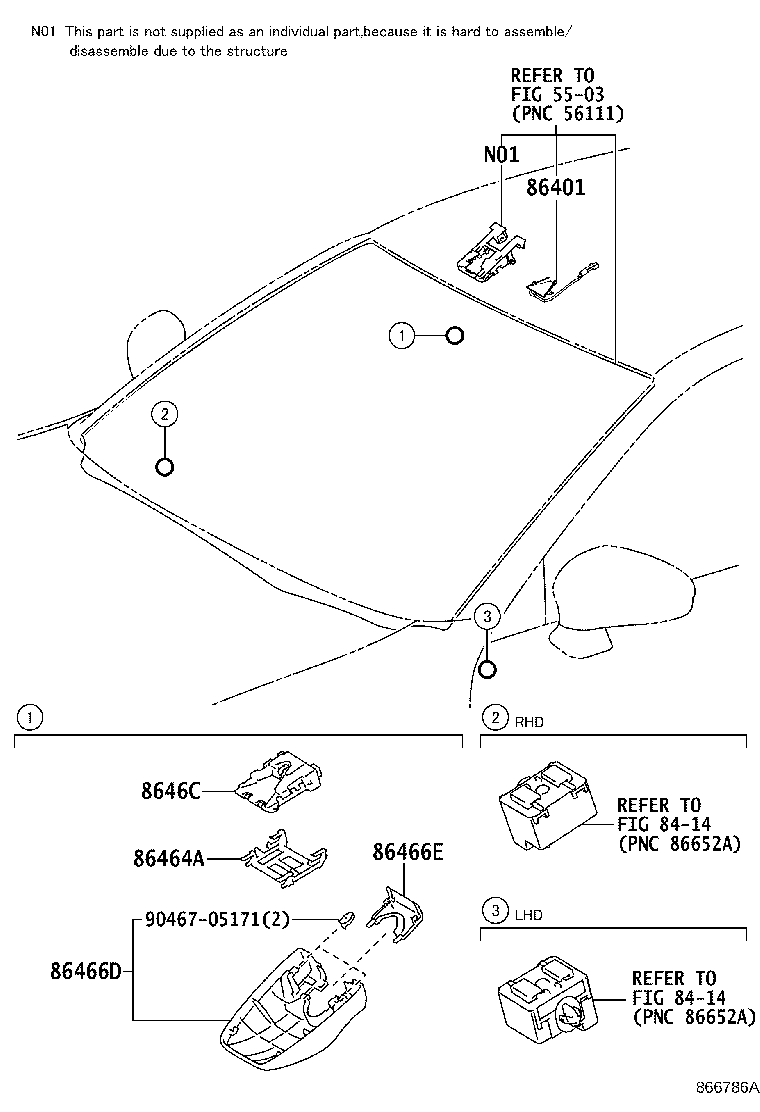

5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86401 | Hood Sub-assy, Forward Recognition W/Heater |
| 86464A | Latch, Forward Recognition |
| 86466D | Cover, Forward Recognition, NO.1 |
| 86466E | Cover, Forward Recognition, NO.2 |
| 8646C | Camera, Forward Recognition |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
