Toyota Lexus GS Series
2012-01 → 2018-09 · chassis ARL10,AWL10,GRL1#,GWL10 · catalogue 3325B0 · Europe
Supported model
Data version 2018-09

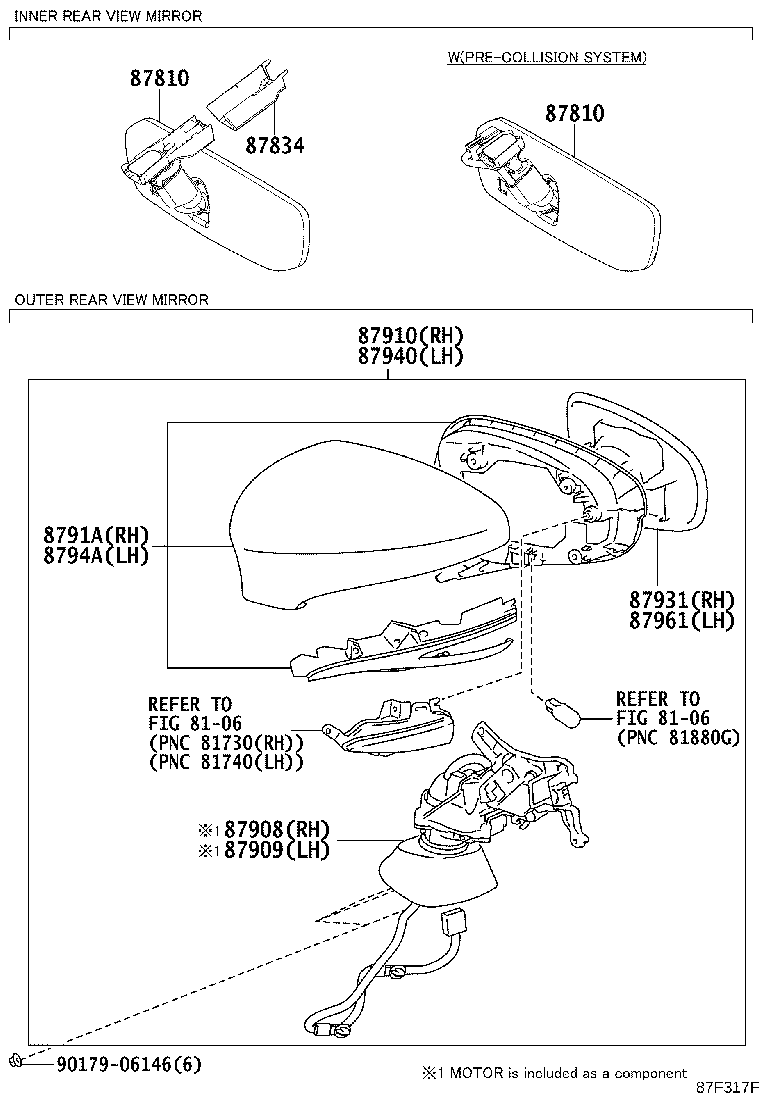

Mirror
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 8791A | Cover, Outer Mirror, RH NO.2 |
| 87931 | Outer Mirror, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 87961 | Mirror Outer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
