Heating & Air Conditioning - Compressor

6 part groups · 5 illustrations

Illustrations

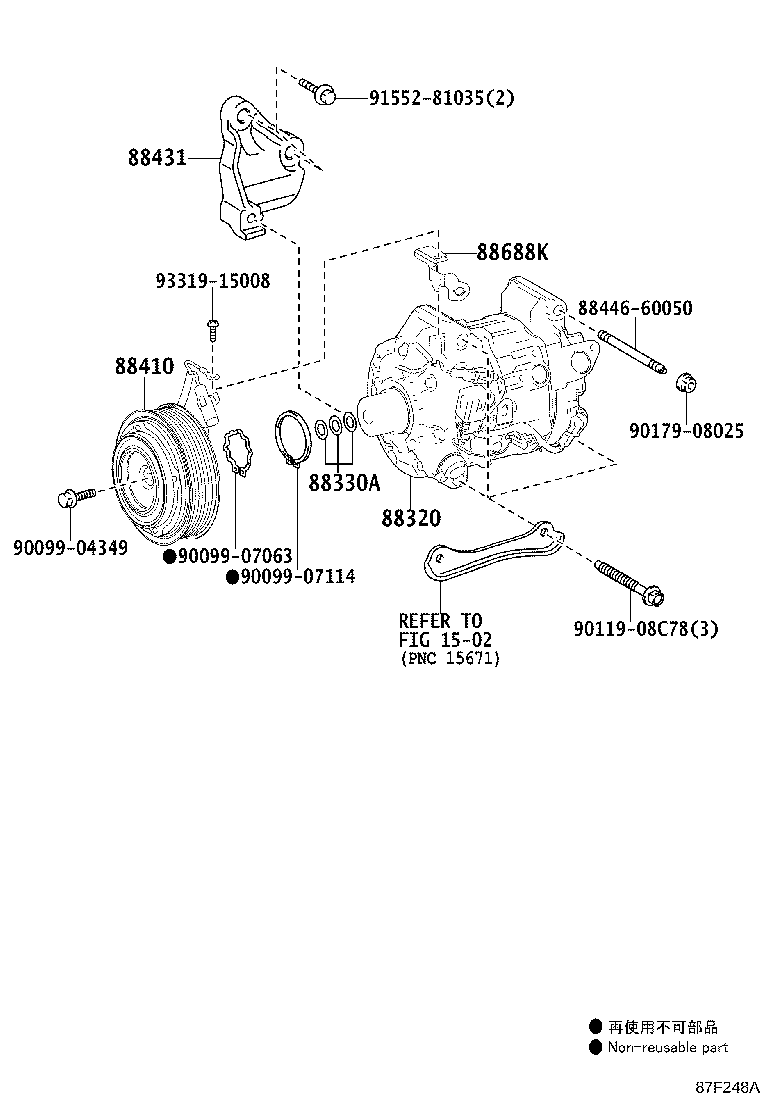

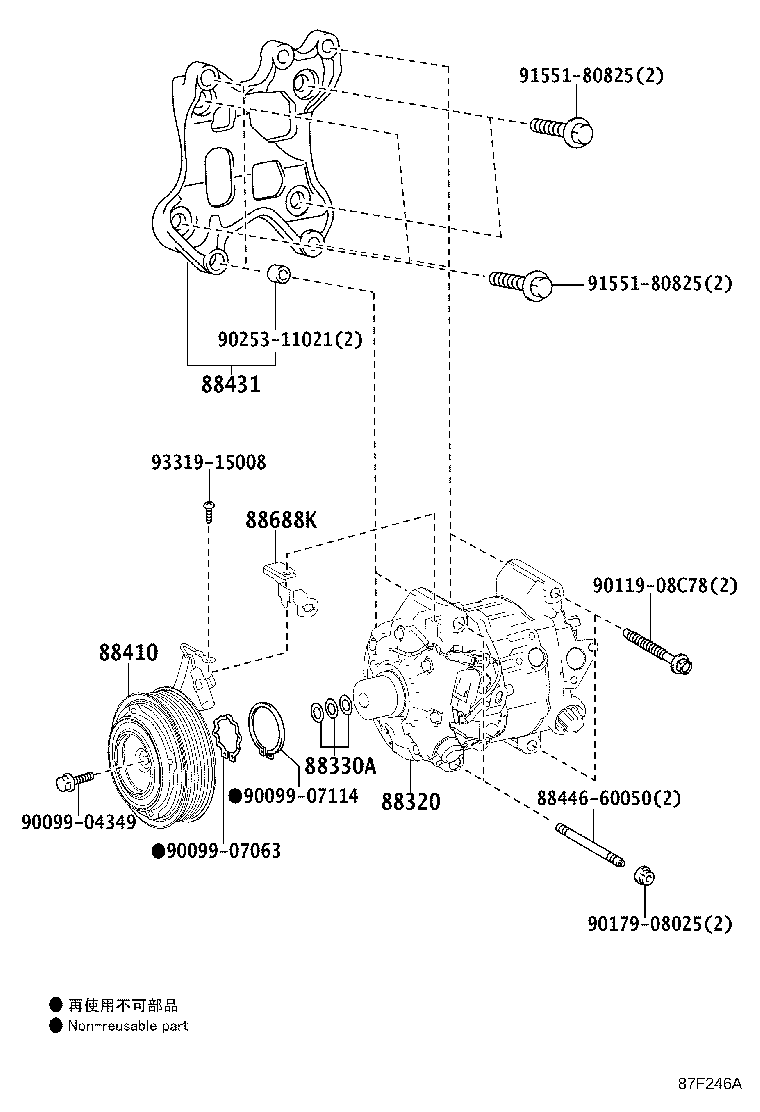

Figure 87C517A 87C517A 2012-01 → 2015-10 Figure 87C518 87C518 2012-03 → — Figure 87D799 87D799 2013-09 → — Figure 87F246A 87F246A 2015-10 → — Figure 87F248A 87F248A 2015-10 → —

Part groups

PNCDescription
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
