Toyota Lexus GS450H
2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe
Supported model
Data version 2012-01

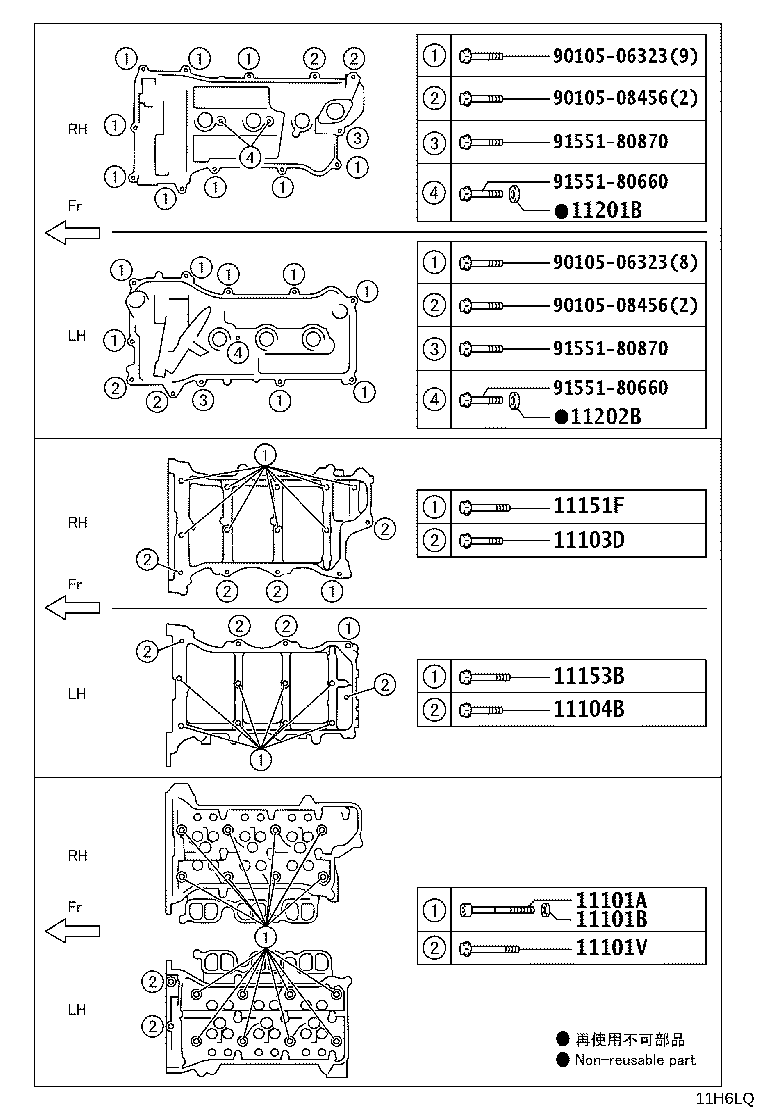

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2006-02 → 2007-09
ended
|
2GRFSE GWS191 | — | |
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2007-09 → —
|
2GRFSE GWS191 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2006-02 → 2007-09
ended
|
2GRFSE GWS191 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2007-09 → —
|
2GRFSE GWS191 | — | |
| 11101V — Bolt(FOR CYLINDER HEAD SET SUB) | ||||
| 90105-10521 |
Bolt(FOR CYLINDER HEAD SET SUB)
2006-02 → 2007-09
ended
|
2GRFSE GWS191 | — | |
| 90105-10521 |
Bolt(FOR CYLINDER HEAD SET SUB)
2007-09 → —
|
2GRFSE GWS191 | — | |
| 11103D — Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) | ||||
| 91673-G0850 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
2006-02 → 2007-09
ended
|
2GRFSE GWS191 | — | |
| 90105-08465 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
2011-03 → —
|
2GRFSE GWS191 | — | |
| 90119-08C84 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
2007-12 → 2011-03
ended
|
2GRFSE GWS191 | — | |
| 91673-G0850 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
2007-09 → 2007-12
ended
|
2GRFSE GWS191 | — | |
| 11104B — Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) | ||||
| 91673-G0850 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
2006-02 → 2007-09
ended
|
2GRFSE GWS191 | — | |
| 90105-08465 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
2011-05 → —
|
2GRFSE GWS191 | — | |
| 90119-08C84 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
2007-12 → 2011-05
ended
|
2GRFSE GWS191 | — | |
| 91673-G0850 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
2007-09 → 2007-12
ended
|
2GRFSE GWS191 | — | |
| 11151F — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 91673-G0870 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2006-02 → 2007-09
ended
|
2GRFSE GWS191 | — | |
| 90105-08464 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2011-03 → —
|
2GRFSE GWS191 | — | |
| 90119-08C85 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2007-12 → 2011-03
ended
|
2GRFSE GWS191 | — | |
| 91673-G0870 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2007-09 → 2007-12
ended
|
2GRFSE GWS191 | — | |
| 11153B — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) | ||||
| 91673-G0870 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
2006-02 → 2007-09
ended
|
2GRFSE GWS191 | — | |
| 90105-08464 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
2011-05 → —
|
2GRFSE GWS191 | — | |
| 90119-08C85 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
2007-12 → 2011-05
ended
|
2GRFSE GWS191 | — | |
| 91673-G0870 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
2007-09 → 2007-12
ended
|
2GRFSE GWS191 | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 90210-06013 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2006-02 → 2007-09
ended
|
2GRFSE GWS191 | — | |
| 90210-06013 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2007-09 → —
|
2GRFSE GWS191 | — | |
| 11202B — Washer, Seal(FOR CYLINDER HEAD COVER, LH) | ||||
| 90210-06013 |
Washer, Seal(FOR CYLINDER HEAD COVER, LH)
2006-02 → 2007-09
ended
|
2GRFSE GWS191 | — | |
| 90210-06013 |
Washer, Seal(FOR CYLINDER HEAD COVER, LH)
2007-09 → —
|
2GRFSE GWS191 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
