Brake Pedal & Bracket

4 part groups · 2 illustrations

Illustrations

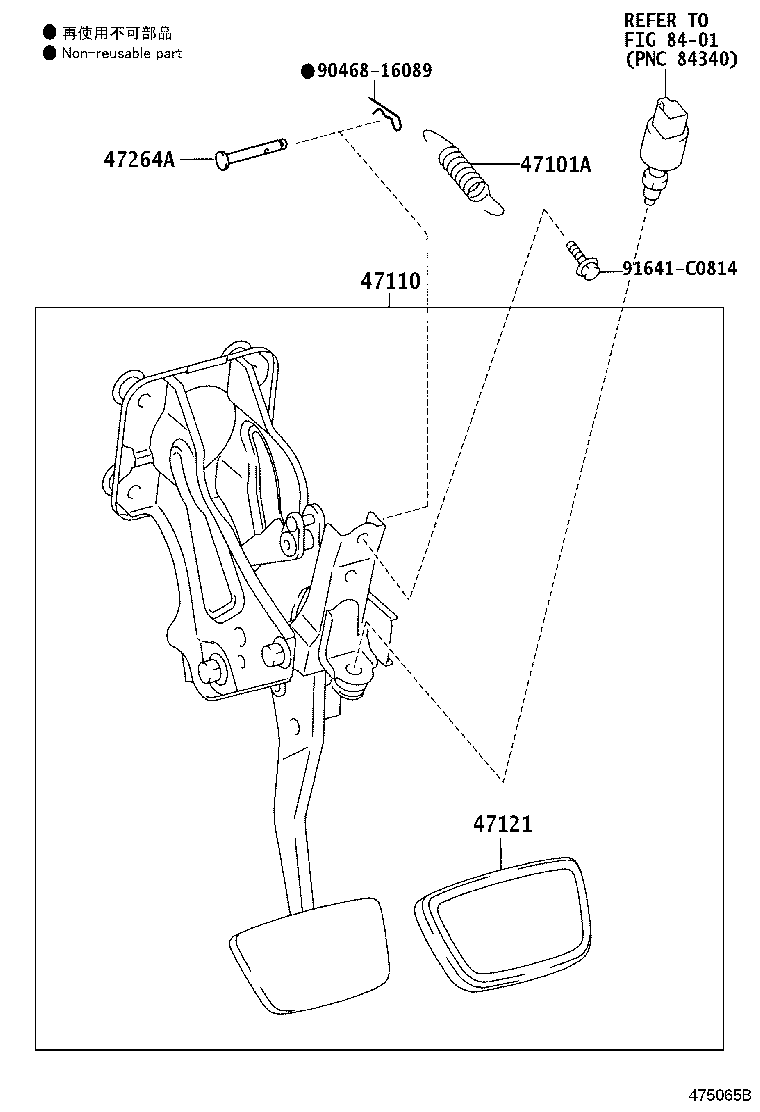

Figure 475064B 475064B 2006-02 → — Figure 475065B 475065B 2006-02 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
