Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

22 part groups · 2 illustrations

Illustrations

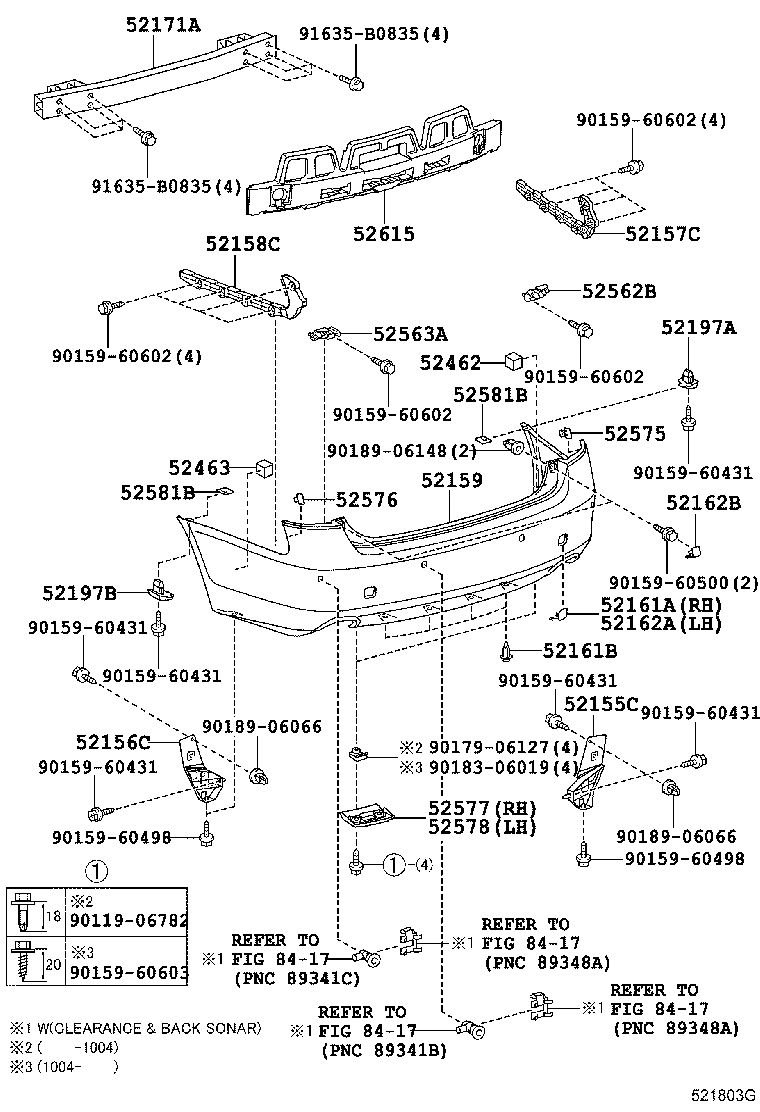

Figure 521713B 521713B 2006-02 → 2007-09 Figure 521803G 521803G 2007-09 → —

Part groups

PNCDescription
52155C Support, Rear Bumper Side, NO.1 RH
52156C Support, Rear Bumper Side, NO.1 LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52161A Piece, Rear Bumper, RH
52161B Piece, Rear Bumper
52162A Piece, Rear Bumper, LH
52162B Plate, Rear Bumper, NO.1
52171A Reinforcement, Rear Bumper, NO.1
52197A Bracket, Rear Bumper Seal, RH
52197B Bracket, Rear Bumper Seal, LH
52462 Pad, Rear Bumper, RH
52463 Pad, Rear Bumper, LH
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52577 Retainer, Rear Bumper Side, NO.2 RH
52578 Retainer, Rear Bumper Side, NO.2 LH
52581B Protector, Rear Bumper
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
