Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

18 part groups · 3 illustrations

Illustrations

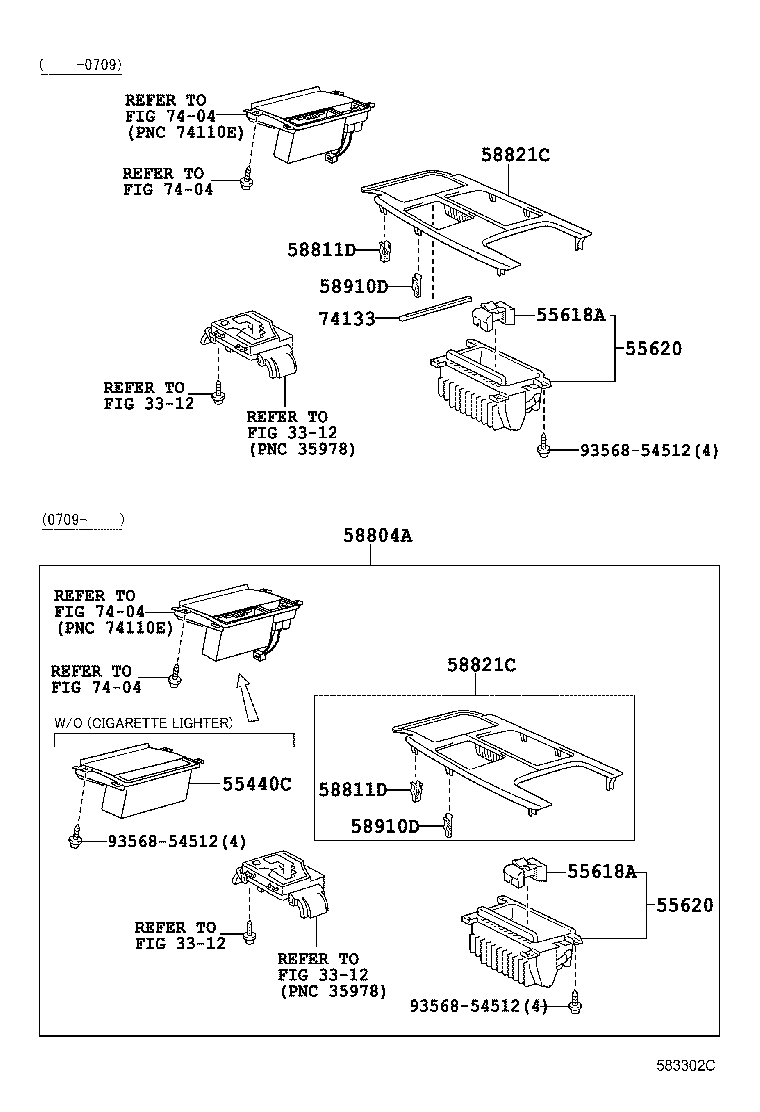

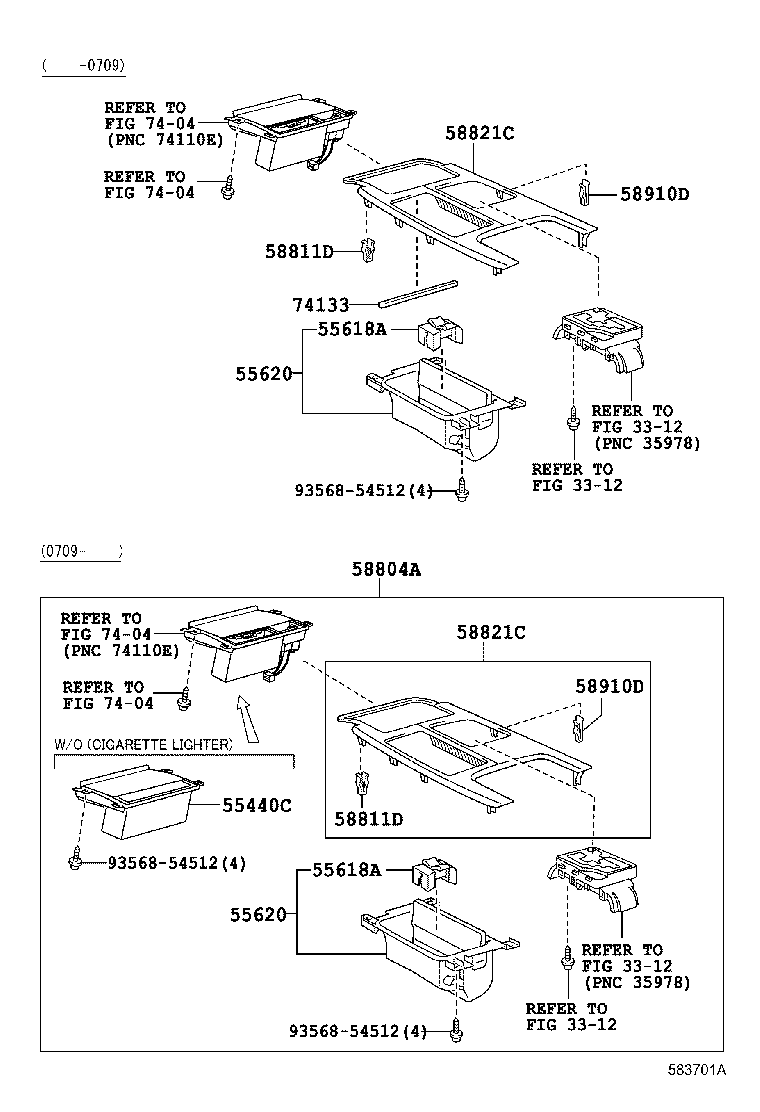

Figure 582573H 582573H 2006-02 → — Figure 583302C 583302C 2006-02 → — Figure 583701A 583701A 2006-02 → —

Part groups

PNCDescription
55385C Bracket, Console Box Mounting, NO.5
55440C Box Assy, Instrument Panel
55539J Cover, Spare Switch Hole
55618A Holder, Console Box Cup
55620 Holder Assy, Instrument Panel Cup
58801E Box Sub-assy, Console, Upper
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58821C Panel, Console, Upper
58831A Garnish, Console Upper Panel, Front
58860A Register Assy, Console Box
58910D Clip(FOR CONSOLE BOX)
58918A Bracket, Box Support
58919B Plate, Console Box
58920A Armrest Assy, Rear Console
58995A Bracket, Console Box Mounting, NO.1
74133 Seal, Front Ash Receptacle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
