Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe

Supported model Data version 2012-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

88 part groups · 6 illustrations

Illustrations

714390I 2006-02 → 2007-04

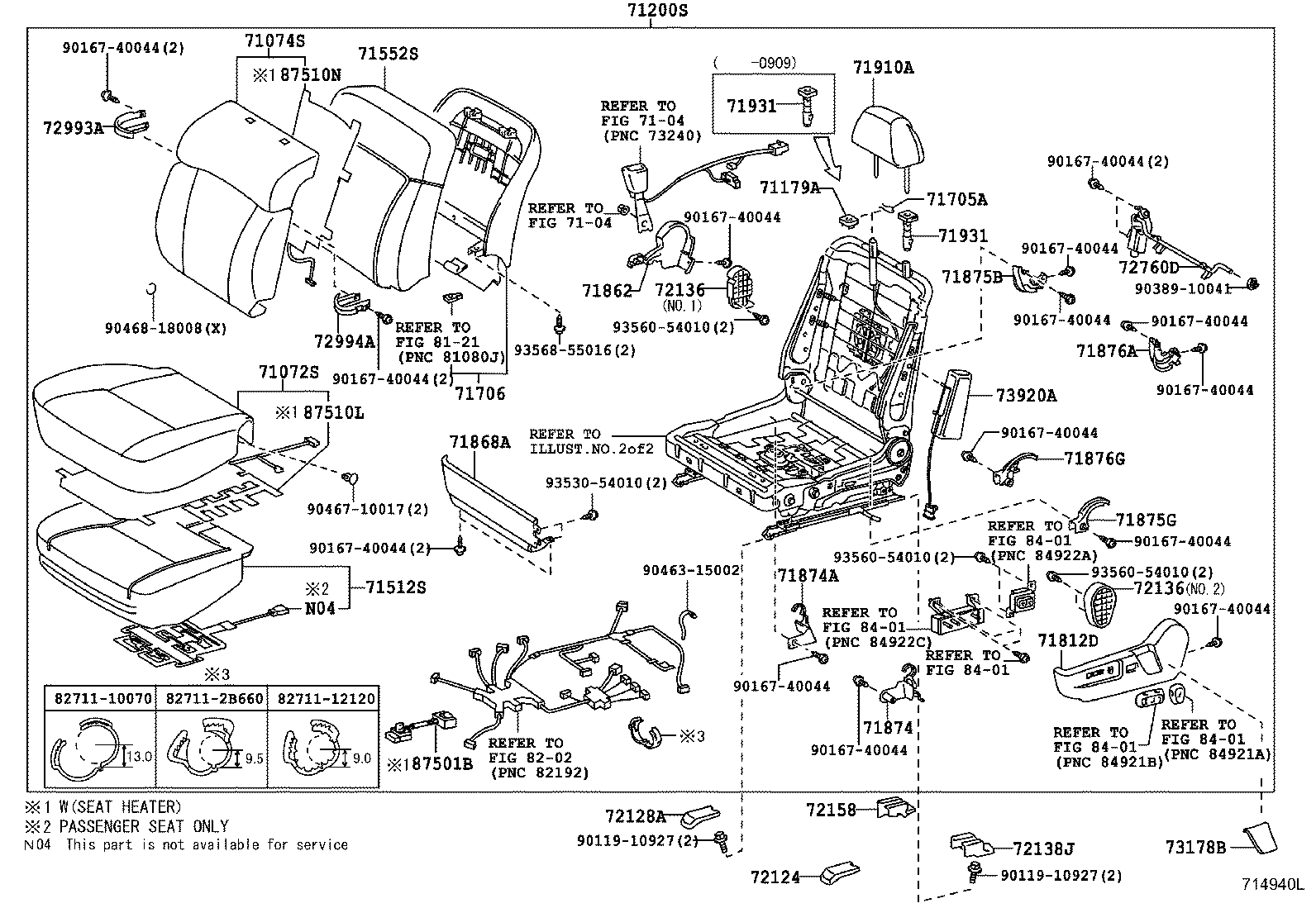

714940L 2007-04 → —

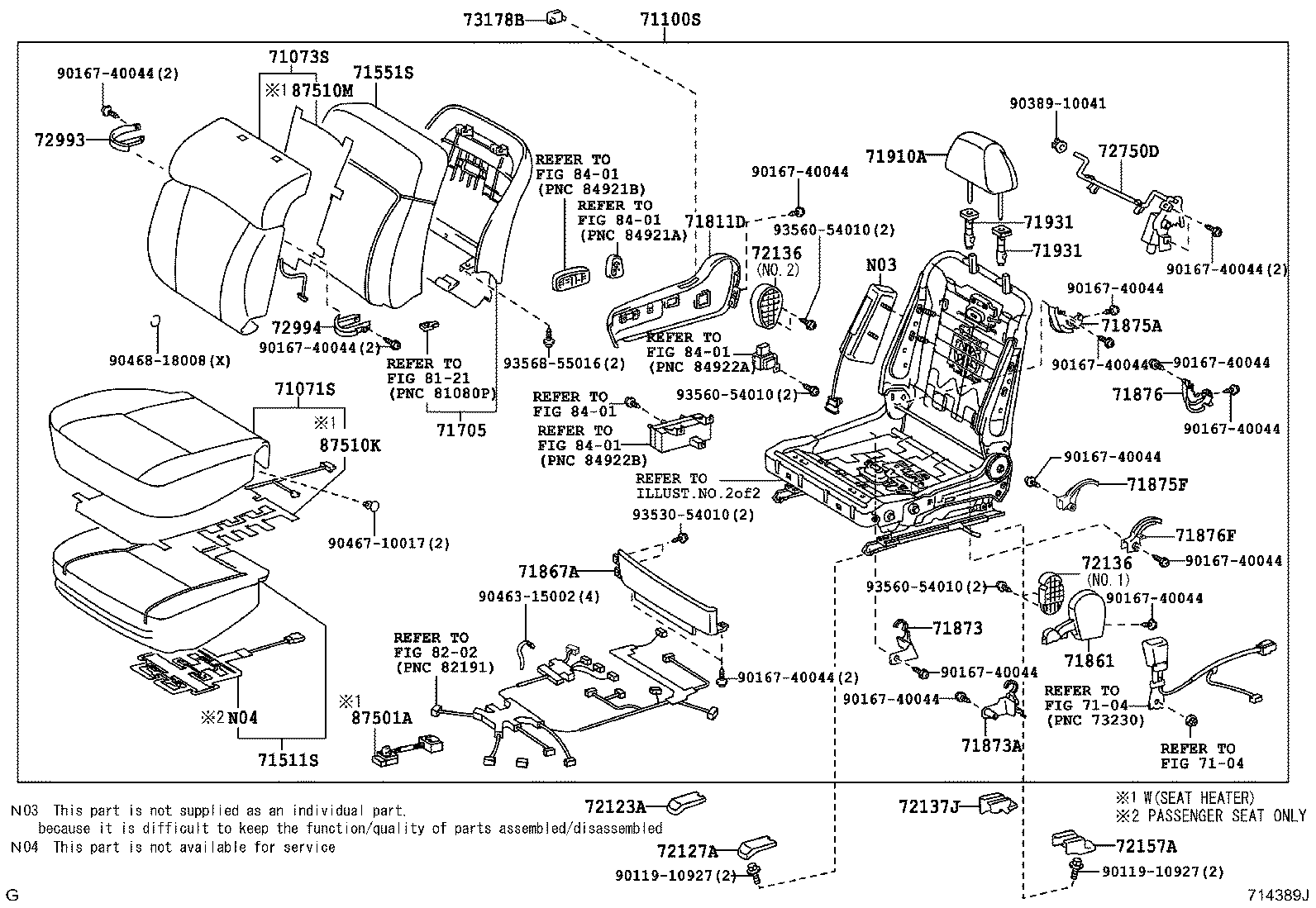

714389J 2006-02 → 2007-04

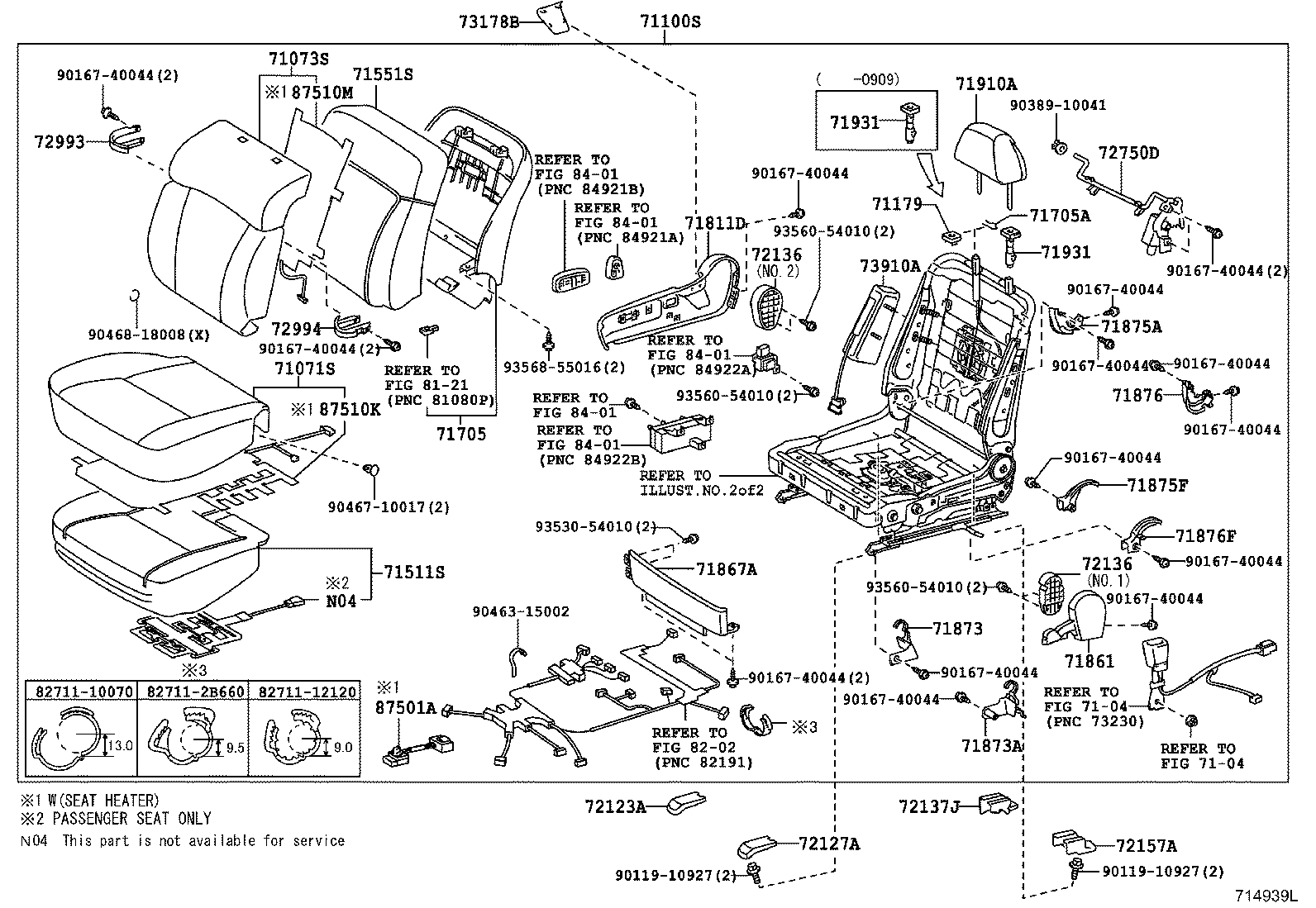

714939L 2007-04 → —

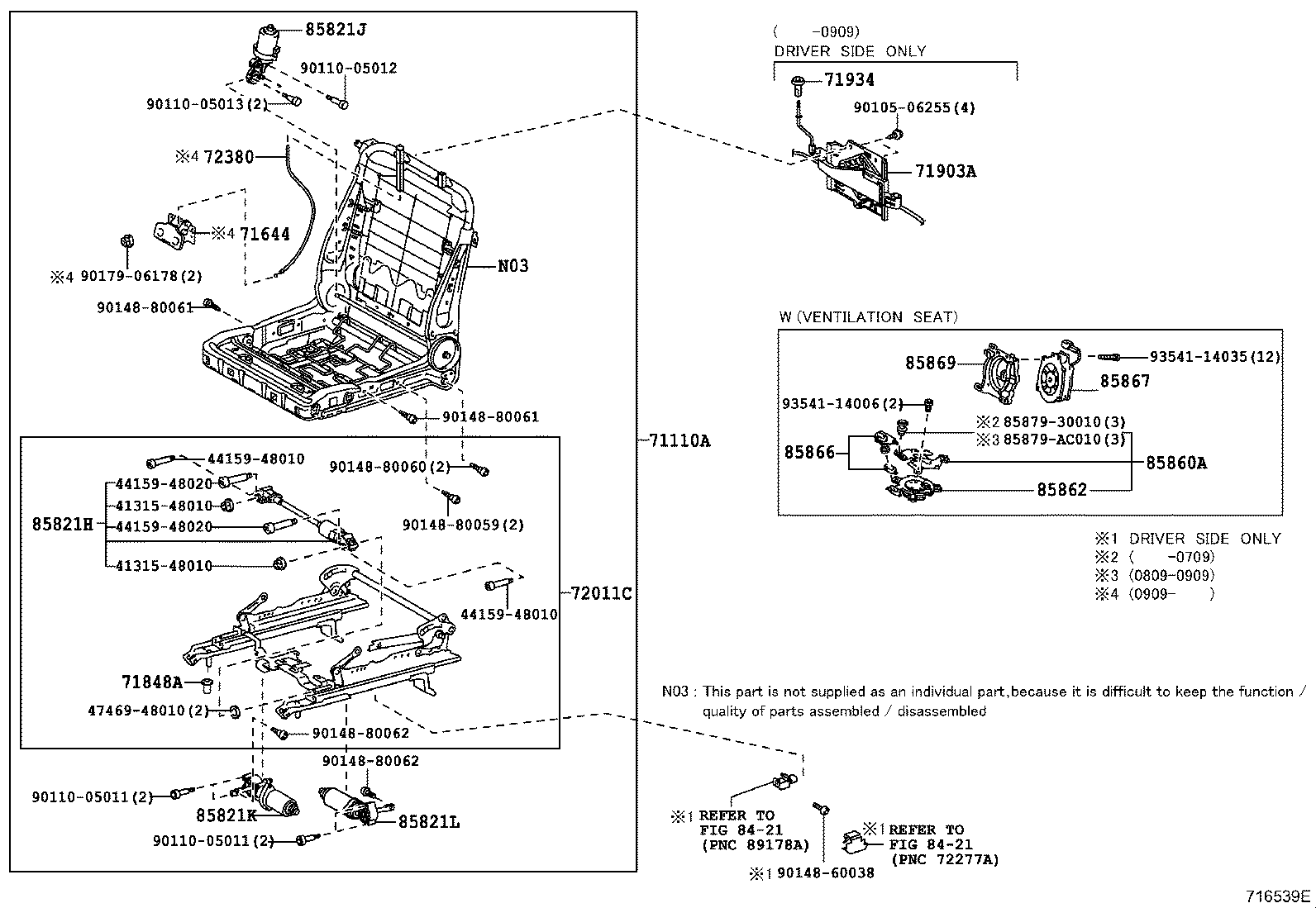

716539E 2006-02 → —

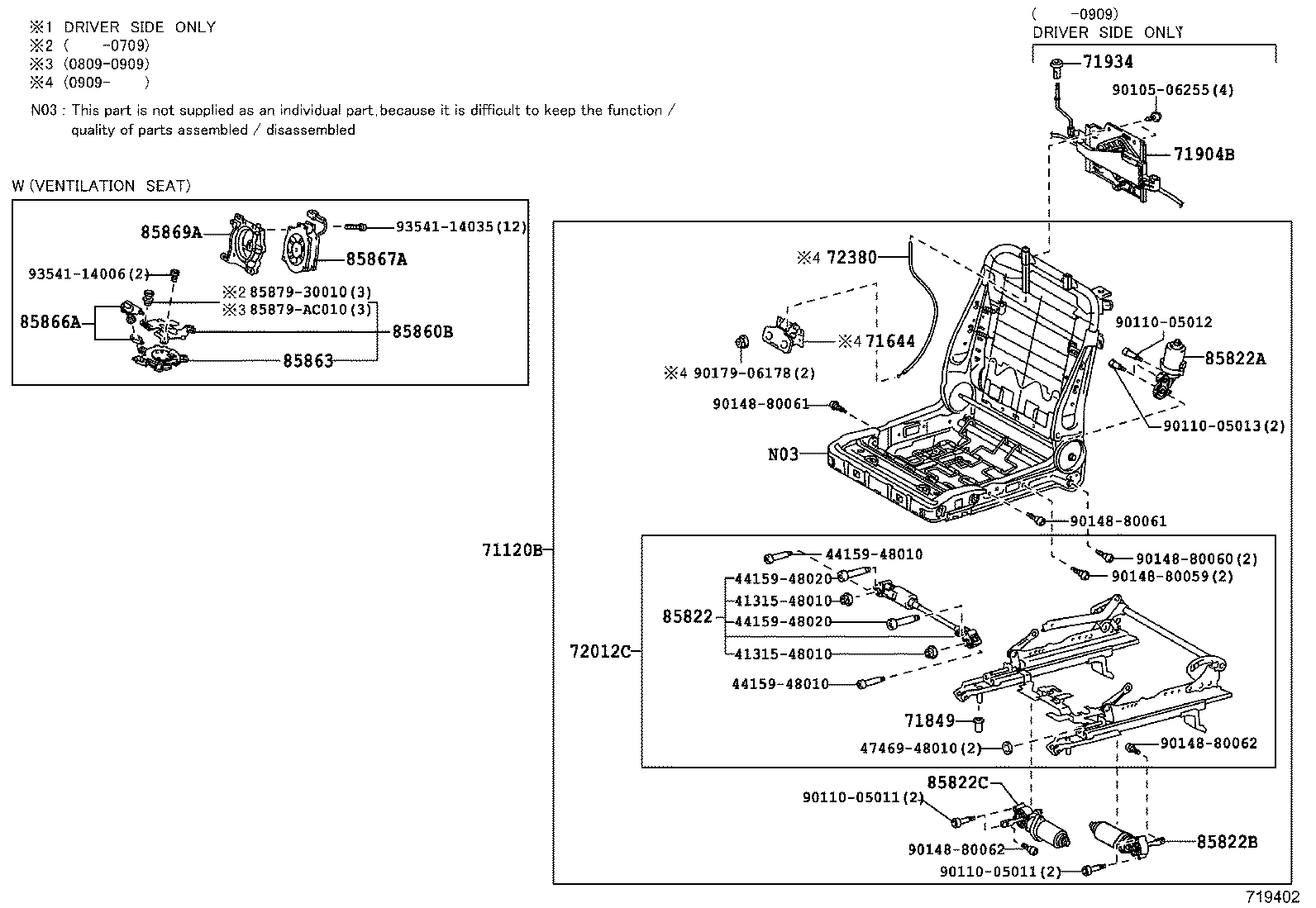

719402 2006-02 → —

Part groups

PNC	Description
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S	Seat Assy, Front RH
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71179	Cover, Front Seatback Support, RH
71179A	Cover, Front Seatback Support, LH
71200S	Seat Assy, Front LH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71644	Unit, Active Headrest, Lwr
71705	Board Sub-assy, Front Seatback, RH
71705A	Clip(FOR FRONT SEATBACK BOARD)
71706	Board Sub-assy, Front Seatback, LH
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875F	Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G	Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876F	Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71903A	Adjuster, Front Seat Headrest
71904B	Adjuster Sub-assy, Front Seat Headrest
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71934	Button, Front Seat Headrest Lock Release
72011C	Adjuster Sub-assy, Front Seat, RH
72012C	Adjuster Sub-assy, Front Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72136	Spacer, Seat Track, Lower NO.1
72137J	Cover, Front Seat Track, RH Rear Outer
72138J	Cover, Front Seat Track, LH Rear Outer
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72380	Cable Assy, Seat Adjuster Control, NO.2
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
72993	Cover, Front Seatback
72993A	Cover, Front Seatback
72994	Cover, Front Seatback
72994A	Cover, Front Seatback
73178B	Cap, Seat Belt Anchor Cover
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
85821H	Motor Assy, Power Seat Slide, RH
85821J	Motor Assy, Power Seat Reclining, RH
85821K	Motor Assy, Power Seat Tilt, RH
85821L	Motor Assy, Power Seat Lifter, RH
85822	Motor Assy, Power Seat Slide, LH
85822A	Motor Assy, Power Seat Reclining, LH
85822B	Motor Assy, Power Seat Tilt, LH
85822C	Motor Assy, Power Seat Lifter, LH
85860A	Blower Assy, Seat Cushion Climate Control, RH
85860B	Blower Assy, Seat Cushion Climate Control, LH
85862	Blower, Seat Climate Control, RH
85863	Blower, Seat Climate Control, LH
85866	Duct, Seat Cushion Climate Control, RH
85866A	Duct, Seat Cushion Climate Control, LH
85867	Blower, Seatback Climate Control, RH
85867A	Blower, Seatback Climate Control, LH
85869	Cover, Seatback Climate Control, RH
85869A	Cover, Seatback Climate Control, LH
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
