Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

27 part groups · 2 illustrations

Illustrations

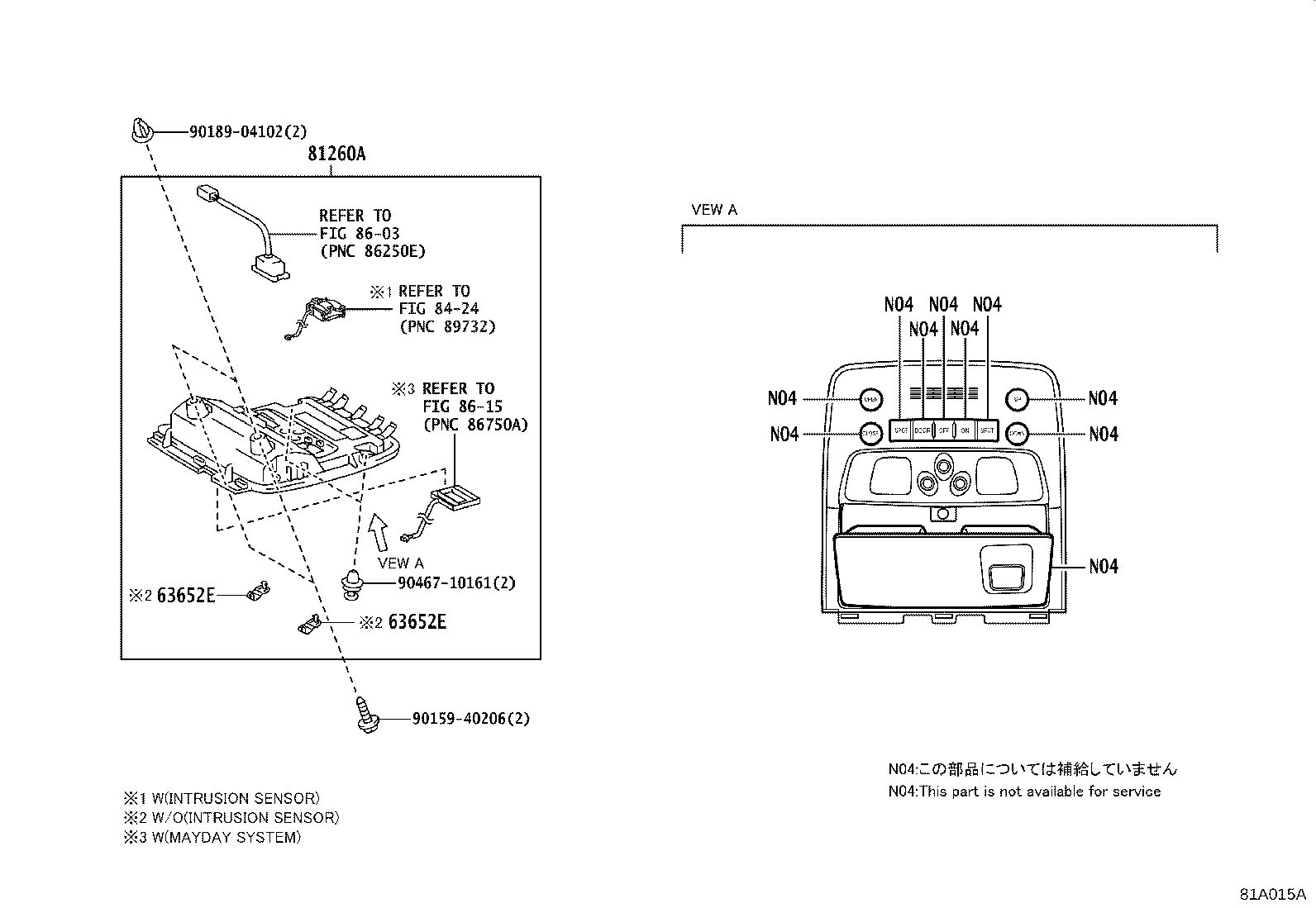

Figure 813658E 813658E 2006-02 → — Figure 81A015A 81A015A 2006-02 → —

Part groups

PNCDescription
63652E Cover, Roof Console Box, NO.1
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080R Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81081 Lamp Sub-assy, Interior Illumination
81081A Lamp Sub-assy, Interior Illumination, NO.2
81081B Lamp Sub-assy, Interior Illumination, NO.3
81230D Lamp Assy, Front Door Courtesy, RH
81230E Lamp Assy, Front Door Courtesy, LH
81230F Lamp Assy, Rear Door Courtesy, RH
81230G Lamp Assy, Rear Door Courtesy, LH
81250 Lamp Assy, Room, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81320A Lamp Assy, Steering Spot
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
