Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

76 part groups · 13 illustrations

Illustrations

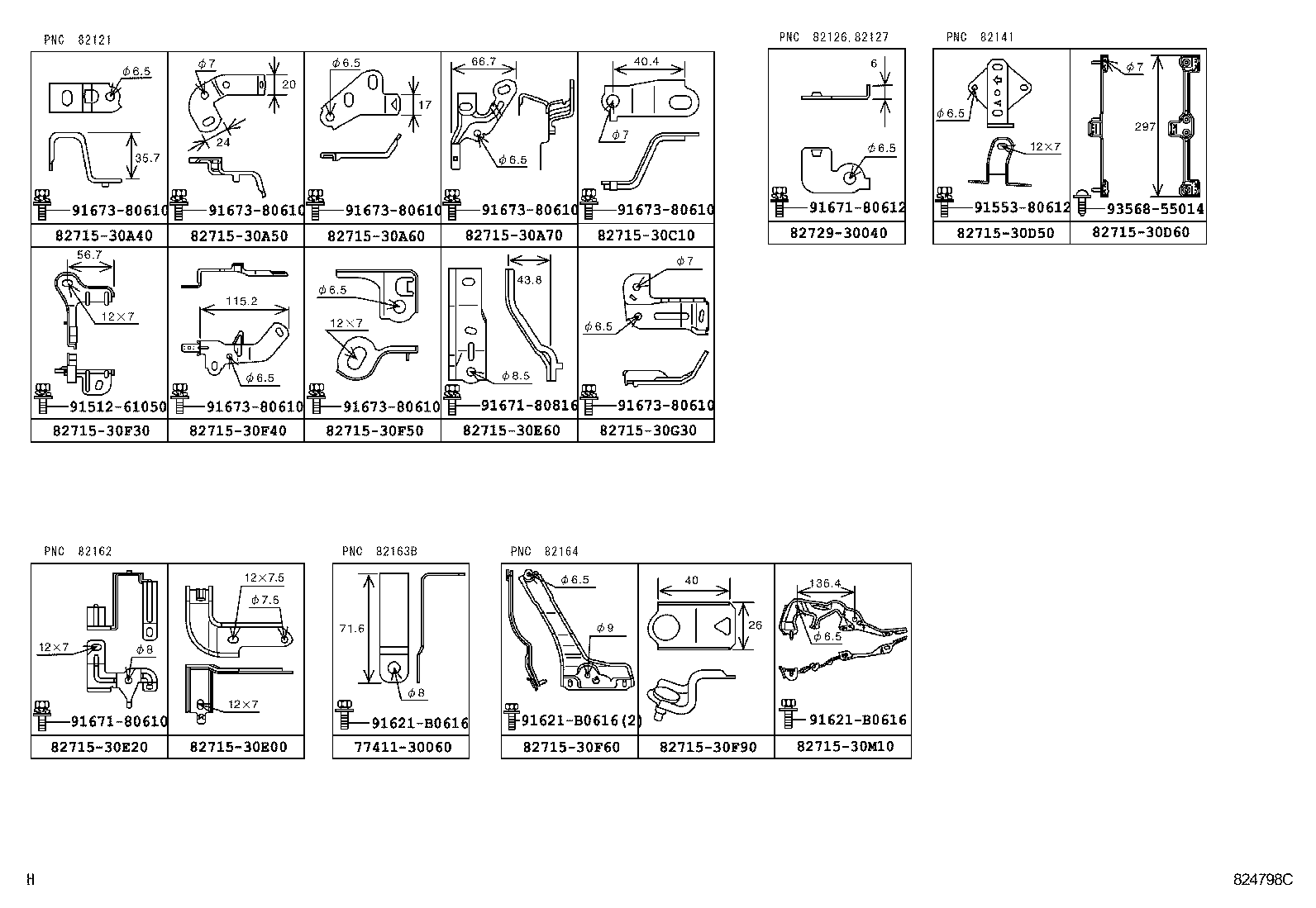

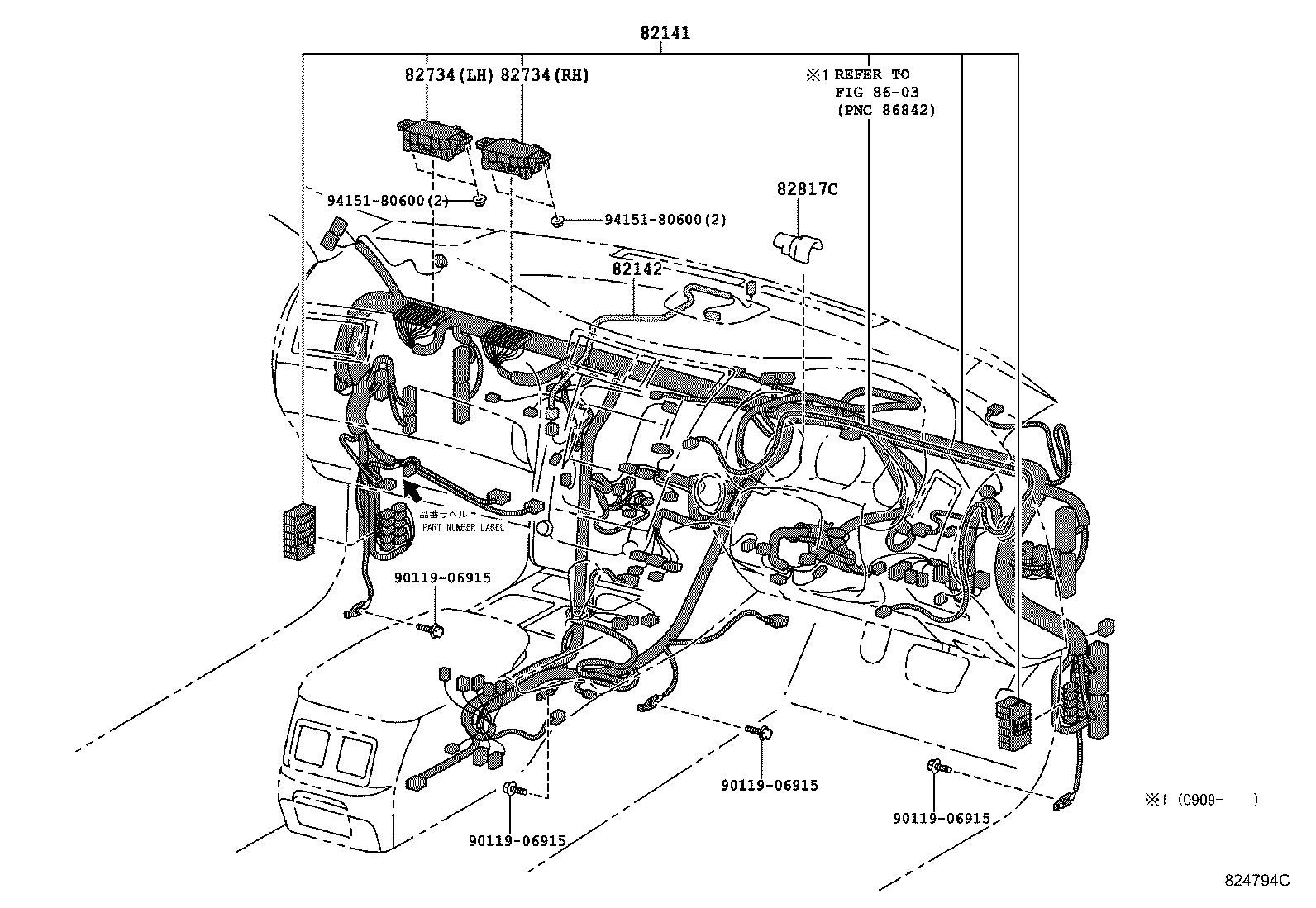

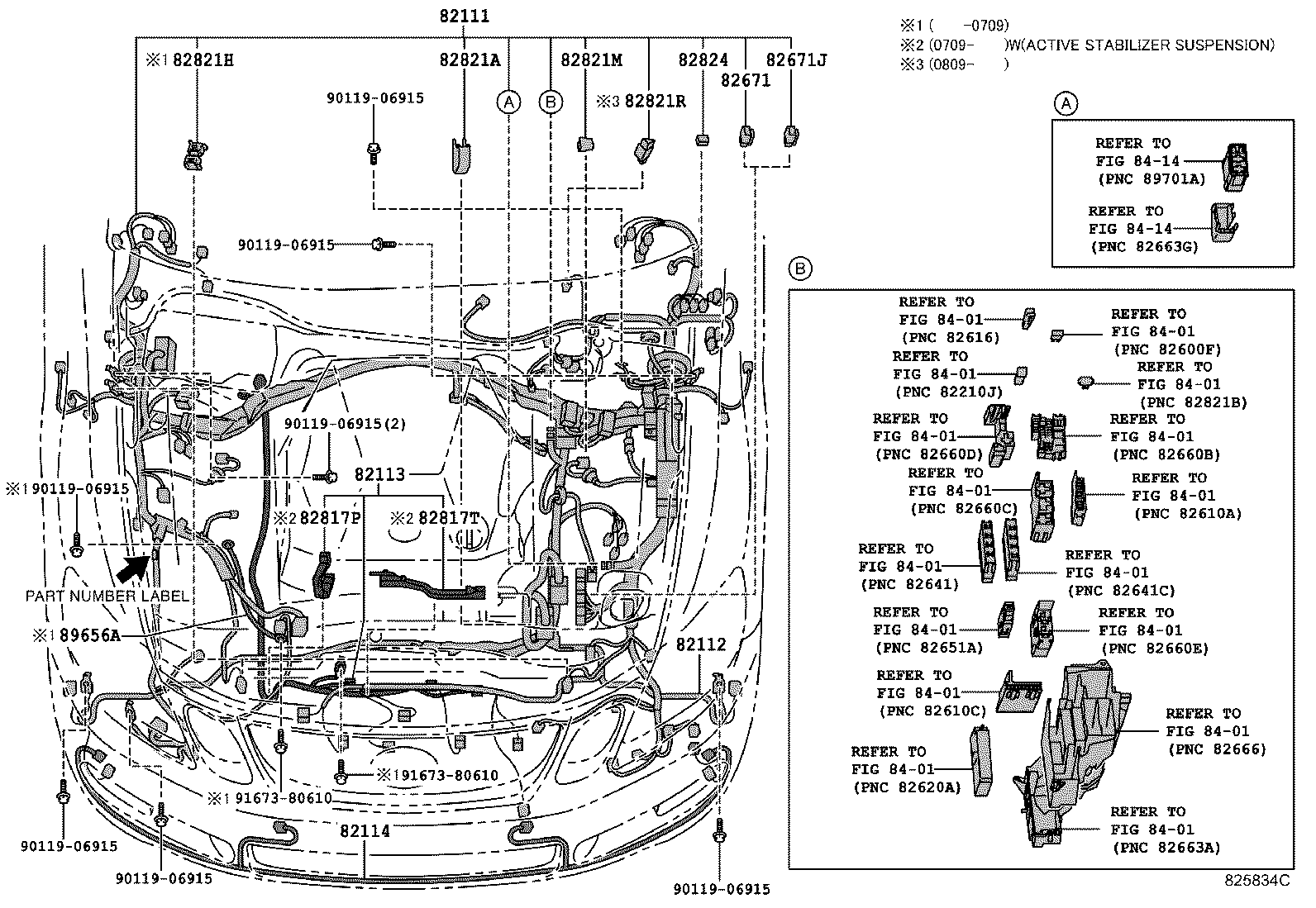

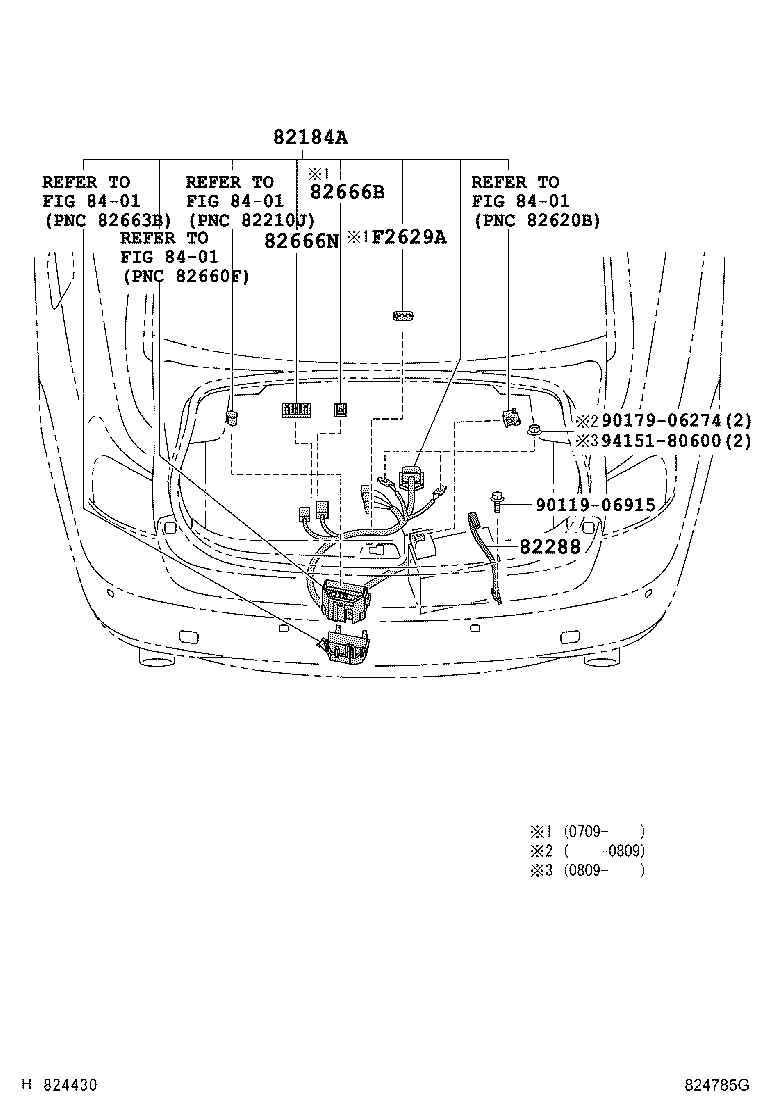

Figure 824807G 824807G 2006-02 → — Figure 825834C 825834C 2006-02 → — Figure 824792A 824792A 2006-02 → — Figure 824793C 824793C 2006-02 → — Figure 824794C 824794C 2006-02 → — Figure 824795C 824795C 2006-02 → — Figure 824810C 824810C 2006-02 → — Figure 824796C 824796C 2006-02 → — Figure 824785G 824785G 2006-02 → — Figure 824786A 824786A 2006-02 → — Figure 824798C 824798C 2006-02 → — Figure 824788B 824788B 2006-02 → — Figure 824797C 824797C 2006-02 → —

Part groups

PNCDescription
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4

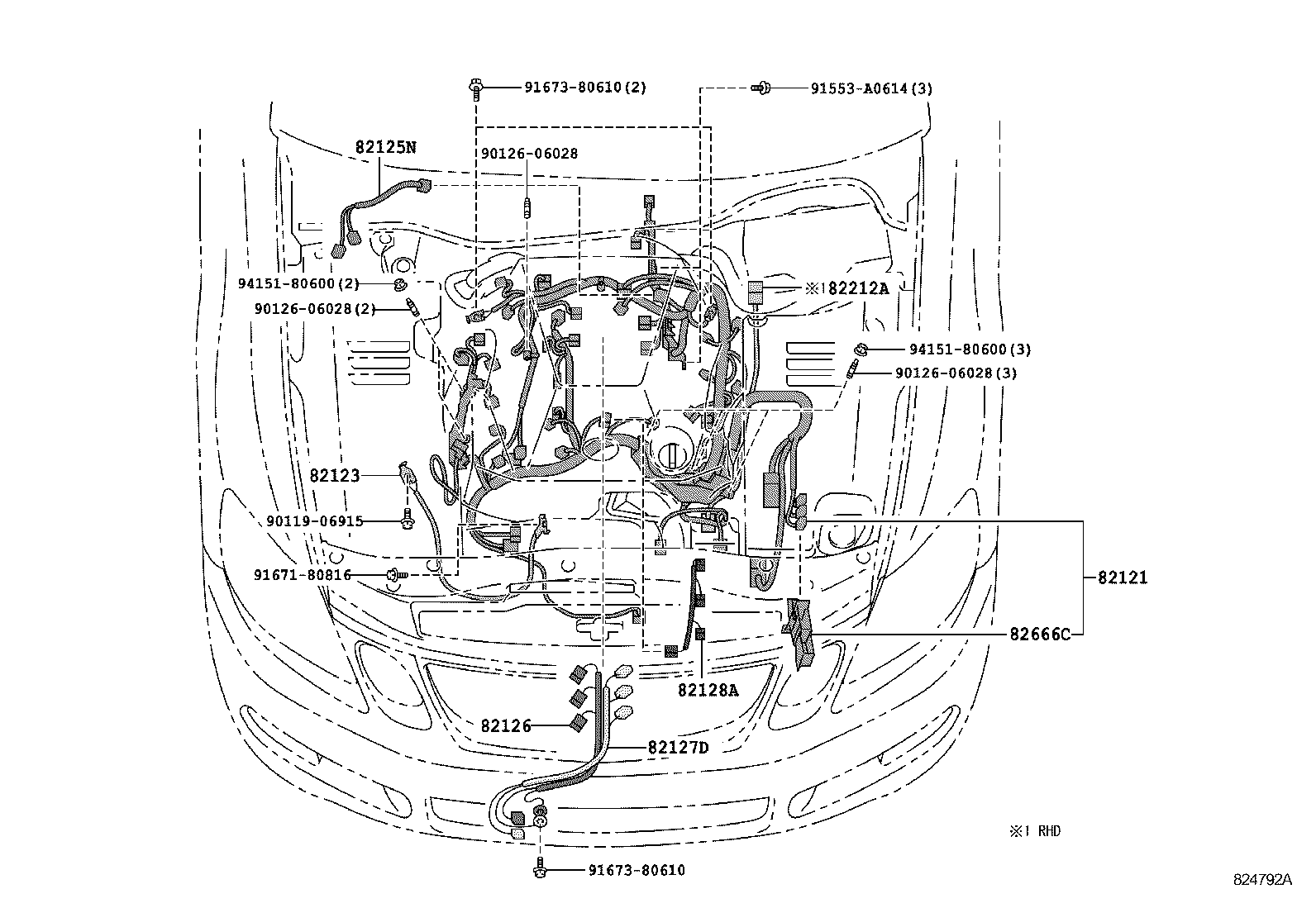

82121 Wire, Engine
82123 Wire, Engine, NO.3
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8

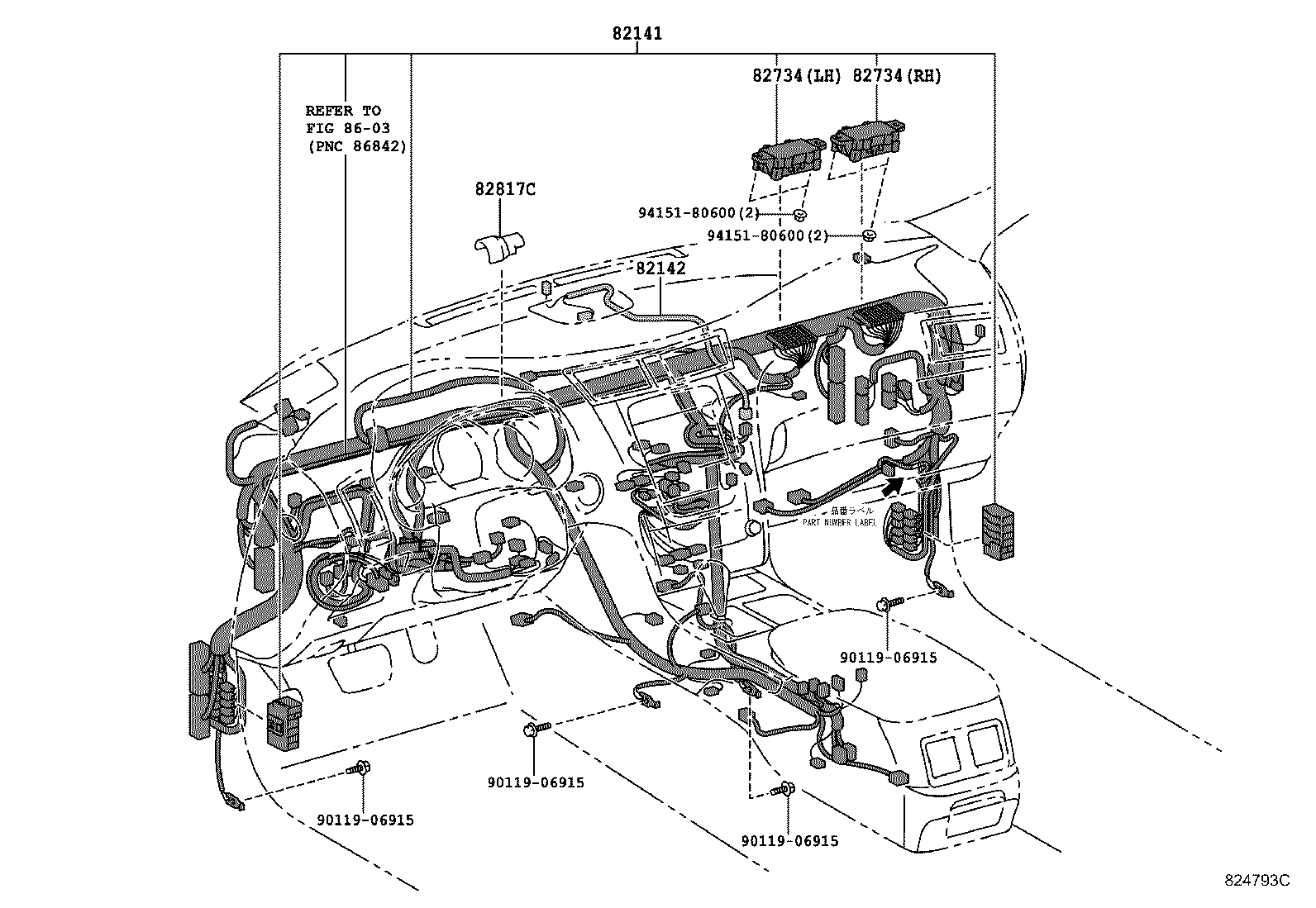

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2

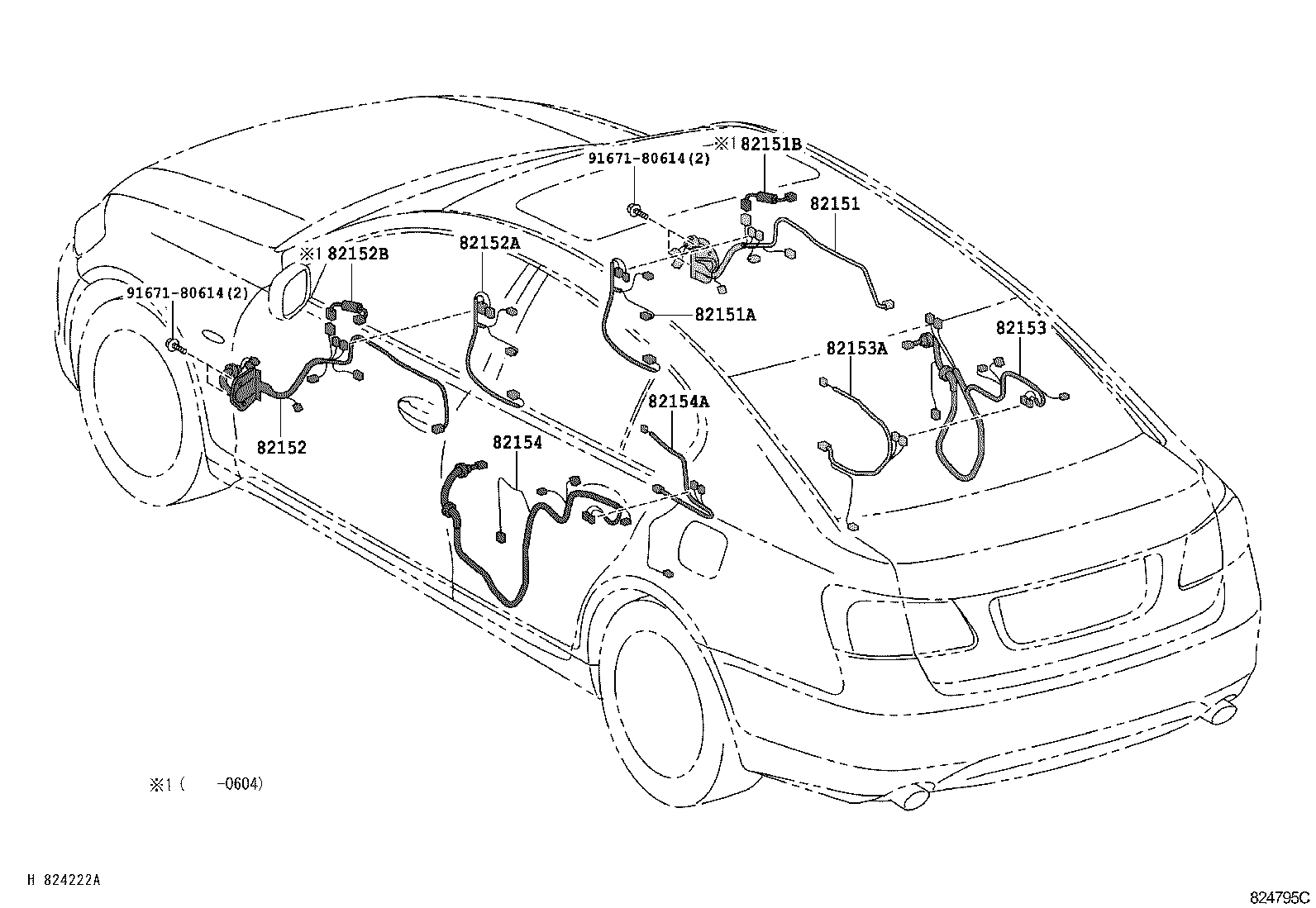

82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82151B Wire, Front Door, NO.3, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82152B Wire, Front Door, NO.3, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH

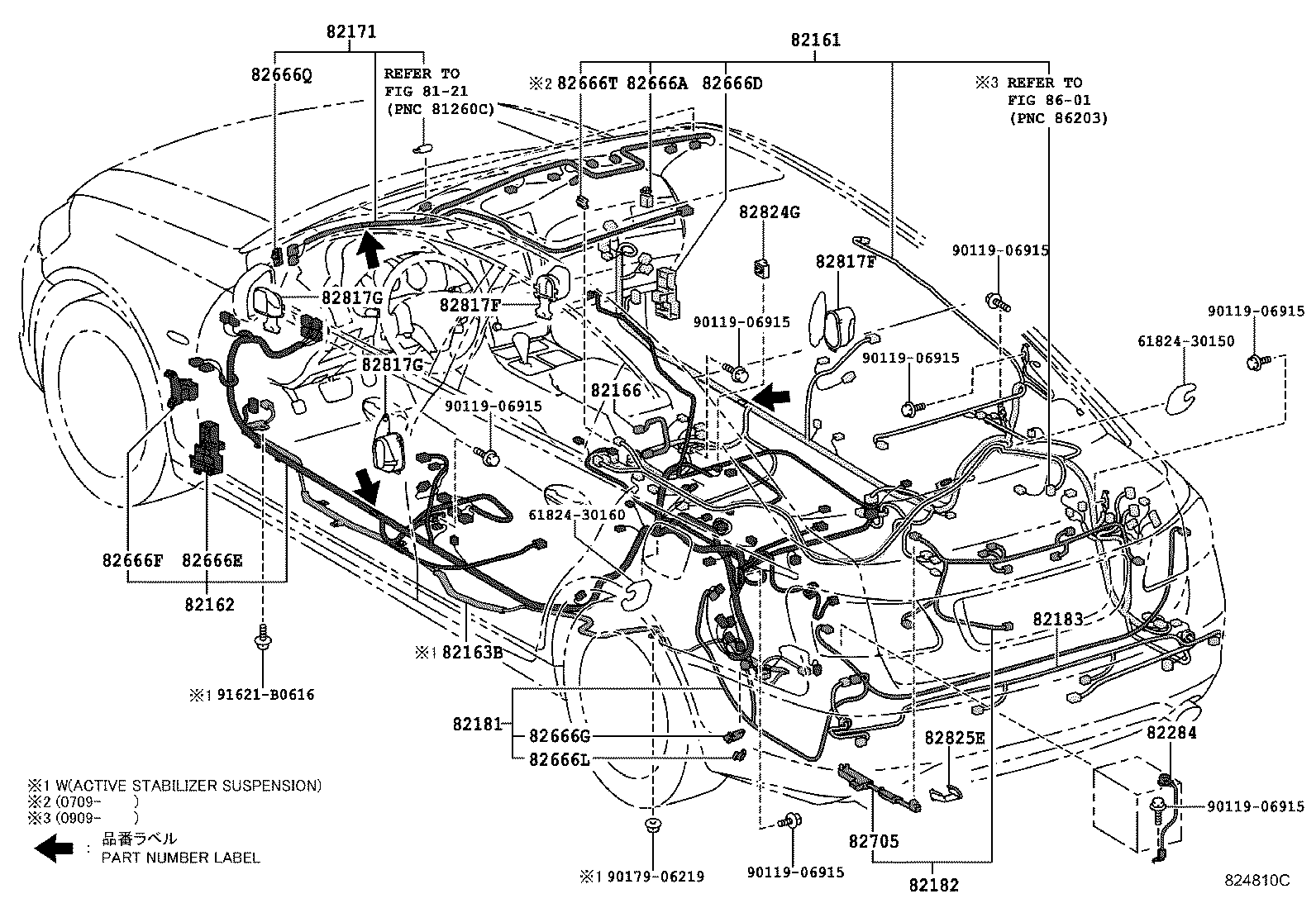

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5

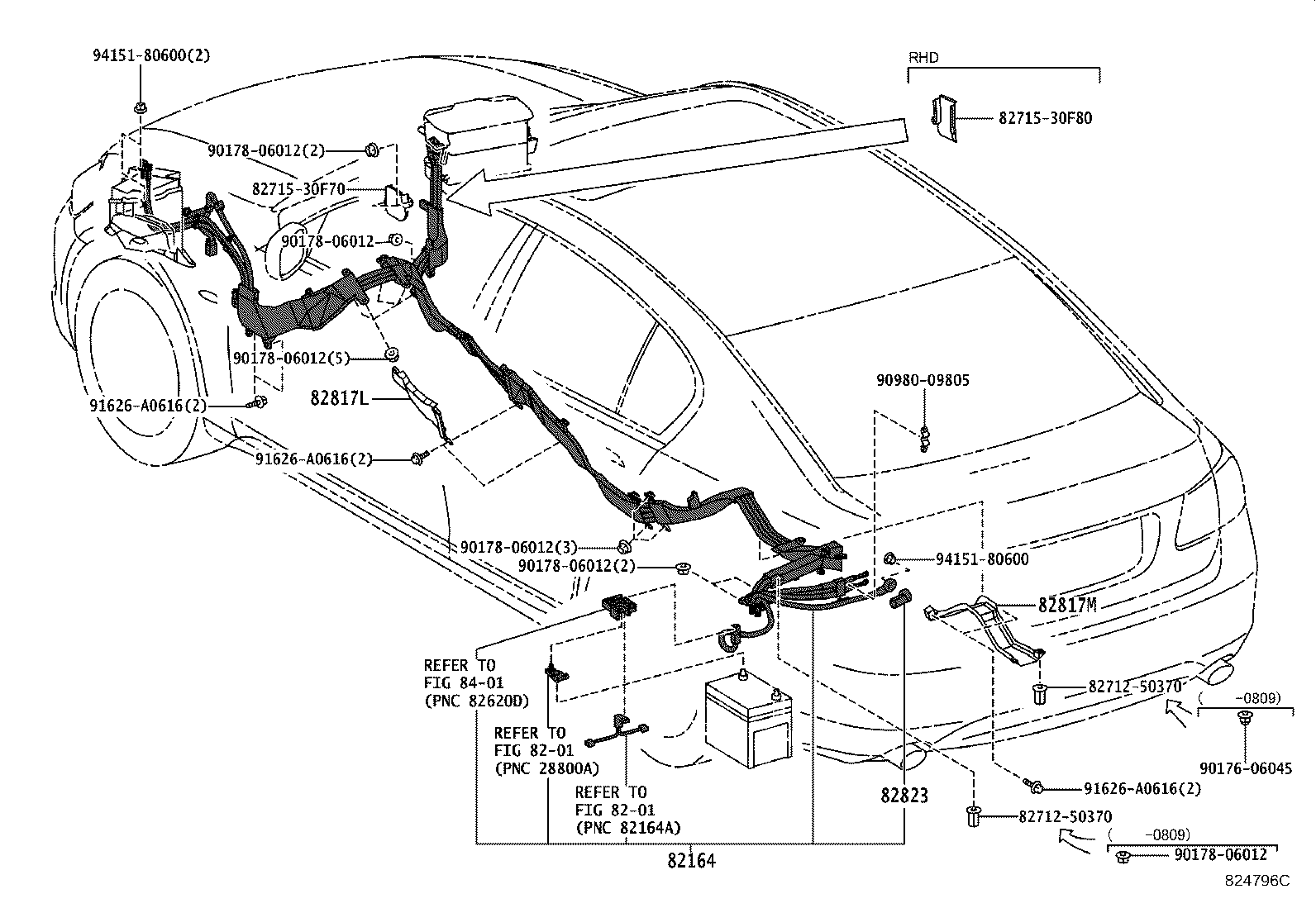

82164 Wire, Frame
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184A Wire, Luggage Room, NO.4

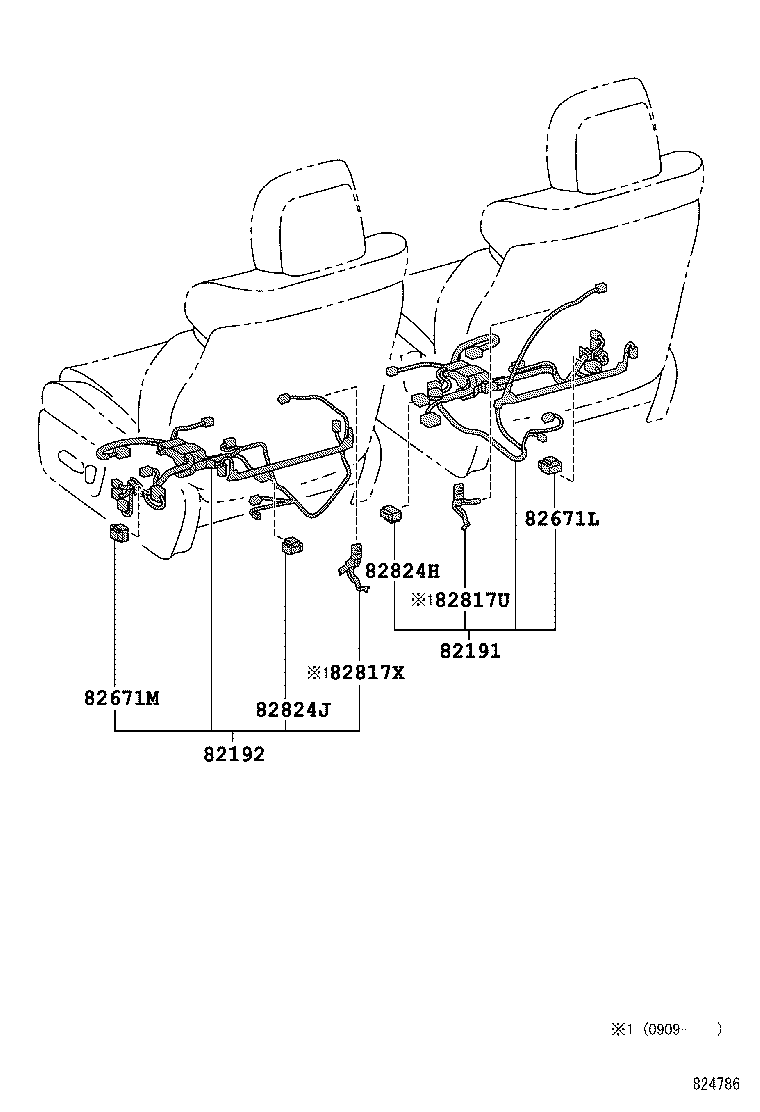

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82212A Harness, Air Conditioner
82284 Wire, Earth
82288 Wire, Earth NO.4
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666Q Holder, Connector NO.12
82666T Holder, Connector NO.14
82671 Block, Junction
82671J Block, Junction, NO.2
82671L Block, Junction, NO.4
82671M Block, Junction, NO.5
82705 Spool Sub-assy, Wiring Harness
82734 Block, Center Junction
82817C Protector, Wiring Harness, NO.4
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82821A Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821R Cover, Connector
82823 Cap, Terminal, NO.1

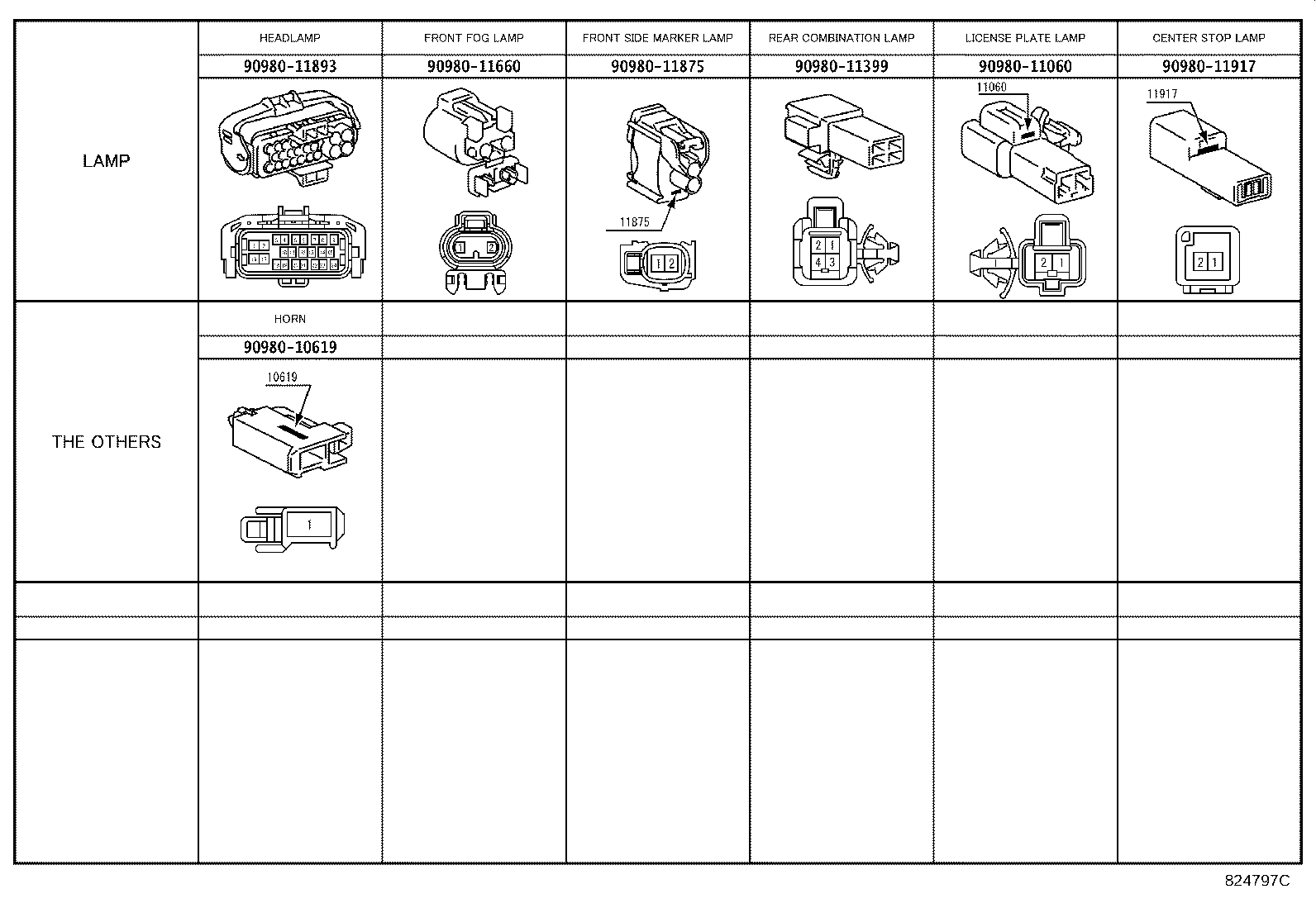

82824 Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82825E Connector, Wiring Harness
89656A Wire, Power Steering Earth
F2629A Filter, Stabilizer Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
