Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

4 part groups · 2 illustrations

Illustrations

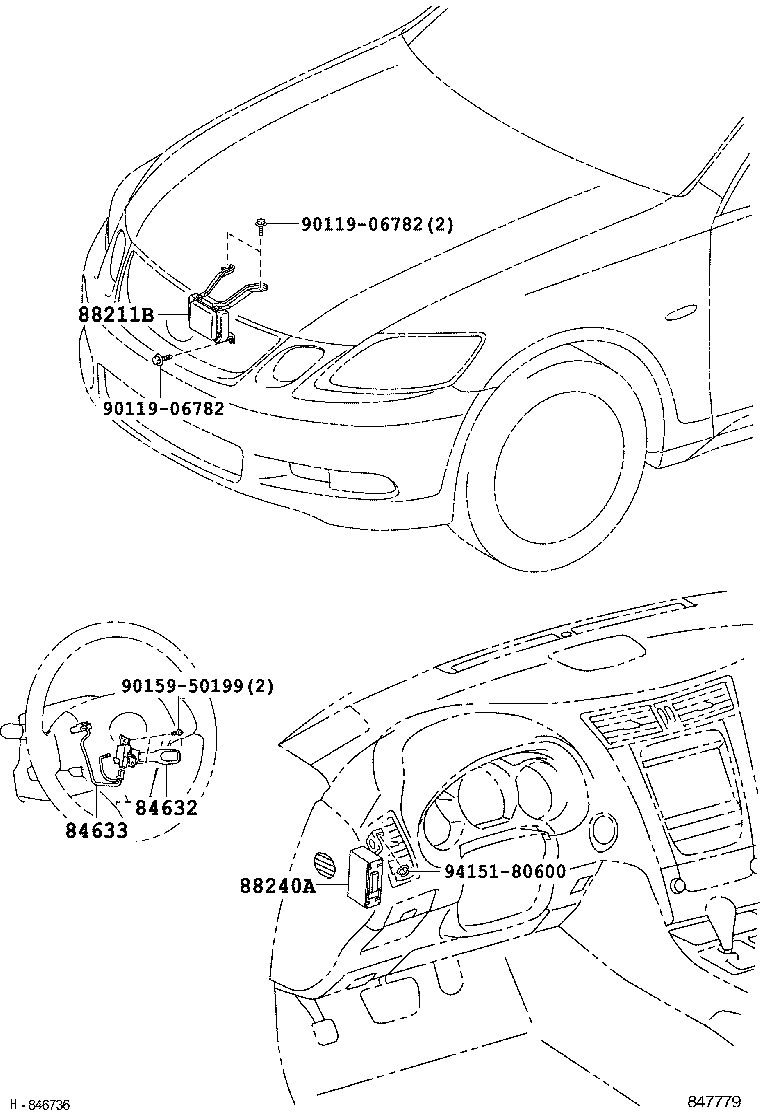

Figure 847778 847778 2006-02 → — Figure 847779 847779 2006-02 → —

Part groups

PNCDescription
84632 Switch, Cruise Control Main
84633 Wire, Cruise Control Switch
88211B Sensor Assy, Millimeter Wave Radar
88240A Computer Assy, Distance Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
