Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

19 part groups · 2 illustrations

Illustrations

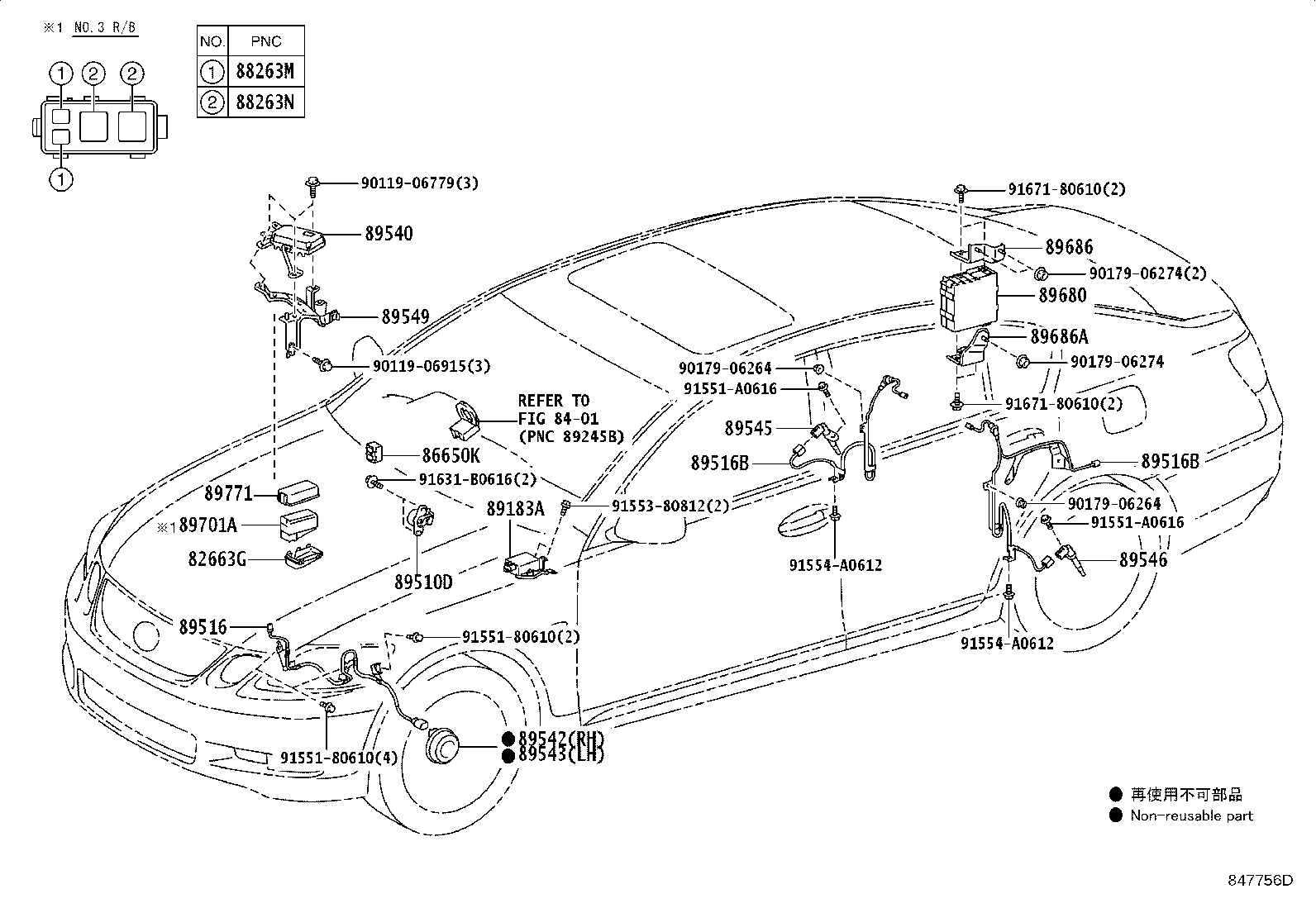

Figure 847757E 847757E 2006-02 → — Figure 847756D 847756D 2006-02 → —

Part groups

PNCDescription
82663G Cover, Relay Block, Lower
86650K Buzzer Assy, Skid Control
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
89183A Sensor, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549 Bracket, Skid Control Computer
89680 Supply Assy, Brake Control Power
89686 Bracket, Brake Control Power Supply, NO.1
89686A Bracket, Brake Control Power Supply, NO.1
89701A Block Sub-assy, Abs Relay
89771 Cover, Abs Relay Block, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
