Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

11 part groups · 2 illustrations

Illustrations

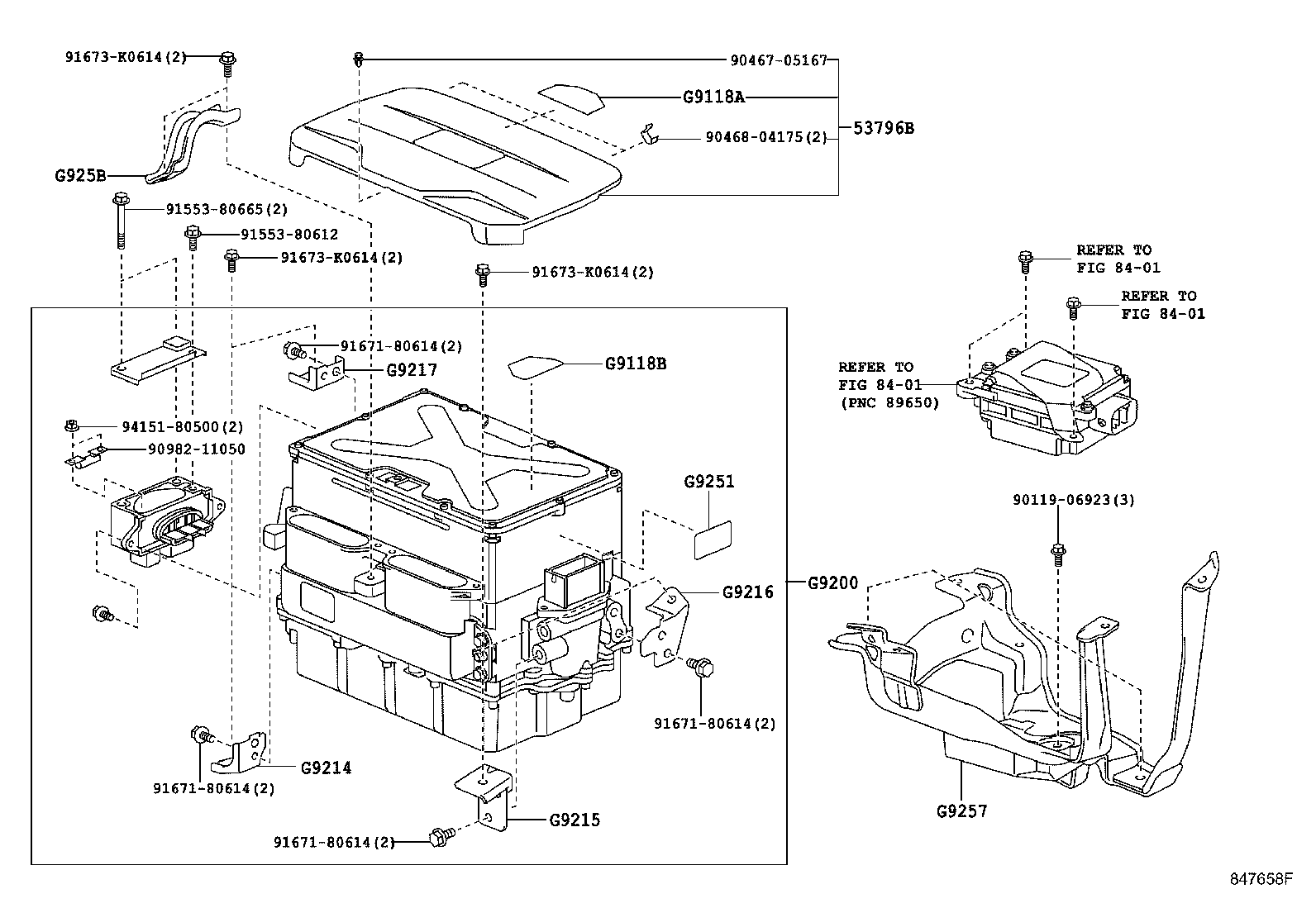

Figure 847659F 847659F 2006-02 → — Figure 847658F 847658F 2006-02 → —

Part groups

PNCDescription
53796B Cover, Engine Room Side, LH NO.2
G9118A Label, HV Motor Control Inverter Caution
G9118B Label, Power Control Unit Caution
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G9217 Bracket, Inverter, NO.4
G9251 Seat, Inverter Name
G9257 Bracket, Inverter, NO.5
G925B Bracket, Inverter, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
