Toyota Lexus GS450H

2006-02 → 2011-12 · chassis GWS191 · catalogue 334510 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 2 illustrations

Illustrations

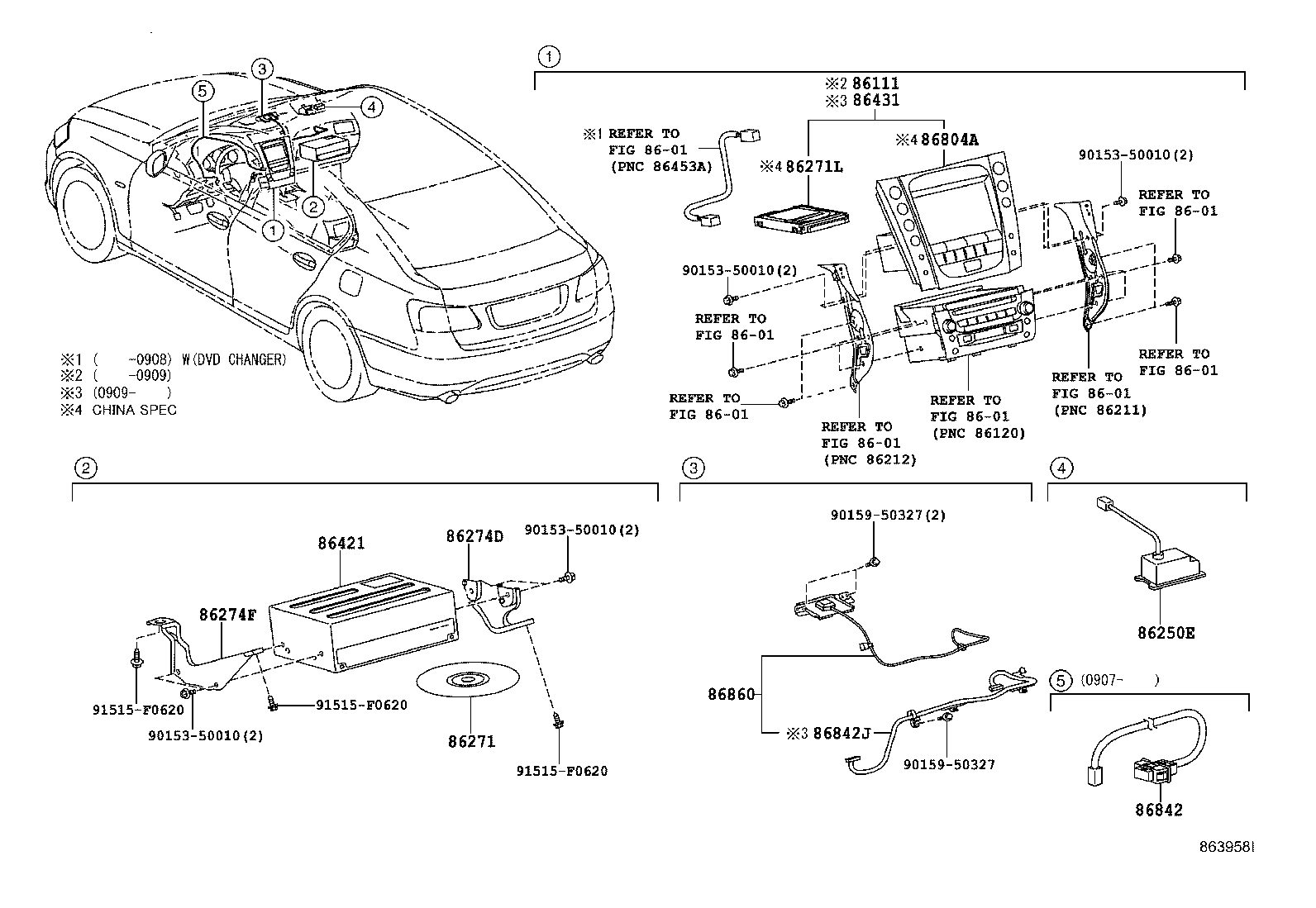

Figure 863959F 863959F 2006-02 → — Figure 863958I 863958I 2006-02 → —

Part groups

PNCDescription
86111 Multi-display
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86271L Hard Disc
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86421 Board, Navigation Module
86431 Display, Display & Navigation Module
86804A Sub-assy, Navigation Computer
86842 Wire, Navigation, NO.1
86842J Wire, Navigation, NO.2
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
