Toyota Lexus GS F

2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

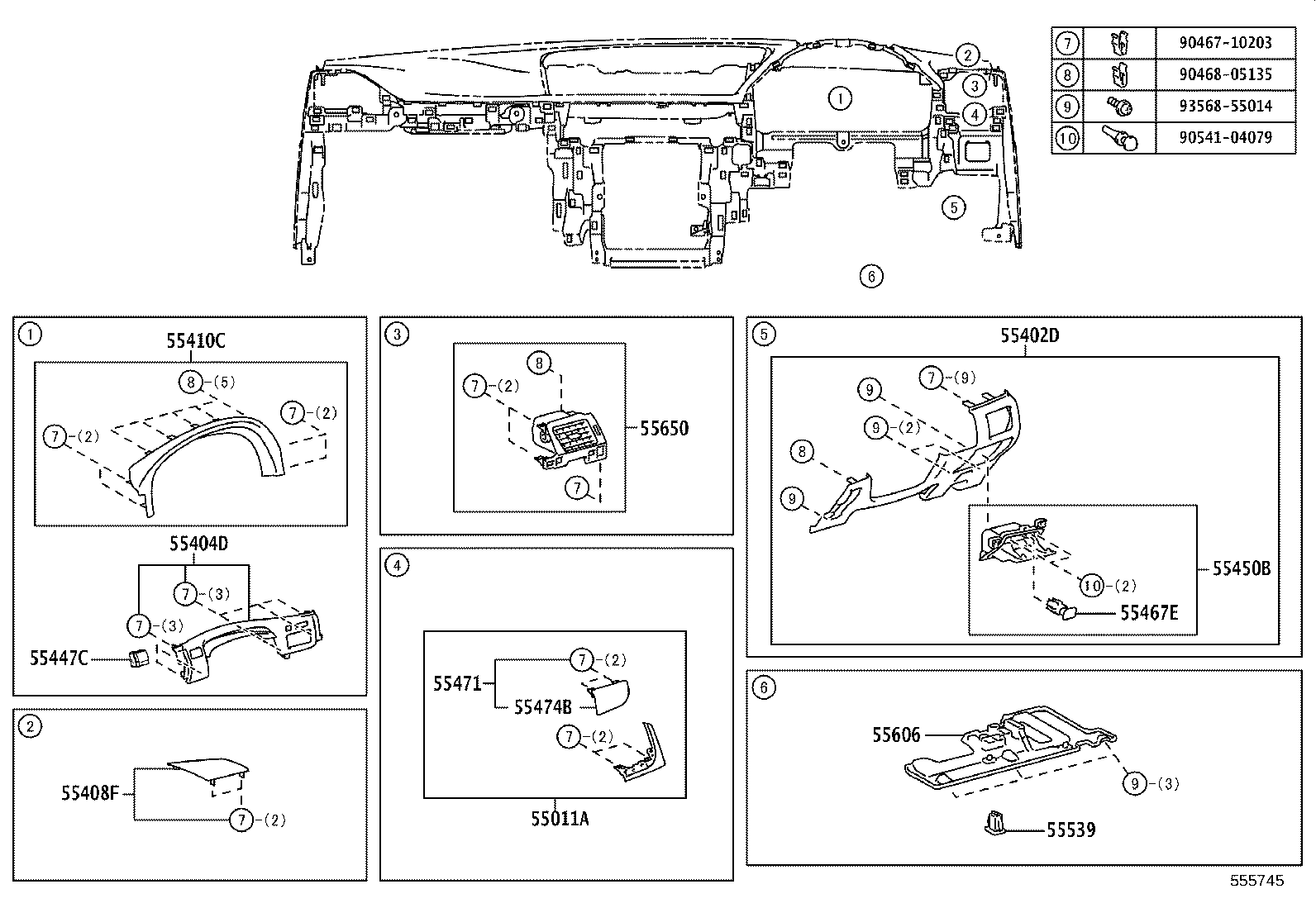

Exploded illustration 555745 9046710203 — not listed in this catalogue 9046805135 — not listed in this catalogue 9356855014 — not listed in this catalogue 9054104079 — not listed in this catalogue 55404D — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH (6 parts) 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (2 parts) 55447C — BASE, SWITCH HOLE, NO.2 (2 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 55408F — PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 (4 parts) 55011A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 (6 parts) 55471 — MOULDING, INSTRUMENT CLUSTER, NO.1 (6 parts) 55474B — GARNISH, INSTRUMENT CLUSTER FINISH PANEL (6 parts) 55467E — LOCK, COIN BOX (2 parts) 55450B — BOX ASSY, COIN (2 parts) 55402D — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 (2 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (2 parts) 55539 — COVER, SPARE SWITCH HOLE (1 parts)
555745 · 13 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
55011A — Garnish Sub-assy, Instrument Panel, NO.1
55011-30110-B0 note Garnish Sub-assy, Instrument Panel, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55011-30120-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55011-30130-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55011-30140-B0 note Garnish Sub-assy, Instrument Panel, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55011-30150-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55011-30160-C0 note Garnish Sub-assy, Instrument Panel, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55402D — Pad Sub-assy, Instrument Panel Safety, NO.1
55402-30190-C1 note Pad Sub-assy, Instrument Panel Safety, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55402-30210-C1 note Pad Sub-assy, Instrument Panel Safety, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55404D — Panel Sub-assy, Instrument Cluster Finish
55404-30A70 note Panel Sub-assy, Instrument Cluster Finish
2015-10 → 2018-04 ended
URL10 LHD —
55404-30A80 Panel Sub-assy, Instrument Cluster Finish
2017-09 → 2018-04 ended
URL10 LHD —
55404-30A90 Panel Sub-assy, Instrument Cluster Finish
2015-10 → 2017-09 ended
URL10 LHD —
55404-30B00 note Panel Sub-assy, Instrument Cluster Finish
2015-10 → 2018-04 ended
URL10 RHD —
55404-30B10 Panel Sub-assy, Instrument Cluster Finish
2017-09 → 2018-04 ended
URL10 RHD —
55404-30B20 Panel Sub-assy, Instrument Cluster Finish
2015-10 → 2017-09 ended
URL10 RHD —
55408F — Panel Sub-assy, Instrument Panel Speaker, NO.1
55408-30280-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55408-30290-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55408-30320-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55408-30330-C0 note Panel Sub-assy, Instrument Panel Speaker, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55410C — Panel Assy, Instrument Cluster Finish
55410-30A40-C3 note Panel Assy, Instrument Cluster Finish
2015-10 → 2018-04 ended
URL10 LHD —
55410-30A50-C4 note Panel Assy, Instrument Cluster Finish
2015-10 → 2018-04 ended
URL10 RHD —
55447C — Base, Switch Hole, NO.2
55447-30080 note Base, Switch Hole, NO.2
2015-10 → 2017-09 ended
URL10 LHD —
55447-30100 note Base, Switch Hole, NO.2
2015-10 → 2017-09 ended
URL10 RHD —
55450B — Box Assy, Coin
55450-30060-C0 note Box Assy, Coin
2015-10 → 2018-04 ended
URL10 LHD —
55450-30080-C0 note Box Assy, Coin
2015-10 → 2018-04 ended
URL10 RHD —
55467E — Lock, Coin Box
55467-30080 Lock, Coin Box
2015-10 → 2018-04 ended
URL10 LHD —
55467-30090 Lock, Coin Box
2015-10 → 2018-04 ended
URL10 RHD —
55471 — Moulding, Instrument Cluster, NO.1
55471-30180-B0 note Moulding, Instrument Cluster, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55471-30190-C0 note Moulding, Instrument Cluster, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55471-30200-C0 note Moulding, Instrument Cluster, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55471-30210-B0 note Moulding, Instrument Cluster, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55471-30220-C0 note Moulding, Instrument Cluster, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55471-30230-C0 note Moulding, Instrument Cluster, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55474B — Garnish, Instrument Cluster Finish Panel
55474-30390-B0 note Garnish, Instrument Cluster Finish Panel
2015-10 → 2018-04 ended
URL10 LHD —
55474-30410-B0 note Garnish, Instrument Cluster Finish Panel
2015-10 → 2018-04 ended
URL10 RHD —
55474-30420-C0 note Garnish, Instrument Cluster Finish Panel
2015-10 → 2018-04 ended
URL10 LHD —
55474-30430-C0 note Garnish, Instrument Cluster Finish Panel
2015-10 → 2018-04 ended
URL10 LHD —
55474-30440-C0 note Garnish, Instrument Cluster Finish Panel
2015-10 → 2018-04 ended
URL10 RHD —
55474-30450-C0 note Garnish, Instrument Cluster Finish Panel
2015-10 → 2018-04 ended
URL10 RHD —
55539 — Cover, Spare Switch Hole
55539-48020 Cover, Spare Switch Hole
2015-10 → 2018-04 ended
URL10 —
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-30250 Cover Sub-assy, Instrument Panel Under, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55606-30260 Cover Sub-assy, Instrument Panel Under, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
55650 — Register Assy, Instrument Panel, NO.1
55650-30470-C0 note Register Assy, Instrument Panel, NO.1
2015-10 → 2018-04 ended
URL10 LHD —
55650-30480-C0 note Register Assy, Instrument Panel, NO.1
2015-10 → 2018-04 ended
URL10 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
