Toyota Lexus GS F
2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe
Supported model
Data version 2018-10

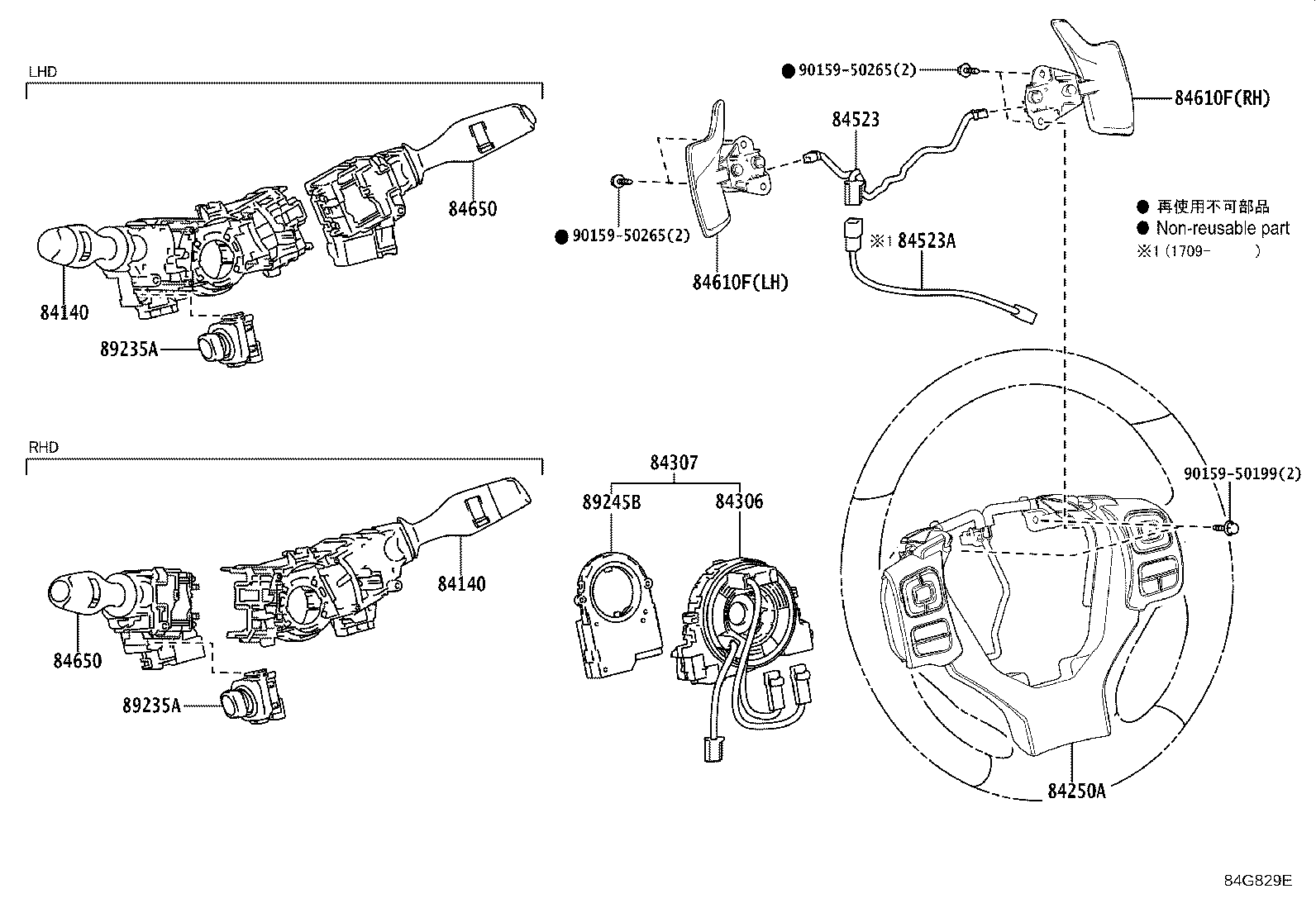

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-24160 |
Switch Assy, Headlamp Dimmer
2015-10 → 2018-04
ended
|
URL10 | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-24010 |
Switch Assy, Steering Pad
2015-10 → 2017-09
ended
|
URL10 | — | |
| 84250-24050 note |
Switch Assy, Steering Pad
2015-10 → 2017-09
ended
|
URL10 | — | |
| 84250-53110-C0 note |
Switch Assy, Steering Pad
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84250-53270-C0 note |
Switch Assy, Steering Pad
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84308-53011 |
Cable Sub-assy, Spiral
2015-10 → 2018-04
ended
|
URL10 | — | |
| 84308-53020 note |
Cable Sub-assy, Spiral
2015-10 → 2017-09
ended
|
URL10 | — | |
| 84308-53040 note |
Cable Sub-assy, Spiral
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84308-53040 note |
Cable Sub-assy, Spiral
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84308-60010 note |
Cable Sub-assy, Spiral
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84307 — Cable Sub-assy, Spiral W/Sensor | ||||
| 84307-30130 |
Cable Sub-assy, Spiral W/Sensor
2015-10 → 2018-04
ended
|
URL10 | — | |
| 84307-30150 note |
Cable Sub-assy, Spiral W/Sensor
2015-10 → 2017-09
ended
|
URL10 | — | |
| 84307-30300 note |
Cable Sub-assy, Spiral W/Sensor
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84307-53030 note |
Cable Sub-assy, Spiral W/Sensor
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84307-53030 note |
Cable Sub-assy, Spiral W/Sensor
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84523 — Wire, Switch NO.1 | ||||
| 84523-53010 note |
Wire, Switch NO.1
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84523-53010 note |
Wire, Switch NO.1
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84523-76010 |
Wire, Switch NO.1
2015-10 → 2018-04
ended
|
URL10 | — | |
| 84523A — Wire, Switch NO.2 | ||||
| 84523-53020 |
Wire, Switch NO.2
2017-09 → 2018-04
ended
|
URL10 | — | |
| 84610F — Switch Assy, Transmission Shift | ||||
| 84610-24010 note |
Switch Assy, Transmission Shift
2015-10 → 2018-04
ended
|
URL10 | — | |
| 84610-24020 note |
Switch Assy, Transmission Shift
2015-10 → 2018-04
ended
|
URL10 | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-30641 |
Switch Assy, Windshield Wiper
2015-10 → 2018-04
ended
|
URL10 | — | |
| 84652-30650 note |
Switch Assy, Windshield Wiper
2015-10 → 2018-04
ended
|
URL10 | — | |
| 89235A — Switch, Tilt & Telescopic | ||||
| 89235-33010 |
Switch, Tilt & Telescopic
2015-10 → 2018-04
ended
|
URL10 | — | |
| 89245B — Sensor, Steering | ||||
| 8924B-53010 |
Sensor, Steering
2015-10 → 2018-04
ended
|
URL10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
