Toyota Lexus GS F
2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe
Supported model
Data version 2018-10

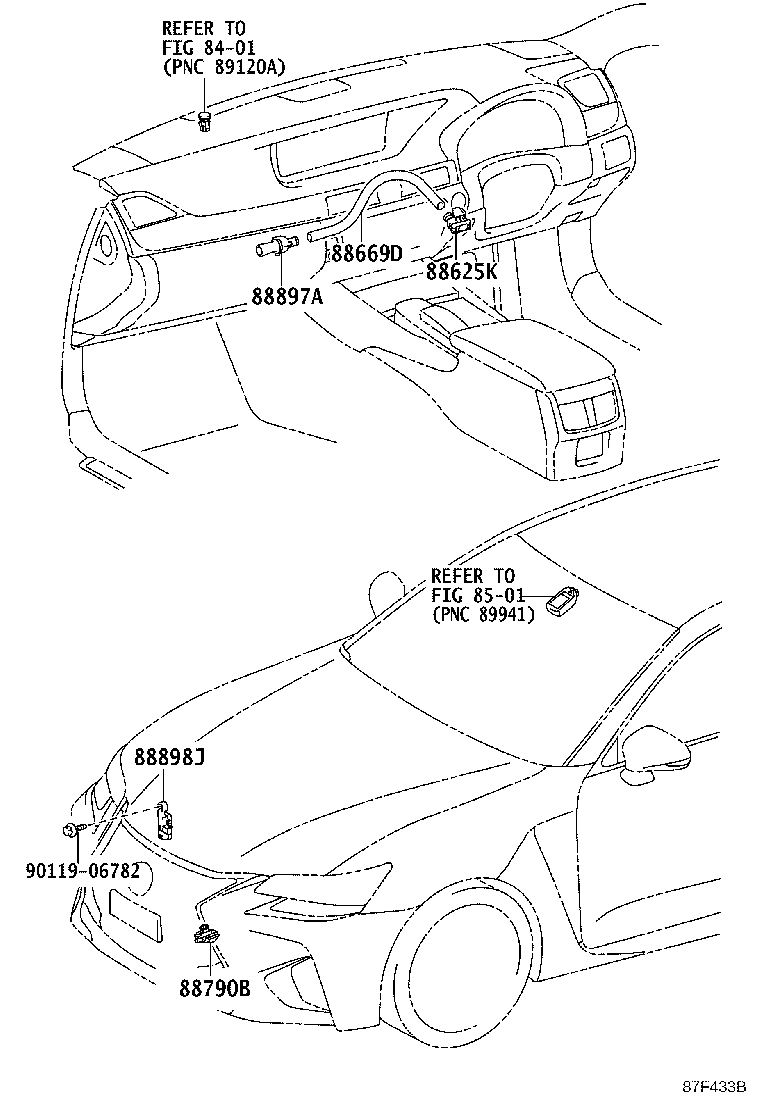

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88625K — Thermistor, Cooler | ||||
| 88625-47021 |
Thermistor, Cooler
2015-10 → 2018-04
ended
|
URL10 | — | |
| 88669D — Hose, Air | ||||
| 88669-30080 |
Hose, Air
2015-10 → 2018-04
ended
|
URL10 | — | |
| 88790B — Thermistor Assy | ||||
| 88790-22131 |
Thermistor Assy
2015-10 → 2018-04
ended
|
URL10 | — | |
| 88897A — Pipe, Aspirator | ||||
| 88897-32090 |
Pipe, Aspirator
2015-10 → 2018-04
ended
|
URL10 | — | |
| 88898J — Sensor, Smog Ventilation | ||||
| 88898-50031 |
Sensor, Smog Ventilation
2015-10 → 2018-04
ended
|
URL10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
