Toyota Lexus GS F
2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe
Supported model
Data version 2018-10
Valve Body & Oil Strainer (ATM)
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35210A | Valve, Solenoid(SL1) |
| 35210B | Valve, Solenoid(SL3) |
| 35210C | Valve, Solenoid(SL2) |
| 35210D | Valve, Solenoid(SL4) |
| 35210E | Valve, Solenoid(SL5) |
| 35240J | Valve, Solenoid(SR) |
| 35251 | Body, Check Ball |
| 35251A | Spring, Compression (FOR CHECK BALL BODY) |
| 35270D | Valve, Solenoid(SL) |
| 35280A | Valve, Solenoid(SLU) |
| 35285 | Plate, Solenoid Lock |
| 35290C | Valve, Solenoid(SLT) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35330A | Ring, O (FOR OIL STRAINER) |
| 35410 | Body Assy, Transmission Valve |
| 35481B | Clamp, Valve Body Wire Harness |
| 35482B | Clamp, Temperature Sensor |

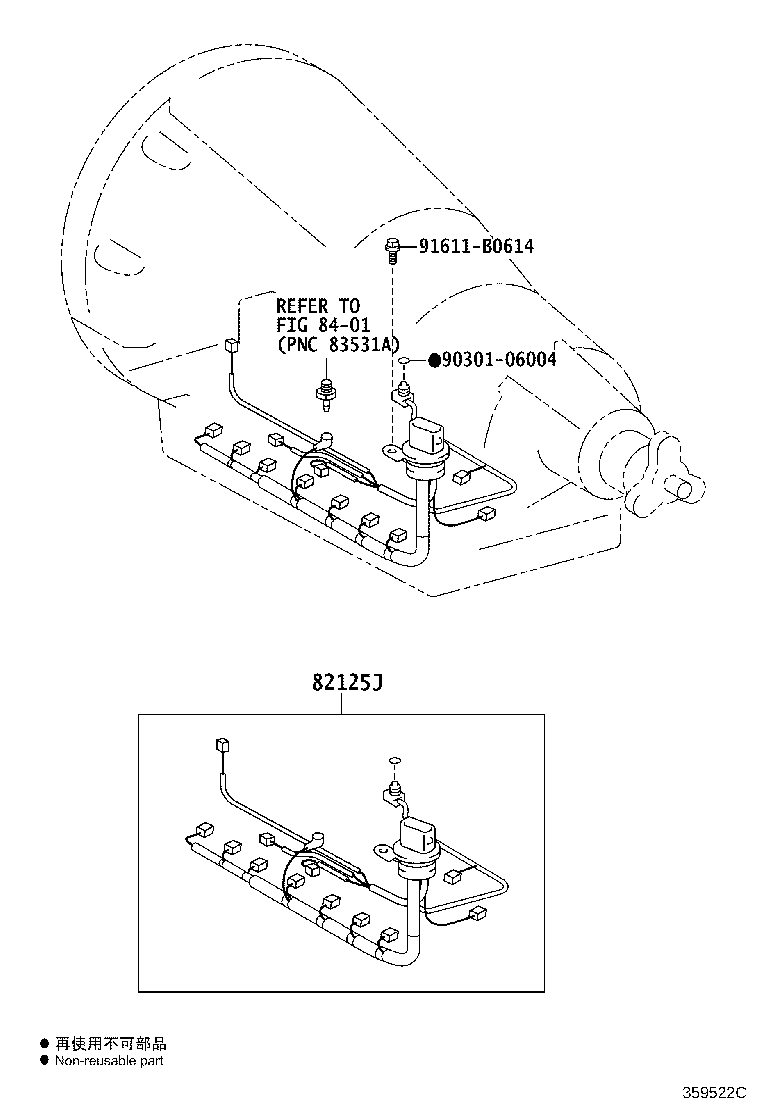

| 82125J | Wire, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
