Toyota Lexus GS F

2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 2 illustrations

Illustrations

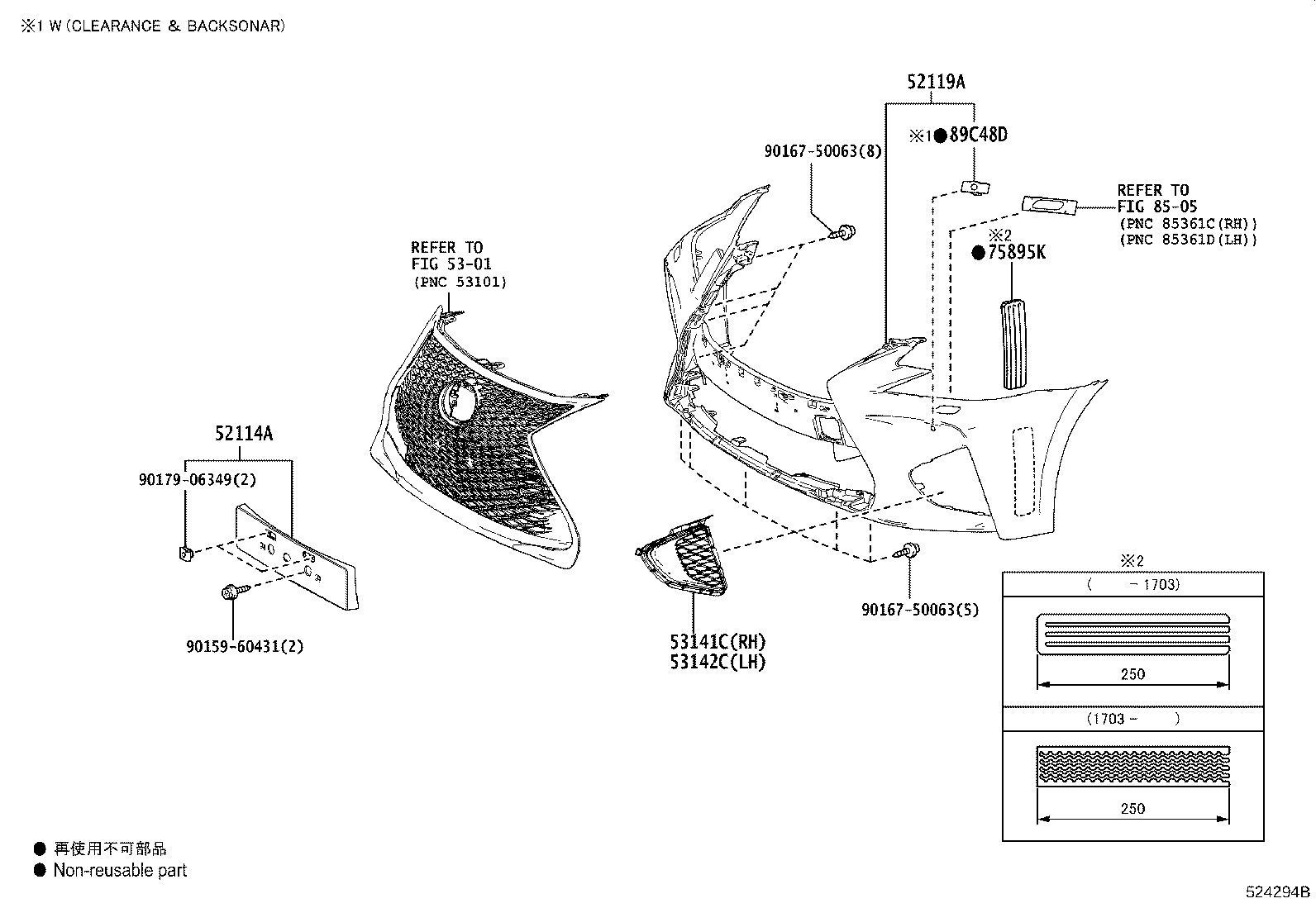

Figure 523890C 523890C 2015-10 → — Figure 524294B 524294B 2015-10 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52131A Reinforcement, Front Bumper
52135J Reinforcement, Front Energy Absorber Mounting, RH
52136H Reinforcement, Front Energy Absorber Mounting, LH
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53141C Garnish, Radiator Grille
53142C Garnish, Radiator Grille, NO.2
53879H Retainer, Front Fender Liner
75895K Tape, Moulding, NO.1
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
