Toyota Lexus GS F

2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 2 illustrations

Illustrations

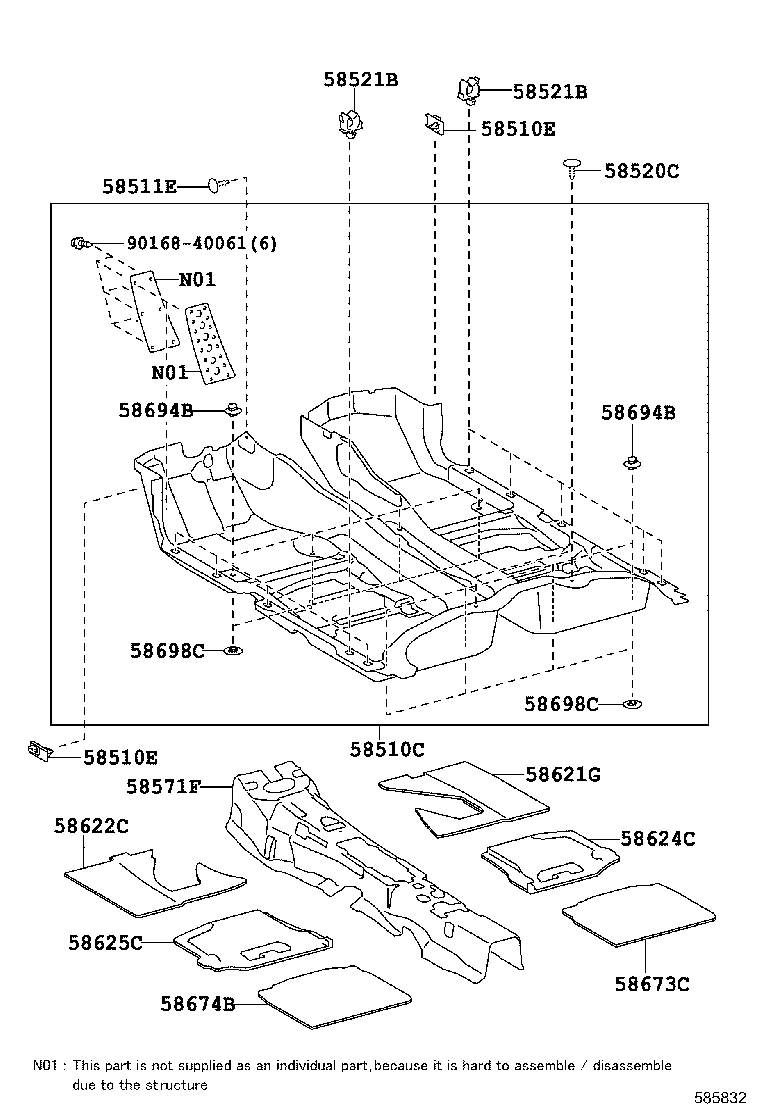

Figure 585831 585831 2015-10 → — Figure 585832 585832 2015-10 → —

Part groups

PNCDescription
58510C Carpet Assy, Front Floor, Front
58510E Retainer, Floor Carpet
58511E Clip(FOR FRONT FLOOR MAT)
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58571F Pad, Front Floor, Front
58621G Pad, Front Floor Silencer, RH
58622C Pad, Front Floor Silencer, LH
58624C Pad, Center Floor Silencer, RH
58625C Pad, Center Floor Silencer, LH
58673C Pad, Rear Floor Silencer, NO.1
58674B Pad, Rear Floor Silencer, NO.2
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
