Toyota Lexus GS F
2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe
Supported model
Data version 2018-10

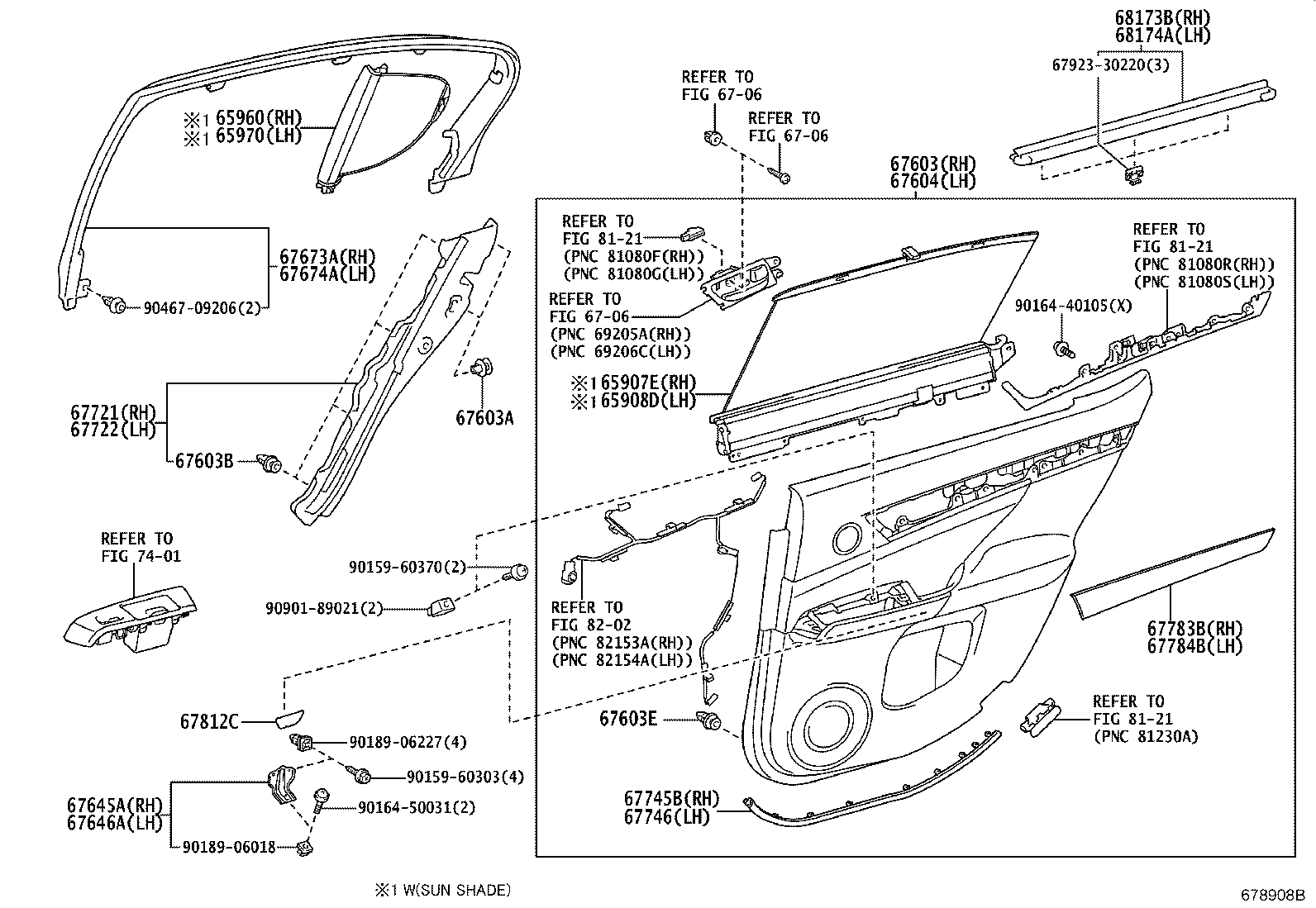

Rear Door Panel & Glass
60 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65907E | Curtain Sub-assy, Rear RH |
| 65908D | Curtain Sub-assy, Rear LH |
| 65960 | Curtain Assy, Side, Rear RH |
| 65970 | Curtain Assy, Side, Rear LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67645A | Bracket, Rear Door Armrest Set, RH |
| 67646A | Bracket, Rear Door Armrest Set, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67721 | Cover, Rear Door Trim, RH |
| 67722 | Cover, Rear Door Trim, LH |
| 67745B | Seal, Rear Door Trim, RH |
| 67746 | Seal, Rear Door Trim, LH |
| 67783B | Ornament Sub-assy, Rear Door Trim, RH |
| 67784B | Ornament Sub-assy, Rear Door Trim, LH |
| 67812 | Pad, Rear Door Silencer |
| 67812C | Cover, Rear Door Hole |
| 67837C | Seal, Rear Door Dust Proof |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67847B | Seal, Rear Door Vent, RH NO.1 |
| 67847F | Seal, Rear Door Vent, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887B | Clip(FOR REAR DOOR WEATHERSTRIP) |
| 67887H | Weatherstrip, Rear Door, NO.2 RH |
| 67888F | Weatherstrip, Rear Door, NO.2 LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 67923B | Cushion, Rear Door Stiffener, NO.1 |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68196B | Seal, Rear Door Belt, Front RH |
| 68197A | Seal, Rear Door Belt, Front LH |
| 68198 | Seal, Rear Door Belt, Rear RH |
| 68199 | Seal, Rear Door Belt, Rear LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
