Toyota Lexus GS F

2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

74 part groups · 9 illustrations

Illustrations

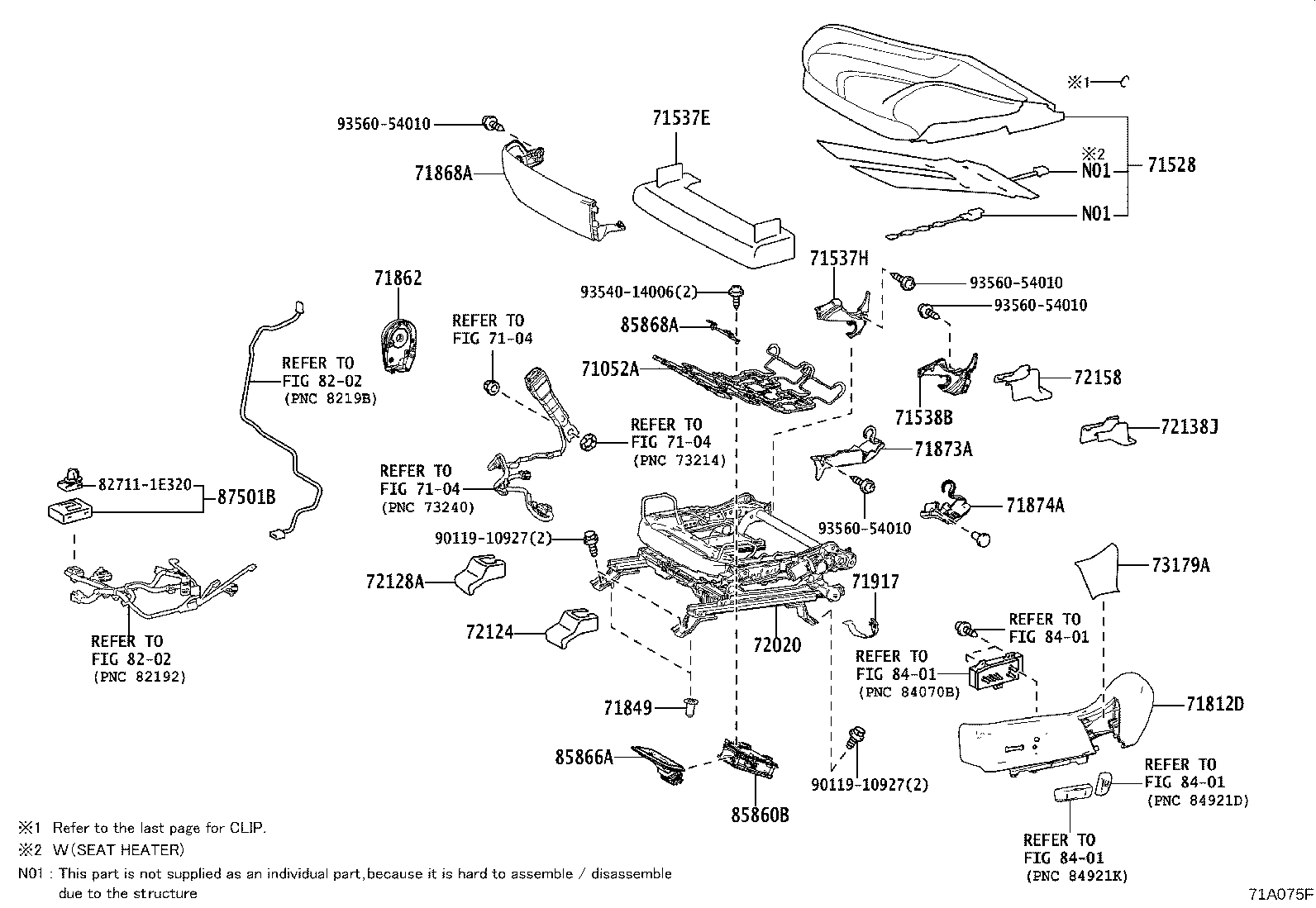

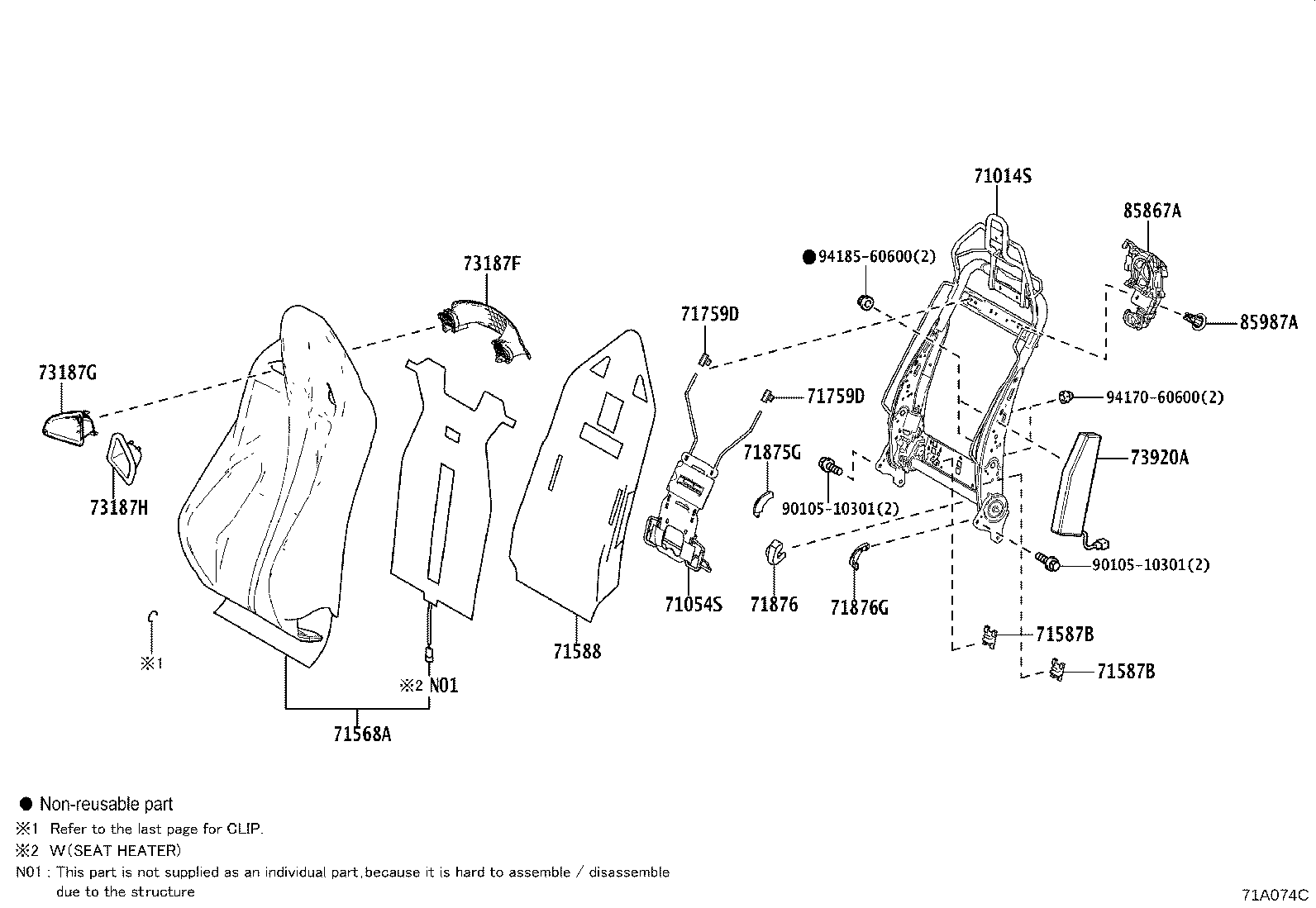

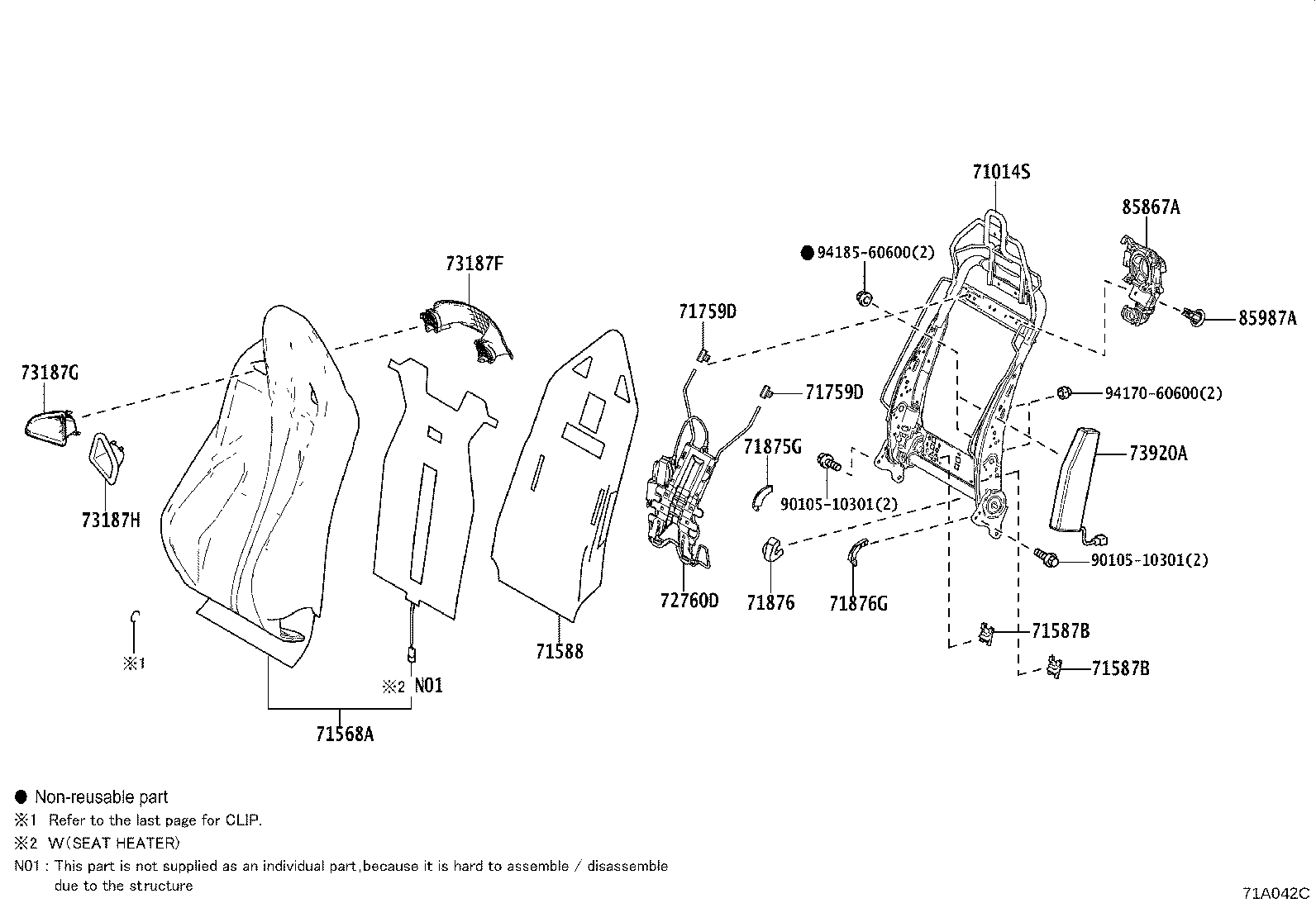

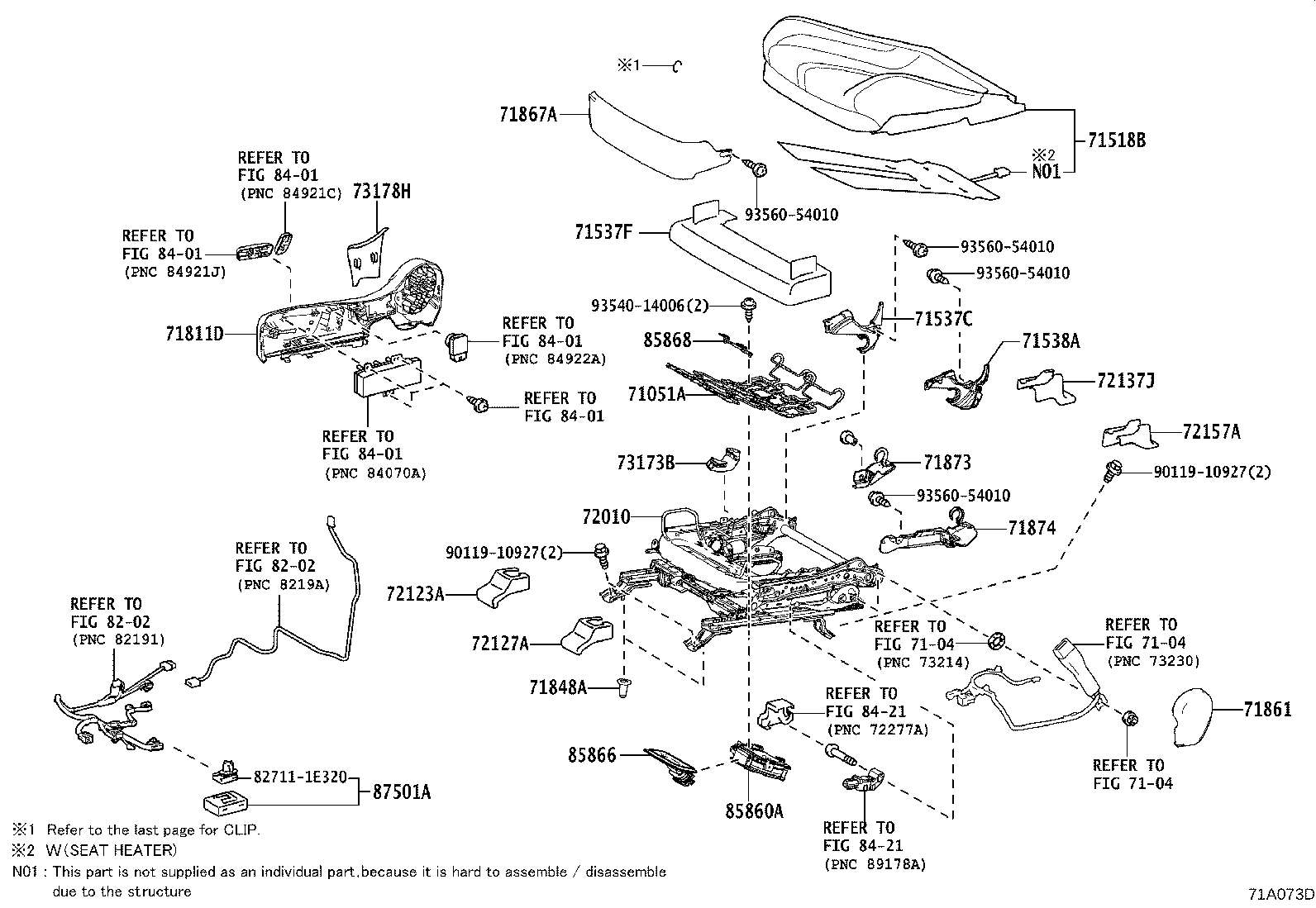

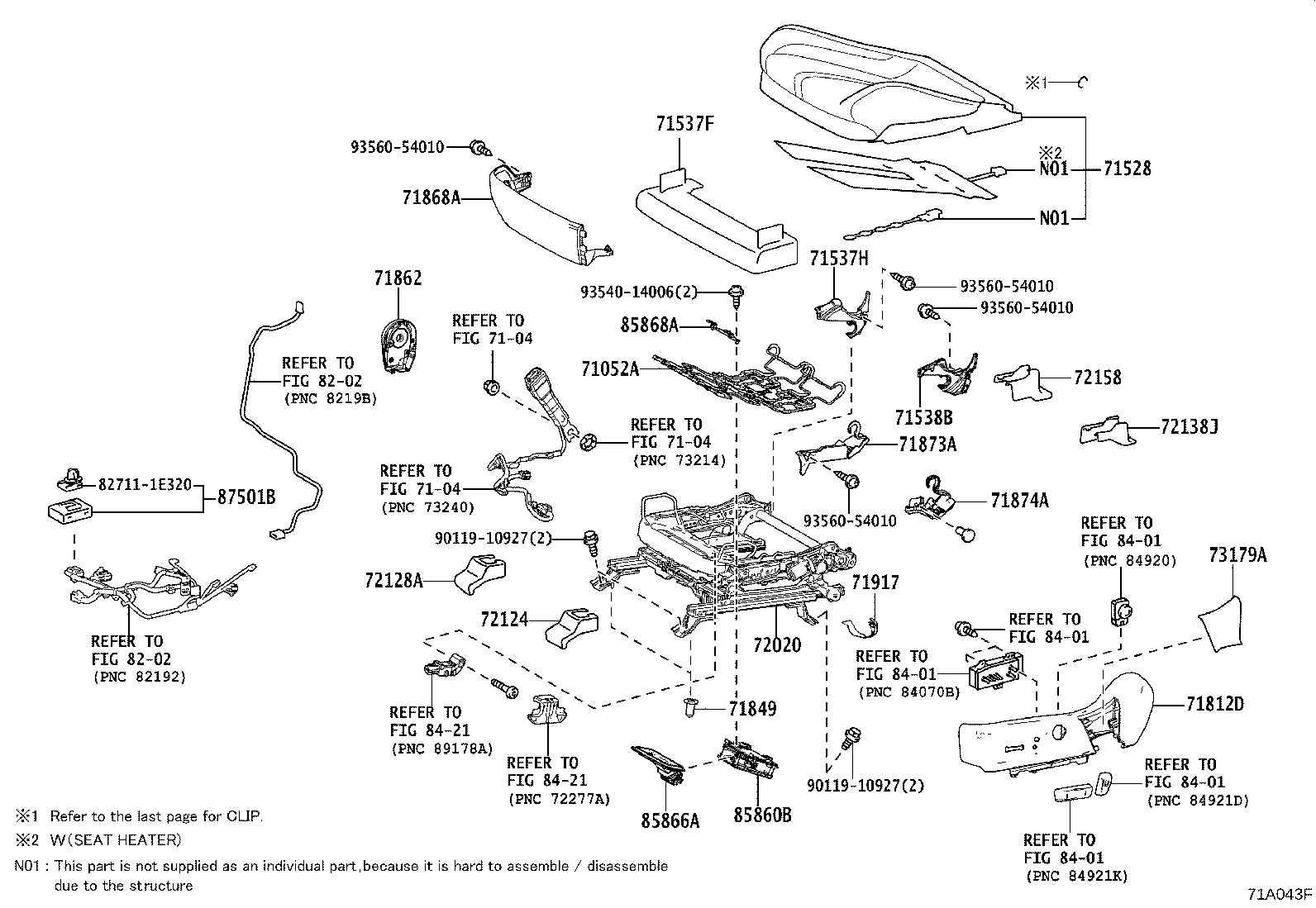

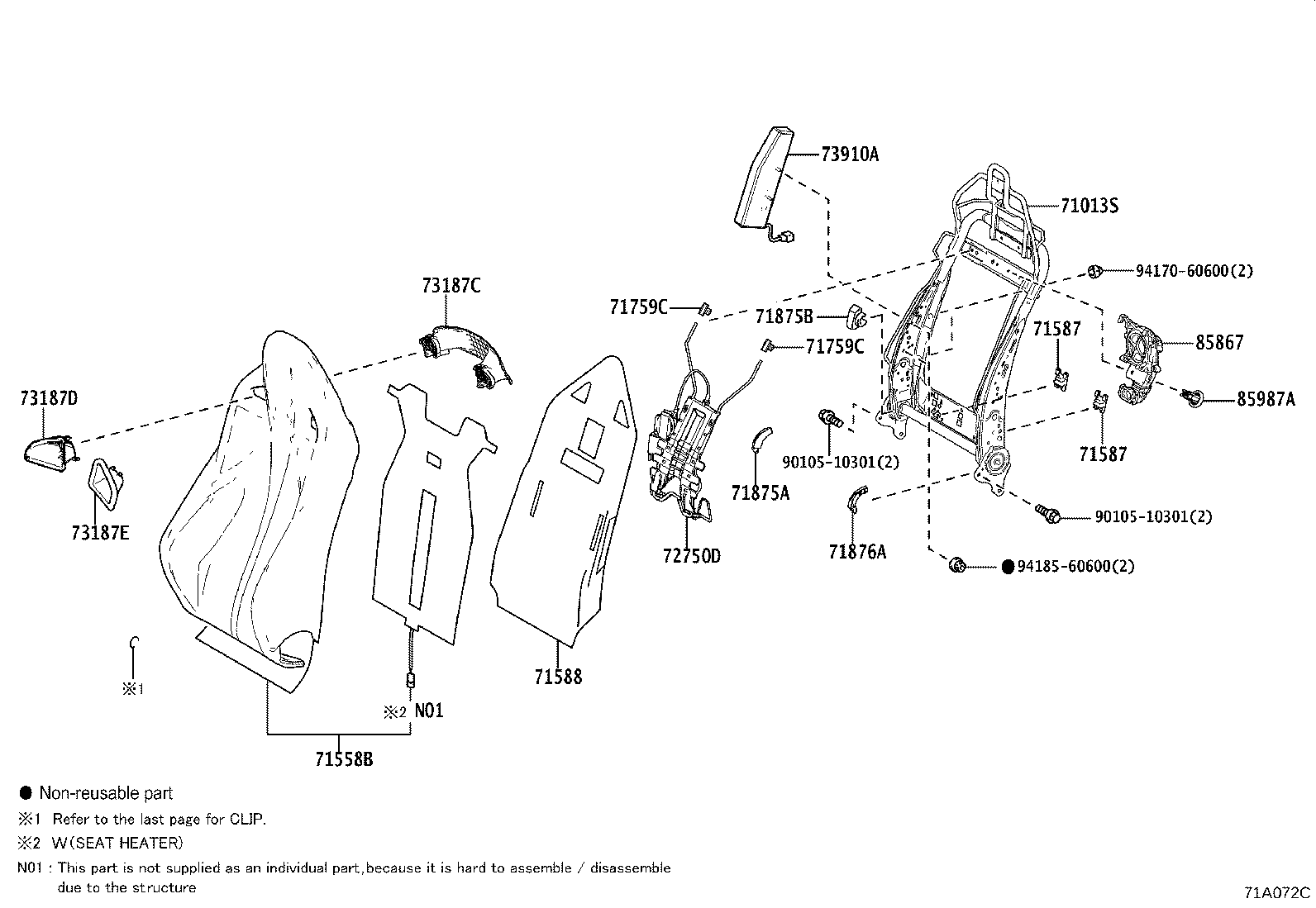

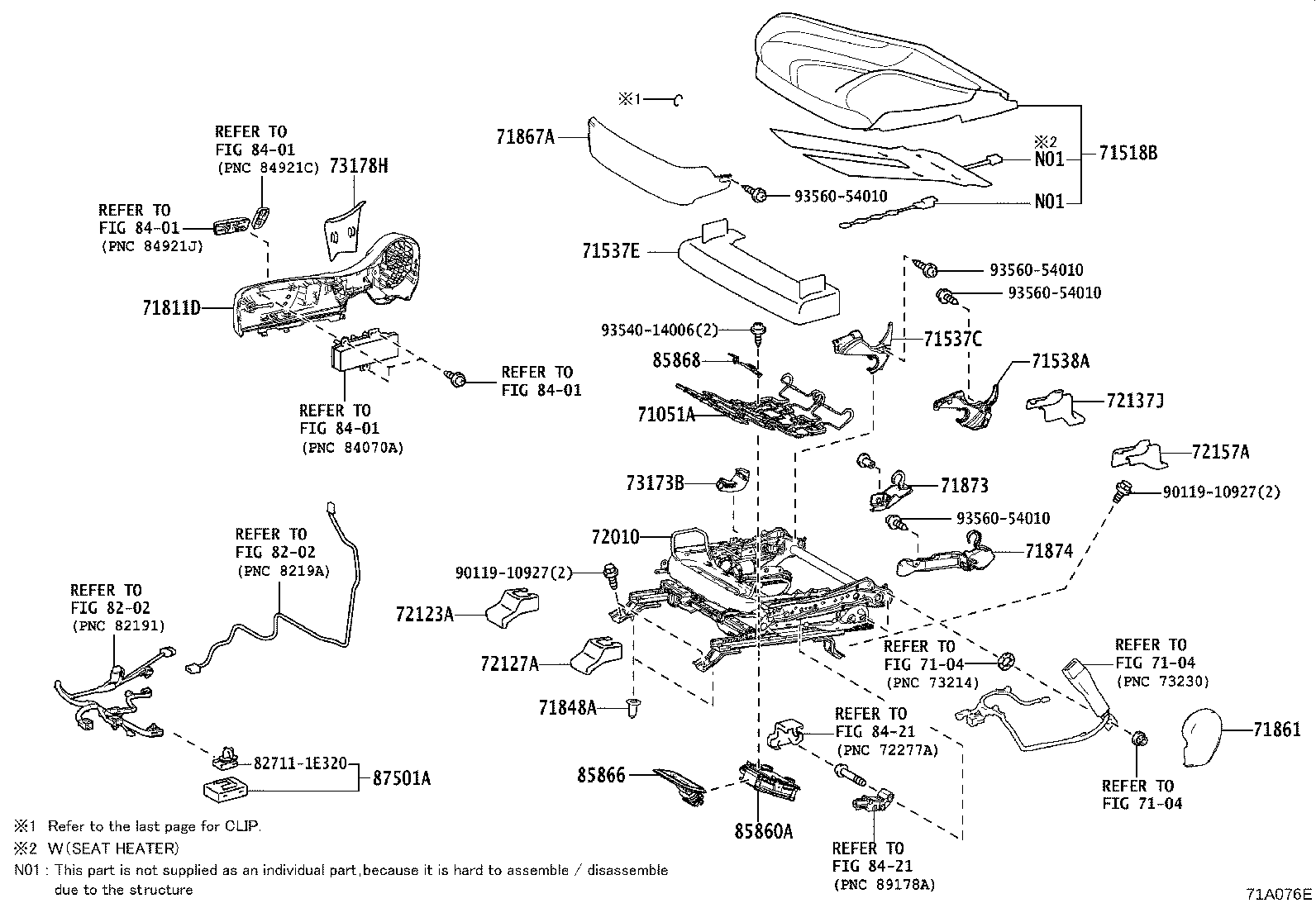

Figure 71A044C 71A044C 2015-10 → — Figure 71A076E 71A076E 2015-10 → — Figure 71A042C 71A042C 2015-10 → — Figure 71A043F 71A043F 2015-10 → — Figure 71A074C 71A074C 2015-10 → — Figure 71A075F 71A075F 2015-10 → — Figure 71A072C 71A072C 2015-10 → — Figure 71A073D 71A073D 2015-10 → — Figure 719024C 719024C 2015-10 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71537C Protector, Front Seat Cushion Edge, RH
71537E Protector, Front Seat Cushion, NO.1
71537F Protector, Front Seat Cushion, NO.2
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71558B Pad, Front Seatback W/Cover, RH
71568A Pad, Front Seatback W/Cover, LH
71587 Protector, Front Seatback Edge
71587B Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71917 Cover, Seat Belt Hole, LH
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137J Cover, Front Seat Track, RH Rear Outer
72138J Cover, Front Seat Track, LH Rear Outer
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73173B Cover, Front Seat Belt Hole
73178H Cap, Seat Belt Anchor Cover, RH
73179A Cap, Seat Belt Anchor Cover, LH
73187C Guide, Front Seat Shoulder Belt, RH NO.1
73187D Guide, Front Seat Shoulder Belt, RH NO.2
73187E Guide, Front Seat Shoulder Belt, RH NO.3
73187F Guide, Front Seat Shoulder Belt, LH NO.1
73187G Guide, Front Seat Shoulder Belt, LH NO.2
73187H Guide, Front Seat Shoulder Belt, LH NO.3
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85866 Duct, Seat Cushion Climate Control, RH
85866A Duct, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
85868 Bracket, Seat Cushion Climate Control, RH
85868A Bracket, Seat Cushion Climate Control, LH
85987A Clip
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
