Toyota Lexus GS F
2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe
Supported model
Data version 2018-10

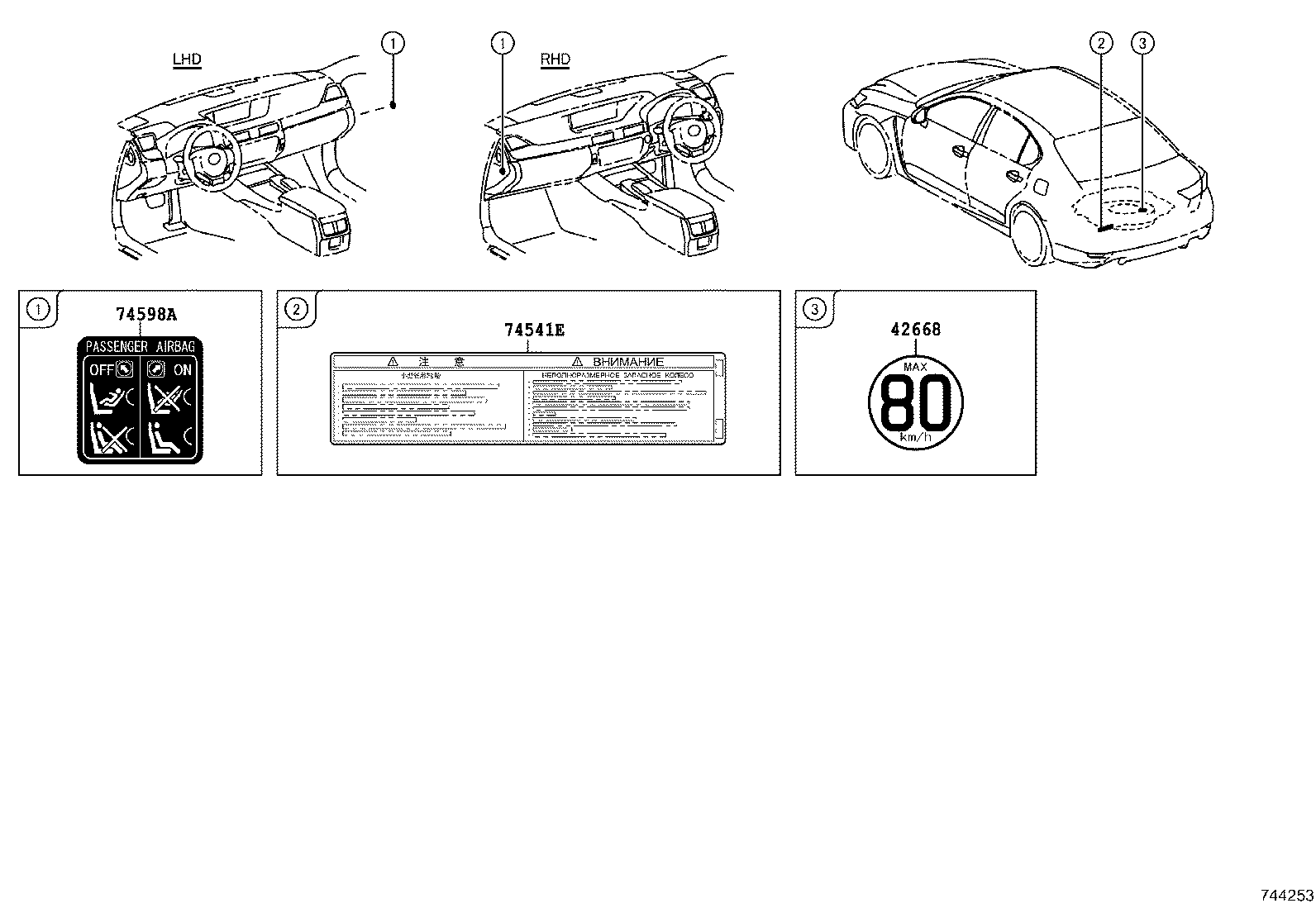

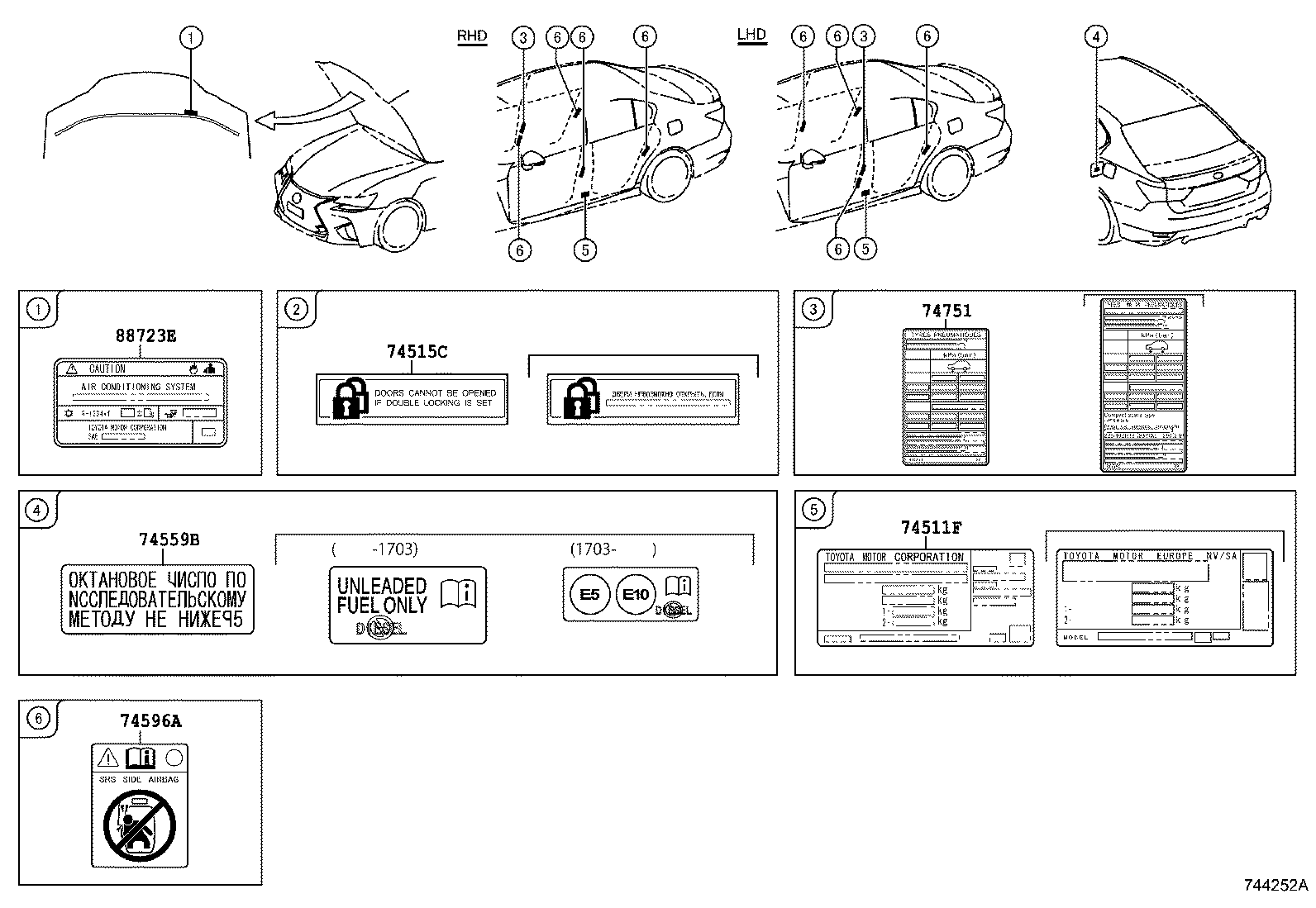

Caution Plate (EXTERIOR & INTERIOR)
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 16793E | Label, Cooling Fan Caution |
| 42668 | Label, Compact Spare Tire Caution |
| 74501B | Label Set, Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
