Toyota Lexus GS F

2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

4 part groups · 2 illustrations

Illustrations

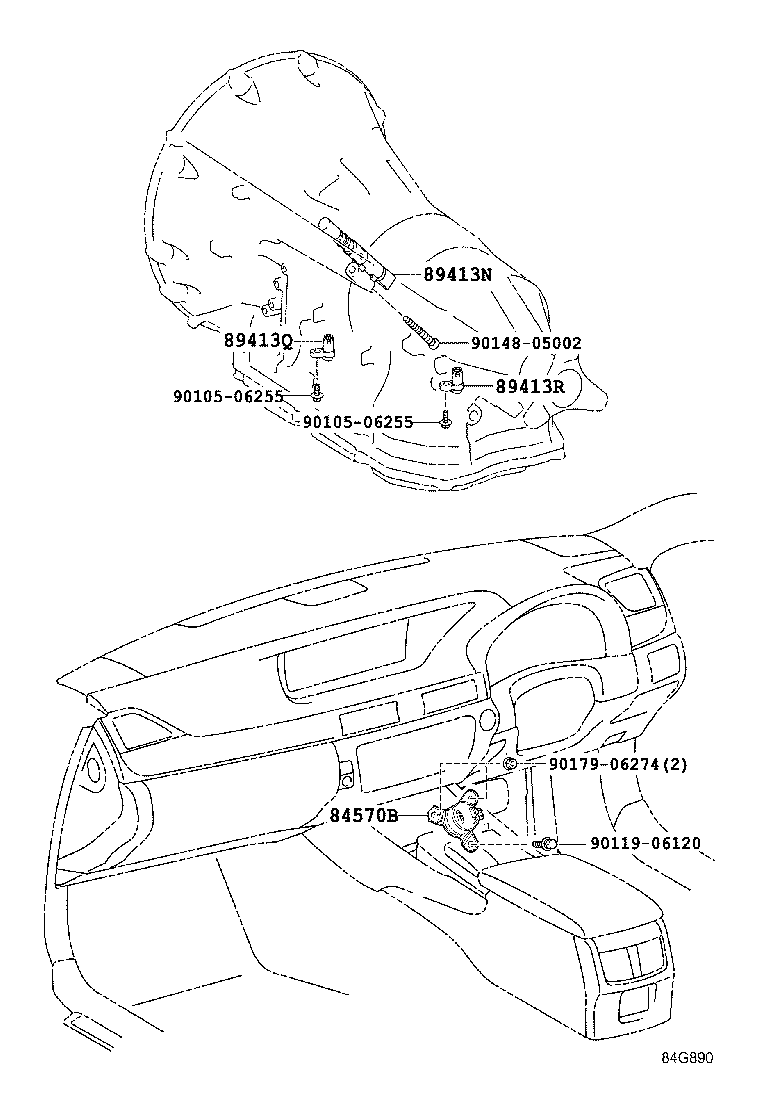

Figure 84G891 84G891 2015-10 → — Figure 84G890 84G890 2015-10 → —

Part groups

PNCDescription
84570B Switch Assy, Kick Down
89413N Sensor, Transmission Revolution, (NT)
89413Q Sensor, Transmission Revolution (NC3)
89413R Sensor, Transmission Revolution (SP2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
