Toyota Lexus GS F

2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

5 part groups · 2 illustrations

Illustrations

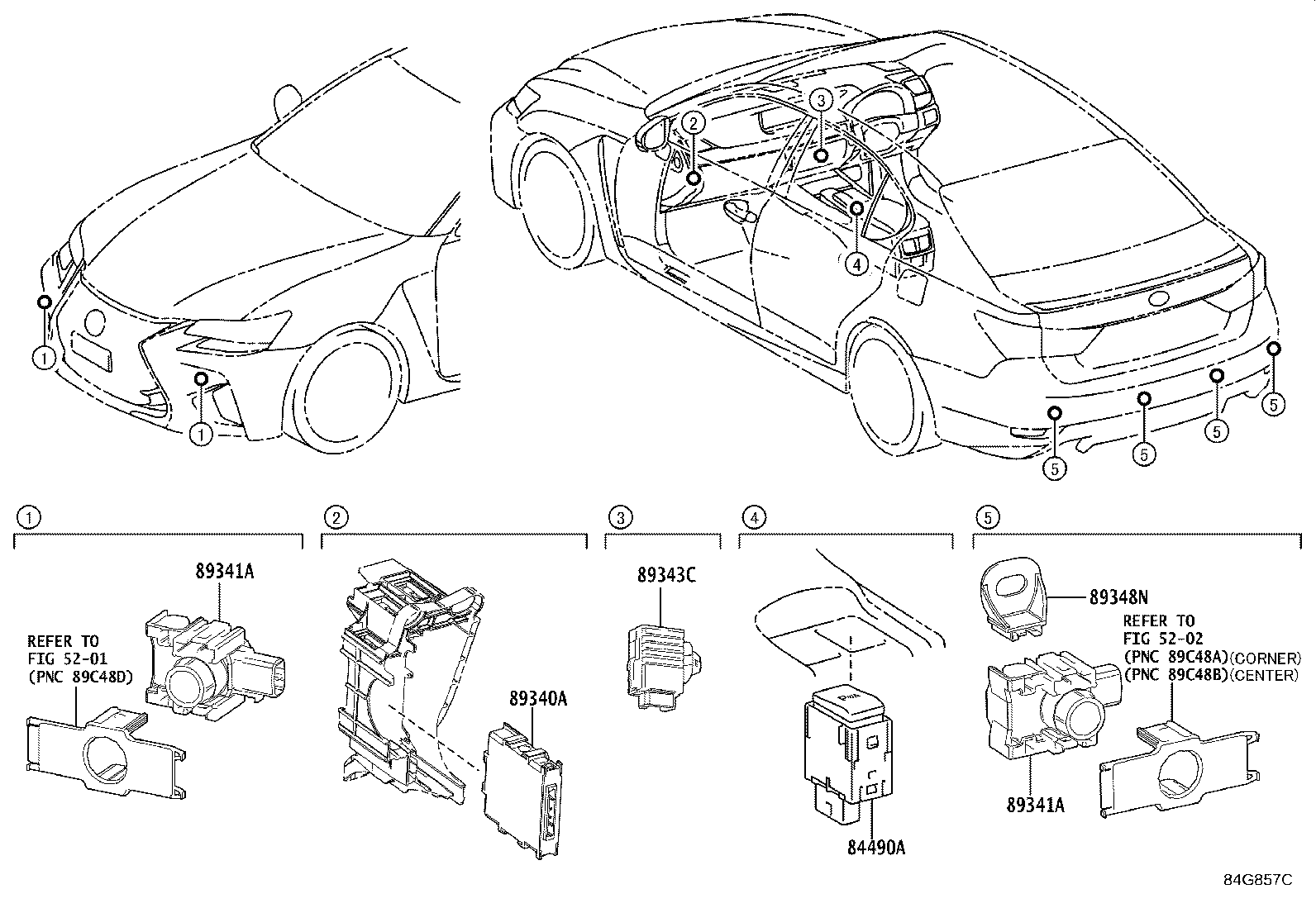

Figure 84G865C 84G865C 2015-10 → — Figure 84G857C 84G857C 2015-10 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89343C Buzzer, Clearance Warning, NO.1
89348N Clip, Ultrasonic Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
