Toyota Lexus GS F
2015-10 → 2018-04 · chassis URL10 · catalogue 336510 · Europe
Supported model
Data version 2018-10

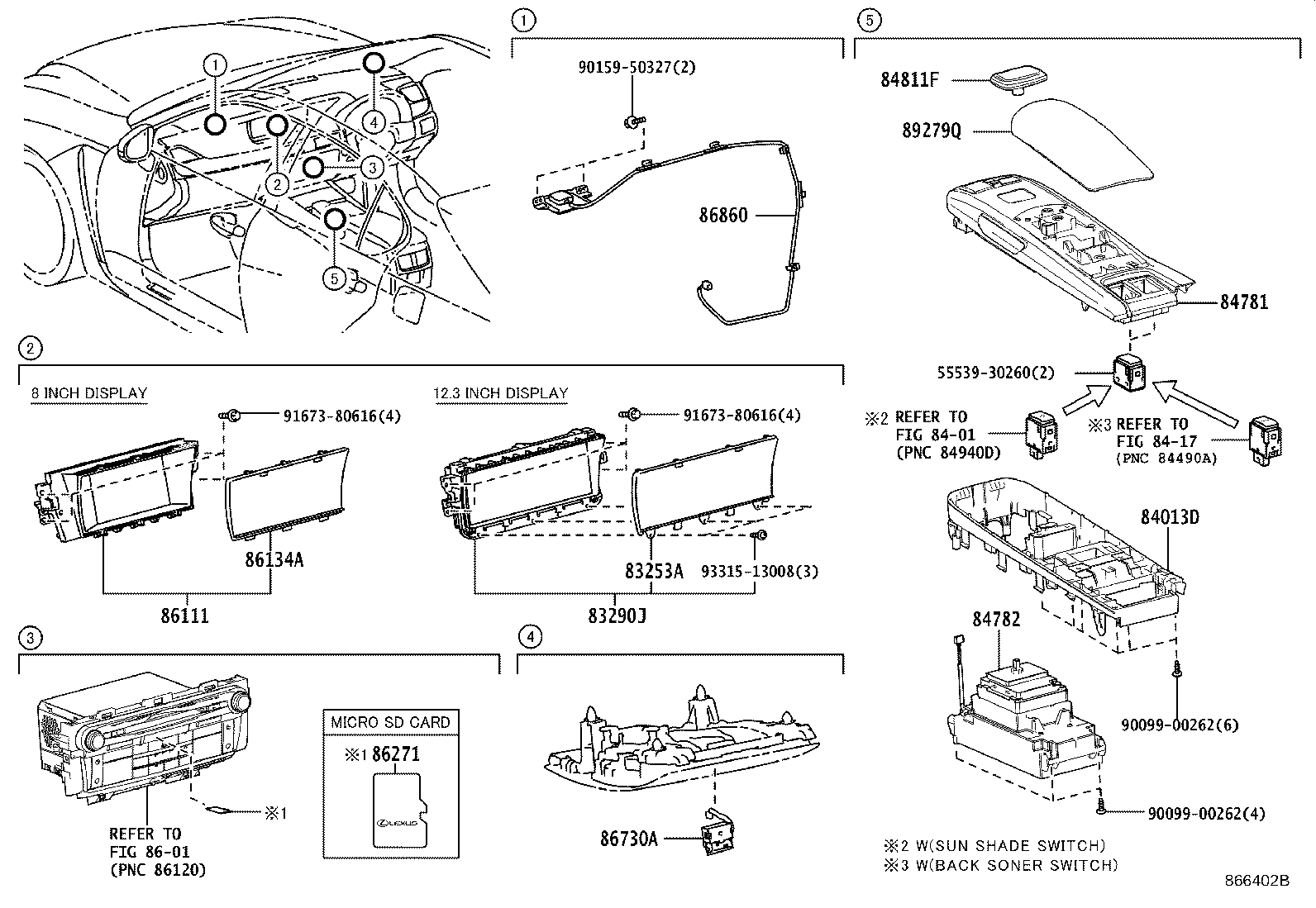

Navigation & Front Monitor Display
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83253A | Glass, Accessory Meter |
| 83290J | Meter Assy, Accessory |
| 84013D | Panel Sub-assy, Integration |
| 84781 | Switch, Remote Operation |
| 84782 | Board, Remote Operation |
| 84811F | Knob, Switch |
| 86111 | Multi-display |
| 86134A | Parts, Multi-display |
| 86271 | Disc, Disc Player |
| 86681B | Divider, Antenna |
| 86730A | Microphone Assy, Telephone |
| 86860 | Antenna Assy, Navigation |
| 89279Q | Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
