Toyota Century
1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe
Discontinued model
Data version 2017-07

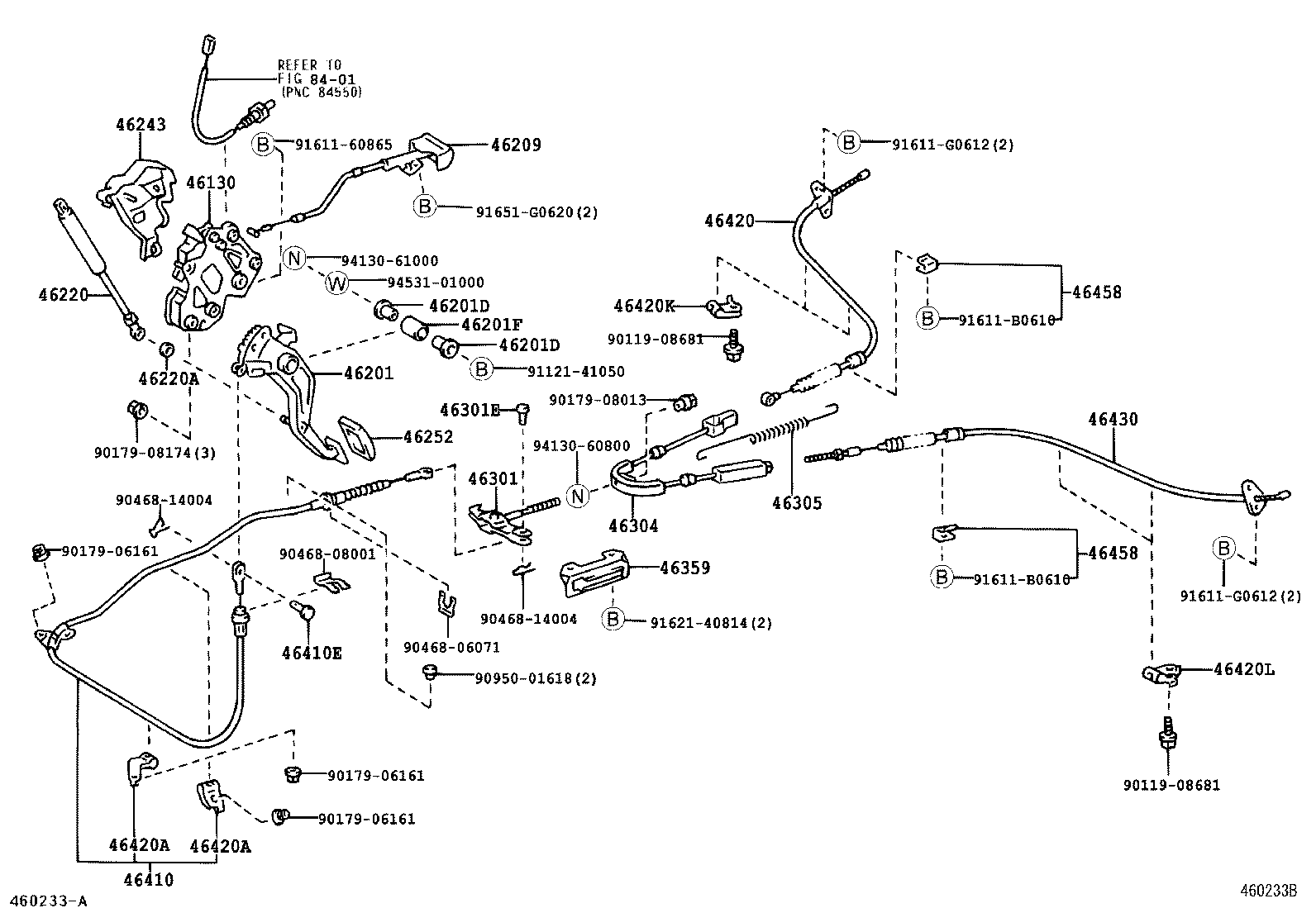

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46130 — Bracket Assy, Parking Brake Pedal | ||||
| 46130-40040 |
Bracket Assy, Parking Brake Pedal
1998-10 → —
|
GZG50 RHD | — | |
| 46130-40050 |
Bracket Assy, Parking Brake Pedal
1998-10 → —
|
GZG50 LHD | — | |
| 46201 — Pedal Sub-assy, Parking Brake | ||||
| 46201-40030 |
Pedal Sub-assy, Parking Brake
1998-10 → —
|
GZG50 RHD | — | |
| 46201-40040 |
Pedal Sub-assy, Parking Brake
1998-10 → —
|
GZG50 LHD | — | |
| 46201D — Bush(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
Bush(FOR PARKING BRAKE PEDAL)
1998-10 → —
|
GZG50 LHD | — | |
| 90386-30002 note |
Bush(FOR PARKING BRAKE PEDAL)
1998-10 → —
|
GZG50 RHD | — | |
| 90386-30003 note |
Bush(FOR PARKING BRAKE PEDAL)
1998-10 → —
|
GZG50 RHD | — | |
| 46201F — Collar(FOR PARKING BRAKE PEDAL) | ||||
| 90387-10109 |
Collar(FOR PARKING BRAKE PEDAL)
1998-10 → —
|
GZG50 LHD | — | |
| 46209 — Cable Sub-assy, Parking Brake Release | ||||
| 46209-40010-B0 note |
Cable Sub-assy, Parking Brake Release
1998-10 → 2017-01
ended
|
GZG50 RHD | — | |
| 46209-40010-E0 note |
Cable Sub-assy, Parking Brake Release
1998-10 → 2017-01
ended
|
GZG50 RHD | — | |
| 46209-40020-B0 note |
Cable Sub-assy, Parking Brake Release
1998-10 → 2017-01
ended
|
GZG50 LHD | — | |
| 46209-40020-E0 note |
Cable Sub-assy, Parking Brake Release
1998-10 → 2017-01
ended
|
GZG50 LHD | — | |
| 46220 — Absorber Assy, Parking Brake Pedal Return | ||||
| 46220-22010 |
Absorber Assy, Parking Brake Pedal Return
1998-10 → —
|
GZG50 RHD | — | |
| 46220-30010 |
Absorber Assy, Parking Brake Pedal Return
1998-10 → —
|
GZG50 LHD | — | |
| 46220A — Cushion(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07012 |
Cushion(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
1998-10 → —
|
GZG50 LHD | — | |
| 46243 — Cover, Parking Brake Lever | ||||
| 46243-50020 |
Cover, Parking Brake Lever
1998-10 → —
|
GZG50 LHD | — | |
| 46252 — Pad, Parking Pedal | ||||
| 46252-20010 |
Pad, Parking Pedal
1998-10 → —
|
GZG50 RHD | — | |
| 46252-50010 |
Pad, Parking Pedal
1998-10 → —
|
GZG50 LHD | — | |
| 46301 — Lever Sub-assy, Parking Brake Intermediate | ||||
| 46301-50020 |
Lever Sub-assy, Parking Brake Intermediate
1998-10 → —
|
GZG50 | — | |
| 46301E — Pin, W/Hole(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
Pin, W/Hole(FOR INTERMEDIATE LEVER)
1998-10 → —
|
GZG50 | — | |
| 46304 — Equalizer Sub-assy, Parking Brake | ||||
| 46304-40030 |
Equalizer Sub-assy, Parking Brake
1998-10 → —
|
GZG50 | — | |
| 46305 — Spring, Parking Brake Return W/Damper | ||||
| 46305-40010 |
Spring, Parking Brake Return W/Damper
1998-10 → —
|
GZG50 | — | |
| 46359 — Guide, Parking Brake Intermediate Lever | ||||
| 46359-50020 |
Guide, Parking Brake Intermediate Lever
1998-10 → —
|
GZG50 | — | |
| 46410 — Cable Assy, Parking Brake, NO.1 | ||||
| 46410-40070 |
Cable Assy, Parking Brake, NO.1
1998-10 → —
|
GZG50 RHD | — | |
| 46410-40090 |
Cable Assy, Parking Brake, NO.1
1998-10 → —
|
GZG50 LHD | — | |
| 46410E — Pin, W/Hole(FOR PARKING BRAKE CABLE NO.1) | ||||
| 90240-08062 |
Pin, W/Hole(FOR PARKING BRAKE CABLE NO.1)
1998-10 → —
|
GZG50 RHD | — | |
| 90240-08064 |
Pin, W/Hole(FOR PARKING BRAKE CABLE NO.1)
1998-10 → —
|
GZG50 LHD | — | |
| 46420 — Cable Assy, Parking Brake, NO.2 | ||||
| 46420-40100 |
Cable Assy, Parking Brake, NO.2
1998-10 → 2012-04
ended
|
GZG50 | — | |
| 46420-40101 |
Cable Assy, Parking Brake, NO.2
2012-05 → —
|
GZG50 | — | |
| 46420A — Clamp, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01511 note |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
1998-10 → —
|
GZG50 LHD | — | |
| 90949-01512 note |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
1998-10 → —
|
GZG50 LHD | — | |
| 90949-01578 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
1998-10 → —
|
GZG50 RHD | — | |
| 46420K — Clamp, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46421-50020 |
Clamp, NO.4(FOR PARKING BRAKE CABLE)
1998-10 → —
|
GZG50 | — | |
| 46420L — Clamp, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46431-50020 |
Clamp, NO.5(FOR PARKING BRAKE CABLE)
1998-10 → —
|
GZG50 | — | |
| 46430 — Cable Assy, Parking Brake, NO.3 | ||||
| 46430-40020 |
Cable Assy, Parking Brake, NO.3
1998-10 → 2012-04
ended
|
GZG50 | — | |
| 46430-40021 |
Cable Assy, Parking Brake, NO.3
2012-05 → —
|
GZG50 | — | |
| 46458 — Retainer, Cable | ||||
| 46458-30060 |
Retainer, Cable
1998-10 → —
|
GZG50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
