Toyota Century
1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe
Discontinued model
Data version 2017-07

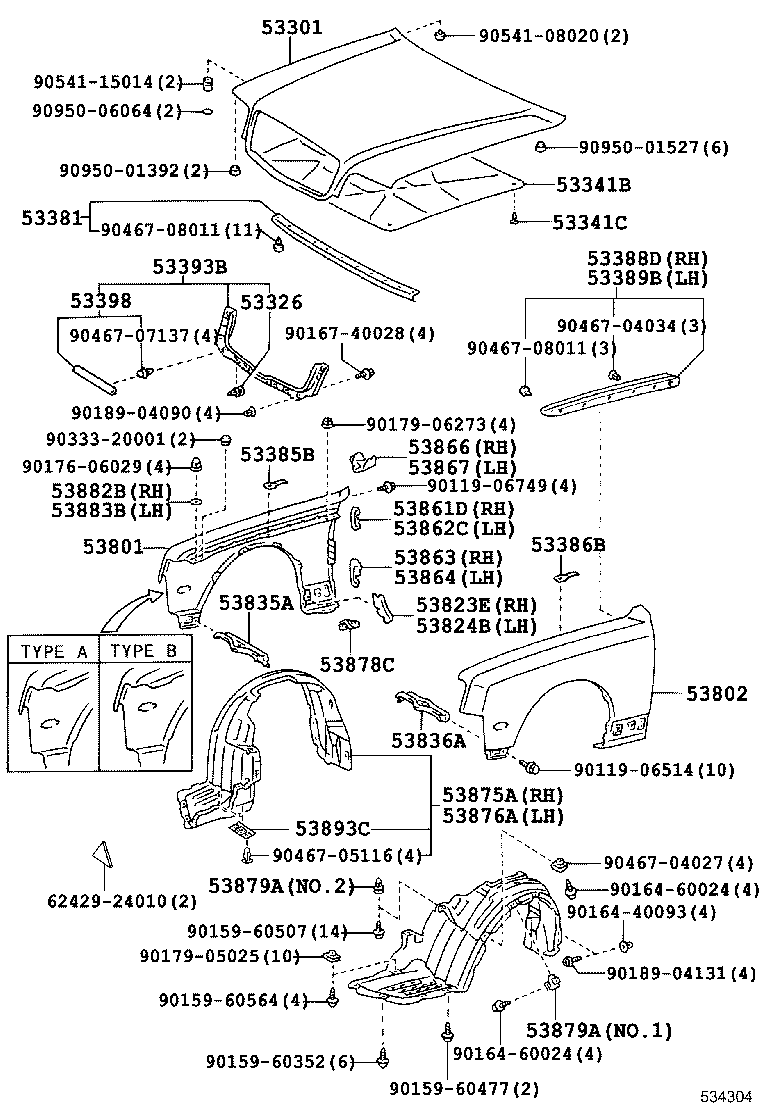

Hood & Front Fender
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53326 | Clip, Hood Protector |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53385B | Bracket, Fender TO Hood Bumper, RH |
| 53386B | Bracket, Fender TO Hood Bumper, LH |
| 53388D | Seal, Hood TO Front Fender, RH |
| 53389B | Seal, Hood TO Front Fender, LH |
| 53393B | Protector, Hood, Front |
| 53398 | Seal, Radiator, Lower |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53823E | Protector, Front Side Panel, NO.2 RH |
| 53824B | Protector, Front Side Panel, NO.2 LH |
| 53835A | Brace, Front Fender TO Apron, RH |
| 53836A | Brace, Front Fender TO Apron, LH |
| 53861D | Seal, Front Fender TO Door Hinge, Upper RH |
| 53862C | Seal, Front Fender TO Door Hinge, Upper LH |
| 53863 | Seal, Front Fender TO Door Hinge, Lower RH |
| 53864 | Seal, Front Fender TO Door Hinge, Lower LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53878C | Spacer, Front Fender |
| 53879A | Retainer, Front Fender Liner |
| 53882B | Seal, Front Fender, RH |
| 53883B | Seal, Front Fender, LH |
| 53893C | Retainer, Front Fender Splash Shield, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
