Toyota Century

1998-10 → 2017-01 · chassis GZG50 · catalogue 341240 · Europe

Discontinued model Data version 2017-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

25 part groups · 2 illustrations

Illustrations

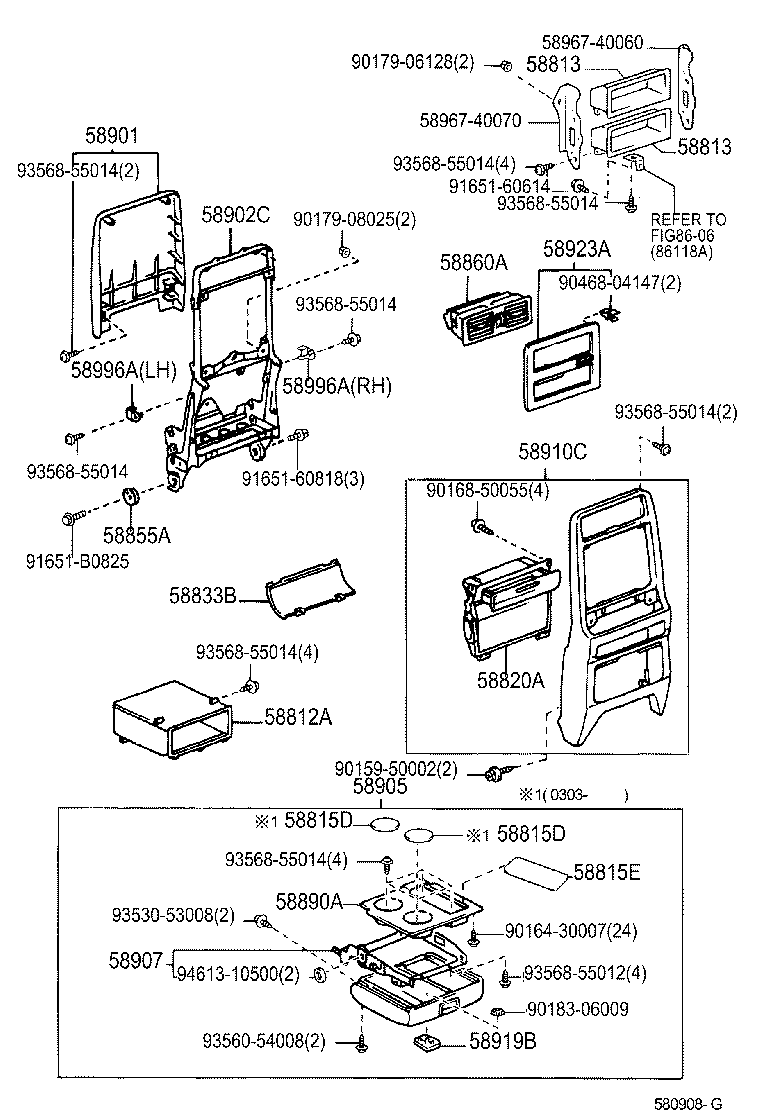

Figure 580310K 580310K 1998-10 → — Figure 580908G 580908G 1998-10 → —

Part groups

PNCDescription
55620 Holder Assy, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58811B Box, Console
58812A Box, Console, Lower
58813 Box, Console, Upper
58815D Sheet, Console Box, NO.1
58815E Sheet, Console Box, NO.2
58820A Box Assy, Console Compartment
58833B Garnish, Console Upper Panel, NO.1
58839A Cover, Console Box Hole
58855A Stopper, Lower Console Box
58860A Register Assy, Console Box
58890A Panel Assy, Equipment Set
58901 Panel Sub-assy, Box
58902C Bracket Sub-assy, Console Box Mounting
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58919B Plate, Console Box
58920A Armrest Assy, Rear Console
58923A Panel, Console Rear End
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
